In production we treat FR4 PCB resin void as a lamination fill problem that is controlled before the press closes. CAM engineers calculate the resin volume needed against the copper topography on each layer pair, then select prepreg resin content and glass style so the available melt can reach every low-pressure zone. Most factories run a vacuum-assisted cycle with a slow temperature ramp that keeps resin viscosity low long enough for flow, followed by full pressure only after the resin has wet the copper surfaces. When the copper density or foil thickness exceeds the normal fill window, we either change the prepreg stack or flag the design for adjustment.
Resin viscosity window closes before the copper gaps are filled
The root limitation sits in the rheology of the FR4 resin system itself. Once the prepreg reaches gel point, flow stops. In a typical FR4 B-stage material the viscosity stays low for only a few minutes under the heat ramp used in production presses. Thick copper (2 oz and above), dense plane areas, or narrow spaces between conductors create channels that require longer flow distance. Heat transfer through a large panel is never perfectly uniform, so the outer zones often gel earlier than the center. Moisture absorbed by the prepreg or core raises the vapor pressure inside the stack and pushes resin out of the critical gaps before they can fill. These process realities force resin voids to appear even when the design looks acceptable on paper.

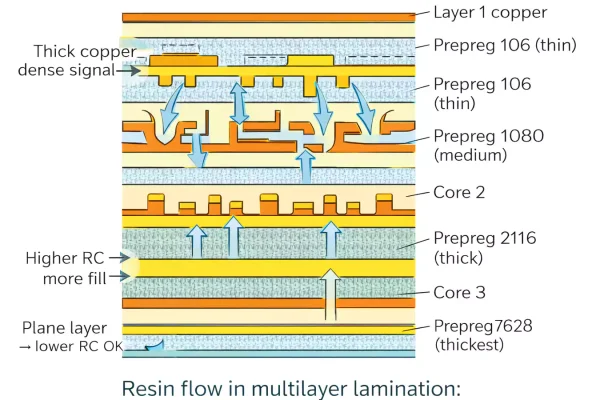

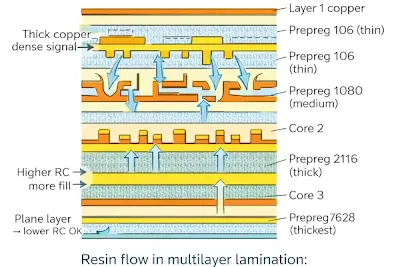

Prepreg construction adds another constraint. Low-resin-content styles such as 1080 or 106 leave little excess melt after wetting the glass. When the adjacent copper is 1.5 oz or heavier and the remaining copper percentage is high, the calculated fill volume falls short. Multiple thin prepregs can improve flow path length, but they also increase the total number of interfaces that must wet properly under the same pressure cycle. From a fabrication standpoint this combination of limited flow time and restricted resin volume is what makes FR4 PCB resin void a recurring production issue rather than a rare defect.
What incomplete resin fill leaves behind after the press opens

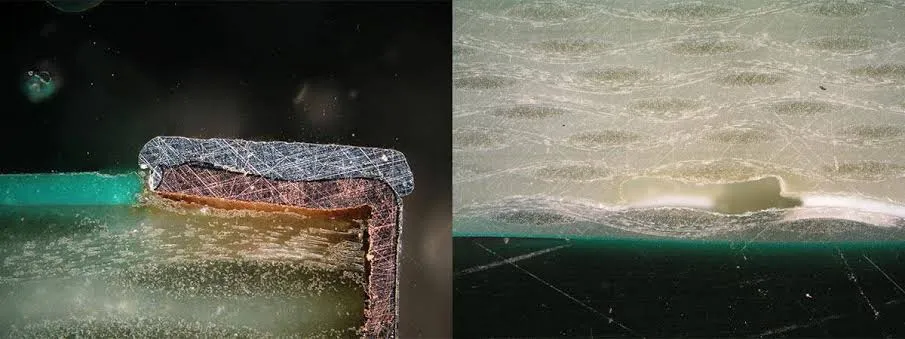

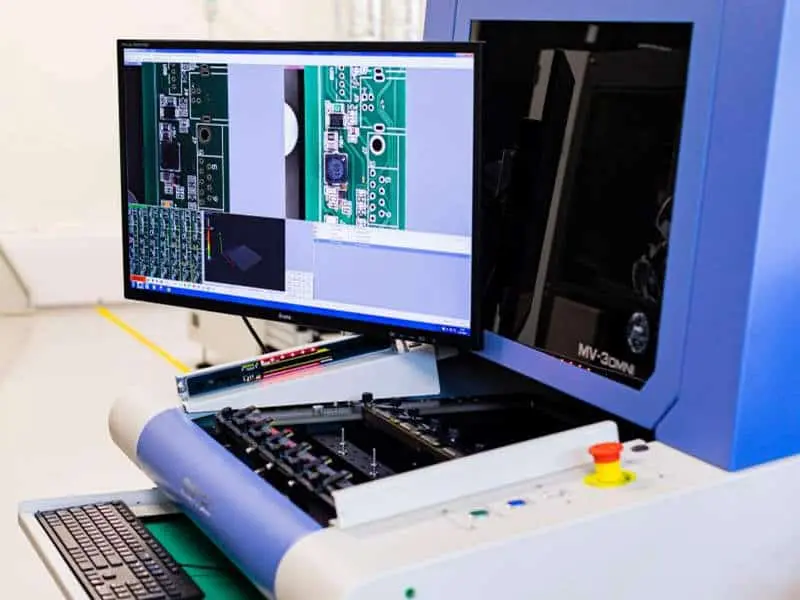

If the void is not caught, the board leaves the press with an unbonded pocket between copper and dielectric. Under subsequent thermal stress—reflow, wave soldering, or thermal cycling—the trapped air expands and drives local delamination. In high-voltage or high-reliability designs the void reduces dielectric strength and can initiate CAF paths along the glass-resin interface. AOI or microsection sampling may miss isolated voids, so the defect often surfaces only at the customer's reliability test or in the field. Scrap rates rise when entire panels must be rejected after cross-section reveals systematic voids under large copper planes. Shipment delays follow because the lot has to be re-laminated or redesigned, and the press schedule is already committed.
How CAM and process teams close the fill gap in daily production
Most factories start with a resin-fill calculation during stack-up review. We estimate the volume of copper that must be displaced on each side of the prepreg and compare it with the resin content of the chosen glass style. When the number falls short, the first move is to substitute a higher-resin prepreg—2116 or 7628 with elevated resin percentage—or to add an extra sheet of thin prepreg. Copper balance is checked next; large unbroken planes are broken with non-functional copper or hatched areas if the design allows, reducing the flow distance the resin must travel.
On the press side the temperature ramp is slowed so the resin stays below gel viscosity for a longer window—typically 3–5 °C/min through the critical range. Full pressure (usually 25–35 kg/cm² depending on the material system) is applied only after the resin has begun to flow, and vacuum is held above 0.9 bar throughout the cycle to remove volatiles. Cores and prepreg are pre-baked to remove moisture before lay-up. For thick-copper constructions we sometimes insert a short intermediate pressure step that forces resin into the deeper channels before the main pressure locks the stack. These parameter sets are locked into the process recipe for each material family so the same result is obtained across shifts.
Inspection is built into the flow. After lamination a sample coupon from each panel is microsectioned at locations of highest copper density. If voids appear above the internal acceptance limit (normally zero voids larger than 50 µm in critical areas), the lot is held and the press recipe or prepreg selection is adjusted before the next run. This closed-loop control is what keeps FR4 PCB resin void from becoming a yield killer on the production floor.
When the factory can relax the fill rules without raising risk
Strict fill calculations and slow ramps are not applied to every board. Low-layer-count designs with 1 oz copper or less and open copper distribution rarely generate voids under standard press cycles, so the extra prepreg or extended dwell time is omitted to keep cost and cycle time normal. Prototype lots that will not see high thermal stress or high-voltage application can run with the baseline recipe provided the customer accepts a higher microsection sampling rate. In these cases the trade-off is clear: shorter process time and lower material cost against a small increase in the probability of an isolated void that will be caught by the extra sections. Once the design moves into volume production with tighter reliability requirements, the full control set is restored.
