In production we remove non functional pads PCB wherever the design allows, especially on HDI layers. CAM engineers review the stackup and netlist, then systematically delete isolated pads that carry no electrical function. This adjustment happens during panelization and data preparation before dry film or laser direct imaging. The goal is cleaner copper distribution across every layer, which directly reduces etching variation in fine-line HDI boards.
How independent pads create etching bottlenecks on HDI panels
On the shop floor, non functional pads PCB show up as small copper islands that sit alone in dense microvia areas. During acid etching, these isolated features etch at a different rate than connected traces because etchant flow and copper dissolution behave differently around disconnected metal. In HDI boards with 50-micron lines and spaces or tighter, this difference becomes critical. The etchant undercuts the fine features near these pads while the pads themselves may retain more copper, leading to inconsistent trace widths across the panel.
What we typically see on the CAM side is that these pads increase local copper density without contributing to electrical performance. When the panel goes through horizontal etching lines, the varying copper load causes flow turbulence and concentration gradients. This is especially pronounced in multilayer HDI where laser-drilled microvias already demand tight registration and uniform plating.

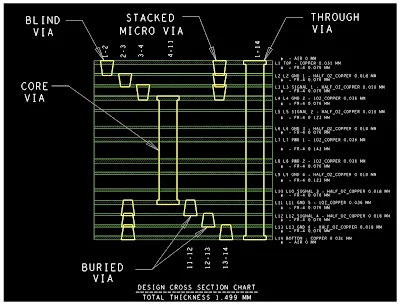

Registration challenges around isolated copper in dense buildup layers
Material movement during lamination and the slight expansion differences between resin and copper make alignment more difficult when extra pads sit unused. In production, we measure inner layer registration after each pressing cycle, and clusters of non functional pads PCB often correlate with higher deviation numbers in those zones.
Why etching risks increase when non functional pads remain in production
Etching engineers watch the etchant chemistry closely, but non functional pads PCB create local areas where copper removal is incomplete or over-etched. In fine-line HDI, this shows up as trace necking, residual copper bridges, or broken features after solder mask application. The risk grows with higher layer counts because each lamination cycle adds more opportunity for stress and movement around these isolated pads.
We have seen panels where these pads sit near microvia stubs and cause the etchant to pool differently, leading to sidewall roughness that affects impedance control. From a fabrication standpoint, this becomes sensitive because HDI designs already push the limits of our plating and etching equipment tolerances.
Impact on solder mask registration and via protection
After etching, the solder mask process struggles when copper features vary in size due to uneven etching. Non-functional pads that survive can shift the mask alignment targets, causing tenting issues over microvias or exposed copper in dense BGA areas. This directly feeds into assembly problems downstream.
Production consequences when non functional pads PCB are left untouched
If we run the job without removal, first-pass yield drops noticeably on HDI panels. We record more scrap from etch defects, particularly in the 3-6 layer buildup sections where copper distribution is already complex. Drilling and routing tools also see higher wear because the extra copper islands change the mechanical load during mechanical drilling of through holes near these features.
In extreme cases, the panel moves to final inspection with intermittent opens or shorts that only appear after thermal stress testing. This leads to delayed shipments and increased rework at the assembly house. Our data from recent HDI runs shows that leaving more than 15% unused pads in high-density zones correlates with 8-12% lower panel yield compared to cleaned designs.
How CAM teams actually clear non functional pads during data prep
Our standard workflow starts with netlist analysis in the CAM system. We identify pads that have no connected copper on that layer and are not required for structural or thermal reasons. These get deleted or converted to copper pour exclusions depending on the design rules. For HDI, we apply this aggressively on buildup layers while keeping pads on core layers when they help with registration targets.
Compensation includes adjusting the panelization layout to balance copper density across the panel. We may add thieving patterns in sparse areas to keep etch rates consistent. Process parameters like etchant spray pressure and temperature get fine-tuned based on the revised copper load. In practice, this step takes extra CAM time but saves significant etching and inspection hours later.
Panel design adjustments that support pad removal
We review the overall copper balance per layer and may shift vias or add dummy traces only where necessary. For laser-drilled microvias, removing surrounding non functional pads PCB improves plating uniformity inside the holes because etchant and plating solution reach the features more evenly. Registration marks stay visible and we maintain fiducial accuracy within 25 microns across the panel.
Inspection after etching uses AOI tuned to the cleaned data set, catching defects faster because the background is more uniform. This whole approach directly lifts yield by reducing the variables in the etching step.
When we allow non functional pads to remain in HDI builds
Exceptions happen on simpler designs or when the customer requires specific thermal pads for heat dissipation that cannot be replaced by other means. Low-layer-count prototypes sometimes keep them to speed up initial CAM turnaround. In those cases we tighten etching controls and add extra AOI checks, accepting slightly lower panel utilization. The trade-off is higher cost per board and longer lead time, which most production HDI runs avoid by cleaning the data upfront.
For high-volume automotive or telecom HDI boards, we rarely allow relaxation because the yield impact compounds across thousands of panels. Designers who provide netlist information early give us the best chance to optimize without back-and-forth.
Recommended Figure: Flowchart of CAM workflow for non-functional pad removal in HDI panel preparation, including netlist check, density analysis, and post-etch verification steps.
From the production line, removing non functional pads PCB has become routine for reliable HDI fabrication. It reduces etching risks, improves registration stability, and lifts overall yield without changing the electrical performance of the finished board. When designers supply clean intent data, we can deliver panels that run smoother through every process station from imaging through final electrical test.
