During multilayer lamination and cooling, copper foil, cores, and prepreg all change dimension. If material, dielectric thickness, and copper distribution on the two sides of the finished-thickness midplane are asymmetric, thermal stress forms a net bending moment. Equal layer count, total thickness, and outer-layer copper thickness therefore do not prove that the stackup is balanced.
It may still be a six-layer board. Board thickness, outer copper thickness, and finished size may be unchanged. The second revision still shows a clear bow after reflow. Laid flat on a surface plate, one of the four corners lifts. The copper-thickness report is still acceptable. The judgment must be stated clearly: the same total copper quantity does not mean the same stress distribution on both sides of the thickness midplane.
Warpage is not caused only by one layer being "too thick." Lamination heat-up, resin flow, cure shrinkage, and cooling act together. If the two sides of the stackup are not approximately mirrored, dimensional changes cannot cancel each other. This article discusses only stackup symmetry and a single-variable check that can be done before shipment.
Same Layer Count: Why the Structure Can Still Be Asymmetric
Judge symmetry about the midplane of finished board thickness. Compare each layer in the upper half with the corresponding layer in the lower half, item by item. Pairing a signal layer with a signal layer and a power layer with a power layer is only the starting point. Copper thickness, dielectric type, dielectric thickness, and large-area copper coverage must also be checked.
For example, the upper side may use a thinner prepreg while the lower side uses a thicker core. Or the upper signal layer may be almost empty while the lower power layer is nearly solid copper. Both sides nominally have three layers, yet stiffness and shrinkage paths after lamination are still different. Layer numbers on the drawing can look symmetric while the material stack is not.
Along Which Path Do the Forces Behind Warpage Form?
Copper, glass cloth, and resin have different thermal expansion and cure-shrinkage behavior. During heat-up and lamination, each material is constrained in the plane. After cooling, if the upper and lower sides shrink by different amounts, the board tends to bend like a bimetallic strip. The closer the difference is to the outer surface, the longer the moment arm usually becomes.

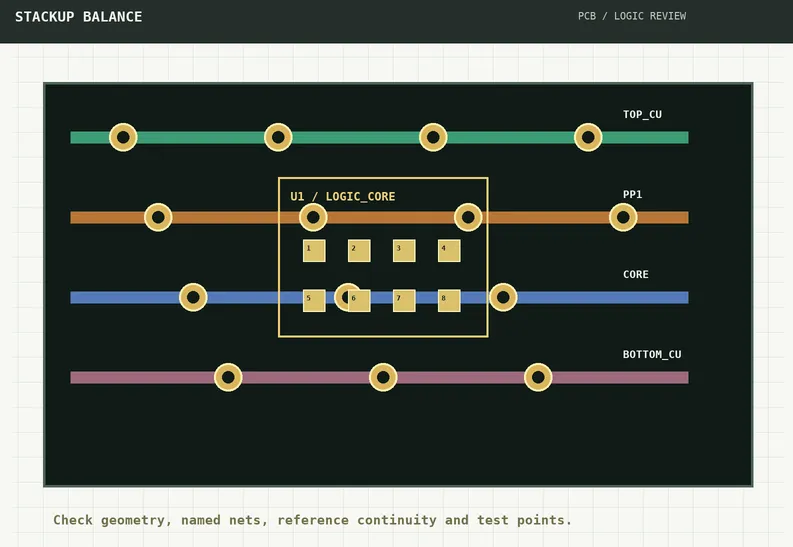

Local copper density also changes resin flow and regional stiffness. Average copper coverage across the whole board can still be similar while a large copper area in the upper-left corner and a large empty area in the lower-right corner create local imbalance. Review therefore cannot stop at one board-level percentage. Paired layers and zonal copper quantity must also be observed.
The object of a warpage review is not "whether there is a lot of copper." It is whether stress can approximately cancel about the thickness midplane.
Which Fields Must Be Checked for a Mirrored Stackup?

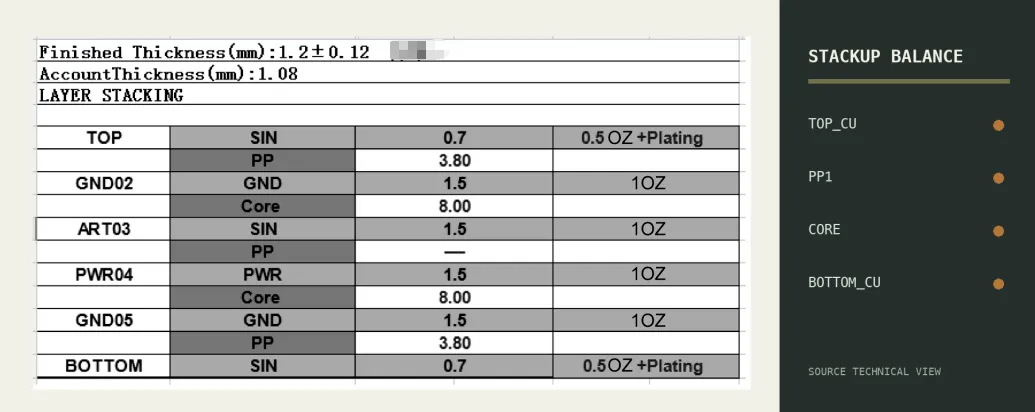

Print the fabricator stackup table and mark pairs from the outer layers toward the center. Corresponding layers should have a defined relationship in copper thickness, core or prepreg type, dielectric thickness, resin content, and target impedance construction. Not every field must be numerically identical, but any asymmetry must have an electrical or manufacturing reason.
If power and ground layers carry different copper areas, copper-balance patterns, process-edge copper fill, or a reordered stackup can reduce the difference. Copper fill must still obey electrical clearance and net rules. Do not add floating copper near high-speed nodes or change impedance boundaries merely to make the layout look uniform.
- Materials in pairs: check cores, prepreg, and resin systems.
- Thickness in pairs: compare corresponding dielectric distances about the finished midplane.
- Zonal copper quantity: look at both whole-layer average and local density.
How to Run a Warpage Check Without Mixing Variables

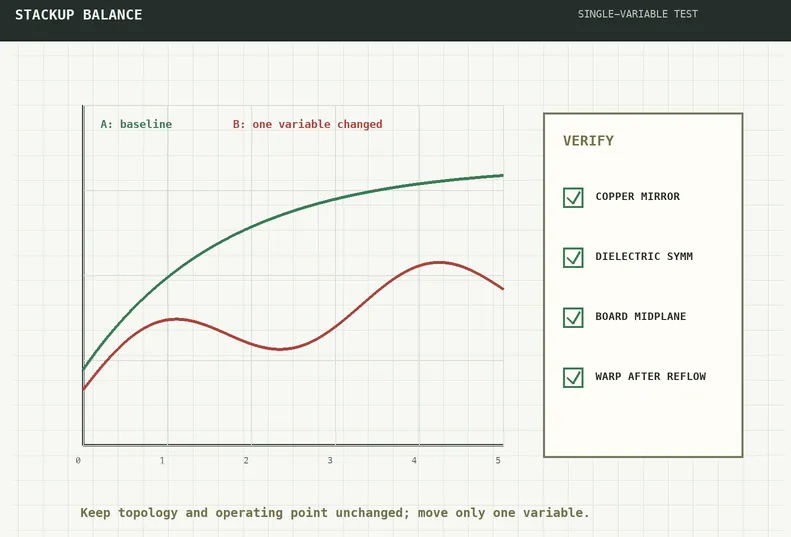

Use the same laminate lot, the same outline, the same total thickness, and the same lamination parameters. Change only the stackup so that it is closer to a mirror. Keep the rest of the layout and the surface finish unchanged. Record bow and twist after lamination, after finishing, and after reflow. Do not compare boards of different size or different copper-thickness lots together.

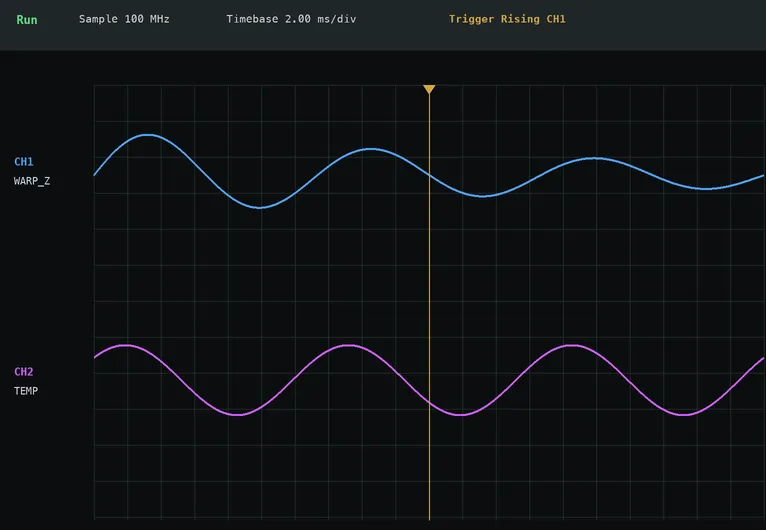

If only one board revision can be built, first cover the risk areas with the fabricator’s stackup and copper-balance review, then set fixed measurement points on the panel process edges and on the finished-board diagonals. A single visual check that the board "looks flat" is not a substitute for numbers. Change after temperature cycling better shows whether residual stress is still being released.
A symmetric stackup reduces warpage risk, but it does not guarantee that every design will be perfectly flat. Ultra-thin boards, very large boards, local heavy copper, mixed-dielectric constructions, embedded copper blocks, and asymmetric component thermal mass can all introduce new structural differences and still need evaluation against the fabricator’s actual process.
Impedance, voltage withstand, current-carrying capacity, and reference-plane requirements must not be sacrificed for formal symmetry. The reliable sequence is to meet electrical function first, then balance materials and copper distribution about the midplane as far as possible, and write the reasons for remaining asymmetry into the stackup notes and the inspection plan.
- Lock manufacturing conditions. Keep material, thickness, outline, and lamination parameters the same.
- Change only stackup balance. Do not change copper thickness and panel orientation at the same time.
- Measure at the same points. Repeat the record after lamination, after finishing, and after reflow.
Conclusion
Layer count and total copper thickness are only statistics. What supports an engineering decision is paired materials, paired thicknesses, zonal copper quantity, and measured bow after reflow.
The next time a revision is described as "six layers to six layers, copper thickness unchanged," do not assume the mechanical risk is unchanged. Fold the stackup table about the midplane and find, item by item, the materials and copper distributions that have no mirror relationship.
If the finished board lifts only at one corner or along one edge, overlay local copper density, panel orientation, and component thermal mass on the same drawing. That investigation is faster than watching total thickness alone.
Is the bow on your board a full-board arch, a diagonal twist, or a lift only in a local heavy-copper area?
