A panel may perform normally during assembly and testing, only to show cracked fine traces near the V-CUT after depaneling, with nearby ceramic capacitors occasionally failing as well. The problem is not necessarily insufficient copper thickness. Instead, depaneling can concentrate strain into the structures closest to the score line. A V-CUT only reduces the board thickness; the actual separation still relies on bending or a cutting tool. If traces, pads, and brittle components fall within this stress zone, passing all electrical design rules cannot prevent mechanical damage.

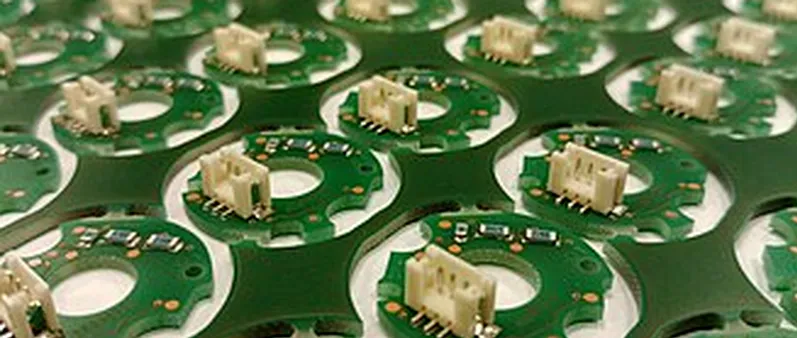

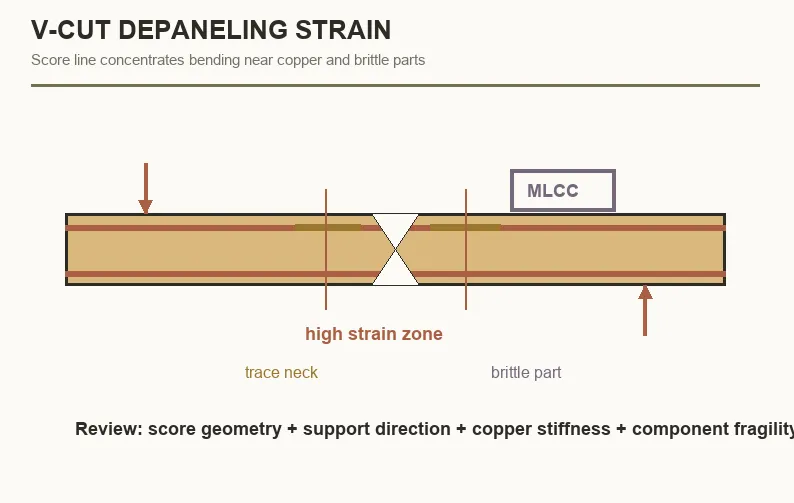

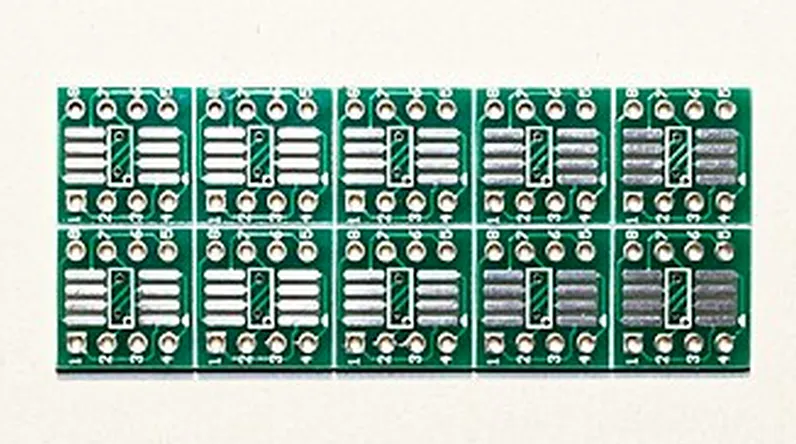

V-CUT Is a Line of Stress Concentration
The scoring blades cut into both sides of the board, leaving a thin section of substrate that keeps the individual boards connected. During depaneling, this remaining thickness bends like a hinge: the outer copper layer is stretched while the inner copper layer is compressed. Score depth, upper-to-lower blade offset, board thickness, copper distribution, and depaneling direction can all change the resulting strain. Long straight copper areas, narrow trace necks, and large pads near the score line can further transfer local deformation to hole walls or solder joints. The fact that a trace does not physically intersect the V-CUT only proves geometric separation; it does not mean the trace is mechanically safe.

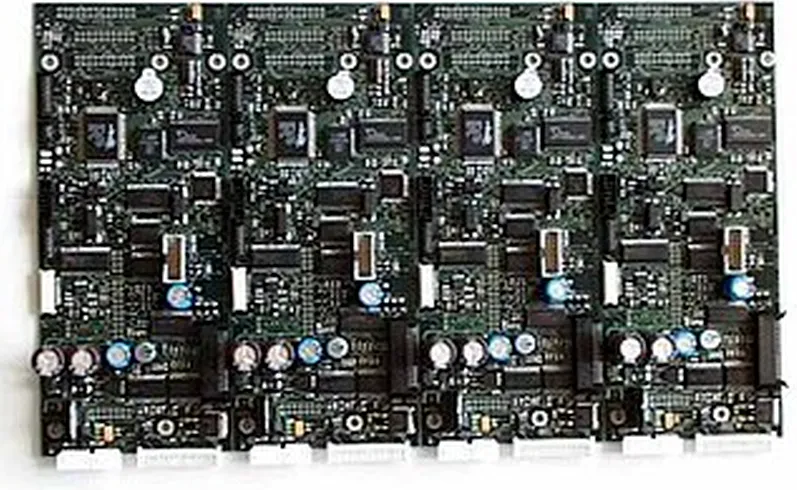

The Board Material Is Often Not the First Thing to Fail
Thick copper or continuous ground planes can make certain areas stiffer, causing strain to shift toward rigid-to-flexible transitions. The necks where fine traces connect to large pads, via annular rings, and corners of copper areas can create new points of stress concentration. MLCCs, crystal oscillators, glass-packaged devices, and BGA solder joints are particularly sensitive to bending. Their external appearance may remain intact while internal microcracks have already formed. Defects may not become apparent immediately after depaneling; thermal cycling, vibration, or secondary assembly can later turn them into intermittent failures. Therefore, the V-CUT keep-out zone should not address copper traces alone. The component body, pads, and mechanical loads during rework should also be considered.

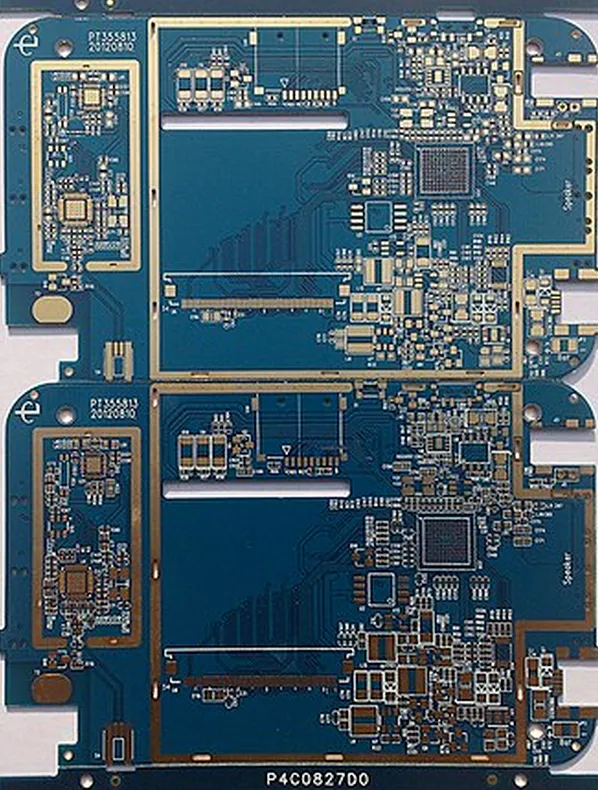

There Is No Universal Keep-Out Distance
The applicable stress range varies with board thickness, layer count, score depth, copper thickness, individual board size, and depaneling equipment. Manual snapping, roller cutters, and milling fixtures also apply force in different ways. During design, first confirm with the PCB manufacturer the V-CUT remaining thickness, blade-offset capability, and processable boundaries. Then confirm with the assembly side which depaneling equipment will be used, where the board will be supported, and from which direction the tool will enter. Design rules can classify components according to their sensitivity: ordinary small resistors and capacitors, connectors, ceramic components, BGAs, and fine traces can each use validated safe zones rather than applying one fixed spacing to every object.
Review the PCB Along the Direction of Force
Overlay the board outline, V-CUT, component outlines, pads, and copper areas on all layers. Start by drawing the depaneling line, then mark the force and support directions. Check for long narrow traces running parallel to the score line, copper necks crossing abrupt stiffness transitions, edge-near vias, and brittle components located near the bending axis. Prototype validation should not stop at checking electrical continuity after depaneling. Copper surfaces and solder joints should also be inspected under magnification, and critical components should undergo controlled bending or subsequent functional retesting. If components or traces must be placed close to the edge, prioritize changing the depaneling method, adding support, or adjusting component orientation.
Include Mechanical Information in the Panelization Deliverables
The panel drawing should clearly specify the V-CUT locations, tool-entry direction, allowable blade offset, remaining-thickness requirements, and areas where manual snapping is prohibited. The assembly drawing should also identify edges that require fixture support. For critical products, retain one sample before depaneling and one after depaneling, then compare electrical test results, appearance, and microscopic inspection results. If the only field feedback is that a failure occurred after depaneling, also investigate the depaneling equipment, board orientation, operating direction, and score depth for the affected lot. This helps prevent a mechanical failure from being misdiagnosed as a random soldering issue.
The design-rule review should also change from simply asking “How far is it from the board edge?” to asking “Which type of board edge, which depaneling method, and which revision of manufacturing capability does this distance depend on?” This ensures that the requirement is reconfirmed whenever the PCB manufacturer or equipment changes. If the product undergoes secondary assembly, post-depaneling handling and screw fastening should also be included in validation. A board-edge connector being press-fitted, a housing locating post pushing against a sub-board, or screws being tightened in an asymmetric sequence can all cause microcracks introduced during V-CUT depaneling to propagate further.
For high-reliability products, strain gauges can be placed at critical edges, or digital image correlation can be used to observe the depaneling process and compare the maximum strain with the allowable value for the component. Production sampling should not select only the visually best boards. It should also cover combinations with the most asymmetric copper distribution, the longest individual boards, and the largest score-depth deviation. If V-CUT is replaced with mouse bites, the load points change from a continuous score line to localized connection bridges. Trace, burr, and board-edge quality rules must therefore be rebuilt accordingly rather than directly carrying over the V-CUT keep-out distance. If a design change moves the board outline or rotates an individual board, this inspection should be run again because components that were previously far from the score line may fall onto a new bending axis.
If a panelization supplier changes the layout to improve material utilization, the revised layout should also be returned to the design team for confirmation. Panelization should not be treated as a purely manufacturing-side file.
Whether an area near a V-CUT is safe is not determined by a single boundary in the DRC. It depends jointly on the score groove, copper distribution, component fragility, and depaneling motion. Drawing the stress path during the design stage is far less costly than tracing an intermittent crack after mass production.
