The FR4 vs aluminum PCB thermal decision is not about which substrate "runs cooler on a datasheet." It is about whether heat has a short, defined path off the copper and whether that path is cheaper than adding vias, heavy copper, and a heat sink on FR4. Aluminum IMS wins when a few high-watt parts sit on a simple layout and the metal base can bolt to a chassis. FR4 wins when you need multilayer routing, plated through-holes, and ordinary power density. Most failed RFQs we see either put 3 W LEDs on 1.6 mm FR4 with no thermal vias, or they specify aluminum for a 6-layer control board that cannot even be drilled through the metal.
When a Metal Core Is the Right Thermal Call
From a fabrication standpoint, FR4 is still the default for almost every board that does not have a concentrated heat source. Thermal conductivity of the laminate is only about 0.3 W/m·K. That is enough when copper planes, thermal vias, and airflow carry the load. It is not enough when a MOSFET or mid-power LED dumps several watts into a few square millimeters and the only path out is through the dielectric.
An aluminum PCB puts copper on a thin thermally conductive dielectric, then on an aluminum plate. The metal itself conducts around 150-230 W/m·K. The dielectric — typically 75-150 µm at 1-3 W/m·K in volume production — is the real thermal resistor. We normally recommend aluminum when that short vertical path beats what FR4 can do with vias, and when the schematic does not need a multilayer nest of signals through the metal. If the heat can spread in copper and leave through a clip-on sink, FR4 remains the cheaper manufacturing choice.
What Changes First Between FR4 and Aluminum IMS
| Factor | FR4 PCB | Aluminum PCB (IMS) |
|---|---|---|
| Useful thermal conductivity | ~0.3 W/m·K through the laminate | Dielectric 1-3 W/m·K typical (up to ~8); aluminum base ~150-230 W/m·K |
| Primary heat path | Copper planes, thermal vias, external sink | Copper → thin dielectric → aluminum → chassis or sink |
| Electrical insulation | Bulk FR4 is the insulator | Only the dielectric isolates copper from the metal |
| Typical layer count | 1 to 20+ layers, standard PTH | Mostly 1 layer; 2-layer and metal-core multilayers cost more and yield less |
| Mechanical structure | Lighter, can flex or warp under heat | Stiff plate; good heat spreading, harder to machine |
| Board cost vs FR4 | 1x baseline | Often ~2-4x for simple 1-layer IMS; more if 2-layer or high-W/m·K dielectric |
| Manufacturing complexity | Any standard line | Special routing, no casual PTH through metal, dielectric must be named |
| Typical applications | Control, comms, low-to-moderate power | LED modules, power stages, automotive lamps, motor drivers |
The comparison that matters in CAM is not "aluminum versus glass epoxy." It is FR4 with a thermal via array versus IMS with a specified dielectric thickness and W/m·K. Quote packages that only say "aluminum PCB, 1.5 mm" without a dielectric grade get sent back.
Which Option Wins Under Different Thermal Priorities
| If your priority is... | Better choice | Why |
|---|---|---|
| Lowest board cost and fastest prototype | FR4 | Stock material, standard process, any shop |
| Lowest junction temperature on a few hot parts | Aluminum PCB | Short path through a thin dielectric into a metal spreader |
| Dense multilayer routing and PTH | FR4 | Metal core fights vias, inner layers, and controlled impedance |
| High isolation voltage | FR4, or thicker IMS dielectric | FR4 gives bulk insulation; thin high-W/m·K films trade voltage for heat |
| LED / power module bolted to a housing | Aluminum PCB | The plate is the heat sink interface |
| Mass production of mixed digital + modest power | FR4 + thermal vias / heavy copper | Cheaper than converting the whole board to IMS |
Why Thermal Conductivity Numbers Get Misquoted
A common FR4 vs aluminum PCB comparison quotes 0.3 W/m·K against 200 W/m·K and stops there. That comparison is incomplete. Heat leaving a pad on IMS must cross the dielectric first. In production, that film is usually 1.0, 1.5, 2.0, or 3.0 W/m·K. Premium grades go higher, but they cost more and often run thinner, which cuts breakdown voltage. The aluminum plate then spreads heat sideways. If the plate never touches a sink or chassis, most of the metal advantage is wasted.
FR4 is a poor bulk conductor, but copper is not. A 2 oz plane plus a via farm under a pad can move a surprising amount of heat to the opposite side, where a sink or airflow sits. The trade-off is drill count, plating, and still a long path through glass-epoxy if you expect the laminate itself to carry watts. We see FR4 work on distributed 0.2-0.5 W parts and fail on a single 3-5 W LED with no copper pour and no vias.
From a fabrication standpoint, specify dielectric W/m·K and thickness on IMS the same way you specify Tg on FR4. "Aluminum, good heat dissipation" is not a stackup.

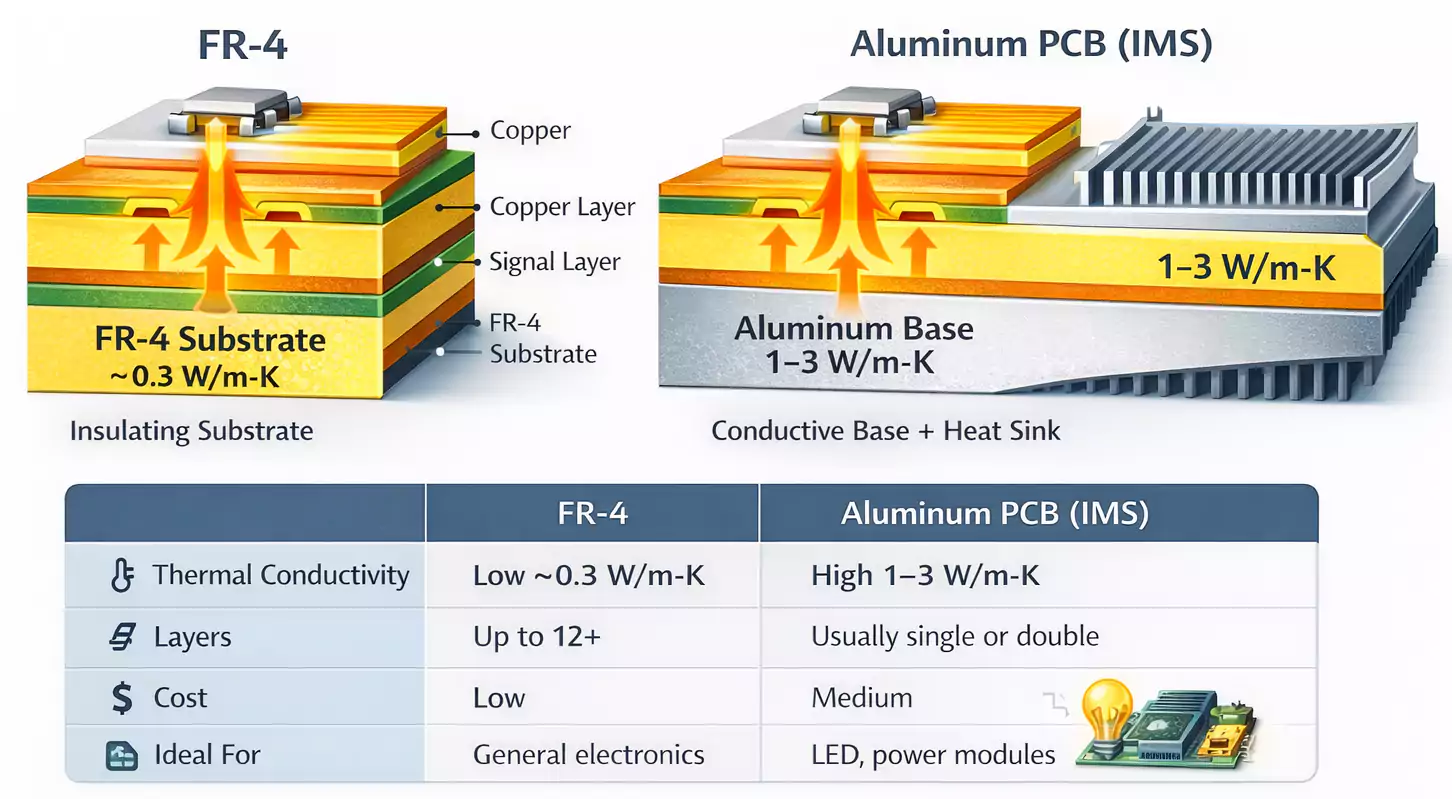

How the Heat Path Differs Once the Board Is Built
On FR4 the heat path is mostly in-plane copper, then down selected vias, then into air or a discrete sink. That path is design-dependent. CAM can add vias, but we cannot change physics if the layout left a thermal pad sitting on soldermask over 1.6 mm of glass. In production we typically recommend via diameter, plating, and a keep-out so the pad does not starve of copper.
On an aluminum PCB the intended path is short and vertical: component copper → dielectric → aluminum → TIM → housing. Lateral spreading in the plate is a bonus. The disadvantage is that anything that interrupts the metal — oversized insulated holes, slots, or a second copper layer that forces extra dielectric — lengthens that path. Two-layer IMS exists, but the extra insulation and the need to isolate vias through aluminum raise cost and drop yield. Most shops would rather keep IMS single-sided and move control circuits to a separate FR4 daughter board.
Thermal interface on the back of the aluminum is part of the manufacturing conversation. Bare aluminum oxidizes and is not flat to optical standards. If the customer expects the raw plate to replace a machined sink without TIM, junction temperature will miss the model. We flag that during DFM the same way we flag missing via-in-pad on FR4 power footprints.
Insulation FR4 Gives You for Free
FR4 is an insulator that happens to hold copper. Creepage and clearance are layout problems, not substrate problems, until you get into very high voltage. An aluminum PCB is a conductor with a thin coating. Isolation voltage is set by dielectric thickness, filler, pinholes, and edge distance. A 75 µm high-conductivity film that looks excellent on a thermal plot may only be comfortable at low voltage. A 150 µm mid-grade film trades some heat for a more honest hipot result.
This becomes noticeable during electrical test. FR4 boards fail hipot when spacing is wrong. IMS boards fail hipot when the dielectric is thin, damaged at a drilled hole, or undercut at the outline. Mounting holes through aluminum need insulation or an isolating shoulder; otherwise the screw shorts the plate to a circuit or to earth in a way the designer did not intend. Most PCB manufacturers will ask for working voltage before locking dielectric thickness. If that number is missing, we default conservative and the thermal resistance goes up.
The FR4 vs aluminum PCB thermal argument should not ignore this trade. Thinner, hotter-running dielectric is not "better" if the product has to pass 2-3 kV isolation.
Why the Mechanical Structure Limits What You Can Route
FR4 can be thin, thick, flex-rigid, or twenty layers. Aluminum IMS is a plate. That stiffness is useful: LED bars stay flat, power modules do not oil-can in the housing, and warp after reflow is usually lower than a large thin FR4 panel. The cost is weight, limited outline options, and machining. Routing aluminum needs different feeds than glass-epoxy. Small holes in the metal are slow. Dense thermal-via fields copied from an FR4 footprint can chew the plate to pieces once the isolation drill is oversized to leave a dielectric wall.
CTE mismatch is the reliability item CAM worries about after heat. Aluminum expands more than copper and far more than a ceramic LED package. The dielectric has to absorb that strain through reflow and field cycling. Cheap dielectric plus large ceramic packages is a solder-joint and pad-lift risk. FR4 is not innocent either — it warps and its Z-CTE hammers vias — but the failure modes are known on every line.
Layer count is the structural limit that kills more aluminum RFQs than thermal conductivity. If the schematic needs inner planes, buried vias, or a ground sandwich, stay on FR4 and spend the money on copper weight and a heat sink. If the schematic is one copper layer of LED strings or a half-bridge, the plate is the right structure.
Where Each Construction Actually Gets Used
Aluminum shows up in LED modules, street and industrial lamps, automotive lighting, small motor drives, and simple power stages that bolt to a metal housing. Those jobs have high watts per square centimeter and almost no routing density. FR4 shows up everywhere else: controllers, comms, appliances, and power boards where heat is spread across many parts or handled by a discrete sink on a few packages.
A hybrid assembly is common in production even when the customer asked for "one aluminum PCB." Drive the LEDs or FETs on IMS. Put the MCU, connectors, and isolated supplies on FR4. That split keeps process risk on the metal core and keeps yield on the digital side. We normally recommend that split before we recommend 2-layer IMS with insulated vias through aluminum.
We normally look at watt density first, then layer count. A 1-layer LED drawing with large copper pours and a named 2.0 W/m·K dielectric is a clean aluminum job. A 4-layer gerber stamped "please use aluminum for heat" is not. Process stability on FR4 is higher because every line already runs it. IMS needs controlled dielectric press, aluminum routing, and careful outline quality so the thin insulation is not cracked at the edge.
Panel utilization differs. FR4 panels are standard sheet sizes with familiar scoring. Aluminum sheets are heavier, scoring is limited, and many outlines are milled one-up or in small arrays. That labor shows up in unit price even when the metal itself is not exotic. Tooling holes and fiducials must sit where they do not short through damaged dielectric.
Inspection on IMS includes hipot to the plate, peel on the dielectric, and flatness. FR4 inspection is the usual electrical test plus impedance if specified. Yield tends to decrease on 2-layer aluminum when isolated PTH is required: each hole is an insulation feature, not just a drill. We normally steer those designs back to FR4 plus a heat sink or to a single-sided IMS plus a connector.
Most PCB manufacturers will recommend FR4 when thermal vias and copper can meet the rise. We recommend aluminum when the metal plate is part of the product's heat sink and the circuit fits on one or two layers. We recommend against mixing a high-W/m·K marketing number with an unspecified voltage and a via-in-pad farm copied from an FR4 library.
Pick the Stack That Matches the Heat Path, Not the Catalog Photo
Choose FR4 if you:
- Need more than one or two signal layers, or plated through-holes as a normal interconnect.
- Can keep junction temperature in range with copper weight, thermal vias, airflow, or a discrete sink.
- Want the lowest board cost, shortest lead time, and any qualified shop.
- Need bulk electrical insulation without betting on a 75-150 µm film.
- Are running mixed digital and modest power on the same outline.
Choose an aluminum PCB if you:
- Have concentrated watts (LEDs, FETs, regulators) on a simple copper layer.
- Can bolt or bond the aluminum back to a housing or sink with a real TIM.
- Will name dielectric thickness, W/m·K, and working voltage on the drawing.
- Accept 2-4x board cost and more limited machining versus FR4.
- Do not need a dense via field through the metal.
Split the product if you:
- Have a hot power stage and a busy control section on one schematic.
- Would otherwise force 2-layer insulated vias through aluminum.
- Can accept a connector or solder joint between an IMS power plate and an FR4 controller.
There is no single winner in the FR4 vs aluminum PCB comparison. The better thermal construction is the one whose heat path exists in the finished assembly, not only in the laminate table.
Questions That Show Up on IMS and FR4 RFQs
Q1: Is aluminum always better than FR4 for thermal management?
A1: Only when heat can cross a thin dielectric into a metal plate that actually rejects heat. If the plate hangs in air, or the circuit needs four layers of PTH, FR4 with copper and vias is often cooler at the system level and cheaper to build.
Q2: What dielectric W/m·K should I specify on an aluminum PCB?
A2: Volume lighting and modest power usually start at 1.0-2.0 W/m·K and 75-100 µm. Move to 2.0-3.0 W/m·K when pad temperature is still high. Higher grades help, but check breakdown voltage before you thin the film.
Q3: Can I copy an FR4 thermal-via footprint onto aluminum IMS?
A3: Usually no. Vias through aluminum must be isolated, the isolation drill removes metal, and dense via farms can weaken the plate. On single-sided IMS the heat path is down through the dielectric, not through a via array. Redesign the pad as a copper pour over intact metal.
Q4: How much more does an aluminum PCB cost than FR4?
A4: Simple 1-layer IMS is often about 2-4x a comparable FR4 board, more with 2-layer construction or premium dielectric. System cost can still fall if the plate replaces a sink and cuts LED or FET failures. Quote both constructions before locking the housing.
Q5: Does a thicker aluminum base always run cooler?
A5: A thicker plate spreads heat better and stays flatter. It does not fix a thick or low-W/m·K dielectric, and it does nothing if the back of the plate has no thermal interface. Dielectric spec and mounting matter more than jumping from 1.5 mm to 2.0 mm aluminum.
Q6: When should I keep power on aluminum and control on FR4?
A6: When the hot devices want a metal plate and the rest of the schematic wants vias, connectors, and inner layers. That split is usually higher yield than forcing the entire product onto 2-layer IMS.
