FR4 vs CEM-3 PCB: Which Laminate Should You Choose?

When Woven-Glass FR4 Is the Safe Default and When CEM-3 Earns the Cost Cut

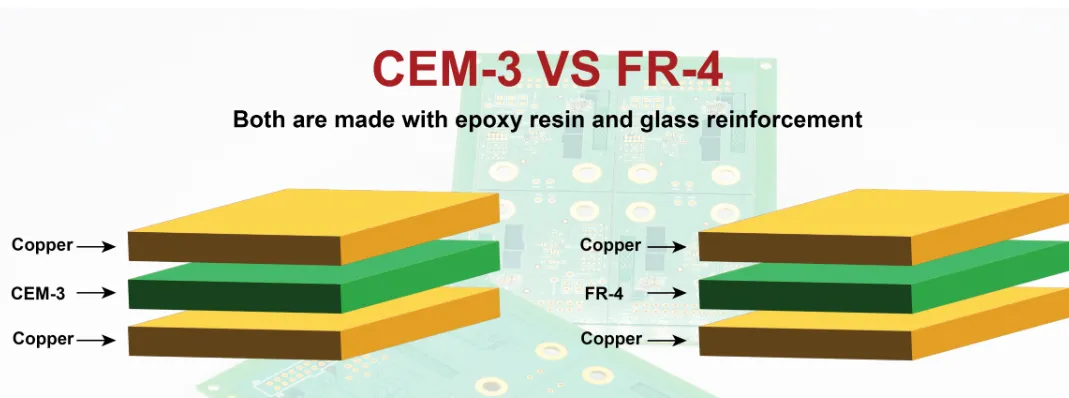

The FR4 vs CEM-3 PCB decision is a laminate-construction decision, not a resin-family swap. Both boards use flame-retardant epoxy and glass reinforcement. What changes is how that glass is arranged. FR4 uses woven E-glass cloth through the full thickness. CEM-3 uses woven-glass skins over a non-woven glass-mat core. From a fabrication standpoint, FR4 is the better manufacturing choice when the board is multilayer, sees lead-free reflow more than once, needs a named impedance stack, or has to live on any shop's default process. CEM-3 is the better choice when the product is a high-volume double-sided board, the outline and holes can be punched, and a few percent of laminate-plus-tooling cost actually moves the unit price.

We normally recommend treating CEM-3 as a punchable, double-sided FR4 substitute — not as a drop-in for every FR4 drawing. Electrical numbers at 1 MHz sit in the same neighborhood. Mechanical stiffness, Z-axis stability, Tg headroom, and multilayer registration do not. If the drawing only says "FR4, UL94 V-0," most manufacturers will buy woven-glass FR4. If it says CEM-3 and the construction is 1.0–1.6 mm double-sided with a simple hole map, the shop will look at punching, drill-bit life, and whether that grade is already on the shelf.

What Separates FR4 from CEM-3 Before the First Drill Hits the Panel

Which Laminate Wins When the Priority Changes

The Core Is Not Woven Glass, and That Is the Whole Difference

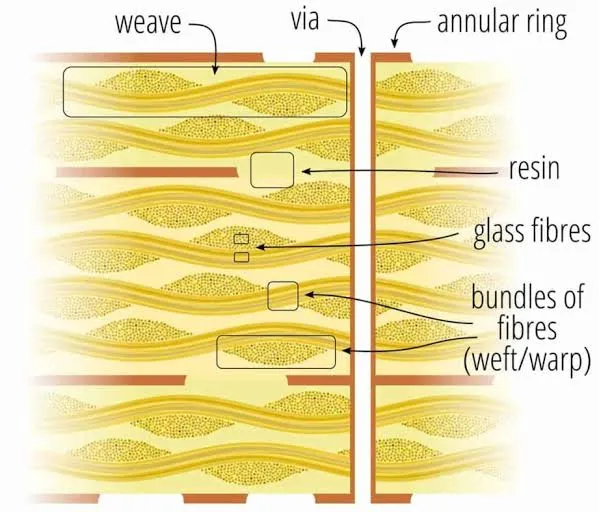

During CAM review, FR4 vs CEM-3 is decided by the reinforcement, not by the word "epoxy." FR4 is a stack of woven glass cloth prepregs pressed with copper foil. Every ply has warp and fill. That weave is why FR4 is stiff, why it holds a plated hole wall, and why a punch die tears it instead of shearing it. CEM-3 keeps woven-glass skins so the copper surface still looks and etches like FR4, then fills the middle with non-woven glass mat — chopped or felted fiber bound in the same flame-retardant epoxy. The core is softer, more resin-rich, and does not have a continuous yarn to fight a punch or a drill flute.

Do not mix CEM-3 with CEM-1. CEM-1 is woven-glass skins over a cellulose paper core. It is a single-sided, punchable commodity and is not a PTH material in normal production. CEM-3 is all-glass. That is why it can take plated through-holes and why some buyers treat it as "almost FR4." From a fabrication standpoint, "almost" is the problem. Peel, Z-CTE, and multilayer bond are good enough for double-sided work and marginal once you start building a book.

Appearance is a useful incoming check. Standard FR4 is opaque yellow-green. Most CEM-3 is milky white. If a lot is supposed to be CEM-3 and the panel looks like everyday FR4, stop and read the slash sheet before the first drill program is released.

Why CEM-3 Drills Easier and Why FR4 Still Owns the Multilayer Press

In production, the first place FR4 vs CEM-3 shows up is the drill room. Woven glass is abrasive. A standard FR4 stack eats bits at a known rate, and the shop budgets that rate into the quote. The non-woven core in CEM-3 cuts cleaner. Bit life commonly stretches 30–50% on the same hole sizes and stack height. Router bits and V-score blades last longer as well. On a double-sided consumer panel with hundreds of holes, that is real money — not a datasheet talking point.

Punching is the larger process split. Thin CEM-3 (about 1.6 mm and under, tighter on 1.0 mm) can be die-punched at room temperature with a qualified die. Thicker sheets need mild heat, typically under about 66°C, so the resin shears instead of fracturing. Once the die is paid for, a punched hole map is cheaper per panel than a drilled FR4 map at high volume. FR4 is not punched in serious production. The weave leaves a ragged wall, the copper lifts at the hole, and PTH quality collapses. If the customer wants a punched outline on FR4, we normally push back and quote routing.

The trade-off appears on the plated hole. CEM-3 takes electroless copper and pattern plate. Yield on everyday 0.3–0.8 mm holes is acceptable on a shop that already runs the grade. The hole wall is still a mix of woven skin and mat core, so smear, glass-fiber protrusion, and local resin recession are a little less uniform than on FR4. That gap is invisible on a power-adapter board. It becomes visible on small vias, high-aspect holes, and boards that will see thermal cycle testing. Most PCB manufacturers will not recommend CEM-3 as the default for 4-layer work. Inner image, oxide, and press recipes exist, but registration and inter-laminar strength sit on a narrower window than woven FR4 of the same thickness.

Where Reliability Starts to Separate After Assembly Heat

Electrical performance at 1 MHz does not decide this comparison. Dk on CEM-3 is typically around 4.5–4.8; standard FR4 sits around 4.2–4.6 depending on resin content and weave. Df is slightly higher on many CEM-3 grades. For a 50/60 Hz adapter, an LED backlight, or a consumer MCU board with no impedance note, neither factory nor designer will feel the difference. Above roughly 100 MHz, or on a named 50 Ω / 90 Ω / 100 Ω stack, FR4 wins because the core and prepreg catalog, the Dk library, and the dimensional stability are what the CAM stack-up is built on.

Thermal class is a sharper line. Standard CEM-3 Tg is commonly 110–130°C. Standard FR4 is 130–140°C, and mid-Tg / high-Tg FR4 is a catalog item. Lead-free reflow peaks near 245–260°C. A double-sided CEM-3 board with one reflow and modest copper can survive that. A board with two reflows, a wave or selective solder pass, and heavy copper pours is where we start seeing pad lift, inner-plane movement on any CEM-3 multilayer attempt, and a shorter T288 than the customer assumed. We normally recommend FR4 — and often mid-Tg FR4 — once the assembly profile is lead-free and the board is not a simple single-pass consumer part.

Mechanical reliability follows the weave. Flexural strength on FR4 is higher in both length and cross directions. Connector insertion, screw bosses near the edge, and vibration loads open cracks in CEM-3 sooner because the core does not carry load the way a continuous cloth does. Moisture absorption is also a little less forgiving on many CEM-3 systems. That shows up as more Z-axis growth in bake and reflow, and as a slightly higher CAF conversation if someone tries to push fine hole pitch onto a cheap grade. None of this makes CEM-3 unreliable for its intended products. It makes it the wrong laminate when the reliability spec was written around woven FR4.

Where the Cost Comparison Actually Shows Up on the Quote

Buyers often expect CEM-3 to be 30–40% cheaper than FR4. On a finished double-sided board that is not the number we see. Laminate is typically about 5–15% below equivalent standard-Tg FR4. The rest of the saving, when it exists, comes from process: longer drill life, less router wear, and punching instead of drilling once volume pays for the die. On a 50-piece prototype there is often no saving at all, because the shop may not stock the grade and will not cut a punch die. On a 20,000-piece appliance board with a stable hole map, the 5–15% is real and repeats every lot.

Lead time runs the other way at proto quantity. FR4 cores and prepregs sit in almost every stockroom. CEM-3 is common on lighting and white-goods lines in China, Japan, and Korea, and less common at Western quick-turn houses. If the RFQ is "any material that meets UL94 V-0, ship in five days," FR4 is what gets built. If the RFQ is a running appliance part with an approved CEM-3 slash sheet, the factory already has the grade and the punch tool on the floor.

Do not chase the cost cut onto a 4-layer or impedance board. Moving a multilayer construction onto CEM-3 to save laminate dollars usually costs more in yield risk, extra inspection, and customer qualification than the sheet price returns. We normally quote FR4 and say so.

How the Factory Reads FR4 vs CEM-3 on the Drawing

During DFM, the first question is layer count. Two copper faces and a modest hole list: CEM-3 is eligible. Four layers or a controlled-impedance table: FR4 unless the customer has already qualified a CEM-3 book and accepts the process notes. The second question is assembly heat. One lead-free reflow on a 1.6 mm 2-layer part is inside the CEM-3 window on a decent grade. Multiple reflows, heavy copper, or an automotive thermal-cycle spec pushes the recommendation back to FR4.

CAM then looks at the hole map and outline. If the customer wants punching, the material note has to say CEM-3 (or another punchable grade). Writing "FR4, punch holes" is how lots get held at DFM. Minimum punched hole size, web between holes, and distance to copper all need to match the die design, not a drill chart. If the board stays drilled, CEM-3 still helps bit life, but the cost gap shrinks and availability starts to dominate the decision.

Process risk is mostly substitution and incoming mix-ups. FR4 and CEM-3 can look close enough on a rushed receiving dock if color is ignored. A shop that runs both grades keeps them on separate rack locations and checks the manufacturer mark before lay-up. Inspection does not change much on a 2-layer part — same AOI, same electrical test. Microsection on first article should include the hole wall at the skin-to-core transition on CEM-3, because that is where plating voids hide if desmear was copied from an FR4 recipe without a trial.

What factories usually recommend: stay on FR4 when the customer has not named CEM-3, when the board will be built in more than one shop, or when the construction is multilayer. Offer CEM-3 when the product is a running double-sided consumer or lighting part, the hole map is stable, and the approved vendor list already includes a CEM-3 grade. Do not "upgrade" a qualified CEM-3 appliance board to FR4 without checking fit, color, and UL file, and do not "downgrade" a multilayer FR4 design to CEM-3 to shave a few percent off the laminate line.

Recommended Figure: Decision flowchart starting at layer count, then assembly profile, then punch vs drill, then volume. End nodes: FR4 default, CEM-3 2-layer punched, and "stop and qualify" for mixed or multilayer CEM-3 requests.

Which Option You Should Put on the Fabrication Note

Choose FR4 if you:

• Are building 4-layer or higher, or any stack with a controlled-impedance table
• Need mid-Tg or high-Tg headroom for lead-free multi-reflow or a hot power section
• Will prototype at more than one shop and cannot depend on CEM-3 stock
• Have fine vias, a BGA, or a thermal-cycle / CAF reliability requirement written around woven glass
• Load the board mechanically — connectors, screws near the edge, vibration
• Have not named a CEM-3 slash sheet and just wrote "FR4, UL94 V-0"

Choose CEM-3 if you:

• Are running a double-sided consumer, lighting, TV, adapter, or white-goods board at volume
• Can punch the outline and hole map and will amortize the die
• Want the 5–15% finished-board cost reduction that comes from laminate plus tool life, not a catalog fantasy of 40%
• Stay inside one lead-free reflow and a modest copper weight on 1.0–1.6 mm
• Already have a CEM-3 grade on the AVL and a shop that runs that grade every week
• Do not need a high-Tg family or a multilayer press book

There is no universal winner in this FR4 vs CEM-3 PCB comparison. FR4 remains the manufacturing default because it is stocked, multilayer-capable, and thermally more forgiving. CEM-3 remains the right laminate when the product is a high-volume double-sided board and punching plus drill life are part of the cost model. Pick the reinforcement that matches layer count, assembly heat, and hole-forming method — not the cheaper name on a material list.

Questions Engineers Ask Before They Swap the Laminate Callout

Q1: Is CEM-3 the same thing as FR4 with a different color?

A1: No. Both use flame-retardant epoxy and glass, but FR4 is woven cloth throughout. CEM-3 is woven-glass skins over a non-woven glass-mat core. That core is why CEM-3 punches and drills easier, and why it is weaker in flex and less at home in multilayer presses.

Q2: Can I drop CEM-3 onto a drawing that currently says FR4?

A2: Only if the construction is double-sided, the assembly heat is modest, the UL file and AVL allow it, and you change the note on purpose. Silent substitution on a multilayer or impedance FR4 board is a reliability and documentation problem, not a cost tweak.

Q3: How much cheaper is a CEM-3 PCB than FR4 in real production?

A3: Plan on about 5–15% on a finished double-sided board at volume, driven by sheet price plus drill or punch savings. Prototype quantities often show little or no saving. Claims of 30–40% usually confuse CEM-3 with paper-core CEM-1 or ignore process and yield.

Q4: Does CEM-3 support plated through-holes and lead-free assembly?

A4: Yes on PTH — that is the point of CEM-3 versus CEM-1. Lead-free is grade- and profile-dependent. One reflow on a 1.6 mm 2-layer part is common. Multiple reflows, heavy copper, or a high-Tg requirement belong on FR4 unless the specific CEM-3 datasheet and a first-article microsection say otherwise.

Q5: When is punching actually cheaper than drilling?

A5: After the die is amortized and the hole map stops changing — typically mid to high volume on a stable consumer or lighting part. Every ECO that moves a hole puts you back in front of the tool shop. FR4 should stay drilled and routed regardless of quantity.

Q6: What should the fabrication drawing say so the factory does not guess?

A6: Write the laminate family (FR4 or CEM-3), Tg minimum, UL94 V-0, thickness and copper weight, and whether holes are drilled or punched. If CEM-3 is required, name the slash sheet or "CEM-3 equivalent allowed." If FR4 is required, say "woven-glass FR4, CEM-3 not acceptable." A note that only says "FR4 or equivalent" is how CEM-3 appears on a board that was never qualified for it.
