The FR4 vs CEM-1 PCB decision is a construction and process decision, not a close electrical contest. Both are rigid epoxy laminates with a UL94 V-0 path. What changes is the reinforcement inside the sheet. FR4 is woven glass through the full thickness. CEM-1 is a cellulose paper core with woven glass on the copper face. That paper core is why CEM-1 punches cleanly, costs less, and should stay single-sided. It is also why plated through-holes, multilayer books, and lead-free reflow become a factory risk.

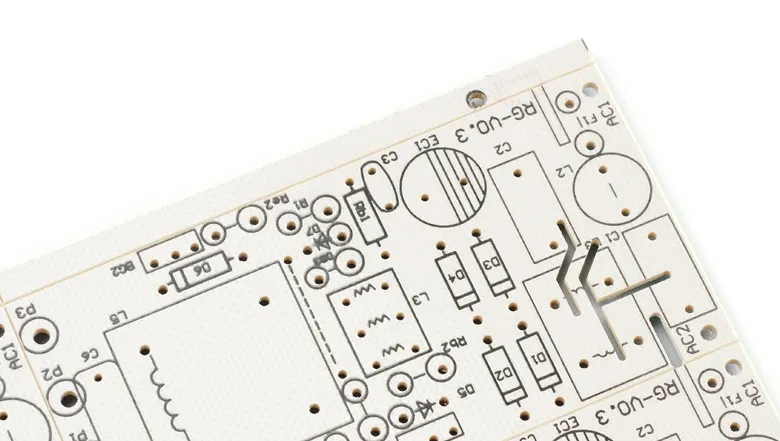

From a fabrication standpoint, CEM-1 is the better manufacturing choice when the board is single-sided, volume is high enough to justify a punch die, assembly is wave or selective solder, and the product lives at modest temperature. FR4 is the better choice as soon as you need two copper faces with plated holes, more than one layer, vibration strength, a named impedance stack, or a lead-free SMT profile that sits near or above the CEM-1 Tg. We normally recommend not "upgrading" a punched appliance board to FR4 for appearance, and not "saving cost" by putting a double-sided industrial controller on CEM-1.

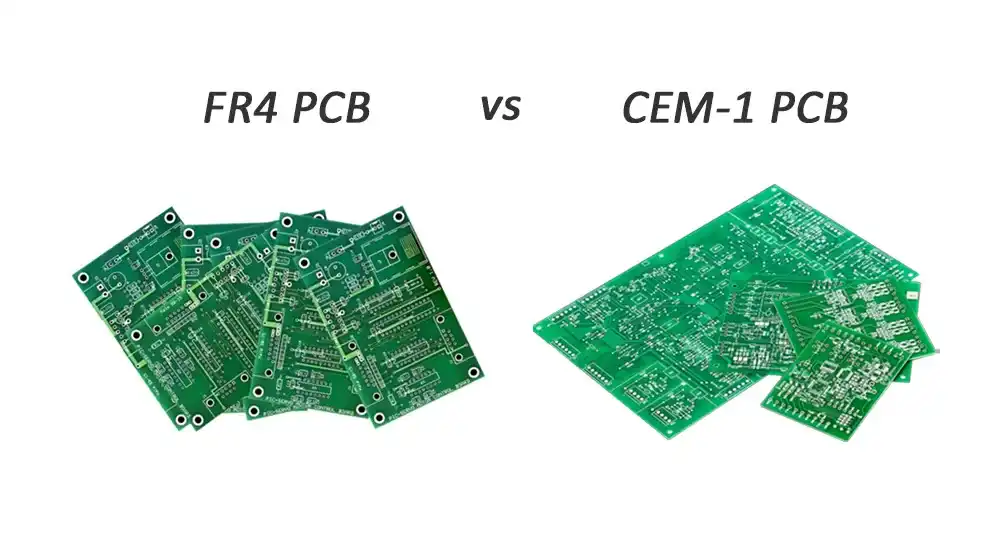

What Changes First When You Compare the Two Sheets
| Factor | FR4 PCB | CEM-1 PCB |
|---|---|---|
| Base structure | Woven E-glass + epoxy through the thickness | Paper / cellulose core + woven glass on the copper face + epoxy (IPC-4101 /10 family) |
| Typical layer count | 1 to 20+ layers, standard PTH | Almost always single-sided; PTH not recommended |
| Tg / continuous use | Standard ~130-140°C; high-Tg 170-180°C available | Typically ~105-110°C; continuous use around 105°C |
| Dk / Df @ 1 MHz (typical) | ~4.2-4.8 / ~0.015-0.025 depending on grade | ~4.5-5.0 / ~0.020-0.025; not a high-frequency material |
| Mechanical strength | Higher flexural and tensile; more isotropic | Medium; weaker and more grain-sensitive because of paper |
| Moisture | Low on glass-epoxy; well-behaved after bake | Higher; cellulose takes water and can plasticize the sheet |
| Machining | Rout and drill; punch is possible but tool wear is higher | Excellent punchability at ~45-70°C; this is the cost lever |
| Assembly heat | Wave and lead-free reflow are routine on the right Tg | Wave / selective solder is the home process; Pb-free reflow is borderline |
| Relative board cost | Baseline for a given outline and copper | Often ~20-30% lower laminate; finished 1-layer can land near 0.7x FR4 at volume |
| Typical applications | Control, comms, industrial, automotive, any PTH / multilayer work | Appliance controllers, chargers, simple LED drivers, remotes, toys |
During CAM review the comparison that matters is not "which laminate is better." It is whether the drawing is a single-sided punched part or a plated, multilayer part. A CEM-1 RFQ that asks for PTH, 2-layer copper, or a 260°C reflow profile gets sent back or quietly moved onto FR4.
Which Option Wins When the Priority Changes
| If your priority is... | Better choice | Why factories lean that way |
|---|---|---|
| Lowest unit cost at high volume | CEM-1 | Cheaper sheet plus punch instead of route; no PTH plating line |
| Double-sided routing or plated holes | FR4 | Paper core does not survive a reliable PTH process |
| Fast prototype at any shop | FR4 | Every line stocks FR4; CEM-1 punch tooling is a volume tool, not a 5-piece tool |
| Lead-free SMT reflow | FR4 | CEM-1 Tg sits too close to the reflow peak; blister and warp show up |
| Wave-soldered through-hole appliance board | CEM-1 | The process window matches the material; paying for FR4 does not change the product |
| Vibration, connectors, or mechanical load | FR4 | Glass throughout holds screws and heavy parts; paper cores crack sooner |
| Humid or outdoor enclosure | FR4 | Cellulose absorbs more water; insulation and stiffness drop after soak |
| Mass production of a stable 1-layer outline | CEM-1 | Once the punch die is paid, cycle time and panel cost stay lower than routed FR4 |
Why the Paper Core Decides Almost Everything Else
CEM-1 exists because all-paper phenolic (FR-2) is cheap but weak and electrically poorer, while all-glass FR4 is stronger than a single-sided charger board needs. The composite puts glass where copper needs dimensional stability and paper where the shop wants to punch slots, mounting holes, and outlines in one hit. That is the manufacturing reason CEM-1 is still on appliance lines in 2026.
FR4 does not have that split personality. Glass cloth in every ply makes the sheet more isotropic, more drillable for PTH, and usable as a multilayer core and prepreg system. The same structure is why FR4 does not punch as cleanly: glass dulls dies faster and the break edge is rougher. In production we typically route FR4 and punch CEM-1. Mixing those process assumptions on the drawing is how quotes diverge.
Do not confuse CEM-1 with CEM-3. CEM-3 uses a non-woven glass core and can support double-sided PTH work as a cheaper FR4-like sheet. CEM-1 is the paper-core grade. If an RFQ says "CEM" with no number, we treat it as incomplete and ask which slash sheet is intended.
Where Mechanical Strength and Handling Start to Separate
FR4 carries higher flexural and tensile numbers and they stay more consistent with thickness and grain. CEM-1 flexural strength is direction-dependent: length direction is usable, cross direction is weaker because the paper core does not restrain the sheet the way woven glass does. That shows up on the floor as cracked boards at depaneling, broken ears on snap-off tabs, and hairline fractures under a heavy transformer or a tight screw boss.
We normally keep CEM-1 outlines simple, avoid long thin necks, and keep large connectors and heat sinks off the free edge. FR4 can take those features with less drama. If the product will see drop tests, door slams on an appliance, or a press-fit connector, the FR4 vs CEM-1 PCB comparison is already over — stay on glass.
The hybrid CEM-1 stack can also bow more after wave solder if copper is unbalanced or the board is thin. FR4 still warps, but two-sided copper and woven glass give CAM more levers. On 1.6 mm single-sided CEM-1 with a heavy pour, we check bow/twist to IPC-A-600 instead of assuming it will stay as flat as a multilayer FR4 book.
Electrical Performance Is Close at Mains Frequency and Diverges Fast After That
At 50/60 Hz and at low-speed control clocks, both materials insulate well enough. Typical CEM-1 Dk sits around 4.5-5.0 at 1 MHz with Df near 0.02. Standard FR4 is in the same neighborhood at that frequency. The FR4 vs CEM-1 electrical gap is not why factories refuse CEM-1 for USB, Ethernet, or RF. The refusal is stability, moisture, and the fact that CEM-1 almost never has a continuous reference plane because it is a single-sided part.
Tracking and CTI matter more than Dk on appliance and charger boards. CEM-1 is sold in CTI bands (commonly ≥175 V, with 300 V and 600 V grades available from the same family). FR4 also has CTI options, but many default FR4 sheets sit in the 175-300 V range unless a high-CTI grade is named. If the product is a Class II appliance with creepage on the primary side, specify CTI on the drawing for either material. Do not assume "CEM-1 is worse at tracking" or "FR4 is automatically high CTI."
Moisture is the electrical reliability difference that shows up after the board leaves the dry pack. Paper takes water. After a humid soak, CEM-1 insulation resistance drops and the sheet can soften. FR4 absorbs less and recovers more predictably after a bake. For a kitchen, laundry, or outdoor-adjacent product, that is often a stronger reason to stay on FR4 than any Dk table.
Where Unit Cost Actually Diverges — and Where It Does Not
Sheet price is the first line item: CEM-1 laminate commonly lands about 20-30% under equivalent-thickness FR4, sometimes quoted near 0.7x on a 1.6 mm 1/0 construction. That delta is real. It is not the whole story. The larger factory saving on CEM-1 is process: punching outline and holes instead of routing and drilling, and skipping electroless copper plus panel plate because there is no PTH.
Those savings only appear at volume. A punch die has a cost and a lead time. For 20 prototype boards, routed single-sided FR4 is usually cheaper and faster than opening a CEM-1 punch tool. For 10,000 identical appliance boards, the die is paid and CEM-1 cycle time wins. We normally tell purchasing not to compare a 5-piece FR4 proto quote with a 50,000-piece CEM-1 mass-production quote and call that "the material premium."
Cost also flips when the design is not a true CEM-1 part. If you need two copper faces, you do not get the no-PTH saving. If you need fine slots that cannot be punched, you are routing anyway. If yield drops because the paper core chips at a tight internal corner, the 25% laminate saving disappears in scrap. From a fabrication standpoint, CEM-1 is inexpensive when the design is written for CEM-1. It is not a discount coupon you stamp on an FR4 Gerber set.
Assembly Heat and Long-Term Reliability Are Not the Same Window
CEM-1 Tg around 105-110°C is compatible with wave solder and with many selective-solder fixtures. It is a poor match for a full SAC305 reflow profile. Peak temperature sits well above Tg; the paper core and the resin above Tg lose stiffness, copper adhesion is stressed, and blistering after thermal shock is a known reject. FR4 at Tg 130 already has more margin; high-Tg FR4 is the default when the same board also sees multiple reflows or a long dwell.
Thermal conductivity of both sheets is low — on the order of 0.3 W/m·K. Neither is a heat-spreading material. A mid-power LED or a TO-220 on CEM-1 needs copper area and usually an external slug, the same as on single-sided FR4. Switching from FR4 to CEM-1 does not fix a hot part, and switching the other way does not either unless you also add planes, vias, or a metal core.
Long-term, FR4 holds screws, connectors, and cyclic humidity better. CEM-1 is adequate when the board lives in a dry indoor appliance, is supported in a housing, and is not a service part that will be resoldered in the field. If the product has a field-replaceable module, a vibrating motor, or a high-CTI primary that also sees condensation, we recommend FR4 even when the schematic is still single-sided.
How Fab Houses Review CEM-1 Versus FR4 on Incoming Packages
During DFM we look at layer count first. Copper on two faces plus hole connections means FR4 (or CEM-3), not CEM-1. Laminate notes that say "CEM-1, PTH, 2 oz both sides" are treated as a documentation error. Kingboard-style CEM-1 datasheets state plated through-holes are not recommended because the cellulose core is attacked by the plating electrolyte. That is a process limit, not a preference.
Next is outline and hole method. If the customer wants punched slots, irregular cutouts, and a high-volume panel, CEM-1 is in its process window. Minimum punched hole and slot sizes are coarser than a drilled FR4 board — shops often work around 0.8 mm NPTH and 0.20 mm line/space as a practical CEM-1 floor, not the 0.10 mm class used on fine FR4. If the artwork is 4/4 mil with a 0.3 mm hole, it is an FR4 job even if someone typed CEM-1 on the title block.
CAM also checks solder process and finish. HASL and OSP are the usual CEM-1 finishes. Lead-free HASL is possible but the extra heat is closer to the material limit. ENIG on CEM-1 is uncommon and rarely worth the bath time on a cost-driven single-sided part. FR4 takes the full finish menu without that argument.
FR4 yield on a simple 1-layer board is already high; you do not switch to CEM-1 to improve yield. You switch to cut laminate and machining cost. CEM-1 risk is chipping, moisture, and assembly warp. Moving a CEM-1 design onto FR4 and still assuming a paper punch die is how tool wear and edge quality go the wrong way.
Which Material to Release on the Drawing
Choose CEM-1 if you:
- Have a true single-sided schematic with jumper wires or printed jumpers, not plated vias
- Are building appliance controllers, wall chargers, simple LED drivers, remotes, or toys at volume
- Will wave-solder or selective-solder, not run a full lead-free SMT reflow profile
- Can punch the outline and mounting features and will amortize the die across the lot
- Can live with medium mechanical strength and indoor humidity
- Need the lowest finished-board cost on a stable 1.0-1.6 mm construction
Choose FR4 if you:
- Need two copper faces, PTH, or any multilayer stack
- Will reflow SMT, especially lead-free, or need multiple heat cycles
- Have connectors, transformers, or screw bosses that load the board
- Need a prototype this week without opening punch tooling
- Face humidity, outdoor-adjacent use, or a reliability spec that outlives a consumer appliance
- Need controlled impedance, higher-speed edges, or a plane pair
There is no universal winner in the FR4 vs CEM-1 comparison. CEM-1 is the manufacturing tool for punched, single-sided, cost-driven boards. FR4 is the manufacturing default for everything that leaves that box. The wrong call is using CEM-1 as a cheaper FR4, or using FR4 on a high-volume punched 1-layer part that never needed glass through the core.
Questions That Show Up on FR4 vs CEM-1 Quotes
Q1: Can a CEM-1 PCB be made double-sided with plated through-holes?
A1: We do not recommend it. The paper core is attacked in the PTH electrolyte, hole walls are unreliable, and yield is poor. If you need copper on both sides and plated holes, quote FR4 or CEM-3, not CEM-1.
Q2: How much cheaper is CEM-1 than FR4 in real production?
A2: Laminate is often 20-30% less. Finished single-sided boards at volume can land near 0.7x an equivalent FR4 1-layer part when punching replaces routing and there is no PTH. Prototypes rarely show that saving because the punch die is not paid yet.
Q3: Is CEM-1 suitable for lead-free SMT assembly?
A3: Borderline at best. Tg is about 105-110°C and the paper core loses stiffness above that. Wave and selective solder are the intended processes. For a full SAC305 reflow, we specify FR4.
Q4: Is CEM-1 the same as CEM-3?
A4: No. CEM-1 is paper-core with a glass face and is a single-sided punched material. CEM-3 uses a non-woven glass core and can support double-sided PTH as a lower-cost FR4 alternative. Write the exact grade on the drawing.
Q5: When should a single-sided FR4 board stay on FR4 instead of moving to CEM-1?
A5: When quantity is too low to tool a punch die, when the board will see reflow or humidity, when mechanical load is high, or when the outline has features that must be routed anyway. Single-sided does not automatically mean CEM-1.
Q6: What must be on the drawing so a factory can quote FR4 vs CEM-1 without guessing?
A6: Named laminate family (FR4 or CEM-1 / IPC-4101 slash sheet), layer count, copper weight, thickness, whether holes are NPTH punch or plated, solder process, CTI if it is an appliance primary, and quantity. "CEM or equivalent" is not a spec.
