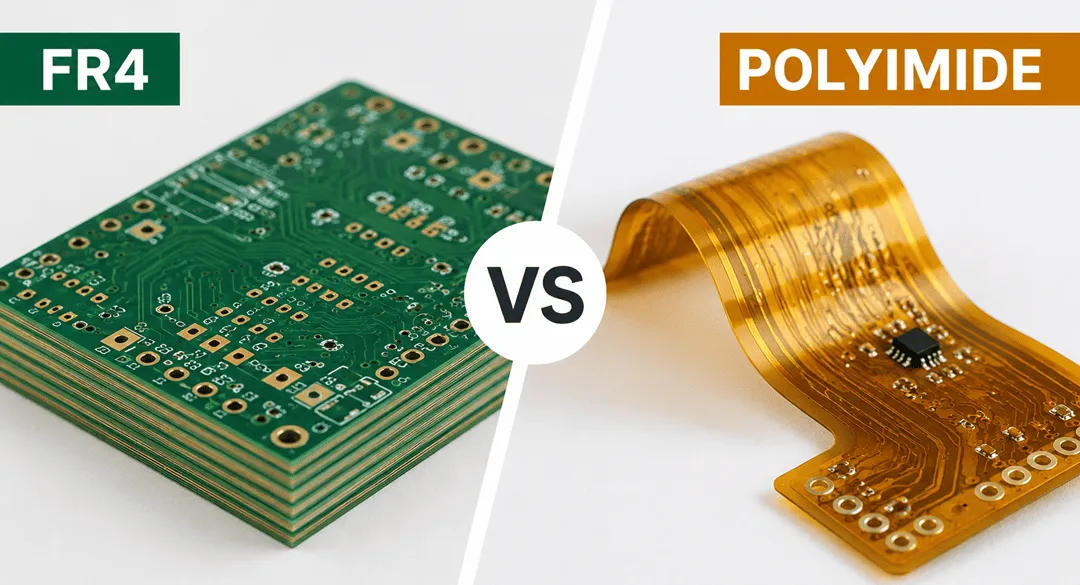

When Rigid FR4 Is Enough and When Polyimide Changes the Process
From a fabrication standpoint, the FR4 vs polyimide PCB decision is not a "better laminate" contest. It is a form-factor and temperature decision. FR4 stays the better manufacturing choice for most rigid boards that sit in a housing, see ordinary reflow, and never have to fold. Polyimide becomes the better choice when the circuit must bend, survive repeated flex cycles, or hold together above the glass-transition range of even high-Tg FR4. If the drawing does not require motion or extreme heat, PI adds cost, lead time, and process risk without changing field performance.
One CAM detail matters before the comparison starts. "Polyimide PCB" on an RFQ can mean three different factory jobs: a flexible circuit on PI film, a rigid-flex stack with FR4 stiffeners and PI flex tails, or a rigid high-temperature polyimide laminate. Those three do not share a process line, a panel price, or a yield model. We normally ask which one is intended before quoting FR4 vs PI PCB at all. Most commercial comparisons are really rigid FR4 versus PI flex or rigid-flex, and that is the trade-off this article treats first.
What Separates FR4 from Polyimide on the Shop Floor
| Factor | FR4 | Polyimide (PI film / rigid PI range) |
|---|---|---|
| Material structure | Woven glass + epoxy resin, copper-clad | PI film + adhesive or adhesiveless copper; or glass + PI resin for rigid PI |
| Form | Rigid only | Flex, rigid-flex, or high-temp rigid |
| Typical continuous use | About -40 to 105-130°C depending on Tg | About -200 to 200-260°C on film; rigid PI higher still |
| Tg / thermal ceiling | Tg 130-180°C; Td ~300-350°C | No useful Tg on film in the FR4 sense; Td often >400°C |
| Bend / fold capability | None; cracks if forced | Static fold or dynamic flex if stack and coverlay are designed for it |
| Manufacturing complexity | Standard rigid line, widest process window | Dedicated flex / rigid-flex line; coverlay, stiffeners, laser or chemical outline |
| Finished-board cost vs FR4 | Baseline | Often ~3-8x for simple FPC; rigid-flex higher; rigid PI laminate also a premium |
| Yield / process stability | High on ordinary 1-8 layer work | Lower; coverlay registration, pad cratering, and dimple control eat yield |
| Moisture | Moderate; bake before multilayer press if needed | PI absorbs more; bake and moisture control are mandatory before heat |
| Lead time / stock | Cores and prepreg on the shelf almost everywhere | Common film thicknesses stocked; odd constructions and rigid-flex add days |
| Typical applications | Consumer, industrial control, power, comms in a box | Cameras, wearables, fold mechanisms, aerospace, downhole, high-temp modules |
Which Option Wins When the Priority Changes
| If your priority is... | Better choice | Why factories lean that way |
|---|---|---|
| Lowest cost and fastest volume build | FR4 | Stocked material, standard press and drill, lowest scrap cost |
| The circuit must fold or move | Polyimide flex | FR4 cannot take a designed bend radius without cracking |
| Connect two rigid boards with a cable substitute | Rigid-flex (PI + FR4) | Removes connectors; more expensive than two FR4 boards plus a cable |
| Sustained temperature above ~150°C | Polyimide | FR4 is already past Tg; resin modulus and via reliability collapse |
| Mass production of a boxed product | FR4 | PI premium never pays back if the board never flexes |
| Prototype in a few days on a standard line | FR4 | Almost any shop can start; flex CAM and tooling take longer |
| Dynamic flex life (hinge, print head, wearable) | Adhesiveless PI flex | Adhesive layers and FR4 cores fail first in cyclic bend |
How the Stack Is Built Changes What the Factory Can Do

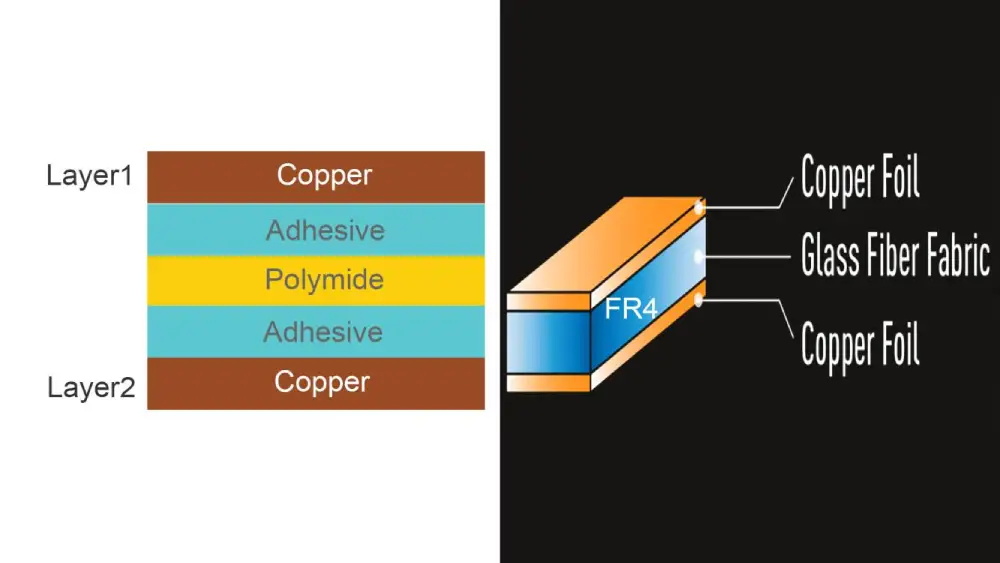

FR4 is a glass-cloth composite pressed into a rigid panel. Drill, plate, etch, mask, and route all assume a stable sheet. That is why FR4 vs polyimide PCB quotes diverge before any electrical spec is discussed: one material is a panel product, the other is often a film product.
Polyimide flex starts as PI film, typically 12.5, 25, or 50 µm, with RA or ED copper. Adhesive constructions are cheaper and adequate for a static fold. Adhesiveless constructions cost more and are what we normally recommend once the bend is dynamic or the copper is fine-pitch. Coverlay replaces solder mask in the flex region; stiffeners sit only under parts. Rigid PI laminate is different again: glass plus PI resin, processed like a high-Tg rigid board when the part stays flat but the temperature is out of FR4 range.
During CAM review, the first check is whether the stack can run on the line that received the file. A 1.6 mm four-layer FR4 job runs on every rigid line we operate. A 0.1 mm two-layer PI flex job needs a flex line, different vias, and a different outline method. Mixing those assumptions on one drawing is a common source of requotes.
Rigid Boards Stay on FR4 Until the Part Has to Move
Mechanical form is the cleanest split in the FR4 vs PI PCB comparison. FR4 is selected because it is stiff. It screws to a chassis, carries connectors, and holds a BGA flat through reflow. If someone asks us to "make the FR4 thinner so it can bend," we push back. Below about 0.4 mm a rigid coupon can take a gentle static curve, but glass cloth still cracks and copper fatigues at the weave. It is not a flex circuit.
Polyimide film is selected because it is compliant. A designed bend radius — usually 6-12x finished flex thickness for dynamic use, tighter for a one-time fold — belongs on the fabrication spec. The same compliance makes SMT harder: unstiffened PI wrinkles in the printer and walks in reflow. That is why most volume PI boards still carry FR4 or steel stiffeners under parts. From a factory view, many "flex" jobs are stiffened flex or rigid-flex, not naked film on a standard SMT line.
Rigid-flex sits between the two. Rigid zones behave like FR4; PI tails replace a cable and two connectors. Cost and yield stay closer to flex than to rigid. We normally recommend it only when connector height or packing volume is the actual problem. Two FR4 boards and a ZIF cable are still cheaper to manufacture and easier to rework.
Where Temperature Stops Being an FR4 Problem

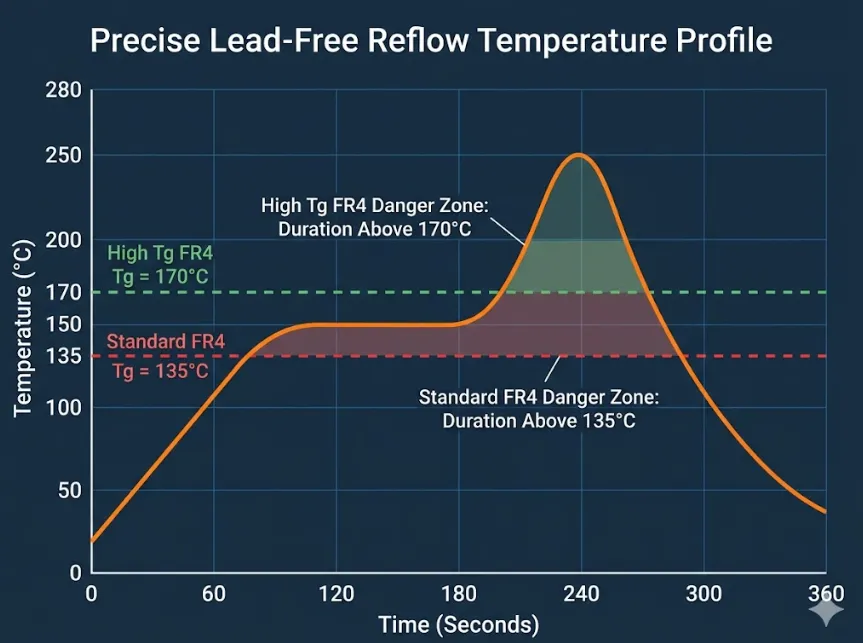

FR4 is limited by glass transition, not by a brochure "max temperature." Once the board spends time above Tg, resin modulus drops, Z-axis CTE jumps, and plated holes start to work. Standard FR4 (Tg 130-140°C) is fine for consumer reflow and field use below about 90-105°C. High-Tg FR4 (170-180°C) covers lead-free multilayers and industrial boxes. Past that we are leaving the epoxy family, not picking a slightly better FR4 grade.
Polyimide flex film has no useful FR4-style Tg. It stays usable at temperatures that would slump epoxy, which is why it shows up in hot under-hood pockets, downhole tools, aerospace harness replacements, and modules that sit at 180-200°C for more than a short excursion. Rigid PI laminate puts the same thermal idea into a flat board: higher Td, better aging retention, and a process that still looks like rigid fabrication.
The trade-off is not only peak temperature. PI takes more moisture than FR4. If a PI or rigid-flex panel is not baked before press, HASL, or reflow, the same heat capability that sold the material becomes a delamination source. FR4 also needs moisture control on thick multilayers, but the window is wider. In production, we typically bake PI as a standard step, not as recovery.
Recommended Figure: Temperature-use chart with FR4 (standard and high-Tg) and polyimide film / rigid PI plotted against continuous operating temperature and short-term process temperature, with Tg marked on the FR4 bars so the reader sees where epoxy stops being the right call.
Reliability Follows Bend Life and Heat, Not the Material Name
On a rigid board that never moves, FR4 reliability is a via-and-resin story: Tg, Z-CTE, hole copper, and reflow count. High-Tg FR4 already covers most commercial and industrial product. Switching that same flat board to polyimide for "higher reliability" is rarely what we recommend. You pay a PI premium and still have to prove hole wall and CAF on a less common laminate.
On a moving circuit, FR4 is the unreliable option by definition. Fatigue lives in the copper at the bend, not in the dielectric brand. PI film, RA copper, adhesiveless construction, and a coverlay edge kept off the neutral axis are what actually move cycle life. Adhesive-based PI is acceptable for a one-time fold. It is a poor choice for a hinge that must survive tens of thousands of cycles. Yield tends to decrease when vias, button plating, or a coverlay edge sit in the bend window — that is a DFM problem, not a reason to go back to FR4.
Long-term heat aging favors PI. Humidity and CAF are more mixed because PI takes up more moisture; bake-out and coating matter more than they do on a consumer FR4 board. For Class 3 rigid work that only needs thermal margin, we still start with high-Tg FR4 and move to rigid PI only when temperature or outgassing leaves no epoxy option.
Where Each Material Shows Up in Real Production Mixes
FR4 dominates anything that lives in an enclosure: power boards, controllers, comms modules, appliances, and most automotive ECUs that are not in the hottest pocket. Manufacturing considerations are familiar — layer count, copper weight, Tg grade, finish — and purchasing can dual-source the laminate.
Polyimide flex shows up where volume or motion is the product: cameras, laptop hinges, wearables, print heads, probe cards, and harness replacements. Rigid-flex shows up when those tails must carry a fine-pitch BGA or a connector that cannot sit on film. Rigid PI is a smaller slice: aerospace and downhole boards that stay flat but see temperatures FR4 cannot survive.
On the shop floor the applications split is simple. If the drawing shows a bend radius, PI is in play. If it shows mounting holes and a heat-sink keep-out, FR4 is the default. Specifying PI on a rigid consumer board because a datasheet lists a higher temperature rating is one of the more expensive habits we see in incoming packages.
What CAM and Production Actually Check Before Recommending Either One
During CAM review we do not start with a brand preference. We start with whether the board is rigid, flex, or rigid-flex, and whether the temperature spec is inside FR4's useful range. A rigid 4-8 layer job under 130°C stays on FR4 even when the notes say "high reliability." Reliability in that case is stack-up, via design, and Tg grade — not a change of resin family.
For PI flex the list is longer: bend radius versus finished thickness, RA vs ED copper in the flex zone, coverlay opening versus pad, stiffener edge versus bend, vias in the flex window, and outline method (die, laser, or punch). Panel utilization is worse than FR4 because flex arrays need frames and irregular outlines. Process risk sits in coverlay bubbles, pad contamination, and film movement through etch and bake.
Rigid-flex is the highest process-risk option of the three. Sequential lamination, no-flow prepreg at the interface, and laser-cut or book-bound openings add scrap modes FR4 never sees. Inspection is heavier: AOI, flex-zone visual, coupon bend tests when specified, often 100% electrical on fine-pitch tails. Most PCB manufacturers quote rigid-flex only after a DFM pass. We normally recommend it when the connector it replaces is the reliability problem, not when someone wants a "premium" stack.
Cost comparison follows the process, not the resin pound price. PI film costs more than FR4 core, but the larger gap is labor, tooling, yield, and fewer qualified lines. A simple two-layer FPC can still beat a cable plus two connectors. A four-layer rigid-flex versus a four-layer FR4 board is almost never a fair cost comparison; they are different products.
Which Material You Should Release to Fabrication
Choose FR4 if you:
- Are building a rigid board that mounts in a housing and does not fold
- Need the lowest board cost and the widest supplier base
- Are targeting volume production on a standard rigid line
- Can stay within high-Tg FR4 for lead-free reflow and field temperature
- Can solve interconnect with connectors or a discrete cable instead of a flex tail
Choose polyimide (flex or rigid-flex) if you:
- Need a designed bend, fold, or dynamic flex life
- Are replacing a cable and two connectors inside a tight mechanical
- Have a continuous or frequent operating temperature beyond what high-Tg FR4 can hold
- Need a thin, light interconnect in a camera, wearable, or hinged product
- Can accept higher unit cost, tighter DFM, and a flex-capable fabricator
Choose rigid polyimide laminate if you:
- Need a flat board, not a flex circuit, at temperatures epoxy cannot survive
- Have an aerospace, downhole, or similar spec that already names PI
- Have already ruled out high-Tg FR4 on thermal aging, Td, or outgassing
There is no single winner in the FR4 vs polyimide PCB comparison. FR4 is the manufacturing default for rigid product. Polyimide is the manufacturing default for motion and for heat that has left the epoxy window. The expensive mistake is using one to do the other job.
Questions That Come In With FR4 vs PI Quotes
Q1: Is polyimide always better than FR4 for high-reliability product?
A1: No. On a rigid board that never bends and stays inside high-Tg FR4's range, FR4 with a correct stack-up and via design is usually the more reliable production choice because process control and yield are better. PI helps when the failure mode is heat above epoxy capability or mechanical flex.
Q2: Can I use thin FR4 instead of a polyimide flex circuit to save cost?
A2: Only for a very gentle, one-time curve, and even then we do not treat it as a flex design. Glass cloth cracks and copper fatigues at the weave. If the product has a specified bend radius or cycle life, PI flex is the manufacturing choice.
Q3: Why does a PI flex board cost several times an FR4 board of the same area?
A3: Film and coverlay cost more than FR4 core, but the larger gap is process: dedicated flex lines, stiffeners, poorer panel utilization, lower first-pass yield, and outline tooling. Compare PI cost against the cable-plus-connectors it replaces, not against a same-size FR4 coupon.
Q4: When should I specify rigid-flex instead of FR4 boards plus a cable?
A4: When connector height, packing volume, or connector reliability is the actual constraint. If two FR4 boards and a ZIF or board-to-board cable fit the mechanical and the cost target, that assembly is easier to manufacture and to rework.
Q5: Does polyimide need special assembly processing compared with FR4?
A5: Yes. Unsupported PI will not sit flat on a standard printer or reflow belt. Stiffeners, fixtures, and bake-out before SMT are normal. Skip the bake and moisture in PI becomes a delamination risk.
Q6: Is rigid polyimide the same thing as a flexible PI PCB?
A6: No. Rigid PI is a glass-reinforced high-temperature laminate processed like a rigid board. Flex PI is a film circuit. They share a resin family and a high-temperature story, not a process line or a price. Call out the form on the drawing or the quote will be wrong.
