There is no single number. A flexible PCB can survive a few thousand cycles or several hundred thousand depending on how the stack-up, copper, and bend geometry are set. The question of flexible PCB bending cycles, or FPC flex life, always comes back to the same set of physical limits.
When a design fails early in life testing, the root cause is almost never "the flex material is bad." It is almost always a layout or material choice that ignored the mechanics of repeated strain.
What Actually Limits FPC Flex Life
Copper foil is the first element to crack. Polyimide and coverlay can tolerate far more strain than the copper. Once the copper grain boundaries open, resistance rises and the circuit eventually opens.

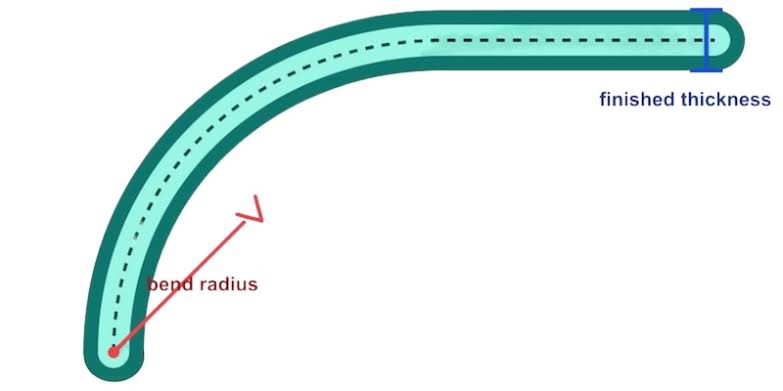

Bend radius is the dominant geometric factor. Strain in the copper scales roughly with copper thickness divided by twice the bend radius. Push the neutral axis off-center with unbalanced coverlay or stiffener placement and the strain on one side rises sharply.
Trace orientation matters. Traces running parallel to the bend axis experience pure tension/compression. Traces running perpendicular see additional shear at the edges. In high-cycle designs the traces are almost always routed parallel to the fold line and kept as wide as the current allows.
Adhesive type and thickness also play in. Acrylic adhesives creep under repeated strain; epoxy systems are stiffer but can delaminate if the bond line is too thick. Most production FPCs that need high flex life use adhesiveless polyimide-copper laminates.
RA Copper Versus ED Copper in Dynamic Flex
Rolled-annealed (RA) copper starts with elongated grains that already run in the plane of the foil. Under bending the grains can slide and elongate further before cracking. Electrodeposited (ED) copper has a more columnar, random grain structure. It work-hardens faster and cracks earlier.
In practice, the difference is large. A well-designed single-sided RA copper FPC at a generous bend radius routinely exceeds 100 000 cycles. The same geometry with ED copper often fails between 5 000 and 20 000 cycles. Double-sided constructions reduce the gap because the neutral axis sits between the two copper layers, but RA still outlasts ED by a factor of three to five under identical conditions.
Thinner copper helps both types. 12 µm RA foil is preferred for high-cycle dynamic flex. 18 µm is common for moderate duty. Going to 35 µm copper almost always drops flex life below the requirements of wearable or folding applications unless the bend radius is increased substantially.
One practical note from CAM reviews: many designers specify "RA copper" on the drawing but then accept ED copper when the laminate is cheaper or more available. The flex life numbers collapse. The material call-out has to be enforced at incoming inspection if the cycle requirement is real.
How Dynamic Bending Tests Are Actually Run
Most reliability data comes from a motor-driven fixture that folds the FPC through a controlled angle at a controlled radius. The common configurations are 180° folding (MIT-style) or continuous rolling around a fixed mandrel. Cycle rate is usually kept low enough that heating is negligible—typically 30 to 60 cycles per minute.
Failure criteria vary. Some labs stop at a 10 % resistance increase. Others continue until an open circuit appears. For signal lines the resistance change criterion is more conservative and correlates better with field failures. Power traces can tolerate larger resistance shifts before the product is considered failed.
Sample size matters. A single coupon that survives 200 000 cycles does not prove the design. Ten to twenty samples from different panels give a usable Weibull distribution. Early failures almost always trace back to local copper thickness variation, coverlay voids, or a sharp inside corner in the coverlay opening.
Temperature and humidity accelerate the test. Room-temperature dry cycling gives optimistic numbers. Adding 60 °C / 90 % RH or thermal shock between cycle blocks brings the results closer to real product life.
Cycle Targets Across Common Applications
Wearable devices (wristbands, hearables, medical patches) typically demand 50 000 to 150 000 cycles at bend radii of 1–3 mm. The FPC is often single-sided RA copper, 12 µm or thinner, with coverlay on one side only so the neutral axis stays favorable. Traces are kept wide and parallel to the primary bend.
Camera module FPCs see fewer pure dynamic cycles but experience repeated insertion and small-angle flex during assembly and focusing. 10 000 to 30 000 cycles is usually sufficient. Many of these still use ED copper because the radius is larger and the duty is intermittent. The more common failure mode is conductor cracking at the stiffener transition rather than pure mid-span flex fatigue.
Folding phones and foldable tablets push the requirement into the 100 000–200 000 cycle range, sometimes higher for the outer display circuits. These designs almost exclusively use adhesiveless RA copper, carefully balanced coverlay, and a defined free length so the bend radius cannot collapse below the design minimum. Multiple parallel traces with staggered breaks are common so a single crack does not kill the circuit.
In all three cases the same rule applies: if the calculated copper strain exceeds roughly 0.5–0.8 % at the minimum radius, high cycle life becomes difficult regardless of copper type.
Practical Layout Rules That Improve Flex Life
Keep the bend area free of vias, pads, and coverlay openings with sharp corners. Any stress riser shortens life.
Use rolled-annealed copper when the cycle target exceeds roughly 20 000. Specify the foil type and thickness on the fabrication drawing and require incoming verification.
Balance the stack-up. Equal coverlay thickness on both sides of a single copper layer, or symmetric copper and dielectric on double-sided constructions, keeps the neutral axis centered.
Define a minimum free length so the part cannot be forced into a tighter radius than intended. Add a stiffener or polyimide stiffener stop on both sides of the bend zone if the application allows.
Route critical traces parallel to the bend axis and keep them as continuous as possible. If breaks are required, stagger them so no single cross-section carries all the current.
These choices are not theoretical. They are the difference between a design that consistently passes 100 000-cycle qualification and one that starts failing at 15 000 cycles on the first pilot run.
Flexible PCB bending cycles are set by copper ductility, bend radius, stack-up balance, and the absence of local stress concentrators. Get those four parameters right and the FPC will deliver the flex life the application needs. Get any one of them wrong and no amount of testing will recover the margin.
