Standard FR4 vs High-Tg FR4: Which PCB Material Should You Choose?

Where Each FR4 Grade Belongs on the Production Floor

From a fabrication standpoint, the standard FR4 vs high Tg FR4 decision is not about which laminate is "better." It is about whether the board will stay below its glass-transition temperature long enough during lamination, lead-free reflow, and field life. Standard FR4 (typical Tg 130-140°C) is still the right manufacturing choice for most 1-4 layer consumer boards, cost-driven volume runs, and products that see one controlled reflow cycle and operate well below 90°C. High-Tg FR4 (typical Tg 170-180°C) is the safer factory recommendation once you add lead-free assembly with multiple heat cycles, 6+ layers, thick cores, high aspect-ratio vias, or a sustained board temperature above about 105-110°C.

We normally recommend standard FR4 when the stack-up is simple and the risk sits in assembly yield rather than field thermal fatigue. High-Tg FR4 is the call when CAM review shows sequential lamination, dense BGA fields, or a spec that already names T288, IST, or IPC Class 3 cycling. Mid-Tg (about 150-155°C) often covers ordinary lead-free 4-8 layer work.

What Changes Between Standard FR4 and High-Tg FR4 in One Table

Which Grade Wins When the Priority Changes

What the Tg Gap Actually Does in Production Heat

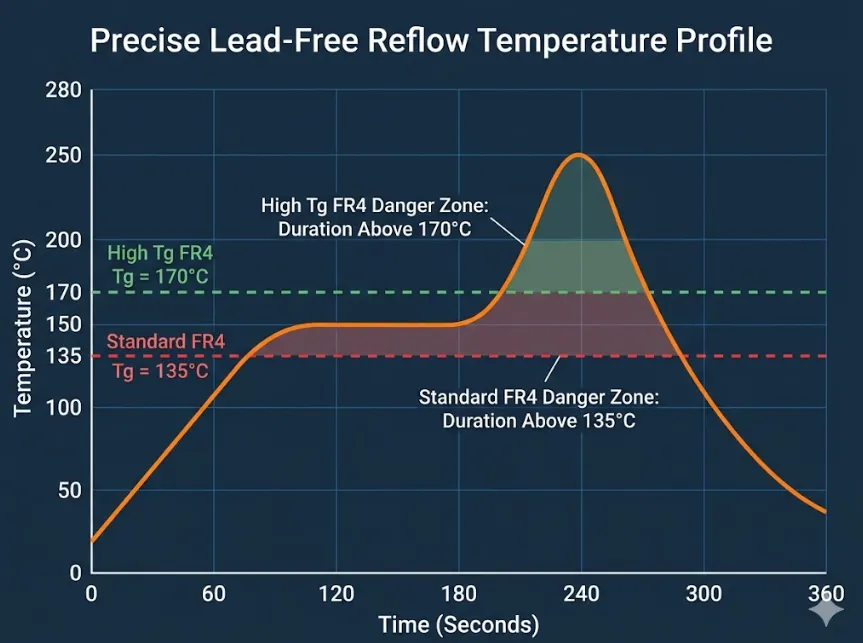

The Tg difference is the starting point of every standard FR4 vs high Tg FR4 comparison, but factories do not treat Tg as a maximum operating temperature. Tg is the point where the resin shifts from a glassy state to a rubbery state and Z-axis expansion jumps. A lead-free reflow peak of 245-260°C sits well above both grades. The difference is how long the laminate spends in the high-expansion regime and how much the resin has already softened when copper barrels and pads are being stressed.

Standard FR4 crosses Tg early in the reflow ramp. High-Tg FR4 stays glassy longer, so the same profile produces less cumulative Z-strain. That is why Td and time-to-delamination matter as much as Tg. Standard grades often sit around Td 300-310°C with T288 of only a few minutes. High-Tg grades commonly publish Td near 340-350°C and T288 above 15 minutes. During CAM review, that gap is what we use to judge whether a second reflow, a wave pass, or a rework station is likely to produce measling, pad cratering, or inner-layer separation.

A practical rule we use on the floor: keep continuous operating temperature at least 20-25°C below Tg. That puts standard FR4 in a comfortable band below about 105-110°C and high-Tg FR4 closer to 145-155°C, depending on the exact datasheet. If the product lives near those limits, specifying "FR4" without a Tg number is how boards pass incoming inspection and fail after the third assembly heat cycle.

Why Thermal Reliability Shows Up First in Vias, Not in the Datasheet

Thermal reliability is where the performance comparison becomes visible in yield reports. Standard FR4 expands more in Z once it is above Tg. High-Tg FR4 still expands above Tg, but the strain window is narrower and Td is higher, so the copper in the hole wall has a better chance of surviving repeated heat. This becomes noticeable during IST, thermal shock, or even a simple 3x reflow coupon check on thick boards.

On 1.6 mm two-layer boards with modest aspect ratios, both materials usually survive a controlled SAC305 profile. The trade-off here is small, which is why most consumer power adapters and remote-control boards stay on standard FR4. Once finished thickness goes to 2.0-3.2 mm, aspect ratio climbs past about 8:1, or the stack uses buried vias and a second lamination, yield tends to decrease on standard FR4 first. Barrel cracks and corner cracks show up before the laminate "looks" damaged.

Moisture makes the gap worse. Standard FR4 typically absorbs a little more water. Combined with a short T260, that is the classic path to blisters after a board sat on the SMT line without a bake. High-Tg systems are not immune — we still bake when exposure time is unknown — but they give the process a wider window. Warpage follows the same pattern: standard FR4 softens earlier, so large thin panels and unbalanced copper move more through reflow.

Applications Where the Material Choice Is Already Decided by the Process

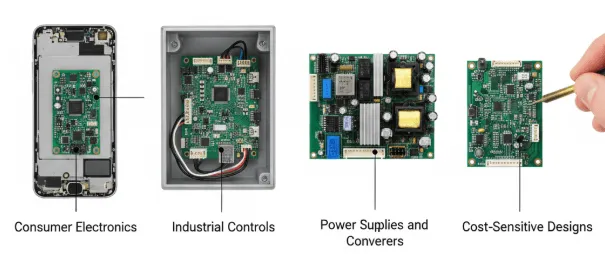

Typical applications split more cleanly than marketing tables suggest. Standard FR4 still dominates toys, set-top accessories, simple LED drivers, USB dongles, and high-volume 2-layer controllers that run cool and see one SMT pass. If the product lifetime is short and field temperature is modest, the extra thermal margin of high-Tg FR4 rarely pays back.

High-Tg FR4 becomes the default when the same factory is building automotive body electronics, industrial I/O, motor drives, server boards, outdoor telecom, LED power above a few tens of watts, or any IPC Class 3 job. Those programs already assume lead-free profiles, sometimes conformal coat bake, and thermal cycling. Specifying standard FR4 there usually comes back as an engineering change after the first delamination or via failure in qualification.

Layer count is a useful proxy. We treat 1-4 layers with one reflow as standard-FR4 territory unless the customer already has a high-Tg AVL. At 6 layers we start asking about peak temperature and rework. At 8 layers and above, most manufacturers will push high-Tg FR4 even if the drawing only says "FR4," because sequential heat and registration risk outweigh the laminate premium. HDI with stacked microvias follows the high-Tg path for the same reason: the structure cannot tolerate extra Z-motion.

Where the Cost Comparison Actually Shows Up on the Quote

The cost comparison is smaller than many designers expect and larger than many buyers hope. High-Tg laminate and prepreg typically cost 15-30% more per sheet than standard FR4. Material is only part of board cost, so the finished PCB often moves 5-15% on common 4-layer sizes. Thick, high-layer, or brand-locked constructions can run higher because press time, drill wear, and coupon testing all increase.

In production, we typically see three cost drivers besides the sheet price. First, lamination cycles on high-Tg systems run hotter and longer. That reduces press capacity. Second, the cured resin is harder, so drill bits wear faster and hole-wall quality needs tighter desmear control. Third, customers who specify high-Tg FR4 often also specify IST, T288 coupons, or a named grade such as Shengyi S1000-2, ITEQ IT-180A, or Isola 370HR. Brand lock is what turns a 8% material bump into a real lead-time and price problem.

The disadvantage of over-specifying high Tg on a 2-layer remote is paying that premium on every panel for a reliability mode the product will never see. The disadvantage of under-specifying standard FR4 on an 8-layer lead-free industrial board is scrap after assembly, not a slightly higher PCB price. Most PCB manufacturers would rather argue about a few percent on the fabrication quote than absorb a delamination lot at SMT.

If cost is the only driver and the design is 4-8 layers with ordinary lead-free assembly, mid-Tg FR4 is often the quieter factory recommendation — enough thermal margin without the full high-Tg premium.

How Fabricators Score the Two Options During DFM

During CAM review, material grade is checked against stack-up, hole aspect ratio, copper balance, surface finish, and the assembly note — not against a marketing claim. If the drawing says "FR4" only, most shops will default to whatever they stock for that layer count. That default is still standard FR4 on simple boards and increasingly high-Tg FR4 on multilayers, because the process risk sits with the fabricator after the PO is accepted.

Process stability favors standard FR4. The resin flows in a familiar window, drill parameters are well known, and almost every line in Asia and elsewhere is qualified. High-Tg FR4 is not exotic, but it is less forgiving. Press recipes need to match the specific resin system. Mixed constructions — high-Tg cores with the wrong prepreg — create dry glass or weak bonds at copper edges. We normally recommend staying inside one qualified material family rather than mixing standard and high-Tg plies unless the stack-up has been pressed and tested.

Panel utilization is similar for both grades at the same thickness. The yield difference appears in drilling and after thermal stress, not in nesting. Tooling considerations are real: high-Tg resin increases bit consumption and can leave more smear if desmear is left on a standard-FR4 recipe. Inspection requirements tighten when the customer paid for high Tg. A shop that quotes high-Tg FR4 should be prepared to run T260/T288 coupons and keep material certs tied to the lot. If those controls are not in the quote, you are probably buying a name on paper.

What factories usually recommend under different conditions is blunt. Prototype two-layer, no assembly spec: standard FR4. Production four-layer, one lead-free reflow, consumer: standard or mid-Tg. Six-layer and up, BGA, multiple reflows, or any automotive/industrial AVL: high-Tg FR4. If the customer insists on standard FR4 for a high-layer lead-free board, we flag via reliability and ask for a process qualification, not a verbal "it should be fine."

Which Material You Should Release on the Drawing

Choose standard FR4 if you:

• Are building 1-4 layer boards with a single, controlled reflow and little expected rework
• Keep board operating temperature comfortably below about 90-100°C
• Need the lowest fabrication price and the widest supplier base
• Are running high-volume consumer product where field thermal cycling is mild
• Can accept that lead-free margin is thin on thick boards or high aspect-ratio holes

Choose high-Tg FR4 if you:

• Use lead-free assembly with two or more heat cycles, wave solder, or planned rework
• Have 6 or more layers, sequential lamination, buried vias, or HDI microvias
• Need the board to run hot — power stages, enclosed industrial boxes, under-hood adjacent electronics
• Must pass thermal cycling, IST, or IPC Class 3 reliability gates
• Are more worried about via fatigue and delamination than about a single-digit price increase

Do not write only "FR4" on a multilayer lead-free drawing and assume the factory will guess your intent. Call out Tg (and Td if reliability is critical), or name an IPC-4101 slash sheet and an approved grade. That single line is the difference between a stable process and a material substitution that looks identical until the second reflow.

Questions Purchasing and Engineering Ask Before Locking Tg

Q1: Is high-Tg FR4 always better than standard FR4?

A1: No. High-Tg FR4 is more thermally stable, but it costs more and is slightly harder to process. On cool, simple, high-volume boards, standard FR4 is usually the better manufacturing choice. High Tg is better when heat cycles, layer count, or operating temperature create a real reliability risk.

Q2: How much more does high-Tg FR4 cost on a finished PCB?

A2: Plan for roughly 5-15% on typical 4-layer boards. The laminate itself is often 15-30% higher, but material is only part of the quote. Thick multilayers, named brands, and extra thermal coupons push the premium up. On a cheap 2-layer part the percentage can look larger even if the dollar delta is small.

Q3: Can standard FR4 survive lead-free (SAC305) reflow?

A3: Thin 1-2 layer boards often survive one well-controlled profile. Risk rises fast with extra reflows, thick boards, high aspect-ratio vias, and absorbed moisture. If the assembly process is lead-free and the board is multilayer, most fabricators prefer mid-Tg or high-Tg FR4 rather than relying on a perfect oven recipe.

Q4: What Tg number should I put on the fabrication drawing?

A4: Use 130-140°C class for simple, cool, cost-driven boards. Use 170°C minimum when you need high-Tg behavior. If you only need lead-free margin on a moderate 4-8 layer design, 150°C mid-Tg is often enough. Also list Td or an approved laminate grade when qualification depends on it.

Q5: Does high-Tg FR4 change impedance or stack-up modeling?

A5: Dk and Df are in the same FR4 neighborhood, but they are not identical to the standard grade you used last year. Rebuild the stack-up with the actual core and prepreg datasheet. Do not assume you can swap high-Tg FR4 onto a standard-FR4 impedance model without a CAM check.

Q6: Will switching to high-Tg FR4 slow down delivery?

A6: Common 170-180°C grades such as widely stocked Asian systems usually do not add much time. Lead time stretches when you lock a specific Western or specialty grade the shop does not keep, or when the stack-up needs a non-standard thickness. If schedule is tight, allow an equivalent high-Tg system instead of one brand only.
