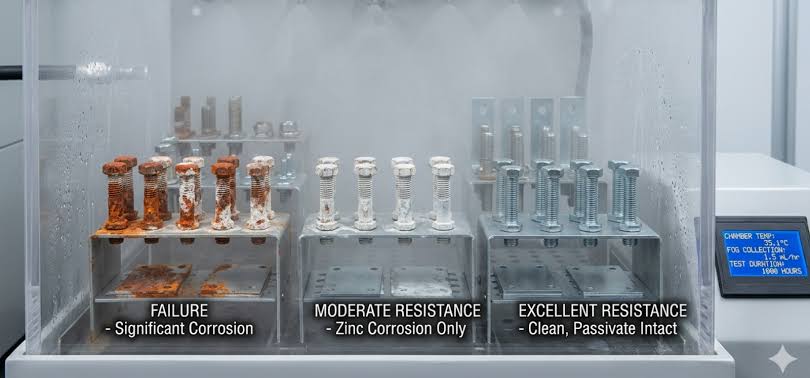

In production we pull representative coupons or finished sheet metal parts from the coating or plating line and load them straight into the salt spray chamber under ASTM B117 conditions. The chamber runs continuous 5 % NaCl fog at 35 ± 2 °C, collection rate held between 1.0 and 2.0 mL/h on an 80 cm² horizontal area. Exposure time is taken from the customer drawing or our internal process specification—commonly 96 h, 240 h or 500 h—then the parts are rinsed, dried and inspected for red rust, white rust, blistering or coating creep from any intentional scribe. That single run tells us whether the current bath chemistry, pre-treatment or powder thickness is still inside the process window.
Where coating process drift forces the salt spray test into the production flow
Sheet metal parts leave the press or laser with residual oils, oxide or scale. If the alkaline clean or acid pickle is incomplete, the subsequent zinc plating, zinc-nickel or powder coat bonds poorly. Bath concentration, current density or powder gun voltage can drift a few percent over a shift; that change is invisible until the part sits in a corrosive environment. Salt spray testing for sheet metal therefore becomes the only practical in-process check that catches these variations before the lot ships. The test does not predict outdoor life in years—it simply ranks the current process against the last known good lot under identical fog conditions.
Material thickness and edge geometry also matter. Thin-gauge panels cool faster after plating and can leave micro-cracks in the deposit; laser-cut edges hold more residual stress and corrode first. When we see early white rust on zinc-plated edges while the flat face stays clean, the root cause is almost always edge preparation or plating thickness distribution, not the salt fog itself.
What fails on the shop floor when exposure time or acceptance criteria are ignored
If a zinc-plated lot that should pass 96 h without red rust is allowed to ship after only visual inspection, the first outdoor complaint usually arrives within weeks in coastal or road-salt environments. Red rust starts at the edges or fastener holes, spreads under the coating and causes the customer to reject the entire shipment. Powder-coated panels that blister after 240 h in the chamber will delaminate in the field once moisture reaches the substrate. Scrap rate climbs, rework of already-assembled enclosures becomes necessary, and the next production run is delayed while the plating or powder line is shut down for bath analysis.
We also lose the ability to trend process capability. Without regular salt spray data, thickness gauges and adhesion tests alone cannot show whether the pre-treatment chemistry is degrading. One missed batch can contaminate downstream inventory and force a full quarantine of finished goods.
How the chamber is actually controlled and how results drive process correction
Every shift starts with verification of the ASTM B117 parameters. Solution is mixed to 5 ± 1 % NaCl by mass, pH adjusted to 6.5–7.2 with dilute HCl or NaOH, and temperature confirmed at multiple points inside the cabinet. Fog collection is measured daily; if the rate drifts outside 1–2 mL/h the nozzle or air pressure is adjusted before any production samples are loaded. Samples themselves are cleaned of fingerprints, masked if necessary, and placed at 15–30° from vertical so the fog does not pool.
Exposure time is selected by surface finish:
- Electroplated zinc or zinc-iron: 72–120 h, no red rust on significant surfaces; limited white rust acceptable.
- Zinc-nickel: 240–500 h before red rust.
- Hot-dip galvanized: typically 500 h or more.
- Powder coat over pretreated steel: 500–1000 h, no blistering or adhesion loss; creep from scribe usually limited to 2 mm.
- Anodized aluminum: 300–1000 h depending on coating class, evaluated mainly for pitting and sealing quality.
After the timed exposure the parts are gently rinsed, air-dried and examined under good light. Red rust area is estimated as a percentage of total surface; creep is measured from the scribe edge. If the lot fails, the first action is to check plating thickness or powder film build on the same batch. Thickness shortfall is corrected by increasing current density or gun passes; adhesion failure triggers a full pre-treatment audit—cleaner concentration, rinse purity, conversion-coating age. Only after the root cause is fixed and a new sample passes do we release the hold.
When shorter exposure or relaxed criteria are still accepted
Indoor enclosures or dry-environment hardware can run at 48 h or 72 h with no functional risk; the customer drawing explicitly allows it. Decorative chrome or thin conversion coatings that are never intended for outdoor service are evaluated mainly for appearance after short exposure rather than strict red-rust limits. In those cases we still run the salt spray test sheet metal samples, but the acceptance window is widened to keep cost and cycle time reasonable. The trade-off is clear: shorter test time reduces process control sensitivity, so thickness and adhesion checks are tightened to compensate.
For outdoor products—especially coastal or road-salt exposure—we stay with the longer durations and tighter creep limits. The chamber remains the fastest way to confirm that the surface treatment on the current production lot still meets the corrosion resistance the design assumes.
