Thin 0.8mm 4-layer PCBs with counterbore holes present unique manufacturing challenges, especially when feature depth approaches or exceeds overall board thickness. This engineering case examines order for a long, narrow board (65.02 × 321.82 mm) using TG150 FR-4 material. During CAM review, critical DFM issues around counterbore specifications and layer features required immediate customer clarification to avoid production failures.
As a senior CAM engineer, I have reviewed hundreds of thin-board designs. In this instance, the combination of 0.8mm finished thickness, 1oz copper, and requested counterbore holes triggered several Engineering Questions (EQs). Our team focused on manufacturability risks that could compromise structural integrity and copper layers.
Order Overview
This was a 4-layer FR-4 board ( #FR4-20260421-036 ) with TG150 material, 0.8mm finished thickness, and 1oz copper on inner and outer layers. The design used lead-free HASL surface finish, 0.3mm minimum hole size, cold white solder mask, and yellow silkscreen. Production included 100% flying probe testing, V-scoring with 4mm top and bottom process edges, and mechanical forming. Quantity was 5 pieces in a 1x1 panel configuration with no blind vias.
Customer notes included a reference PDF file and specific marking requirements. The thin profile combined with counterbore features made this order particularly sensitive to depth tolerances and layer alignment.
Main Engineering Questions Found During CAM Review
1. Counterbore Hole Depth vs. Ultra-Thin Board Thickness
The most critical issue was the counterbore specification. Our calculation based on customer requirements showed a depth of approximately 0.85mm ±0.2mm. However, the finished board thickness was only 0.8mm, creating an obvious conflict that could result in breakthrough on the opposite side.

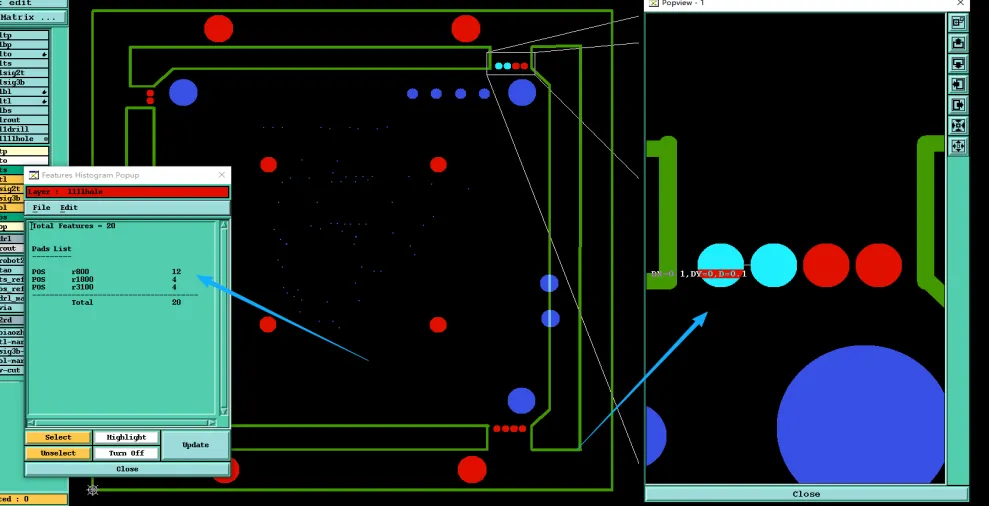

Figure 1: the counterbore hole showed a depth of approximately 0.85mm ±0.2mm
Figure 2: board thickness was only 0.8mm
We noticed this discrepancy immediately while reviewing the drill files and stackup. Our engineer raised an EQ because proceeding without precise parameters risked damaging inner layers L1 and L2 copper. The thin 0.8mm construction left almost no margin for depth variation during controlled-depth drilling.

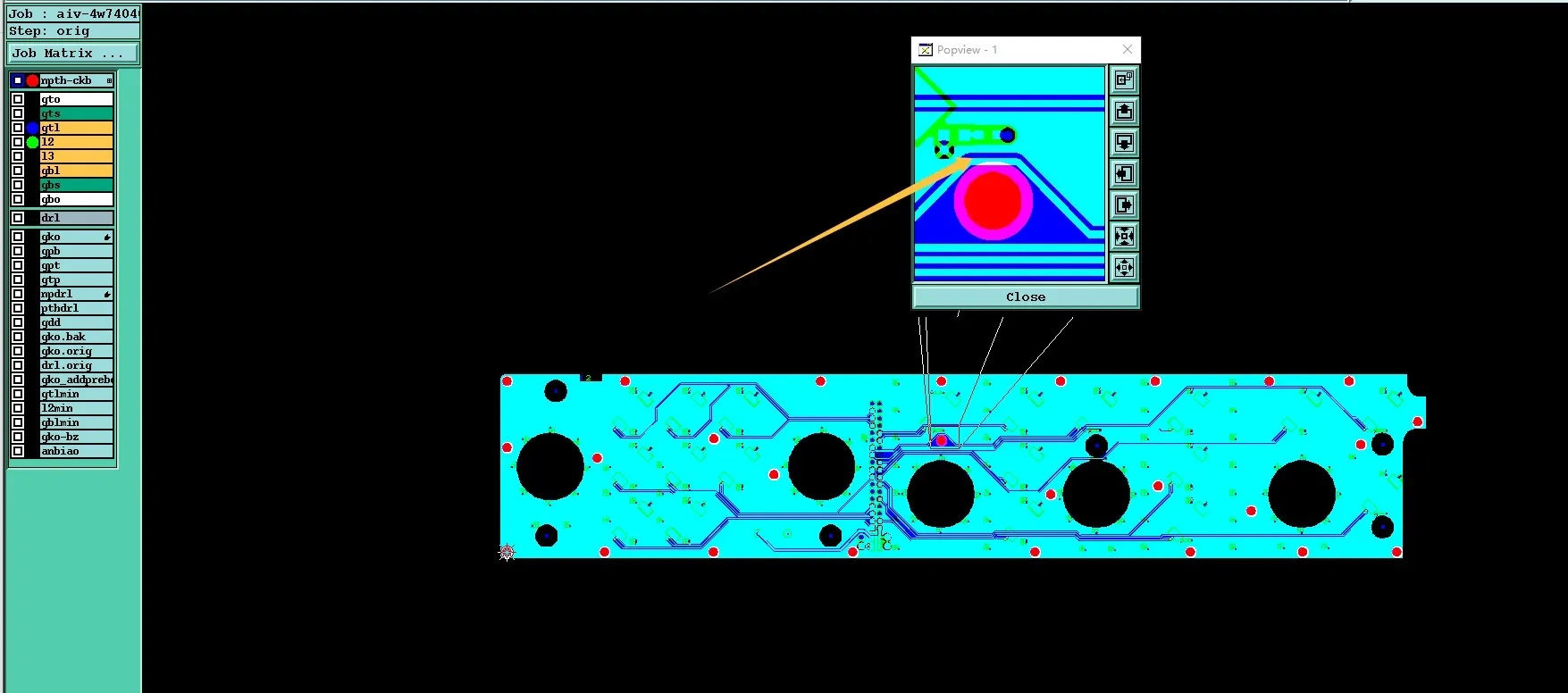

Figure 3: thin 0.8mm construction left almost no margin for depth variation
If this issue had been ignored, the result would likely have been small hole breakout, copper peeling on L1/L2 layers, or complete penetration causing open circuits and scrap boards. In thin boards, even minor over-drilling can lead to delamination or structural weakness under mechanical stress. We requested detailed counterbore parameters including exact depth, tolerance, and affected hole locations to align with actual manufacturing capability.
Figure 4: counterbore parameters optimization
2. Layer Text Orientation (L3 and L4 Positive Text)
The customer design specified positive text on both L3 and L4 inner layers. During our layer-by-layer CAM review, we noticed this orientation and raised an EQ because inner layer text polarity must be carefully verified to ensure correct readability and alignment after lamination and drilling. Positive text on inner layers can sometimes appear mirrored if not properly handled in the production files, especially in thin 0.8mm boards where registration is more sensitive.

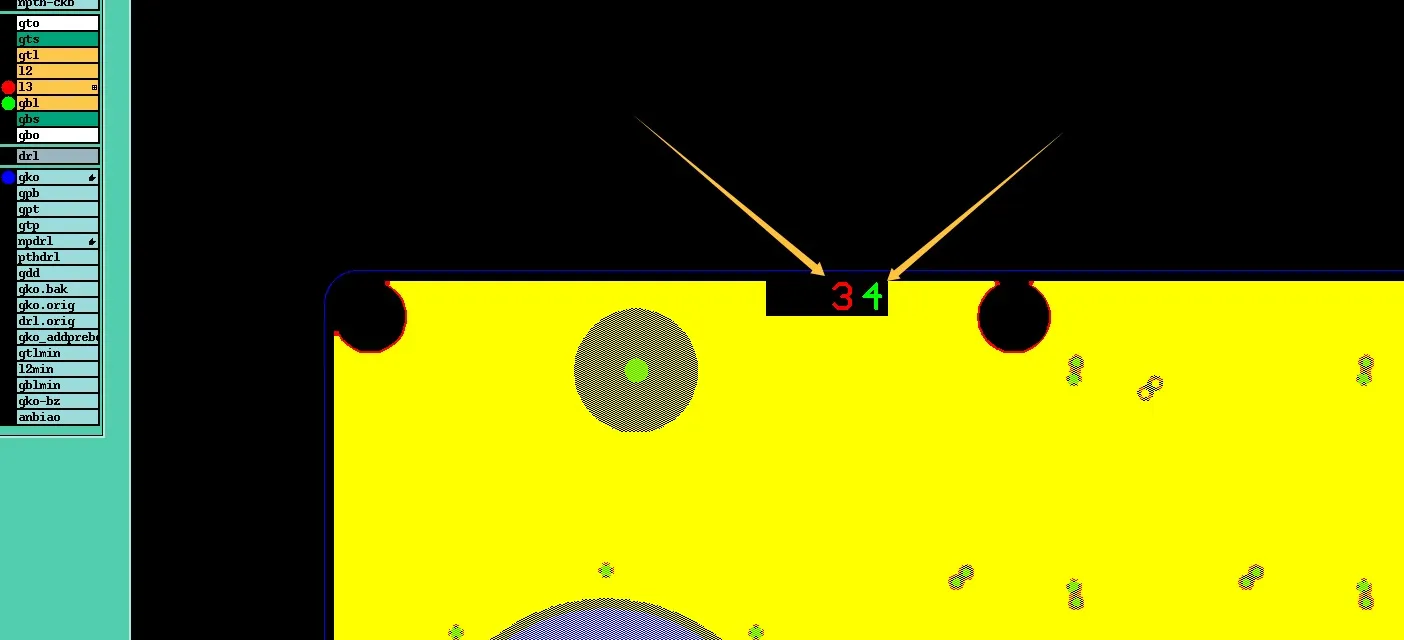

Figure 5: positive text on both L3 and L4 inner layers
Our CAM engineer confirmed the text features while checking silkscreen and mechanical layers. We asked the customer to explicitly confirm that the positive orientation was intentional, as any mismatch could lead to unreadable or incorrectly placed markings on the finished board. Although this is not a structural risk, incorrect text polarity frequently causes cosmetic defects or assembly confusion, requiring rework or additional inspection steps.
If left unconfirmed, the text could be produced in the wrong orientation, resulting in mislabeled boards or failure to meet customer quality standards for markings. We have seen similar cases where inner layer text issues only became apparent after final electrical testing and visual inspection, leading to unnecessary delays.
3. Production File and Marking Confirmation
Multiple file and marking clarifications were needed in this order. The customer provided a reference file, which we asked them to confirm as the authoritative source for any design intent not fully captured in the Gerber data. Additionally, the system order indicated a requirement to modify the production cycle marking, but no specific details were given on whether to add cycle identifiers.

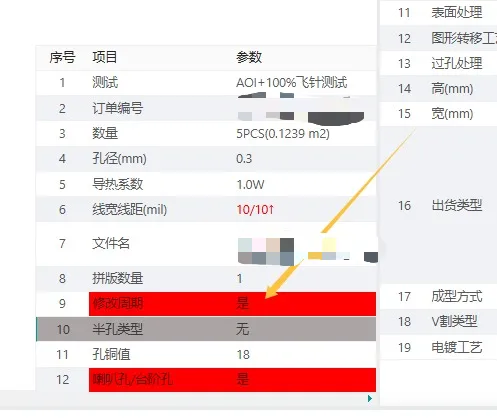

Figure 6: a requirement to modify the production cycle marking
On the bottom layer, after the SN characters, the customer requested special marking, but the exact content and placement were ambiguous. Our team identified these points during the final file confirmation stage and raised EQs to prevent any misinterpretation during CAM editing and production.

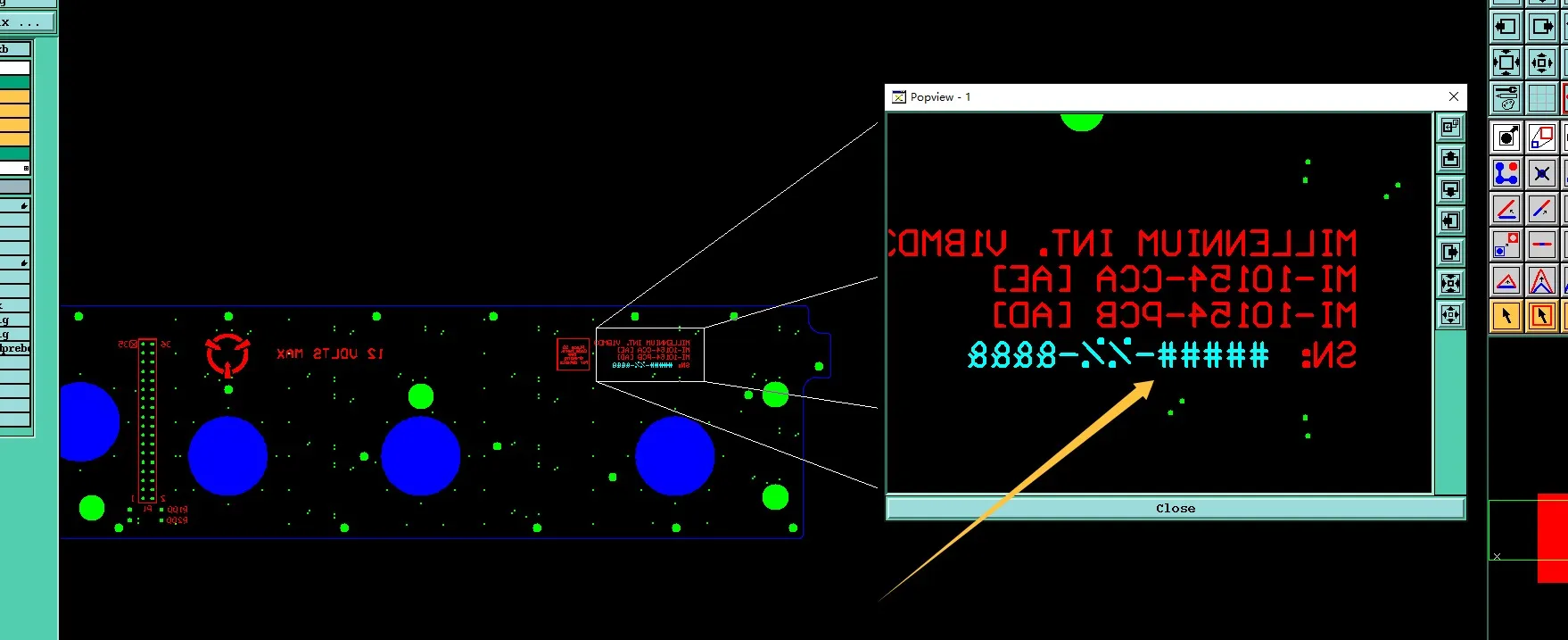

Figure 7: SN characters
We noticed that unclear marking instructions and multiple reference files can easily lead to version conflicts. Without explicit confirmation, production might proceed with incorrect cycle markings or missing special identifiers, causing traceability issues or boards that fail customer incoming inspection. In our experience, such ambiguities often result in multiple revision cycles and potential scrap if the wrong markings are etched or printed.
After receiving customer feedback on the PDF reference, cycle marking details, and SN special marking, we updated the production files accordingly to ensure full alignment with requirements. This confirmation step was essential before releasing the order to fabrication.
Suggested EQ Categories
Hole & Tolerance Issues
- Counterbore depth exceeding board thickness limits
- Counterbore parameter clarification for controlled-depth drilling
File & Manufacturing Data Issues
- Reference PDF file confirmation
- Multiple production file and marking clarifications
Silkscreen & Layer Feature Issues
- Layer text polarity (positive text on inner layers)
- Special marking and cycle identifier requirements
Manufacturing Risks and DFM Insights
This case highlights the dangers of specifying controlled-depth features like counterbores on ultra-thin boards without precise parameters. Designers frequently overlook the cumulative tolerances in thin constructions, where 0.8mm thickness leaves minimal room for drilling variation.
If the counterbore depth EQ had been ignored, over-drilling could cause copper damage on inner layers, hole breakout, and significant yield loss. Such issues often lead to production delays, scrap material, and repeated engineering cycles. File version and marking ambiguities further increase the risk of incorrect board features reaching assembly.
How the Engineering Team Resolved the Issues
Our engineering team provided detailed calculations and annotated images showing the counterbore depth conflict. We suggested adjusting either the depth target or hole selection to stay safely within the 0.8mm board thickness. The customer confirmed final parameters, allowing us to update the drill program accordingly.
Layer text and marking requirements were verified through direct customer feedback. We noticed potential ambiguity in the SN marking area and adjusted the silkscreen data after confirmation. This workflow ensured all production files reflected accurate manufacturing intent and reduced risk.
Final Manufacturing Outcome
All EQs were resolved with clear customer confirmations. Counterbore parameters were finalized within safe limits, file references confirmed, and marking details implemented. The CAM review was completed and the order released for production with optimized parameters.
Key Takeaways for PCB Designers
- Always verify controlled-depth features like counterbores against actual finished board thickness with sufficient margin.
- Provide detailed counterbore specifications including depth, tolerance, and hole list in fabrication notes and drawings.
- Confirm layer text polarity and orientation for all inner layers to prevent marking issues.
- Supply clear reference files (PDFs, drawings) and designate the primary manufacturing data set.
- Specify special markings and cycle identifiers explicitly to avoid interpretation errors.
- Account for drilling tolerances in thin boards (under 1.0mm) during DFM checks.
- Respond promptly to depth-related EQs with precise parameters to minimize delays.
- Cross-check drill files against board thickness before submission for quotation.
FAQ
Q1: Why is counterbore depth critical on 0.8mm thin PCBs?
A1: With only 0.8mm total thickness, a 0.85mm calculated depth risks breakthrough, inner layer copper damage, and hole breakout. Precise parameters are essential for safe controlled-depth drilling.
Q2: What happens if counterbore depth exceeds board thickness?
A2: It can cause copper peeling on opposite layers, structural weakness, open circuits, or complete board scrap due to over-drilling.
Q3: Why confirm layer text polarity during CAM review?
A3: Positive vs. mirrored text affects readability of markings. Incorrect polarity leads to cosmetic or functional issues in final products.
Q4: How should designers specify counterbore holes?
A4: Include exact depth, tolerance, hole diameters, and a reference drawing. This prevents ambiguity and allows accurate CAM programming.
Q5: What risks come from unclear production file references?
A5: Version conflicts can result in wrong features, incorrect markings, or dimensional errors, causing delays and potential scrap.
