In high-reliability industrial control applications, 4-layer PCBs with mixed blind vias often push the boundaries of standard manufacturing processes. This engineering case examines a real production order involving a sizable 319.5 × 545 mm panelized FR-4 board. During the CAM engineering review, several critical manufacturability issues surfaced that required direct customer clarification to prevent yield loss and production delays.
Our CAM team routinely performs detailed DFM analysis on incoming Gerber and ODB++ files. In this instance, the combination of 2oz copper on all layers, laser-drilled blind vias, and overlapping drill definitions between layers created multiple confirmation points. We noticed potential risks early and raised targeted Engineering Questions (EQs) to align design intent with factory capabilities.
Order Overview
This was a 4-layer FR-4 board ( #FR4-20260205-001 ) with TG150 material, 1.6mm finished thickness, and 2oz copper weight on both outer and inner layers. The design specified a lead-free HASL surface finish, 0.3mm minimum hole size, and 100% flying probe testing. Panelization used a 1×1 configuration with V-scoring, mechanical forming, and 4mm process edges on top and bottom. Total quantity was 10 sets (10pcs), with blind vias present and no impedance control requirements noted.
The stackup involved standard FR-4 construction with laser blind vias primarily on layers 1-2. Production notes emphasized confirmation of the Gerber files for blind via processing, solder mask (green top/bottom), and white silkscreen. Special customer notes requested verification of blind via Gerber output and process edge additions including tool holes and fiducials with copper fill.
Main Engineering Questions Found During CAM Review
1. Blind Via Diameter Reduction and Process Capability
One of the first issues identified was the proposed change of laser blind via diameters. The original customer design included 0.2mm, 0.3mm, and 0.4mm blind vias, which our engineering team adjusted to 0.15mm finished size to better suit our laser drilling and plating process window for this 4-layer stackup.

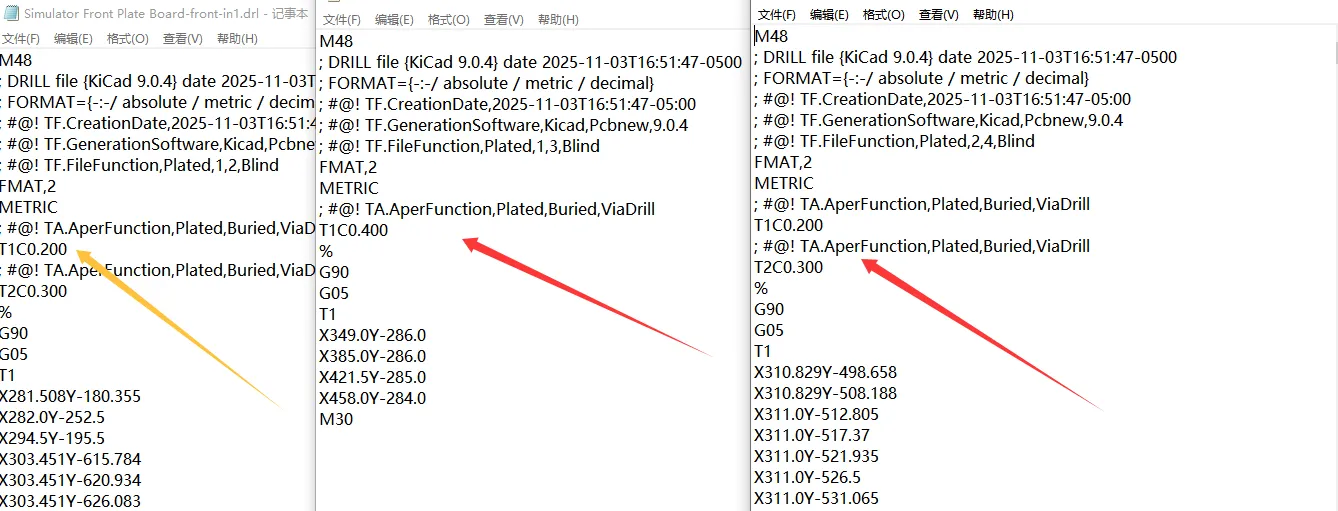

Figure 1: blind via diameter reduction
We noticed that maintaining the larger original diameters with 2oz copper and 1.6mm overall thickness risked insufficient annular ring and plating reliability. Our engineer suggested confirming the 0.15mm adjustment because we knew from experience that smaller vias improve registration accuracy in blind via processes while still meeting current-carrying needs for most control applications.
If ignored, larger vias could have led to via cracking or incomplete plating due to aspect ratio challenges in laser-drilled holes, resulting in open circuits or high-resistance paths after thermal stress. According to typical IPC-6012 Class 2 criteria, the adjusted size ensured better copper wall coverage and reduced the risk of resin voids around the vias.
2. Multi-Layer Drill Overlaps (1-2 Blind vs 2-4 Blind/Through Interactions)
A more complex issue involved overlapping and connecting drill definitions between layers 1-2 and 2-4. Multiple holes showed partial overlaps, connections, or very close proximity, effectively turning some blind vias into pseudo-through structures in certain locations.

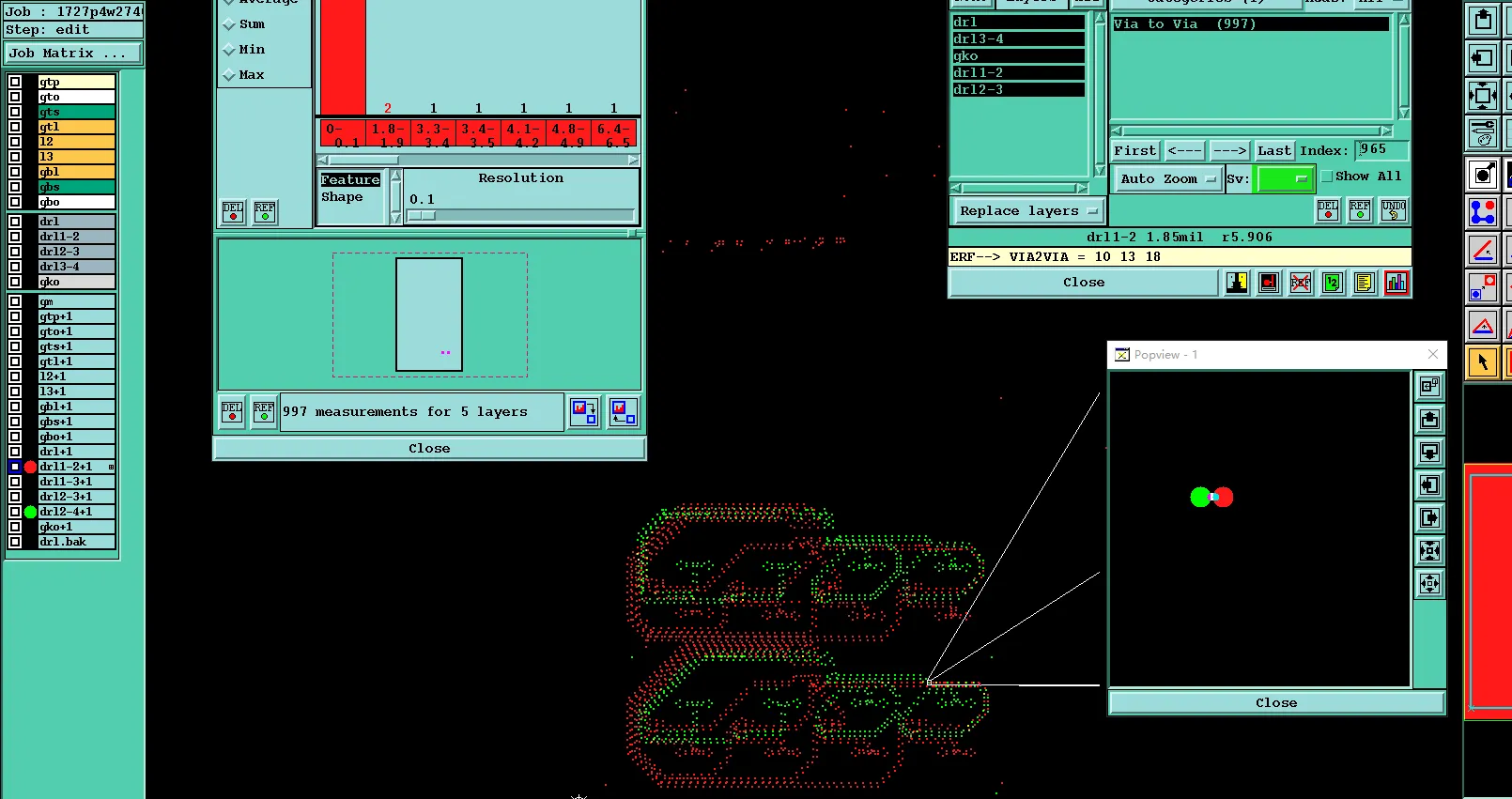

Figure 2: holes showed partial overlaps, connections, or very close proximity between layer 1-2

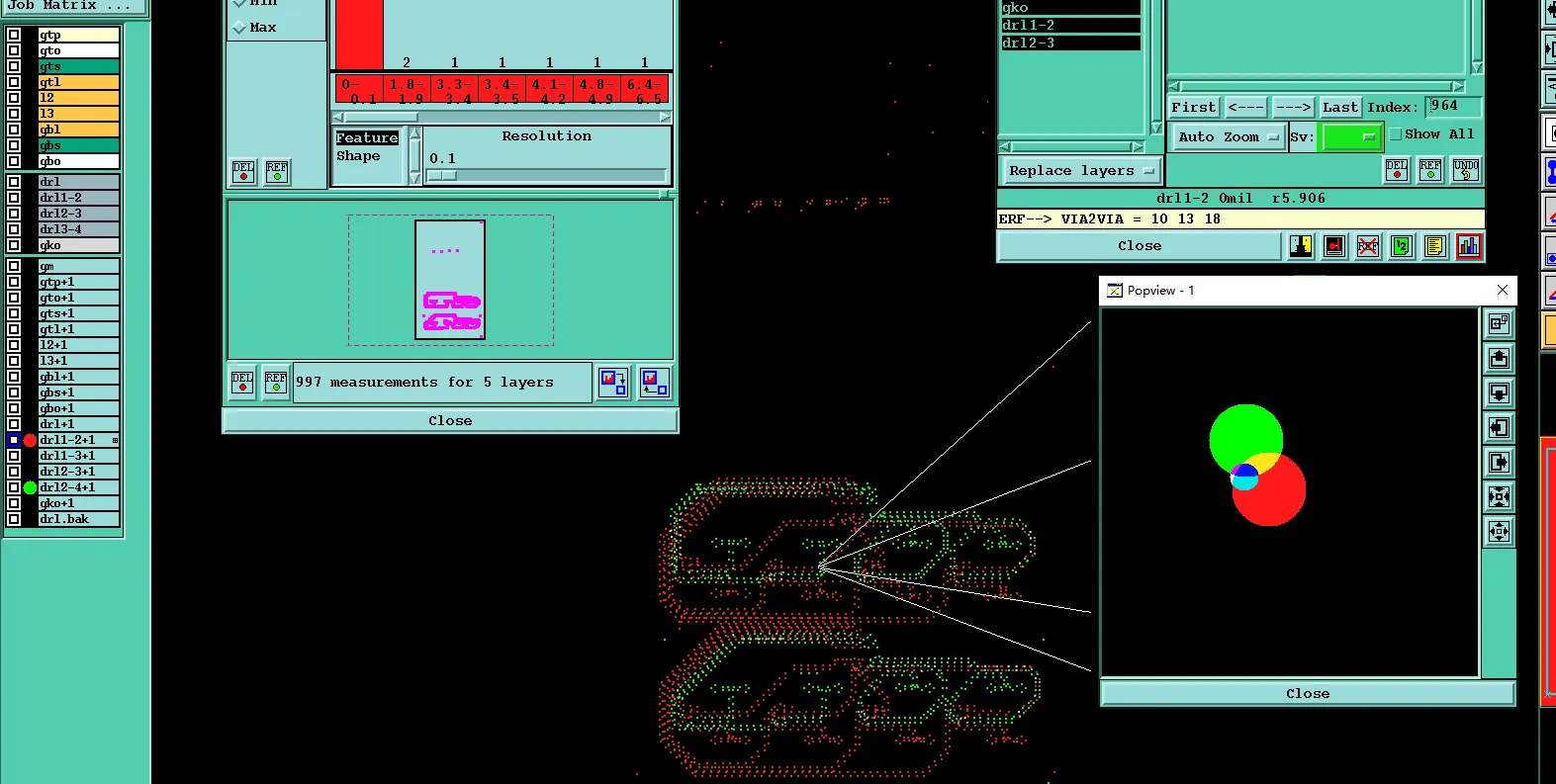

Figure 3: holes showed partial overlaps, connections, or very close proximity between layer 3-4
Our CAM engineer confirmed that we processed the holes according to the original drill files provided. However, we raised an EQ asking for explicit confirmation because such overlaps can cause drill breakout, copper smear, or plating inconsistencies during sequential lamination and drilling. We noticed the heavy copper (2oz) exacerbated potential etching challenges around these merged features.
Had this not been clarified, production could have resulted in hole breakout on inner layers, delamination at the layer 2 interface, or unreliable interconnects. In worst cases, this leads to intermittent signal issues or complete open circuits after assembly and thermal cycling. The customer was asked to either approve the current drilling or provide updated files to delete or separate the conflicting holes, as a vague “delete” response was insufficient for precise CAM adjustment.
3. Panelization, Process Edge, and Identification Requirements
The panelization file review revealed 4mm process edges on left and right sides (with top/bottom also specified). We confirmed the addition of production serial numbers, tool holes, and optical fiducials with copper pour. The board itself had minimal markings, which is acceptable but required explicit verification.

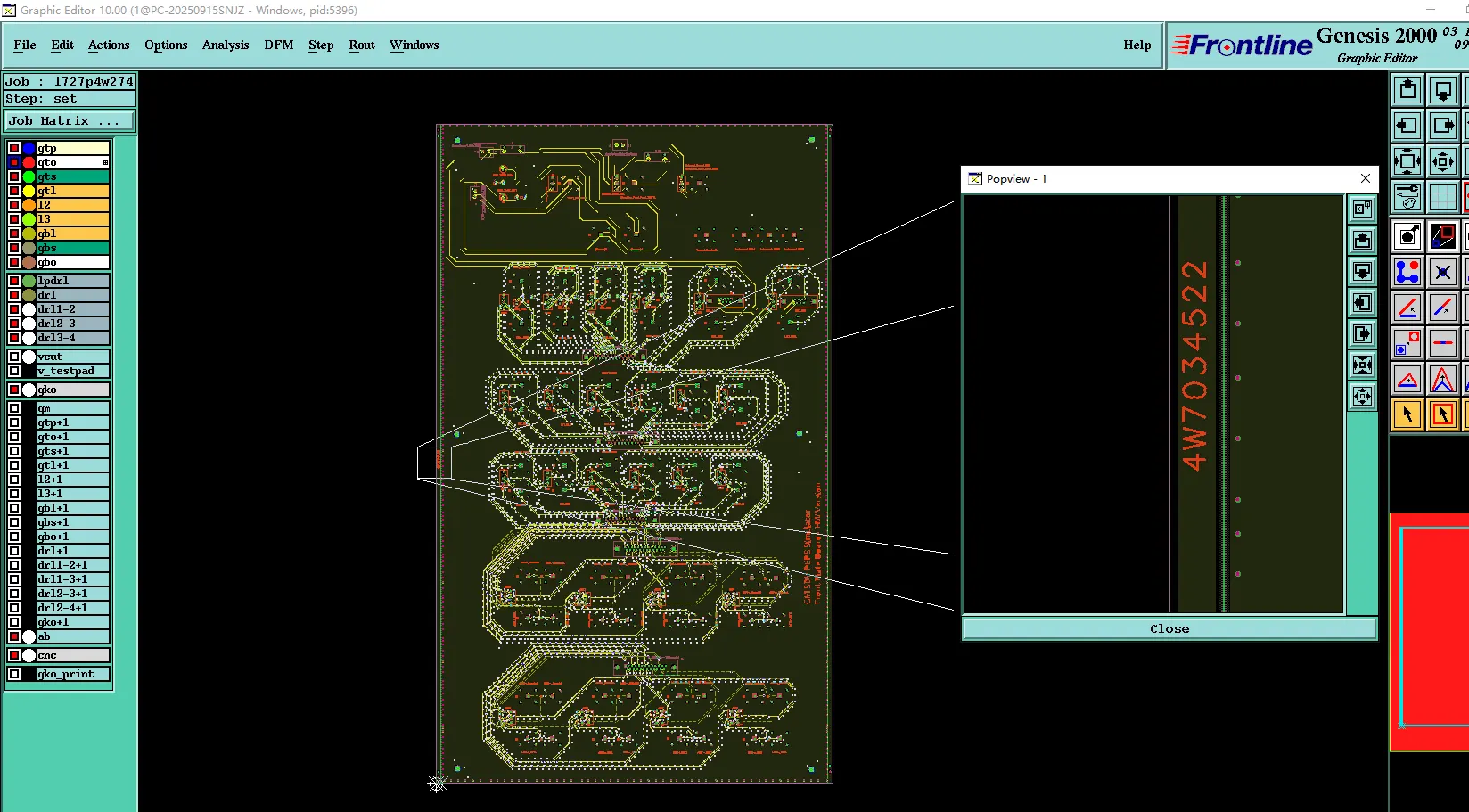

Figure 4: adding Identification to the edge
Our team suggested adding the process edge identifiers because we have seen cases where missing traceability leads to mix-ups in multi-panel runs. Random copper fill on fiducials helps with optical alignment during fabrication and assembly.
Suggested EQ Categories
File & Manufacturing Data Issues
- Drill file overlaps between blind via layers
- Ambiguous instructions for hole modifications
Stackup & Material Issues
- Blind via size optimization for plating reliability
- Finished thickness and copper weight confirmation
Panelization & Process Optimization
- Process edge markings and fiducial placement
- V-score alignment with copper features
Manufacturing Risks and DFM Insights
This case highlights common pitfalls in 4-layer designs with blind vias and heavy copper. Customers often underestimate the impact of drill interactions across layers, especially when transitioning from blind to through-hole zones. Ignoring overlaps can cause resin starvation or copper peeling during pressing.
Another frequent trigger is via sizing without considering the full aspect ratio and plating chemistry. If the blind via spacing issue had been ignored, drill breakout and unreliable plating could have resulted in low production yield and costly rework.
Panelization details matter significantly for large boards like this one. Insufficient process edge identification increases the chance of cosmetic defects or traceability loss after V-scoring.
How the Engineering Team Resolved the Issues
Our engineering team worked closely with the customer to resolve each point. For the blind vias, we confirmed the 0.15mm diameter after verifying plating capability and updated the production files accordingly. On the drill overlaps, we provided annotated images showing the affected locations and received approval to proceed with original data where safe, or requested updated Gerbers for critical zones.
Process edge modifications were implemented directly in our CAM software with customer sign-off. Stackup was approved after cross-checking against the provided diagram. These steps followed standard DFM workflow to minimize risk before releasing to production.
We always prioritize yield protection. In one internal discussion, our CAM engineer noted that proactive adjustment of copper clearance near V-CUT areas prevents exposed copper after depanelization.
Final Manufacturing Outcome
All EQs were satisfactorily resolved through documented customer confirmations. The stackup, via parameters, and panelization files were finalized. CAM data was approved, and the order was released for production with optimized manufacturing parameters to ensure high first-pass yield.
Key Takeaways for PCB Designers
- Clearly define blind via diameters and layer spans in fabrication notes and drill files. Ambiguity forces EQs and delays.
- Avoid overlapping drill definitions across different layer spans unless intentionally creating through connections; provide separate drill files if needed.
- Include detailed stackup drawings with finished copper weights and tolerances early in the design phase.
- Specify process edge requirements including fiducials, tooling holes, and serialization consistently with panelization files.
- Review minimum annular ring and clearance for heavy copper (2oz+) designs against actual factory capabilities.
- Provide complete Gerber/ODB packages with consistent layer naming to speed up CAM review.
- Account for V-score or routing clearance from copper features to prevent edge shorts after depanelization.
- When modifying holes or features, supply updated source files rather than vague instructions.
