During CAM review of a large-format 2-layer FR-4 PCB measuring 304.74 × 422.46 mm, our engineering team identified a critical manufacturing limitation involving press fit hole tolerance. Several holes larger than 2.0 mm carried dimensional requirements that exceeded standard process capability for reliable press-fit performance. This issue, combined with panelization inconsistencies, prevented immediate production release for the 80-piece order. The investigation focused on whether the customer's design intent for mechanical press-fit interfaces could be executed without compromising Class 3 reliability or introducing assembly risks.
The board ( #FR4-20260507-086 ) specified 1 oz outer copper, 1.6 mm thickness, HASL surface finish, TG150 material, and a clear customer note requiring IPC-6011 Class 3 compliance. Panelization followed a 1×4 array with V-cut plus routing separation and zero process edge. As the final engineering checkpoint, we needed to determine if the tight drill tolerances on the larger holes could be controlled given real-world drill bit runout, alignment variation, and material characteristics. Production could not proceed until this press fit hole tolerance conflict was resolved through clarification.
Original Design Intent for Mechanical Press-Fit Interfaces
The design appeared oriented toward robust mechanical assembly. Larger diameter holes were positioned for press-fit pins or connectors, a common approach when threaded fasteners or soldering is undesirable. The overall board size and 2-layer construction suggested a relatively straightforward power or interface board, yet the combination of Class 3 requirements and tight hole tolerances indicated higher reliability expectations for the mechanical interfaces.
Customer documentation included the standard 0.3 mm minimum hole size for smaller features, while the larger holes carried the more stringent dimensional controls. Panelization data showed connection tabs between units, and the outline was intended to support efficient 1×4 array processing with V-scoring and routing. The production serial number was required on the boards, though no specific location had been defined. These elements collectively pointed to a design that prioritized both electrical function and mechanical integrity under Class 3 criteria.
At first examination the files appeared complete. However, the interaction between the specified press fit hole tolerance and actual drilling physics quickly became the central concern during data verification.
CAM Observation of Unachievable Large-Hole Tolerances
Our CAM engineer first flagged the drill data during routine capability checking. Holes above 2.0 mm were assigned tolerances tighter than what standard drilling processes can consistently deliver. Further verification of the fabrication notes against the drill file confirmed the mismatch: the design expected press-fit ready holes, yet the combination of drill bit deflection, spindle runout, and panel movement made those tolerances impractical.

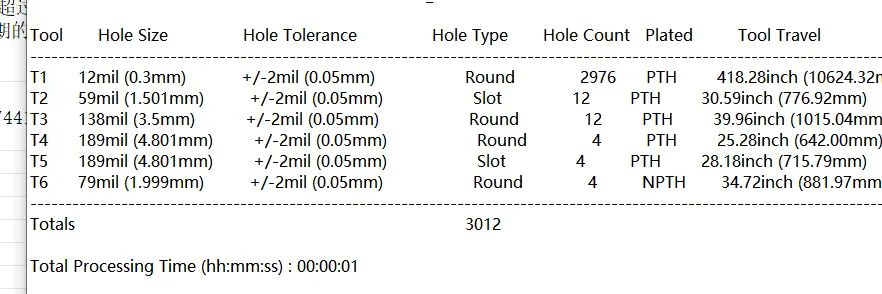

Figure 1: drilled hole tolerance requirement is too strict
In practice, larger diameter drills experience greater wander and heat-related expansion effects. Position accuracy is also affected by the sequential nature of multi-spindle drilling and any residual stress in the FR-4 material. These factors accumulate into dimensional variation that routinely exceeds the extremely tight window requested for press-fit functionality. The engineering observation was straightforward: the specified press fit hole tolerance could not be controlled with the process capability available for this board construction.
This finding immediately placed the job on engineering hold. Releasing the files without clarification would have exposed the finished boards to a high probability of either pin insertion damage or insufficient retention force, both of which conflict with IPC Class 3 expectations.

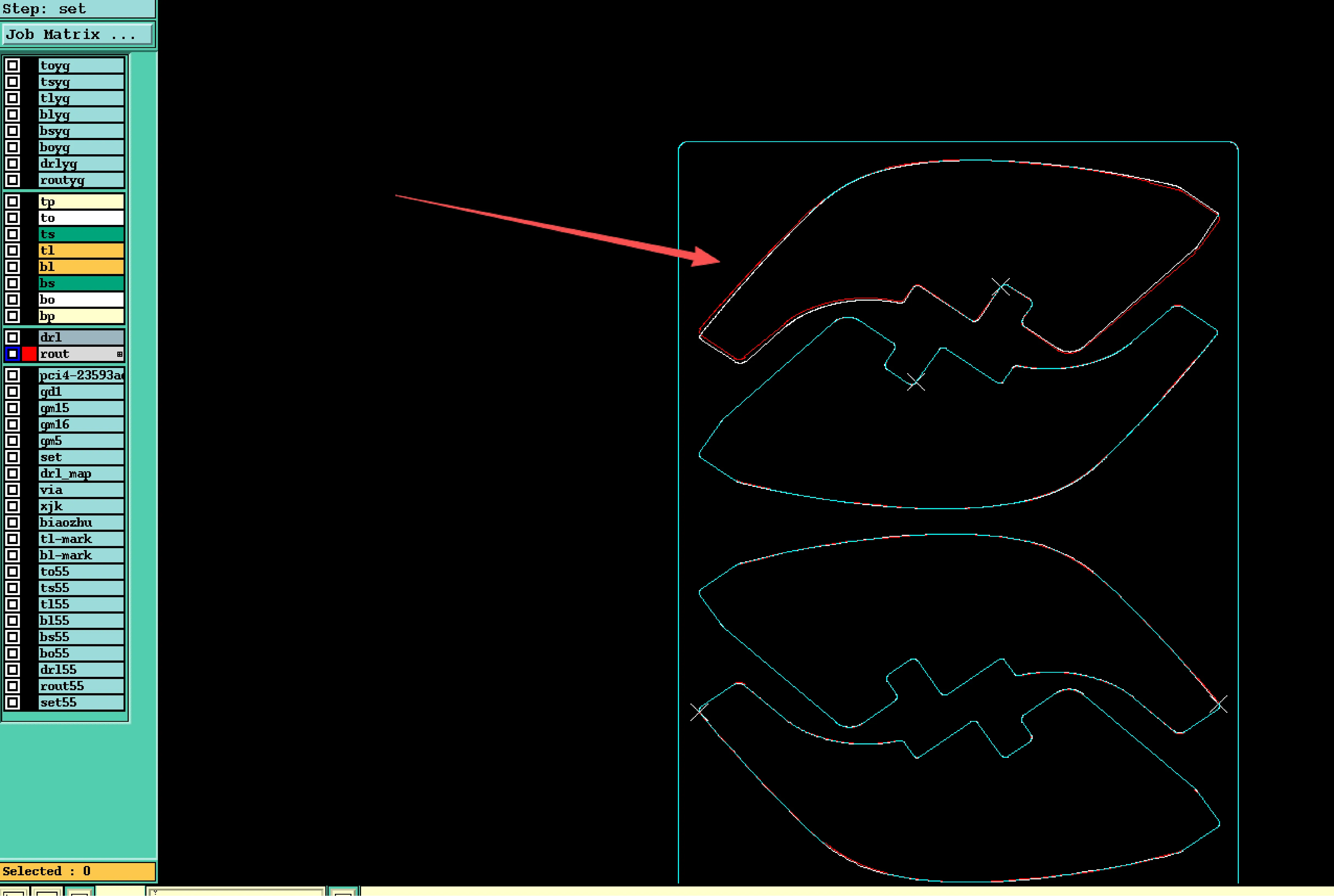

Figure 2: the outline of the top panel does not match the outline of the bottom panel
| Engineering Observation | Conflict Identified | Potential Manufacturing Outcome | Recommended Action |
|---|---|---|---|
| Holes >2.0 mm carry tight tolerance | Press fit hole tolerance beyond process capability | Pin damage or loose fit during assembly | Confirm achievable tolerance window |
| Connection tabs without stamp holes | Difficult clean separation | Edge damage or incomplete depanelization | Add stamp holes or adjust tab design |
| Top vs bottom unit outline mismatch | Panel data inconsistency | Misaligned routing or scoring | Align outline data across units |
Detailed Conflict Analysis of Press Fit Hole Tolerance
The primary design-to-manufacturing conflict centered on the impossibility of controlling the requested press fit hole tolerance on diameters above 2.0 mm. Drill files and fabrication notes defined the holes as press-fit ready, yet the physical process variables made those tolerances unachievable. Drill bit runout increases with diameter, spindle alignment has finite accuracy, and the large panel size (over 300 mm in one dimension) introduces additional positioning uncertainty during multi-hit drilling sequences.
Figure 3: PCB press fit hole
From an engineering standpoint, the risk was not theoretical. If the holes finished undersized relative to the pin, insertion force would rise sharply, potentially damaging the compliant pin structure or fracturing the surrounding laminate. If the holes finished oversized, retention force would drop below the level needed for reliable electrical and mechanical performance under vibration or thermal cycling. Either outcome would fail Class 3 criteria and create downstream assembly problems.
IPC-6012 and related Class 3 documentation emphasize dimensional control of plated and non-plated holes when they serve mechanical functions. In this case the design intent for press-fit performance could not be verified against the actual process capability. Without customer confirmation of a relaxed yet still functional tolerance window, the manufacturing interpretation remained ambiguous. Production release was therefore blocked until the conflict was resolved.
Secondary observations reinforced the need for comprehensive clarification. The panelization data showed connection tabs between units, yet no stamp holes (mouse bites) had been defined. This made clean separation difficult and risked edge damage that could affect nearby features. In addition, the outline of the uppermost unit did not match the lower units, creating a data inconsistency that could produce misaligned V-scoring or routing paths. The production serial number also lacked a defined location, leaving placement open to interpretation. These issues, while secondary, illustrated a broader pattern of incomplete manufacturing instructions that often accompanies aggressive mechanical tolerance requirements.
Supporting Panelization and Documentation Issues
The outline mismatch between the top unit and the remaining units in the 1×4 array required verification to prevent cumulative registration errors during scoring and routing. Connection tabs without corresponding stamp holes meant the boards would be difficult to separate cleanly after V-scoring, increasing the chance of laminate cracking or copper damage near the press-fit holes. The undefined placement of the factory serial number added a further documentation gap. Each of these findings supported the primary concern by demonstrating that the design data set still contained interpretation gaps that needed customer input before any process commitment.
Taken together, the secondary issues did not independently stop production, but they reinforced the decision to hold the job until the press fit hole tolerance question was answered. Addressing only the tolerance while leaving panelization and marking ambiguous would have left residual risk in the final product.
Engineering Clarification and Final Manufacturing Resolution
We issued a focused set of Engineering Questions. The central question addressed the drill tolerance on holes larger than 2.0 mm, explaining that alignment variation and drill bit characteristics prevented reliable control of the specified window for press-fit applications. Additional questions covered the missing stamp holes on the connection tabs, the outline mismatch between units, and the preferred location for the production serial number.

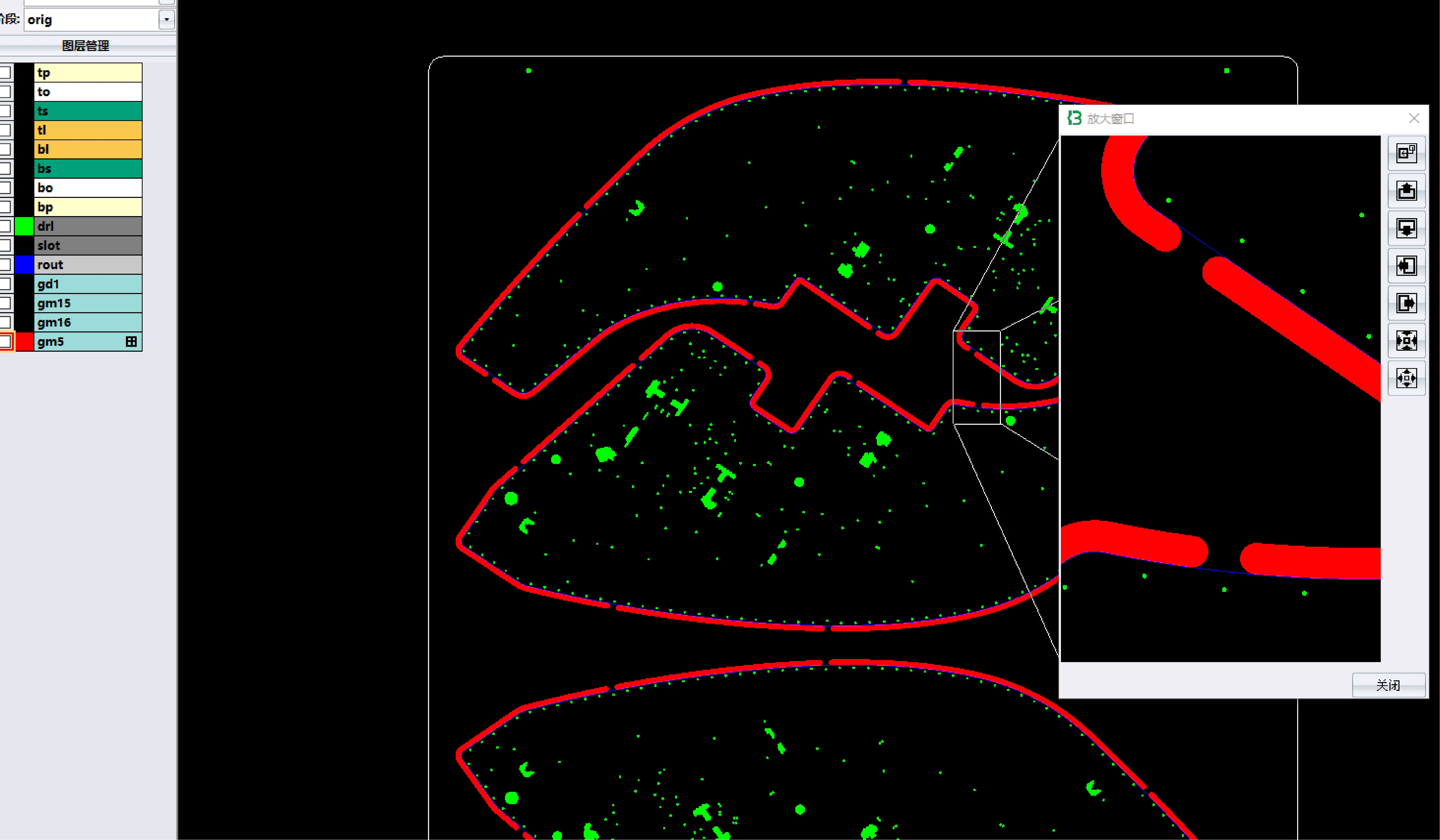

Figure 4: there's tab routing design, but no stamp holes for depanel
Customer response confirmed that the press-fit holes could accept a revised, process-capable tolerance range that still supported reliable pin retention. Stamp holes were authorized for addition at the connection tabs to ensure clean depanelization. Outline data was aligned across all units, and a standard location for the serial number was agreed. These confirmations allowed the engineering team to update the drill programs, panelization instructions, and fabrication notes with a consistent, manufacturable interpretation.
Revised files were generated reflecting the achievable press fit hole tolerance, the addition of stamp holes, corrected outlines, and defined marking placement. Internal verification confirmed that the updated data set satisfied both the clarified customer intent and the process capability of the drilling and scoring equipment. Only after this validation was the job released to production under the original 14-day lead time and Class 3 requirements.
| Aspect | Before Clarification | After Resolution |
|---|---|---|
| Press Fit Holes >2.0 mm | Uncontrollable tight tolerance | Process-capable tolerance accepted |
| Panel Separation | Connection tabs, no stamp holes | Stamp holes added for clean break |
| Outline Consistency | Top unit mismatch | Aligned across all units |
| Production Marking | Number required, location undefined | Standard location confirmed |
Key Design Lessons for Reliable Press-Fit Hole Implementation
- When specifying press fit hole tolerance on diameters larger than 2.0 mm, consult the manufacturer early to establish realistic process capability limits rather than ideal values.
- Account for drill bit runout, spindle alignment, and panel size effects when defining mechanical hole tolerances for Class 3 applications.
- Include stamp holes or mouse bites whenever connection tabs are used in panelization to ensure clean separation without edge damage near critical features.
- Verify that all unit outlines in a multi-up array are identical before submitting files; mismatches create cumulative registration risk during scoring and routing.
- Define the exact content and preferred location of any required production serial number in the fabrication notes to avoid placement ambiguity.
- Cross-check large-hole tolerances against both the drill file and the mechanical function (press-fit versus clearance) during internal DFM review.
- Document any Class 3 mechanical requirements explicitly so that CAM engineers can evaluate process feasibility before production commitment.
- Treat panelization method, separation features, and hole tolerances as an interconnected system rather than isolated attributes.
Conclusion
The investigation into the press fit hole tolerance conflict demonstrated how a single dimensional requirement, when set beyond process capability, can halt an otherwise complete data package. By combining evidence from the drill file, fabrication notes, and panelization data, the engineering team identified the root limitation, communicated the manufacturing reality, and obtained a workable resolution. The final revised files preserved the customer's mechanical intent while remaining fully manufacturable under IPC Class 3 criteria. This case reinforces the value of rigorous CAM review in converting design intent into reliable production data for large 2-layer FR-4 boards that rely on precise press-fit interfaces.
FAQ
Q1: Why does a tight press fit hole tolerance on holes larger than 2.0 mm commonly trigger an Engineering Question?
A1: Larger drills experience greater bit deflection and runout. Combined with panel positioning variation, the resulting dimensional scatter often exceeds the extremely tight windows specified for press-fit performance, making the tolerance unachievable under normal process conditions.
Q2: What manufacturing risks arise if an unachievable press fit hole tolerance is ignored?
A2: Undersized holes can damage compliant pins during insertion or crack the laminate. Oversized holes reduce retention force, leading to intermittent contact or mechanical failure under vibration and thermal stress, both of which violate Class 3 reliability expectations.
Q3: How should designers approach drill tolerance for press-fit holes in large boards?
A3: Establish the required retention force first, then work with the fabricator to define a tolerance window that balances functional needs against actual drill capability, especially for diameters above 2.0 mm on panels exceeding 300 mm in any dimension.
Q4: Why are missing stamp holes on connection tabs a concern when press-fit holes are present?
A4: Without stamp holes the force required to separate the panel can create stress concentrations near the large holes, risking laminate cracks or copper damage that compromises the press-fit interface.
Q5: Does outline mismatch between units affect press fit hole quality?
A5: Yes. Misaligned outlines can cause scoring or routing paths to shift relative to the drilled holes, introducing additional positional error that further reduces the achievable accuracy of the press-fit features.
Q6: What role does IPC Class 3 play in evaluating press fit hole tolerance?
A6: Class 3 imposes stricter dimensional and reliability requirements. When a specified tolerance cannot be demonstrated under normal process conditions, CAM engineers must obtain confirmation or adjustment before releasing the job to production.
