CAM review of a compact 2-layer FR-4 PCB measuring 105.2 × 135.2 mm revealed a critical panelization weakness. The customer-supplied panel (3×4 array) contained connection tabs that were too narrow to support reliable separation. This undersized panel connection tab configuration created a direct risk of board breakage during depanelization. Combined with inconsistencies between the single-board file and the panelized data, the design could not proceed to production without clarification. The order covered 240 pieces across 20 sets with 1.0 mm thickness, 1 oz copper, green solder mask, HASL finish, and a one-day lead time.
As the final engineering checkpoint, our team examined the full data package—Gerber layers, panelization outline, fabrication notes, and drill information—to determine whether the mechanical separation features matched the intended manufacturing process. The investigation centered on whether the customer's self-panel design could be executed without introducing edge damage or incomplete board separation under normal routing and handling conditions.
Customer Self-Panel Design Intent for Compact 2-Layer Boards
The board ( #FR4-20260228-073 ) was a straightforward 2-layer construction using FR-4 (KB-6165F) material with TG150 rating. Finished thickness was specified at 1.0 mm, copper weight 1 oz on both sides, and surface finish lead-free HASL. Solder mask was green on both sides with no silkscreen. Minimum hole size was 0.3 mm and minimum trace/space 6 mil. The customer elected self-panelization in a 3×4 array with routing (milling) as the separation method and zero process edge.
The apparent design objective was high-volume production of a compact board with clean mechanical outlines and via tenting for protection. Fabrication notes indicated vias should be tented (covered with solder mask), and overall dimensional tolerance was stated as ±0.1 mm. The panel layout relied on connection tabs between units to maintain array integrity during processing. These features suggested an expectation of efficient depanelization after routing without additional tooling or risk of fracture.
At face value the data set appeared complete for a standard 2-layer job. However, closer examination of the physical dimensions of the connection tabs and cross-comparison of the single-board versus panelized files quickly revealed interpretation gaps that affected manufacturability.
CAM Detection of Fragile Panel Connection Features
Our CAM engineer first observed that the connection tabs in the customer panel were unusually narrow. During data verification the measured tab width fell below the threshold needed to withstand normal routing forces and subsequent handling. Further review confirmed the risk: the tabs would likely fracture under the stress of depanelization, producing incomplete boards or edge defects that could affect nearby circuitry.
Simultaneously, the single-board Gerber set did not align with the panelized outline data. Dimensions and feature placement showed discrepancies that would produce registration errors during array processing. These two observations—undersized tabs and file inconsistency—formed the core of the engineering hold.

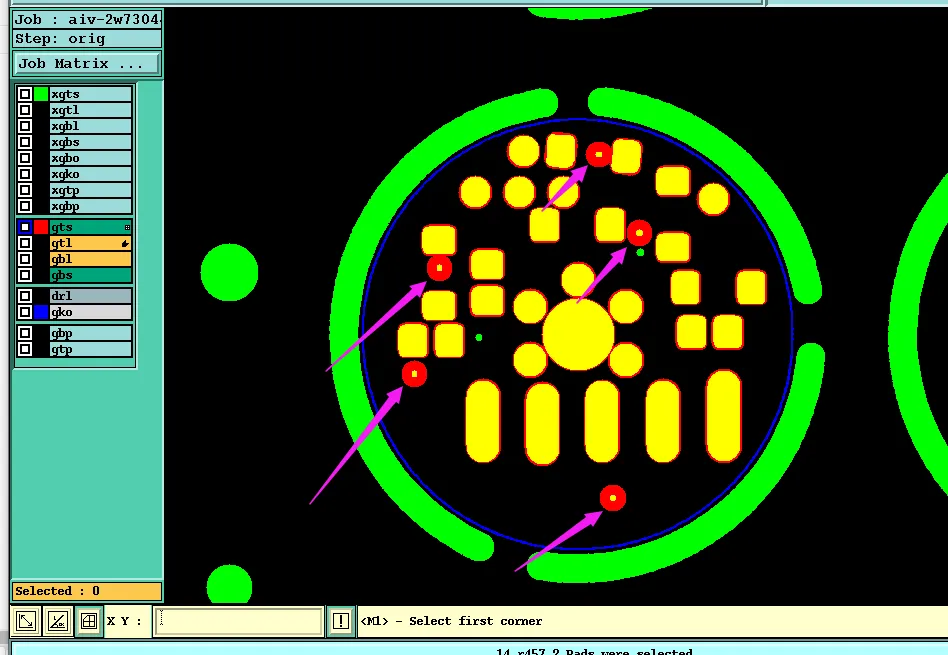

Figure 1: customer's single pcs Gerber file

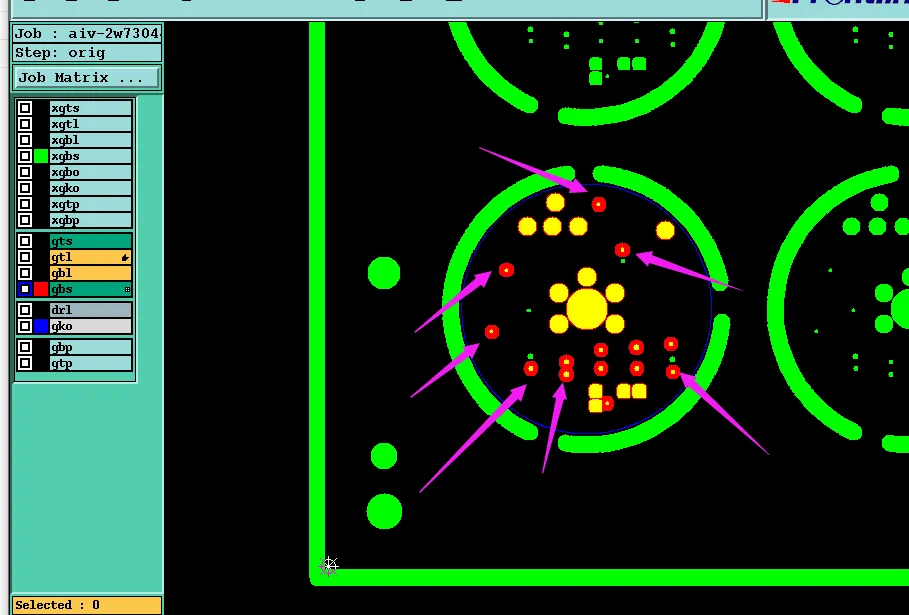

Figure 2: the panel file customer provided
| Engineering Observation | Conflict Identified | Potential Manufacturing Risk | Recommended Action |
|---|---|---|---|
| Connection tabs too narrow | Insufficient mechanical strength | Board breakage during depanelization | Widen tabs and add stamp holes |
| Single-board vs panel file mismatch | Data inconsistency | Registration error or incorrect outline | Align both data sets |
| Notes call for via tenting | Gerber shows partial open windows | Unintended via exposure | Confirm intended solder-mask treatment |
Insufficient Panel Connection Tab Strength
The dominant design-to-manufacturing conflict was the mechanical inadequacy of the customer-defined connection tabs. In a routed panel with zero process edge, the tabs serve as the sole structural links holding the array together until final separation. When tab width falls below process-proven minimums, the force applied during routing or manual depanelization concentrates stress at the tab roots. The result is fracture, incomplete boards, or jagged edges that can damage copper features near the outline.

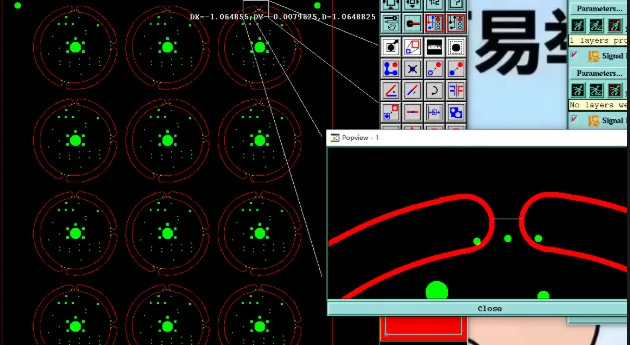

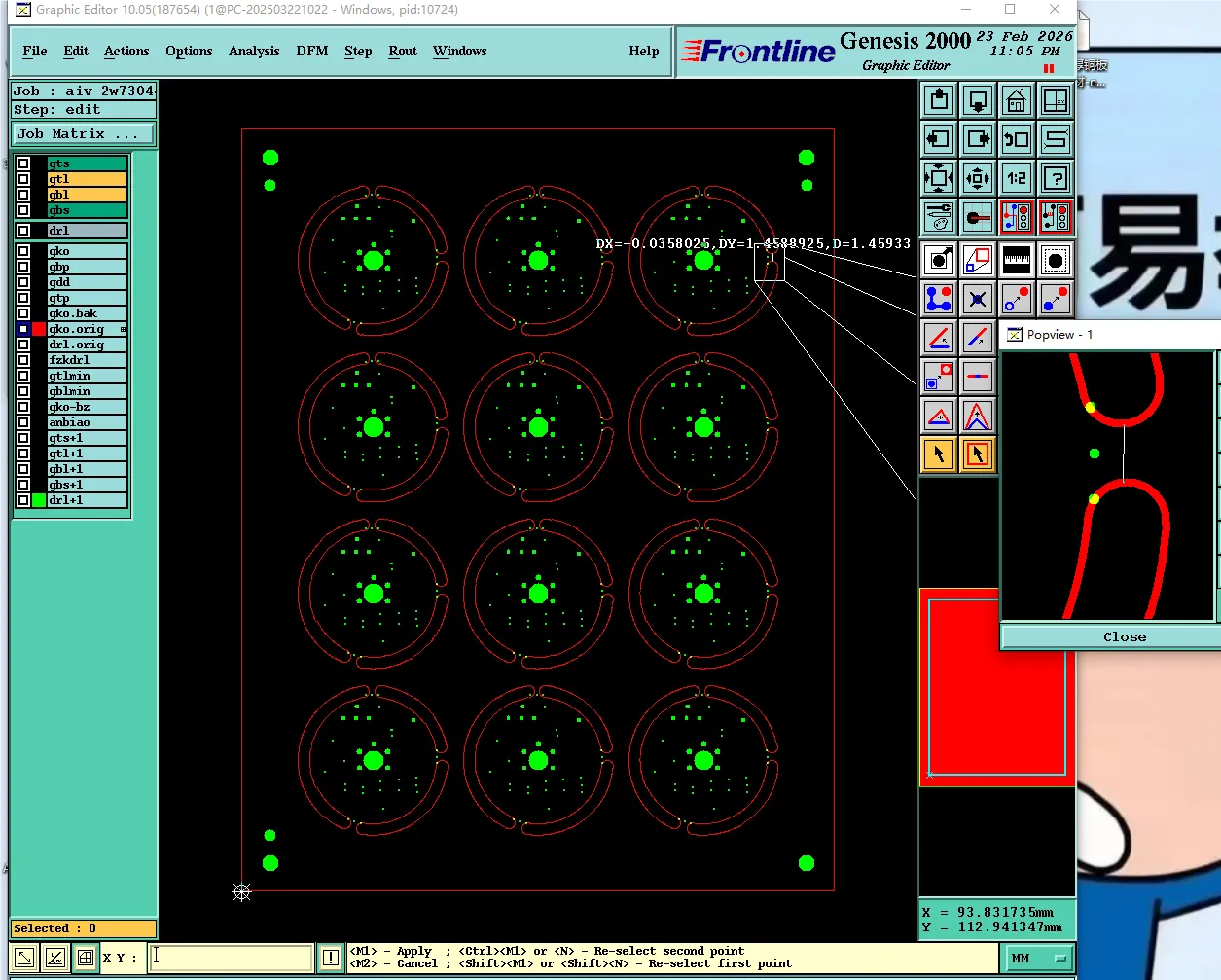

Figure 3, 4: the indicated connection is too small and it will make board break
Evidence from the panelization data showed the tabs were sized too small for reliable performance under standard milling conditions. IPC-A-600 acceptability criteria for edge condition and mechanical integrity require that separation features leave clean, undamaged outlines. An undersized tab violates this expectation and introduces a realistic failure mode: boards that arrive at the customer already cracked or with missing sections. Because the design intent for clean, functional outlines could not be guaranteed, production release was blocked pending clarification.
The single-board versus panel-file inconsistency amplified the concern. When the two data sets diverge, CAM systems cannot determine which geometry is authoritative. This ambiguity affects both the outline path and the precise location of the connection tabs, further elevating the risk of incorrect tooling or misaligned routing.
Secondary observations supported the need for comprehensive resolution. Fabrication notes specified via tenting (solder-mask covering), yet portions of the Gerber data showed open windows over vias. Dimensional tolerance was noted as ±0.1 mm while standard process capability is ±0.15 mm. The bottom solder mask layer also lacked a defined date-code or cycle mark that is sometimes required for traceability. Each of these items created additional interpretation gaps, but none carried the same immediate mechanical failure risk as the undersized connection tabs.

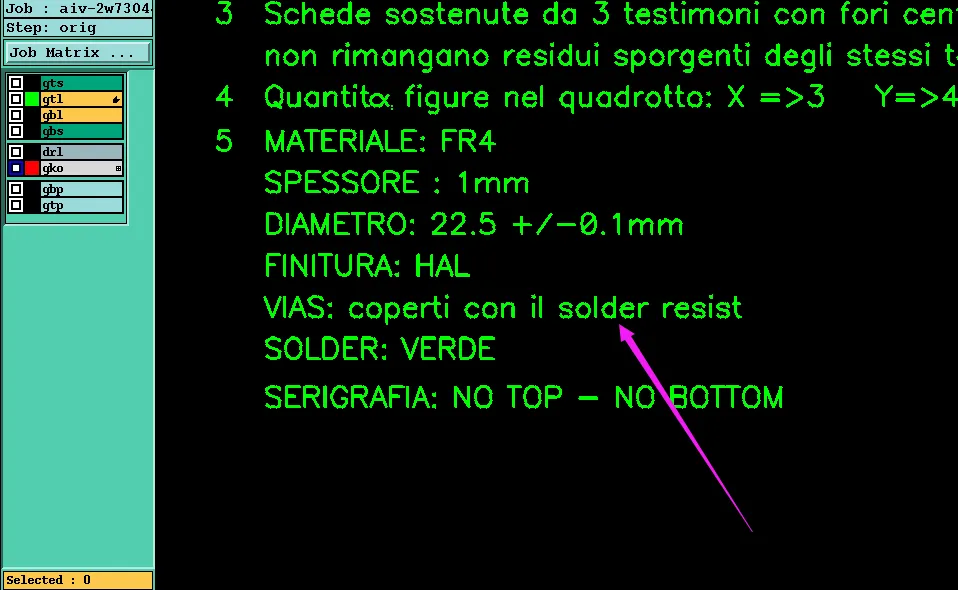

Figure 5: fabrication notes specified via tenting

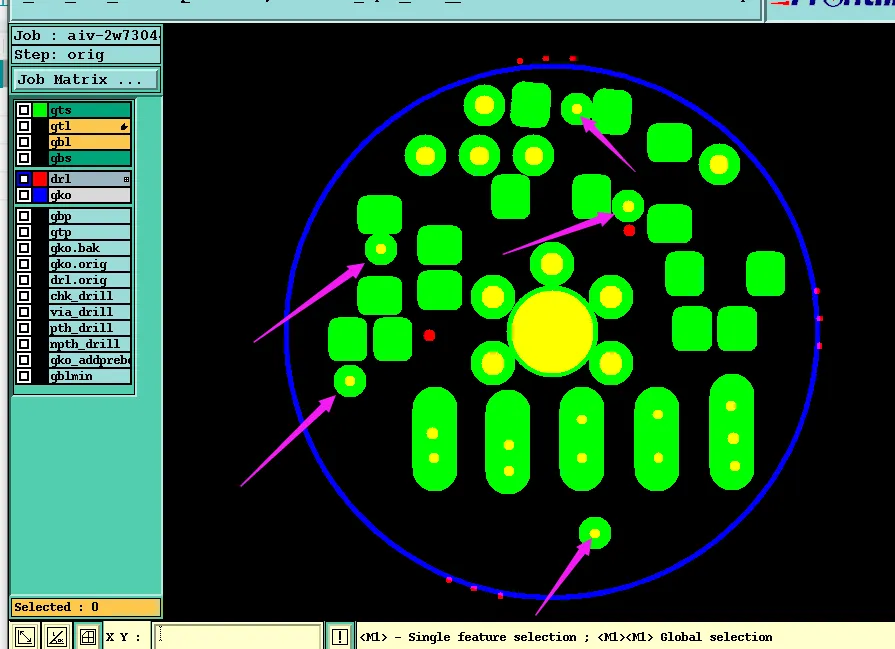

Figure 6: the Gerber data showed open windows over vias
Supporting Data Conflicts That Reinforced the Hold
The via-tenting mismatch between notes and Gerber layers required confirmation to avoid unintended exposure of via barrels. Open windows on vias that were intended to be tented can allow solder bridging or contamination during HASL processing. The tighter dimensional tolerance of ±0.1 mm versus the factory standard of ±0.15 mm needed explicit acceptance, because exceeding process capability on a 1.0 mm board increases the probability of outline rejection. The absence of a cycle mark on the bottom solder mask and the overall single-to-panel file discrepancy completed the picture of incomplete manufacturing instructions.
These secondary issues did not independently stop the job, yet they demonstrated that the data package still contained multiple points of ambiguity. Resolving only the tab strength while leaving the other conflicts open would have left residual risk in the finished product.
Clarification Process and Manufacturing Resolution
We issued Engineering Questions focused first on the mechanical integrity of the connection tabs and the file inconsistency. The questions explained that the existing tab width risked board breakage during routing and depanelization and requested confirmation of the authoritative data set. Additional questions addressed the via-tenting discrepancy, the dimensional tolerance difference, and the need for a cycle mark on the bottom solder mask.
Customer response authorized widening of the connection tabs and the addition of stamp holes (mouse bites) according to standard process practice. The single-board and panel files were aligned to a single consistent geometry. Via treatment was confirmed as tenting where the notes indicated, with open windows limited to intentional locations. The tighter ±0.1 mm tolerance was accepted for this order, and the bottom solder-mask cycle mark requirement was clarified.
Engineering updated the panelization data with the enlarged tabs and added stamp holes, regenerated the outline and routing paths from the reconciled files, and adjusted the solder-mask generation to match the confirmed tenting intent. Internal verification confirmed that the revised array possessed adequate mechanical strength for clean separation and that all other attributes fell within process capability. Only after this validation was the job released for the one-day production cycle.
| Aspect | Before Clarification | After Resolution |
|---|---|---|
| Connection Tabs | Too narrow, breakage risk | Widened + stamp holes added |
| Single vs Panel Data | Inconsistent geometry | Fully aligned |
| Via Treatment | Notes vs Gerber mismatch | Confirmed tenting intent |
| Dimensional Tolerance | ±0.1 mm vs process ±0.15 mm | Customer acceptance recorded |
Practical Recommendations for Reliable Customer Panelization
- Design connection tabs with sufficient width and include stamp holes whenever routing is the primary separation method, especially on thin (1.0 mm) boards.
- Ensure the single-board Gerber set and the panelized array are generated from the identical source geometry to eliminate registration conflicts.
- State via-tenting requirements clearly in fabrication notes and verify that the corresponding solder-mask Gerber layers match those notes exactly.
- When specifying dimensional tolerances tighter than the manufacturer's standard process capability, confirm acceptance in writing before file submission.
- Define any required date-code or cycle marks on solder-mask layers, including preferred location and format, to avoid last-minute interpretation.
- Treat panelization mechanical strength as a critical design attribute rather than an afterthought; tab fracture is a common and costly failure mode.
- Cross-check outline, tab, and via features against IPC-A-600 edge-condition criteria during internal DFM review.
- Provide both the single-board and panelized data sets with explicit statements of which file is authoritative for tooling generation.
Conclusion
The investigation into the undersized panel connection tabs demonstrated how a seemingly minor mechanical detail can halt an otherwise complete 2-layer order. By identifying the tab-strength limitation, reconciling the single-board and panel files, and confirming secondary attributes such as via tenting and tolerance, the engineering team converted an ambiguous data package into a manufacturable design. The revised panelization with enlarged tabs and stamp holes ensured clean separation without board breakage, allowing the 240-piece run to proceed under the original one-day schedule while meeting the customer's functional and quality expectations.
FAQ
Q1: Why do undersized panel connection tabs trigger an Engineering Question?
A1: Tabs that are too narrow cannot withstand the mechanical stress of routing and depanelization. The resulting fracture produces incomplete boards or damaged edges, violating basic acceptability criteria and creating scrap.
Q2: What is the typical manufacturing consequence of weak connection tabs on thin boards?
A2: On 1.0 mm FR-4 the risk of clean fracture at the tab root is high. Boards may separate incompletely or arrive with cracks that propagate into copper features, leading to functional failure or rejection.
Q3: How should designers size connection tabs for routed customer panels?
A3: Provide adequate width based on board thickness and material, and include stamp holes (mouse bites) to control the break point. Confirm the design with the fabricator's process capability before submission.
Q4: Why is inconsistency between single-board and panel files a problem?
A4: CAM systems must generate a single authoritative outline and tooling path. Divergent data sets create ambiguity about true dimensions and tab locations, risking incorrect routing or registration errors.
Q5: What should be done when fabrication notes specify via tenting but Gerber shows open windows?
A5: The conflict must be clarified. Unintended open vias can allow solder bridging or contamination during HASL, while over-tenting intentional openings defeats the design purpose. Explicit confirmation resolves the ambiguity.
Q6: Does a tighter dimensional tolerance than the factory standard always require an EQ?
A6: Yes, when the specified tolerance (±0.1 mm) is tighter than normal process capability (±0.15 mm). The manufacturer must confirm whether the tighter limit can be met or whether the customer accepts the standard capability.
