Abstract: In electronics manufacturing services (EMS), latent cracks in BGA (ball grid array) solder joints are a major cause of field failures. Unlike ESD or MSD issues, mechanical-stress-induced damage is often rooted in production line design deficiencies and improper human handling. This article presents a practical, risk-based walk-through methodology for PCA (printed circuit assembly) lines, and shows how fixturing, operating procedures, and strain measurements can be integrated into a comprehensive control system to prevent board flexure and protect BGA reliability.
1. Mechanical Stress on the SMT Line Is Often Invisible
In SMT production, attention usually centers on electrical performance and soldering quality, while the destructive impact of mechanical stress on reliability is easy to overlook. Failure analysis repeatedly shows that BGA solder joint cracks often do not originate in reflow. They commonly occur during depaneling, test, assembly, and handling.
Core mechanism: A PCB is a composite with anisotropic mechanical properties. When it is unevenly supported or subjected to concentrated loads, bending strain is induced. Because a BGA's coefficient of thermal expansion (CTE) does not match the PCB and its solder joints are hidden beneath the package, any board flex transmits shear and tensile forces into the joints. This can cause interfacial fractures or solder ball cracking, typically initiating at corners where stress concentrates.
2. A Risk-Based Walk-Through Methodology for PCA Lines
Effective control of mechanical stress requires a risk-based audit process. A structured PCA line walk-through and standard operating procedure (SOP) can be established as follows:
- Map the entire process: Identify every physical touch point from SMT placement through final packaging.
- Localize risk: Focus on high-stress operations such as depaneling, ICT testing, manual insertion, rework, and heatsink installation.
- Correct and verify: After engineering improvements (for example, fixture redesign), validate with dye-and-pry (dye penetration) and strain gage measurements to confirm effectiveness.
2.1 Suspect Areas on a Typical Line
| Process Stage | Potential Damage Action | Failure Mechanism |
|---|---|---|
| Post-SMT handling | Single-hand lift on the long axis | Gravity causes mid-span sag; BGA sees tensile stress |
| Depaneling | Manual snap, vacuum nozzle pressure | Localized impact exceeds solder joint yield strength |
| ICT/FCT test | Bed-of-nails downward actuation | Insufficient support induces bowing |
| Manual insertion | Excessive force inserting DIMMs/connectors | Reaction forces twist the PCB |
| Heatsink installation | Uneven screw torque | Local stress concentration cracks BGA corners |
3. In-Depth Analysis of Core Control Elements
3.1 Board Handling: Fundamentals of Force Transmission
Improper handling is a primary cause of PCB bending. From the perspective of mechanics of materials, flexural rigidity scales with the cube of thickness. Thin boards are especially vulnerable: any asymmetric grip or support readily causes deformation.
- Poor practices to prohibit:
- Single-hand lift on the long edge: The PCB behaves like a cantilever beam with maximum deflection at the free end. BGAs near the center or edges are highly susceptible to damage.

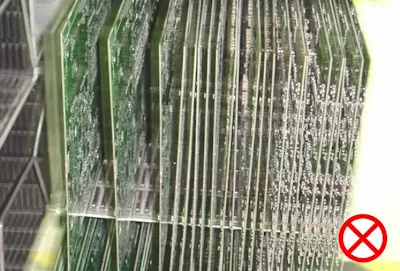

- Vertical racking: Self-weight over time leads to creep deformation and warpage.
- Topside-down placement: Relying on bottom-side components (for example, electrolytic capacitors) as supports leaves portions of the PCB suspended and stressed.
- Hold the short edge with both hands: Shortening the lever arm reduces bending moment and deflection.
- Handling for L-shaped and panelized boards: For irregular shapes, support the center of gravity with both hands to avoid twisting moments.
3.2 Depaneling: The Critical Point of Stress Release
Depaneling is one of the most stress-intensive operations. Manual snap-off is strongly discouraged; use a router (milling) or laser depaneling.
- Fixture design principles:
- Full bottom support: Use a purpose-built fixture so the PCB underside is fully supported with no spans left hanging during cutting.
- Keep-out strategy: Support pins must not contact directly under BGAs or plated through-holes; avoid creating stress concentration points.

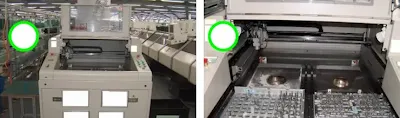

- Vacuum hold-down: Maintain firm, uniform restraint to eliminate micro-vibration while cutting.
3.3 Test and Assembly: Engineering the Fixtures
Solving board bend during operations depends on well-designed fixtures.
3.3.1 Three Key Fixture Types and Their Use Cases
| Fixture Type | Use Case | Design Requirements |
|---|---|---|
| Topside fixture | Bottom-side operations (touch-up, cleaning) | Prevent topside-down loading; provide uniform, rigid bottom support |
| Bottom-side fixture | Top-side pressing (insertion, screw tightening) | Very high rigidity to withstand axial loads without deforming |
| Double-sided fixture | Rework stations | Both sides supported; rotating function preferred to enable non-destructive removal |
3.3.2 Special Controls for ICT Fixtures
ICT machines are notorious "BGA killers." The large actuator force of a bed-of-nails tester will bow the PCB if the top-side push-down block is inadequate.

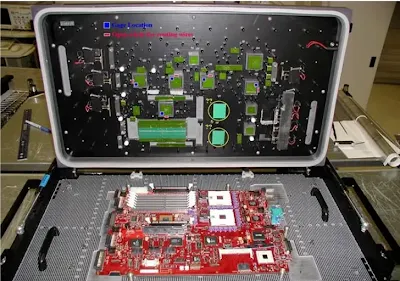

- BGA protection block: A hard push-down block directly above the BGA counters the upward force of the probes.
- Support pin layout: Distribute support pins around the BGA rather than directly underneath to avoid excessive local pressure.
3.4 Packaging and Transport: The Overlooked Final Stage
Inadequate packaging can lead to resonant vibration and fatigue damage during transport.

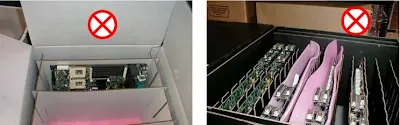

- Prohibited materials: Do not use pink anti-static foam as separators. It is too soft to constrain motion and can accumulate charge; its mechanical support is poor.
- Qualified packaging: Use corrugated partitions or rigid ESD-safe trays to immobilize boards with zero movement inside the box.
4. Reliability Verification: From Qualitative to Quantitative
Visual judgment is not sufficient. Two destructive or semi-destructive tests are essential to verify improvement.
4.1 Strain Gage Testing
This is the industry's gold standard. Attach strain gages near BGA locations to monitor microstrain during actual line operations.
- Acceptance criteria: A typical target is below 500 microstrain (actual limits depend on the specific BGA and assembly).
- Critical events to instrument: ICT actuation, DIMM insertion, and screw tightening events.
4.2 Dye Penetration (Dye and Pry)
Used in failure analysis to identify root cause.
- Procedure: Immerse suspect boards in red dye, clean and dry, then separate the BGA package by chilling or mechanical prying. Inspect solder ball cross-sections for dye ingress.
- Objective: Differentiate soldering defects (for example, voids) from mechanically induced cracks.
5. Establish a Root Cause Analysis (RCA) Process
Avoid blind corrective actions. When BGA cracking is discovered, follow this logic:
- Sampling: Pull 3–5 assemblies at end of line for dye testing.
- Localization: If cracks are confirmed, backtrack to specific stations (for example, post-ICT or post-depanel) and sample again.
- Measurement: Perform strain gage testing at the implicated station to quantify stress.
- Correction: Improve fixture support, adjust operator technique, and reduce actuation speed where applicable.
- Closure: Repeat dye testing after correction until the crack rate is reduced to zero for the sampled set.
6. Conclusion
A disciplined DFMA (design for manufacturing and assembly) mindset is essential. While pursuing high throughput, recognize that every rough handling action and every poorly designed fixture consumes product life. For high-reliability sectors such as automotive electronics, servers, and industrial controls, a strain-gage-based production stress audit is not just a quality responsibility—it is a core competence.
Recommended Actions
- Immediately review support conditions on all ICT/FT fixtures.
- Prohibit single-hand board lifting; standardize two-hand short-edge handling.
- Eliminate pink foam pads; switch to rigid ESD-safe trays or corrugated partitions.
Reference standards: IPC-9704 (Printed Circuit Assembly Strain Gage Test Guideline), J-STD-001, IPC-A-610.
