Recurring solder opens on small chip components such as resistors and capacitors can be frustrating, especially when the reflow profile has been carefully verified and no obvious non-wetting or de-wetting is observed. In many cases the defects even repeat at fixed board locations. Despite the lack of classic wetting issues, the underlying mechanism is typically the same as tombstoning: an imbalance in the timing and magnitude of wetting forces on the two terminals causes one end of the chip to lift, leaving an open joint or, in severe cases, a fully vertical "tombstone."

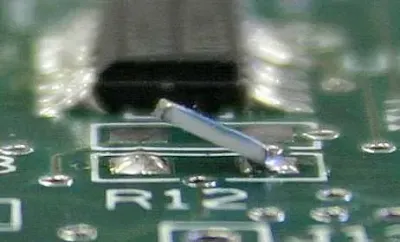

The photos in this article are representative examples of solder-open and tombstoning defects on chip components for reference.
How the Defect Forms: The Same Mechanism Behind Solder Opens and Tombstoning
Two conditions drive solder opens and tombstoning on chip components:
- The solder paste at the two ends does not reach liquidus at the same time.
- Unbalanced wetting forces develop across the two pads, creating a torque that lifts one end of the component.
A common layout pattern is the root cause: one terminal is tied to a large copper area (such as a pour or plane), while the other terminal connects to a relatively light trace. During reflow, surfaces with low thermal mass equilibrate toward the oven environment more quickly than large copper features embedded deeper in the stackup. The pad connected to the lighter copper generally reaches liquidus earlier, while the pad tied to a large internal or wide surface copper takes longer to heat. As soon as one side wets and begins to form a meniscus, a net force develops that can pivot the component around that end. If the temperature lag is significant, the lifting angle can grow, progressing from a partial lift (solder open on one end) to a fully vertical tombstone.
Thermal Imbalance → Asynchronous Wetting → Net Lifting Torque
When the first pad reaches liquidus, surface tension pulls the molten solder fillet up along the component termination. The opposite end, still at or below solidus, resists movement because its paste has not yet reflowed and offers less adhesive contact. The resulting force imbalance produces a torque about the component's center of mass. The larger the time delta between the two ends reaching liquidus, the stronger the asymmetry in wetting forces and the more likely the part will rotate.
From a mechanics perspective, one can model this as a couple: the wetting force at the reflowed pad acts upward and inward along the termination, while the non-reflowed side provides a smaller opposing force. The component's weight and the position of its center of gravity determine how easily it rotates. Once the torque exceeds the restoring force plus any frictional hold of the unmelted paste, the free end lifts. If the second pad then reflows while the component is lifted, a solder-open (no contact) remains; in more extreme cases, the chip stands on end.
Countermeasures for Tombstoning-Driven Solder Opens
1. Design-Side Improvements
- Add thermal relief to pads tied to large copper. Thermal relief "spokes" reduce heat sinking into planes and slow heat loss from the pad during reflow. This narrows the time difference between the two pads reaching liquidus and stabilizes wetting symmetry.
- Reduce the inner pad-to-pad spacing within DRC limits. Without causing bridging risk, bringing the two pads closer can improve how the solder paste on the slower-heating side engages with the component termination. Greater contact helps maintain adhesion during the brief interval before that side reaches liquidus, increasing the difficulty of lifting. This also tends to equalize solder fillet geometry and wetting forces.
These design changes aim to minimize thermal asymmetry and force imbalance, decreasing the likelihood of rotation. When evaluating changes, consider the trade-offs: thermal relief that is too restrictive can affect electrical and thermal performance, and overly small pad gaps can increase bridging risk. Coordinate with PCB design rules and manufacturing capability to find a robust window.
2. Process-Side Improvements
- Adjust the reflow profile to tighten temperature uniformity. Increasing the soak-zone temperature so it is closer to the solder alloy's liquidus helps equalize pad and copper feature temperatures before entering the peak zone. Likewise, using a gentler heating rate into the reflow zone reduces large temperature gradients across the assembly. The objective is simultaneous reflow on both ends of the component.
- Evaluate the use of nitrogen. Nitrogen reduces oxidation and typically improves wetting, but it can also magnify early wetting differences between pads. If one pad intrinsically reaches liquidus first, nitrogen may make that pad wet even more quickly and strongly, increasing the imbalance. Disabling nitrogen for the affected product can be an effective experiment to reduce premature wetting on one side and improve yield.
All profile adjustments should be validated with thermocouples on representative boards and through cross-section or X-ray inspection as appropriate. The key indicator is reduced asynchrony in time-above-liquidus between the two pads of the affected components.
Additional Considerations
Solder opens and tombstoning often result from multiple factors acting together. Beyond thermal mass and reflow profile, the following conditions can contribute to the defect:
- Single-sided oxidation on the component or pad. Oxide films increase the energy needed for wetting. If only one termination or one pad is oxidized, the other side wets first and pulls the component upward. Maintaining paste freshness, proper storage, and pad cleanliness helps avoid asymmetric wetting kinetics.
- Component placement offset. If the chip is not centered over the pads, solder paste volumes and contact areas become unequal. The larger paste deposit may reach liquidus earlier and create a stronger meniscus, favoring lift. Calibrate placement to keep bodies centered within the pad pair.
- Unstable feeder pick accuracy. Inconsistent picking can lead to rotation or skew before placement, translating into unequal paste engagement on the pads. Stabilize feeder mechanics and verify vacuum pickup parameters to ensure consistent placement.
- Solder paste printing offset. Paste misalignment changes the effective paste volume on each pad and shifts the wetting centroid. Larger or more complex panels can experience greater cumulative registration error, increasing the chance of print offset. Review stencil alignment, board support, tooling, and panelization strategy to keep print variation within control limits.
- Placement machine accuracy issues. Poor absolute or repeatability accuracy increases the distribution of pad overlap and initial contact. Tune machine calibration and verify nozzle condition to prevent systematic skew that favors tombstoning.
Visual inspection of failed boards often reveals a pattern: components that tombstone or open-circuit are located where one pad ties to a plane or wide copper feature, while the opposite pad routes to a lighter trace. Correlating failure locations with copper connectivity is a strong indicator that thermal imbalance is driving the defects.
Why MLCCs Tend to Tombstone More Easily Than Chip Resistors
Under the same process conditions, ceramic capacitors generally exhibit a higher tendency to tombstone than resistors. Two factors are at play:
- Termination geometry. Chip resistors commonly have three-sided metallization at each end, whereas multilayer ceramic capacitors often have metallization that wraps around more faces of the termination. This difference in metallization geometry can influence wetting behavior and the net direction of surface tension forces during initial reflow.
- Component height and center of gravity. MLCCs are typically thicker than chip resistors of the same footprint, giving them a higher center of gravity. For a given wetting-force difference, the resulting torque more readily lifts a taller component than a shorter one.
These geometric effects combine with thermal asymmetry and paste distribution to increase the likelihood of lift for capacitors. When layouts place MLCCs on pads with significantly different copper connections, adding thermal relief and optimizing pad spacing becomes especially important.
Practical Diagnosis and Iteration
When solder opens or tombstoning appear, start by mapping defect locations across the PCB and comparing pad copper connectivity on the affected parts. If one pad consistently ties to a large pour or internal plane, expect a thermal lag. Next, review the reflow profile with emphasis on soak uniformity and time-above-liquidus symmetry at the component level. If nitrogen is in use, run a controlled trial with nitrogen off and monitor defect rates. In parallel, evaluate pad geometry and spacing to determine whether thermal relief and modest inner-gap reduction can be applied without violating DRC or increasing bridging risk.
Finally, confirm process basics: paste condition and storage, stencil alignment and support, panelization-induced registration effects, pick-and-place calibration, and feeder stability. Addressing the thermal mechanism and tightening these contributors together is the most reliable path to eliminating solder opens and tombstoning on chip components.
In summary, the defect mechanism is straightforward: asynchronous melting produces unbalanced wetting forces that lift one end of the component. By equalizing the thermal path at both pads, moderating the reflow profile to synchronize wetting, and ensuring consistent placement and printing, solder opens and tombstoning can be greatly reduced or eliminated.
