Many designers see a USB connector and think only of D+ and D−, a receptacle, and a few protection parts. Anyone who has shipped a product knows the usual failures are not in the schematic. They are on the PCB.
Unstable enumeration, no response when plugged in, dropped throughput, a crash after an ESD hit, and USB 3.0 that never reaches rated speed are often not chip faults. They come from placement and routing.
USB 3.0 and USB Type-C in particular cannot be treated as ordinary low-speed nets once the rate rises.
1. Why a USB Port Cannot Be Routed Casually

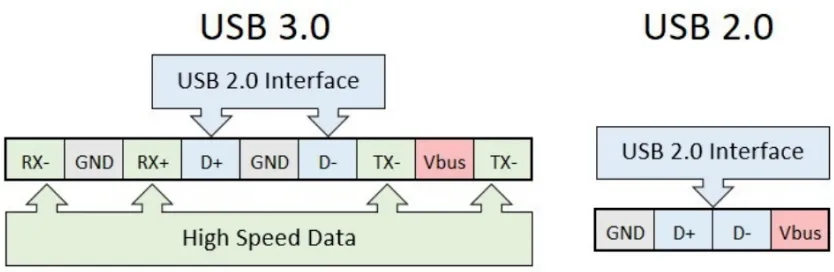

USB 2.0 reaches 480 Mbps. USB 3.0 reaches 5 Gbps of transfer bandwidth.
That speed means the interface is no longer a net that only has to connect. It is a high-speed differential pair.
Differential impedance discontinuities, traces that are too long, too many vias, a cut reference plane, or ESD parts placed too far away all degrade signal quality. The result can be unstable transfers or a device that never enumerates.
USB layout is therefore not only connecting the nets. It is control of connector location, protection-part location, differential impedance, length matching, the return path, and chassis-ground handling.
2. USB Placement: Check These Four Locations First
The first layout step is not routing. It is placing the critical parts correctly.

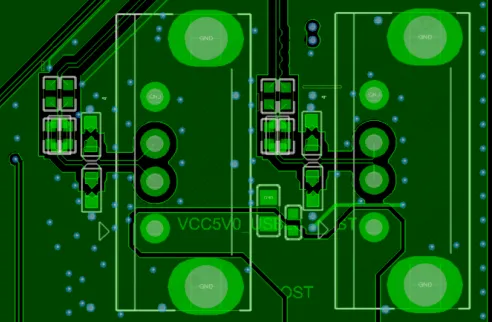

1. Keep the USB connector at the board edge
Place the USB connector near the board edge or the mechanical opening so it can be plugged and assembled. If it sits too far inward, mechanics become harder and the USB differential pair is forced longer, which raises signal risk.
2. Place ESD and the common-mode choke next to the connector
A USB port is an external mating interface and takes ESD easily. Put ESD devices next to the connector. A common order is:
ESD → common-mode choke → resistor-capacitor parts
Do not reverse that order. If ESD sits too far away, the strike is already on the board before the protection can act.
3. Leave process clearance between ESD and the connector
ESD must be close to the connector, but not jammed against it. Leave room for soldering, rework, and assembly.

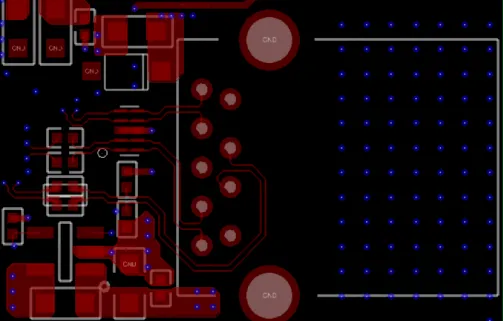

4. Keep the differential pair as short as possible
A shorter USB differential pair is easier to control for impedance and has less reflection risk. Give routing priority to USB 3.0 RX and TX high-speed pairs.
In one line: USB placement is about keeping the connector, the protection parts, and the high-speed traces close, with a clean path.
3. Hold USB Differential Impedance Near 90 Ω
Do not pull USB pairs as ordinary traces. Treat both USB 2.0 and USB 3.0 as differential signals. Differential impedance is generally held near 90 Ω.
Key points:
First, keep the pair on the same layer, with the same width and spacing. Do not change width along the path or open the spacing without a reason.
Second, use as few vias as possible. Each via is an impedance discontinuity. More vias raise reflection risk.
Third, add a return ground via at a layer change. When the pair changes layers, the return path must change with it. A nearby ground via gives the return current a channel.
Fourth, do not cross a split. A USB pair should sit over a continuous ground reference. Crossing a power or ground split cuts the return path and degrades both signal integrity and EMI.
4. Do Not Mix Shell GND and Signal GND Without a Plan
USB connectors have a shell ground that is easy to miss. The metal shell often ties to protective earth, while the signal section ties to system GND. If those regions are handled poorly, ESD and noise can couple straight into signal ground.
The approach given is: if the locating posts on both sides of the USB connector tie to protective earth, keep a gap between protective earth and GND during the split, commonly about 2 mm, and add enough ground vias in the protective-earth region so the connection is solid.
Look at more than the net. Look at the ESD dump path. A strike should dump through shell ground first, not into the board interior.
5. USB Length Matching Is Not Cosmetic
A USB differential pair needs length control. D+ and D− work as a pair. If one trace is much longer than the other, arrival time splits, timing shifts, and differential energy converts to common-mode interference.
The material states that pair-to-pair length error should usually stay in a small window, for example within 5 mil.
Do not add heavy serpentine only to match length. Route the main path short, straight, and with few vias first, then add a small amount of compensation where it is needed.
Length matching is a correction. It is not a routing display.
6. Type-C Is a Connector Form, Not a USB Version
Type-C is often mixed with USB 3.0 or USB 3.1. Separate them: Type-C is a connector form. It is not a USB specification version.
Type-C can be flipped, is smaller, and can carry higher data rates and higher power. Those extra functions also raise PCB difficulty.

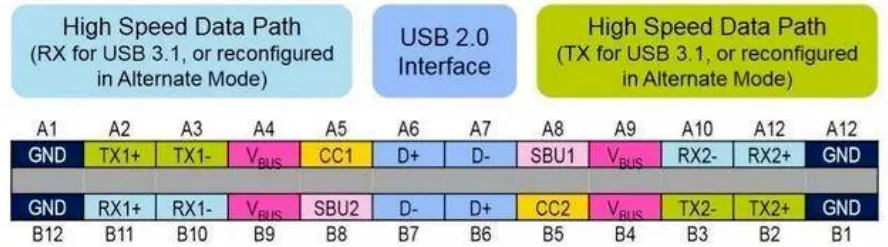

A Type-C connector includes D+ and D−, RX/TX high-speed pairs, CC1/CC2, VBUS, SBU, and other nets. Pulling every pin out from the footprint without a plan leaves latent faults.
7. Six Type-C PCB Points
1. Keep ESD and the common-mode choke next to the connector
Type-C is also an external mating interface. ESD protection still belongs at the front. The usual order remains:
ESD → common-mode choke → resistor-capacitor parts
The closer the parts sit to the connector, the more direct the protection.

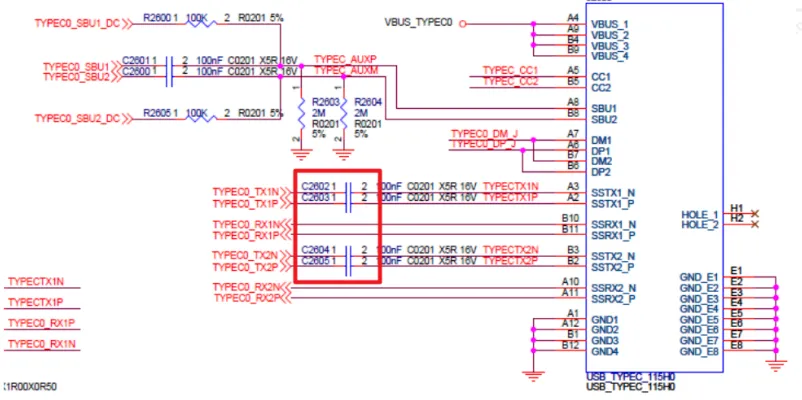

2. Place TX coupling capacitors next to the connector
On Type-C high-speed signals, TX coupling capacitors are generally placed next to the connector. RX coupling capacitors are usually provided on the device side. Do not place them far away, or the high-speed path grows and impedance continuity suffers.
3. Hold Type-C differential impedance at 90 Ω ± 10%

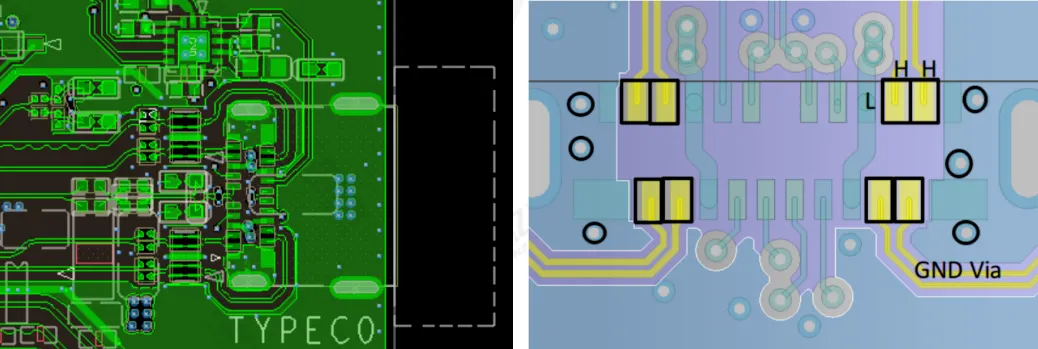

Type-C high-speed pairs also need impedance control. Keep the reference plane continuous, do not cross a split, and use as few layer-change vias as possible. The material suggests no more than two vias on a signal layer change.
4. Treat all six differential pairs with care
Type-C includes RX/TX high-speed pairs and the D+/D− pair. Each pair should sit next to at least one ground plane. Ground reference on both sides is better. The routing rule is still short, straight, few layer changes, and a complete reference.
5. Keep intra-pair length error small
Type-C pairs also need intra-pair length matching. The material suggests holding intra-pair error within 6 mil. Keep enough spacing between pairs and between a pair and other signals. Tight spacing raises crosstalk.
6. Do not draw CC1/CC2 as throwaway thin traces
CC1 and CC2 are critical Type-C pins. They handle attach detection, flip orientation, host/device role, and VBUS configuration. They are not ordinary helper nets. Watch width and path. Do not treat them as unimportant side signals.
8. USB PCB Checklist
Do not stop at connectivity. Check these items:
- Is the connector at the board edge?
- Is ESD next to the connector?
- Are the common-mode choke and RC parts in a sound order?
- Is the USB pair controlled to 90 Ω?
- Are the high-speed pairs as short as possible?
- Are vias kept to a minimum?
- Is there a return ground via at each layer change?
- Is the reference plane continuous?
- Does any pair cross a split?
- Was the pair length-matched?
- Were shell GND and signal GND handled correctly?
- Were Type-C CC1/CC2 treated as critical nets?
If those points are clean, USB stability rises. Many PCB faults are not an inability to draw a trace. They come from never setting the rules first.
A USB port is a small connector. Behind it are high-speed signaling, ESD, mechanics, ground return, and process detail. PCB design is not only connecting the net. It is letting the signal run stably.
