During CAM review we open HDI Gerber sets and run a standard drill, layer, and aperture check before panelization. CAM engineers fix obvious file errors, confirm layer stackup mapping, adjust drill files for sequential builds, verify solder mask clearances against final copper, and clean up silkscreen placement. Most HDI Gerber mistakes get caught here and corrected in-house, but repeated issues slow down the job and increase the chance of miscommunication with the designer.
File format and naming errors that halt CAM processing
What we typically see on the CAM side is inconsistent Gerber extensions or missing aperture lists that force manual reconstruction. In HDI jobs with many layers, wrong file names for sequential laminations cause us to map layers incorrectly at the start. Production forces tight schedules so these basic file errors eat into the engineering queue before we even reach panel layout.
Layer definition mismatches in multi-lamination HDI builds

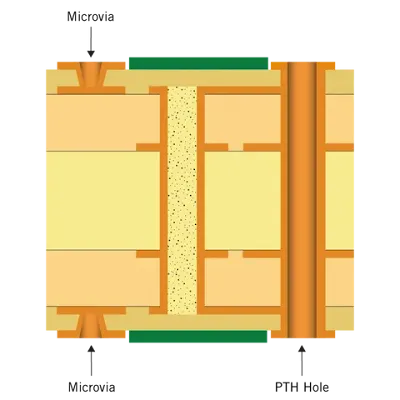

HDI stackups with buried and blind vias require precise layer numbering that matches the actual press sequence. When the Gerber files label layers differently from the stackup drawing, we must stop and request confirmation. Material movement between laminations makes incorrect layer mapping especially risky because drill programs reference specific copper layers for registration.
Drill file coordination with sequential layers
Drilling in HDI usually happens in stages — first for buried vias, then blind, then through holes after final lamination. Separate drill files that don't clearly indicate depth or which layers they target create extra work. We see this frequently when designers combine all holes into one file without proper tool or depth calls.
Solder mask clearance problems around dense HDI features
Solder mask files often show insufficient clearance or overlapping openings on fine pitch BGA areas common in HDI. Because outer copper thickness varies after plating, the final mask must account for the actual trace and pad geometry after etching. When the submitted mask Gerber doesn't match the copper, we adjust openings to prevent mask on pad or exposed copper risks during assembly.
Silkscreen and character placement issues in tight HDI layouts
Character files frequently place legend text too close to pads or over vias in high density zones. Production solder mask and surface topography make these areas sensitive — ink can bleed or create assembly interference. We routinely move or remove characters that violate our minimum spacing rules to keep the board functional.
Why these HDI Gerber mistakes surface repeatedly in production
HDI requires multiple lamination cycles and different drill programs, which multiplies the chance of layer or file mismatch. Panelization adds another transformation step where drill offsets and scaling must be applied uniformly. Equipment tolerances for registration demand that all Gerbers align perfectly to the same datum. When files arrive with inconsistencies, the production flow forces us to catch them early or risk scrap later.
Production consequences when HDI Gerber mistakes reach the floor
Wrong layer mapping leads to vias drilled in the incorrect positions, destroying inner layer connections. Misaligned solder mask causes shorts or opens during assembly, especially on fine pitch components. Drill files with missing depths result in incomplete vias or back-drilled holes that damage functional traces. These issues typically show up at electrical test or during first article inspection, causing panel rejection and shipment delays of several days while we rework or remake the order.
In severe cases with mixed drill files, we have seen partial panels routed with wrong programs, leading to entire lots scrapped after assembly feedback. Yield drops sharply when multiple mistake types compound on the same job.
How CAM teams actually correct common HDI Gerber mistakes

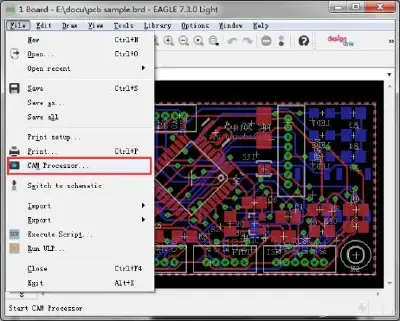

We start by importing all layers into the CAM system and running DRC against our HDI design rules. Layer names get remapped to match the approved stackup. Drill files are separated by type — mechanical, laser, plated, non-plated — with proper depth indicators added. For solder mask, we expand or contract openings based on final copper width after compensation. Silkscreen gets reviewed against mask and pads, with automatic spacing enforcement.
Panelization includes scaling and offset corrections for material shrinkage. We generate new Gerbers and ODB++ output with clear revision notes for traceability. These steps ensure the physical board matches the designer's intent even when original files contain HDI Gerber mistakes.
Registration and tooling adjustments during panel setup
After file cleanup, we set global fiducials and tooling holes that survive all lamination steps. Drill programs get optimized with compensation values derived from test panels of the same material. This approach keeps layer-to-layer registration within 50 microns even with multiple press cycles.
When certain HDI Gerber mistakes can be accepted with limited risk
Simple silkscreen repositioning or minor clearance tweaks are often handled without designer approval on prototype quantities. Non-critical layer naming differences can be resolved if the stackup drawing is clear and matches the physical intent. We allow more flexibility on low layer count HDI or when the customer provides ODB++ instead of separate Gerbers, as the format carries more intelligence and reduces interpretation errors.
For volume production, almost all HDI Gerber mistakes require formal DFM feedback because the cost of error is much higher. Providing complete, consistent files with a matching stackup drawing from the start remains the fastest path through our CAM department.
Catching and fixing these issues early during CAM review keeps HDI jobs on schedule and prevents downstream surprises in drilling, plating, and mask application. The patterns we see repeat across customers, so clear file preparation directly translates to smoother production runs.
