FR4 vs High-Speed PCB Materials: Which Is Better for High-Frequency Designs?

The FR4 vs high speed PCB material decision is not a brand contest. It is a loss-budget, impedance-tolerance, and yield decision. Standard FR4 still wins when channels are short, data rates stay modest, and cost and lead time dominate. High-speed laminates win when insertion loss, Dk stability, and tight impedance start to drive first-pass yield. Most production boards sit between those two poles, which is why hybrid stackups show up so often on the CAM desk.

Where FR4 Stops Being Enough for High-Frequency Work

From a fabrication standpoint, FR4 high frequency PCB builds are still the default for DC to roughly 1-2 GHz and for many short multi-Gbps links. The resin system is cheap, every shop can process it, and panel utilization is straightforward. Problems start when the channel is long, the Nyquist frequency climbs into several GHz, or the customer asks for ±5% impedance with lot-to-lot Dk that does not wander.

High-speed materials — mid-loss FR4 grades such as FR408HR, low-loss systems such as Megtron 6 / I-Speed / I-Tera, hydrocarbon-ceramic RF grades such as RO4003C / RO4350B, and PTFE systems — exist because standard FR4 Dk and Df move too much with frequency and resin content. We normally recommend staying on FR4 until the loss budget or impedance yield says otherwise. Jumping to Rogers or Megtron "because it is high speed" without a length and frequency check is one of the more common overspends we see in incoming packages.

What Changes First When You Compare the Two Families

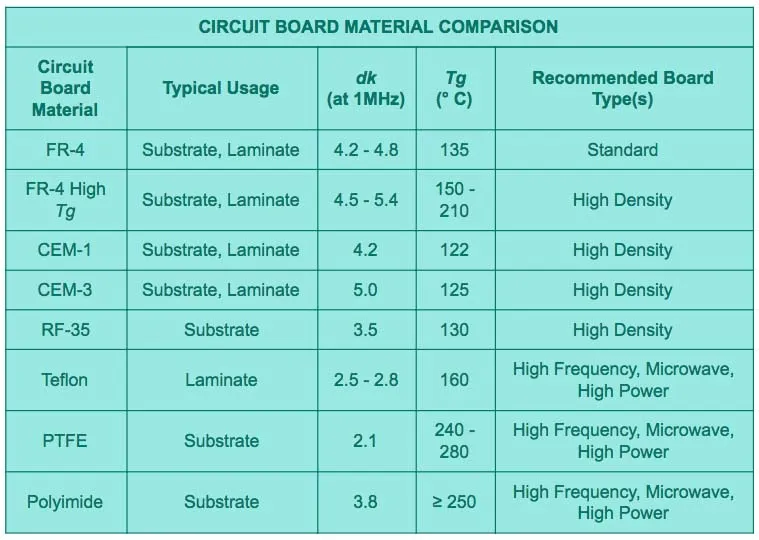

The table is a production snapshot, not a datasheet. Actual Dk/Df depend on resin content, glass style, copper foil, and the frequency used in the test method. During CAM review we always lock the construction to a named laminate and prepreg, not to the word "FR4" or "Rogers."

Which Option Wins When Priorities Are Different

Why Dk and Df Drive the Material Call More Than the Brand Name

Dk sets how wide a 50 Ω or 100 Ω pair needs to be for a given dielectric thickness. Standard FR4 Dk is typically in the 4.2-4.7 range at low frequency and falls as frequency rises. That frequency dependence is the first practical difference versus high-speed materials, which are specified at GHz and stay flatter. If the designer models FR4 at 4.5 and the finished board measures closer to 4.1 at the operating frequency, the fabricated impedance will sit high even when etch is on target.

Df is the term that shows up as heat in the dielectric. Standard FR4 Df around 0.02 at GHz frequencies is acceptable on short GPIO and USB 2.0 runs. Mid-loss FR4 around 0.008-0.012 is the first step many shops recommend for 5-10 Gbps. Low-loss digital and RF grades drop Df into the 0.002-0.005 band. PTFE goes lower still. In production, we typically treat Df as a channel-length multiplier: the same 10-inch pair that is fine on FR4 at 1 GHz can blow the SerDes budget at 10 GHz.

The trade-off here is resin content and glass style. Higher resin can lower Dk slightly but also moves Df and thickness. High-speed materials are sold with tighter Dk windows — often ±0.05 versus the much wider spread on commodity FR4. That is why a performance comparison that only lists "typical Dk" is incomplete. We care about the window the mill will actually ship.

How Signal Loss Shows Up on the Finished Board

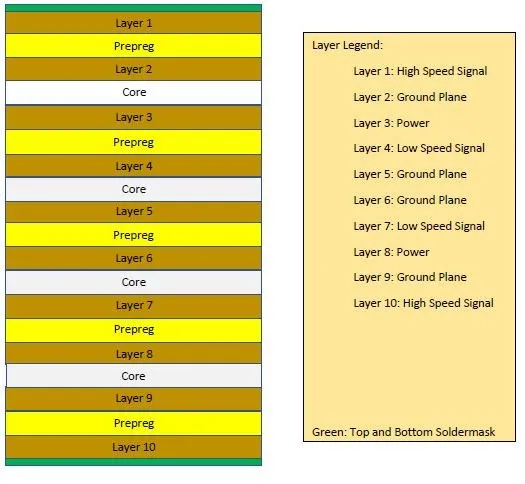

Insertion loss is dielectric loss plus copper loss. FR4 vs high speed PCB material arguments often ignore the copper. Above a few GHz, foil roughness can contribute as much as the resin. High-speed constructions are usually paired with RTF, VLP, or HVLP foil. Putting standard FR4 foil on a low-Df core wastes most of the material premium.

Order-of-magnitude factory numbers we use in DFM conversations: at 10 GHz, a typical microstrip on standard FR4 can sit near 0.4-0.5 dB/inch of dielectric-dominated loss, while a hydrocarbon-ceramic or Megtron-class line on smooth copper is often in the 0.10-0.15 dB/inch region. PTFE is lower again. Those are construction-dependent, not guaranteed. What matters on the floor is whether the customer's loss budget still has room after etch undercut, via stubs, and connector launch.

Yield tends to decrease when a design stays on FR4 and then fails SI after assembly. That respin costs more than the laminate upgrade. The opposite mistake is specifying RO4350B on short USB 3 routes with no loss calculation. We normally push those back to mid-loss FR4. Hybrid boards change loss layer by layer: RF microstrip on a high-speed outer dielectric with FR4 inner layers is a standard cost move, but every via through a material change has to be modeled and couponed.

The Frequency Range Where Each Family Stops Being Honest

There is no single cutoff frequency printed on an FR4 datasheet that tells the factory to refuse the job. What we use is a combination of data rate, rise time, routed length, and allowed dB. As a working shop guide:

• Below ~1 GHz and on short digital nets, standard or high-Tg FR4 is the manufacturing choice.
• From roughly 1-5 GHz or 1-8 Gbps with moderate length, enhanced / mid-loss FR4 is usually enough if copper is specified and length is controlled.
• From ~5-28 Gbps or several GHz RF, low-loss digital or Rogers 4000-class materials start to pay for themselves on long channels.
• Above ~20-30 GHz analog, or 56-112 Gbps PAM4 on long reaches, ultra-low-loss or PTFE is the realistic option. FR4 high frequency PCB claims in that band are marketing, not process capability.

Length is the variable engineers skip. A 20 mm RF stub on FR4 at 5 GHz can be acceptable. A 300 mm backplane pair at the same frequency is not. When we review gerbers, we look at the longest critical net, not the headline data rate on the title block.

Why Impedance Yield Separates the Two Options in CAM

Impedance is a stackup problem, not a silkscreen note. Trace width, dielectric thickness after press, copper weight after plating, and Dk all move together. Commodity FR4 cores are often held to thickness tolerances around ±10-15%. High-frequency cores are commonly held tighter, and their Dk tolerance is specified at the frequency that matters. That is why ±10% impedance on FR4 is routine and ±5% is a yield discussion, while the same ±5% on a controlled high-speed core is a normal production target.

During CAM review we do not lock line width from the customer's CAD calculator if the Dk they used is a 1 MHz FR4 number. We rebuild the stack in Polar or an equivalent field solver with the actual core/prepreg datasheet at the design frequency, then adjust width to hit the coupon target. High-speed materials make that prediction more repeatable. FR4 makes it a compensation exercise every lot.

Glass weave shows up as impedance and skew scatter on thin FR4. High-speed constructions more often use spread glass. On 10 Gbps+ differential pairs, we flag weave before we flag the laminate brand. Hybrid stackups need two coupon geometries — outer microstrip and inner stripline. A single "board Dk" number will miss both.

Where the Manufacturing Cost Starts to Diverge

Laminate price is only part of the cost comparison. Standard FR4 is 1x. Mid-loss high-speed FR4 is often 1.5-3x on the material line. Megtron-class and Rogers 4000-class cores commonly land in the 4-8x band depending on thickness, copper, and region. PTFE can run well above that. But the invoice the customer sees also includes process extras: low-profile foil, extra impedance coupons, TDR labor, possible plasma or sodium etch on PTFE, slower drill feeds, and lower panel utilization if the material is only stocked in certain sheet sizes.

Lead time is a hidden cost. FR4 cores sit on the shelf; high-speed materials are often allocated. A prototype locked to one Rogers thickness can wait while mid-loss FR4 ships. Hybrid constructions cut the material bill because only RF or SerDes layers carry the premium dielectric, but CTE mismatch and warp scrap can erase that saving. We normally cost three constructions: all FR4, all high-speed, and hybrid.

What the Factory Checks Before Recommending Either Option

DFM on this topic is not a generic checklist. Incoming packages that only say "FR4, 50 ohm" get a stackup proposal based on what we stock. Packages that name a laminate but use the wrong Dk in the impedance table get a CAM markup before any panel is plotted.

Process stability favors FR4 and FR4-like high-speed grades (hydrocarbon ceramic such as RO4000, many Isola and Panasonic digital systems). Drill smear, desmear, oxide alternative, and press cycles are known. PTFE is a different line: hole wall preparation, copper adhesion, and dimensional movement after bake are the usual yield killers. If the customer's volume is high and the shop's PTFE capacity is limited, we will push a hydrocarbon-ceramic substitute when the frequency allows it.

Some high-speed sheet sizes also hurt panel utilization. Inspection rises with the premium option: more coupons, often lot TDR, tighter bow/twist on hybrids. If the spec is ±5% and the coupon does not match the real stack, the lot should not ship. Most shops recommend FR4 when the longest critical net is short, a named low-loss system when the loss budget is written down, and hybrid when RF sits on the surface. Mixing incompatible CTE systems just to put a brand-name laminate on one layer is a process risk, not a performance upgrade.

Which Construction to Release Depends on the Job, Not the Brochure

Choose FR4 if you:

• Operate mostly below ~1-2 GHz or run multi-Gbps only on short, well-terminated routes.
• Need the lowest cost, shortest lead time, and highest shop availability.
• Can live with ±10% impedance and some lot-to-lot Dk movement.
• Are building volume consumer, industrial, or power-heavy boards where dielectric loss is not the limiter.
• Want standard drill, plate, and lamination with predictable yield.

Choose a high-speed PCB material if you:

• Have a written insertion-loss budget that FR4 cannot meet at the actual routed length.
• Need ±5% (or tighter) impedance that must repeat across lots.
• Are running long SerDes, backplane, 5G, or microwave paths where Df and Dk stability dominate.
• Can accept 3-8x laminate cost and possible material allocation.
• Will specify foil type, glass style, and a named core/prepreg — not just "Rogers" or "Megtron."

Choose a hybrid if you:

• Have RF or critical high-speed nets on outer layers and ordinary digital/power inside.
• Need to cut the material bill without giving up the RF microstrip performance.
• Can keep the stack symmetric and pair compatible CTE systems.
• Will fund proper coupons for both dielectrics and accept a more involved lamination cycle.

There is no universal winner in the FR4 vs high speed PCB material comparison. The better manufacturing choice is the cheapest construction that still meets loss and impedance on the real net lengths, on a line the chosen factory can run at stable yield.

Questions Engineers Ask Before They Lock the Stackup

Q1: Can I use standard FR4 for a 10 Gbps interface?

A1: Sometimes, if the pair is short, the connector and via stub are clean, and the SerDes has margin. Once the route gets long or you need tight impedance across lots, mid-loss FR4 or a low-loss grade is the safer production call. Do not decide from data rate alone.

Q2: Is Rogers always better than Megtron-class material for high-frequency designs?

A2: No. Rogers 4000-class grades are strong for mixed RF and FR4-like processing. Megtron 6/7 and similar digital low-loss systems are often the better fit for high-layer-count SerDes boards. PTFE still wins at mmWave. Pick from frequency, layer count, and process capability, not from the brand on the sample kit.

Q3: How much extra does a high-speed laminate actually add to board price?

A3: Material alone is often 1.5-3x for mid-loss FR4 and 4-8x for many low-loss / Rogers 4000 constructions versus commodity FR4. Finished-board price rises less than that if only some layers change, and more than that if PTFE processing, extra coupons, and allocation delay are included. Ask for a three-way quote: FR4, high-speed, hybrid.

Q4: Why did my FR4 impedance coupons pass ±10% but the RF board still failed?

A4: The coupon may have used a different dielectric thickness, the model may have used a 1 MHz Dk, or the critical nets may see a different glass/resin mix than the coupon. High-frequency work needs the solver Dk at the operating frequency and coupons that match the real stack. That is a core advantage of high-speed materials with tighter Dk control.

Q5: When is a Rogers + FR4 hybrid not worth the process risk?

A5: When the stack is asymmetric, the CTE pair is poor, the board is thin and large, or the RF area is so large that you are already buying mostly premium dielectric. In those cases an all high-speed FR4-like grade can be cheaper in yield than a stressed hybrid.

Q6: What should I put on the fabrication drawing so the factory does not substitute the wrong FR4?

A6: Name the laminate and prepreg, the target Dk/Df and test frequency, foil type, impedance targets and tolerances per layer, and whether substitution is allowed. "FR4 high frequency PCB" as a note is not a specification. If substitution is allowed, list approved equivalents with Df and Dk windows, not just Tg.
