FPC Connector and ZIF Interface Design Best Practices

Intermittent contact, early wear, or open circuits after limited mating cycles can appear with FPC interfaces, particularly in products that require field service, module replacement, or repeated testing. FPC ZIF connectors address density and thin-profile needs in many designs, yet connection reliability depends on careful attention to footprint, gold-finger geometry, thickness matching, and assembly practices.

This guide presents practical engineering considerations drawn from connector datasheets, flex-circuit design practices, and production experience. Readers will find guidance on choosing between ZIF and LIF, preparing PCB footprints and gold fingers, factors that influence insertion life, and methods for identifying common failure modes.

Highlights

• Finished FPC insertion thickness, including stiffener and adhesive, should match the value stated in the connector datasheet.
• Hard gold over nickel is preferred for interfaces expected to experience repeated mating; immersion gold finishes may be considered for low-cycle applications.
• Stiffener placement that overlaps the pad-to-trace transition helps reduce stress concentration and copper cracking at the stiffened edge.

The sections below compare ZIF and LIF options, outline footprint and gold-finger design points for common pitches, discuss factors that affect mating life, and provide a decision framework that links application needs to connector selection and layout.

Understanding FPC Connectors and ZIF Interface Fundamentals

A flexible printed circuit routes signals and power in a thin, bendable form. The connector interface joins that flexible tail to a rigid board or module. In many high-density designs the interface uses a ZIF connector.

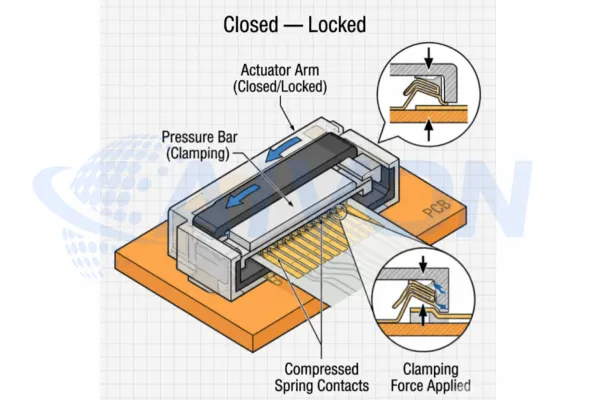

A ZIF connector holds its contact beams open during insertion of the FPC. An actuator then closes and applies normal force. Because insertion itself requires little force, the gold fingers experience reduced abrasion compared with friction-fit designs. Key terms that appear in datasheets and drawings include contact pitch, contact force, retention force, gold-finger plating, actuator type, and rated mating cycles.

ZIF interfaces are frequently selected where space is limited, the FPC is thin, or the connection must tolerate vibration and repeated handling. Available pitches commonly range from 0.3 mm to 1.0 mm. Current ratings and temperature ranges are defined by the specific connector series and should be taken from the manufacturer's documentation.

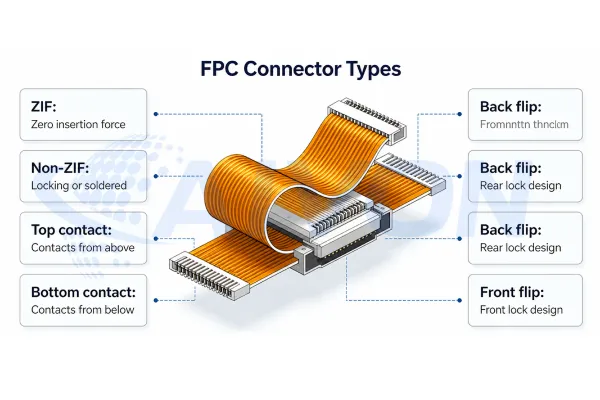

ZIF Connector Types and Locking Mechanisms

ZIF connectors are available in several mechanical configurations that differ primarily in actuator style, contact orientation, and mounting orientation. Selecting the appropriate type depends on board space, cable-exit direction, assembly access, and expected handling frequency.

Front-flip actuators open upward or forward relative to the cable-entry face. The operator lifts the actuator, inserts the FPC, and presses the actuator closed. This style provides clear visual and tactile confirmation of lock status and is widely used where the front of the connector remains accessible after assembly.

Back-flip actuators place the locking lever on the side opposite the cable entry. After the FPC is inserted, the actuator is flipped downward or rearward to clamp the contacts. Back-flip designs can reduce the front-side height or clearance requirement and are often chosen when space in front of the connector is limited.

Slider or side-lock actuators use a sliding bar or cam that moves parallel to the board surface. The bar is pulled or pushed to open the contacts, the FPC is inserted, and the bar is returned to the locked position. Slider mechanisms can offer a lower overall profile in some series and are suitable for applications where vertical actuator travel is constrained.

Mounting orientation further differentiates the options. Horizontal connectors route the FPC parallel to the board surface, while vertical connectors accept the FPC perpendicular to the board. Top-contact and bottom-contact versions determine whether the gold fingers face upward or downward relative to the board when seated. Dual-contact designs engage the FPC from both sides and appear in certain high-reliability or dual-entry series.

Each locking style has practical implications for PCB keep-out zones, insertion tooling, and operator access. Front-flip actuators require clearance above and in front of the body; back-flip and slider styles need corresponding space on the rear or side. The connector datasheet defines the exact actuator travel envelope, which should be observed in the board layout to ensure full locking is possible.

When the application involves frequent mating or limited operator force control, a positive-lock ZIF with clear tactile feedback is generally preferred over simpler friction-based alternatives. The final choice balances mechanical access, height constraints, and the required retention force under the expected environmental conditions.

ZIF vs LIF Connector Selection

ZIF and LIF connectors share a similar external appearance but differ in operating principle and performance characteristics.

ZIF connectors open the contacts fully, accept the FPC with near-zero insertion force, and then lock. This approach generally provides higher retention force and improved resistance to vibration. LIF connectors rely on a controlled insertion force and spring friction; they are mechanically simpler and often lower in cost, yet the gold fingers experience more wear during each insertion and the connection can be more susceptible to movement under vibration.

Consider ZIF when the FPC is expected to be mated or unmated repeatedly, when the pitch is relatively fine, when operator force control is limited, or when the product environment includes vibration or shock. LIF may be appropriate when cost is a primary constraint, mating cycles remain low, and the assembly process can be tightly controlled with fixtures.

Application examples include wearable devices and medical probes that often favor ZIF for serviceability, while certain industrial HMIs and automotive displays also select ZIF for vibration performance. Low-cost or single-insertion internal assemblies may still use LIF under controlled process conditions.

Hybrid or dual-entry designs appear when the same connector must accept the FPC from either side; they add cost and complexity and are considered only when board space or assembly access is constrained.

FPC-to-ZIF Connector Interface Matching

Reliable performance depends on precise matching between the FPC tail and the ZIF connector. Five parameters require coordinated control: contact pitch and pin pattern, FPC thickness with stiffener, contact orientation, insertion depth, and contact finish with plating. Mismatches in any of these areas can produce incomplete seating, elevated contact resistance, or premature wear.

Contact Pitch and Pin Pattern

The FPC pad pitch must match the connector pitch exactly. Common values include 0.3 mm, 0.4 mm, 0.5 mm, and 1.0 mm. Pad width is set slightly narrower than the pitch to provide clearance while still covering the contact beam location. Cumulative pitch error across a multi-position connector can shift the outer pads out of alignment, so the fabrication drawing should call out controlled dimensions rather than relying solely on Gerber copper. The pin pattern is taken directly from the connector datasheet and verified on both the rigid-board footprint and the FPC artwork.

FPC Thickness and Stiffener

Finished insertion thickness—including base film, copper, coverlay, adhesive, and stiffener—must fall within the window specified by the connector manufacturer. Datasheet values of 0.20 mm or 0.30 mm with tolerances of ±0.03 mm or ±0.05 mm are frequently referenced. The stiffener is selected and bonded to achieve this target thickness while providing mechanical support. Extension of the stiffener several millimeters behind the contact area, with overlap of the pad-to-trace transition, reduces the risk of copper cracking under insertion force. Stiffener material and placement accuracy are confirmed during DFM review.

Contact Orientation

Connectors are offered in top-contact and bottom-contact versions. Top-contact designs place the beams on the upper side of the housing so that the FPC gold fingers face upward when inserted. Bottom-contact designs reverse this orientation. Selecting the incorrect version leaves the gold fingers facing away from the beams and produces an open circuit. Orientation is chosen according to the required cable-exit direction and the available board clearance, then verified against the FPC stack-up before artwork release.

Insertion Depth

The exposed gold-finger length must allow the pads to reach the contact beams fully when the FPC is seated against the connector stop. Insufficient length leaves the beams only partially engaged; excessive length can interfere with the actuator or housing. Datasheets define the recommended insertion depth and the corresponding pad length. A leading-edge chamfer or radius on the FPC tip aids smooth entry and reduces the chance of catching on the contacts.

Contact Finish and Plating

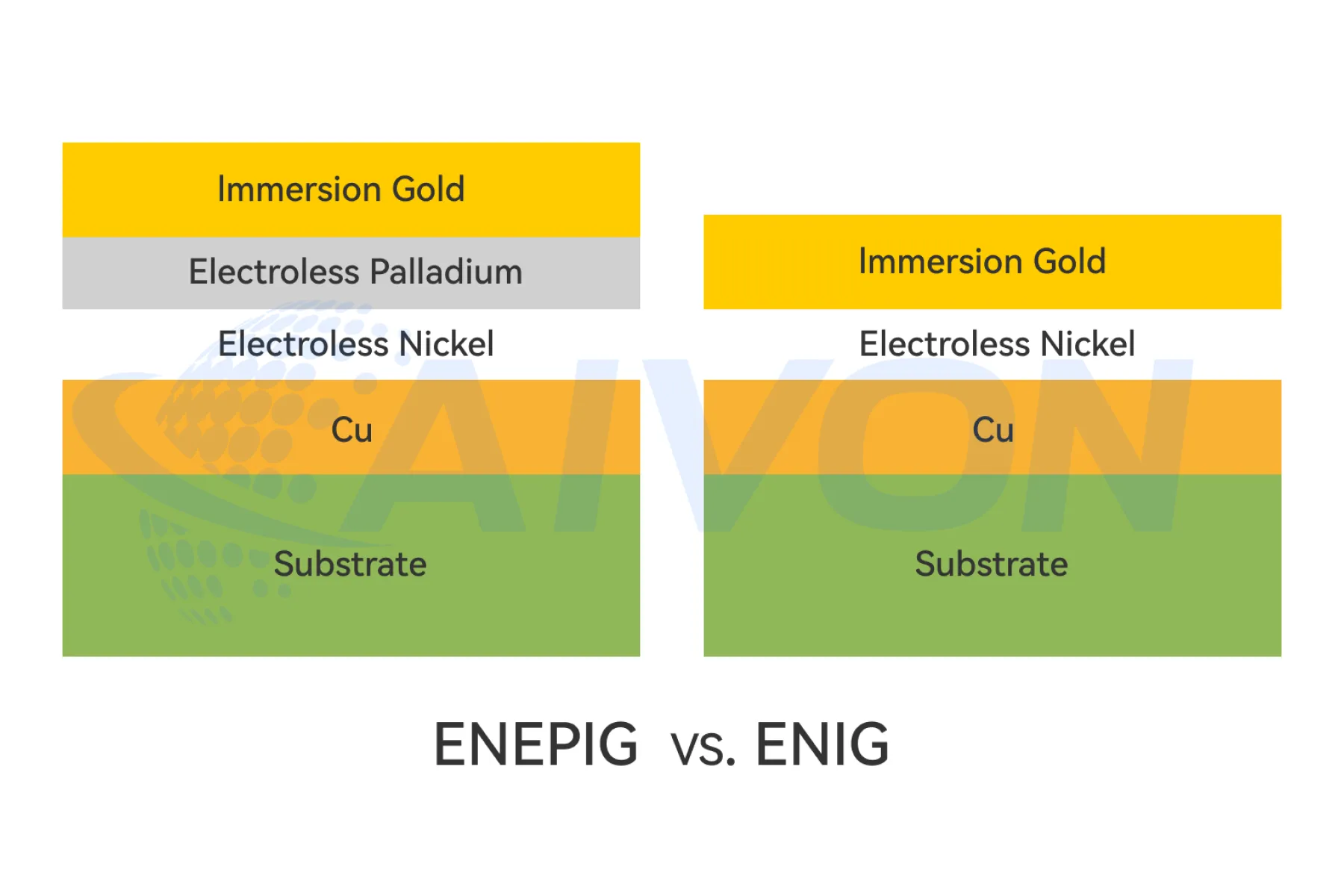

The FPC gold fingers and the connector contacts should present compatible finishes. Hard electrolytic gold over a nickel underplate is preferred for interfaces that will experience repeated mating cycles. Immersion gold may be used for low-cycle or single-insertion applications, although the thinner gold layer is more susceptible to wear. Mixing gold with tin on the mating surfaces can promote galvanic effects and is generally avoided. Plating thickness and underplate requirements are stated on the fabrication drawing and aligned with the connector manufacturer's recommendations.

When these five parameters are controlled together, the interface achieves consistent contact force, stable resistance, and the mating-cycle performance expected from the selected connector series.

PCB Footprint and Layout Design for FPC Connectors

The manufacturer's recommended land pattern should be translated into the PCB footprint without dimensional changes. Pad length, width, and pitch must match the datasheet; cumulative pitch error across a multi-position connector can misalign the outer contacts.

Keep-out zones are required for actuator travel. Front-lock actuators need clearance in front of and above the body; back-lock and side-lock styles need corresponding access. Mounting or retention features should be fully supported by copper and properly soldered, as they carry mechanical loads during insertion and locking. Board-edge clearance requirements listed in the datasheet prevent interference with the panel or adjacent features.

Layout considerations that support signal integrity and reliability include continuous ground reference under the connector where practical, controlled-impedance routing for differential pairs exiting the connector, and via placement that does not undermine the solder pads.

Placement should allow the FPC to exit in the intended cable direction with adequate clearance from adjacent tall components. Space for insertion tools or fixtures is helpful when the product will be assembled or serviced manually.

DFM points for fine-pitch ZIF connectors include controlled solder-paste volume, appropriate reflow profiling to limit movement of the lightweight plastic body, and adequate solder fillets on the retention tabs. Layout issues that can hinder assembly include insufficient actuator clearance, missing keep-outs that prevent full locking, and pad geometries that produce incomplete solder joints.

A practical footprint review includes verification of pad pitch and dimensions against the current datasheet, confirmation of actuator keep-out volumes, checking of the insertion path, and explicit call-out of the target FPC thickness on both the rigid-board and flex drawings.

Factors That Influence Insertion and Extraction Life of ZIF FPC Connectors

Catalog mating-cycle ratings are defined by the connector manufacturer under specified conditions. Actual field life can be lower when gold plating wears, contact beams take a permanent set, contamination is present, or the actuator is not fully engaged.

FPC Design measures that support longer connectors life include selection of a connector series with an appropriate cycle rating, specification of hard gold of suitable thickness, and tight matching of FPC thickness to the connector window so that contact force remains within the intended range.

Process measures include controlled insertion angle and speed, protected handling of the gold fingers to avoid fingerprints or silicone contamination, and use of simple insertion guides or fixtures. Operator confirmation of full insertion and positive lock engagement helps prevent partially seated connections.

Material and environmental controls also matter: storage in low-humidity conditions, avoidance of sulfur-containing packaging materials, and exclusion of silicone oils from the assembly area reduce the risk of surface contamination.

Validation can include accelerated mating-cycle testing with contact-resistance monitoring, together with vibration and thermal sequences that reflect the intended application environment.

Common Connection Failure Modes and Root-Cause Considerations

Observed field issues with ZIF interfaces include intermittent contact, open circuits after limited cycles, actuator lock problems, FPC delamination or copper cracking at the stiffener edge, and elevated resistance associated with corrosion or contamination.

A structured review of these modes helps isolate whether the issue originates in design, material, process, or handling. The table below summarizes frequent failure modes, associated root causes, and corresponding preventive actions.

A diagnostic sequence that begins with thickness measurement, visual inspection of gold fingers and the stiffener transition, verification of actuator engagement, and review of the PCB footprint can quickly narrow the source. Preventive actions map directly to the FPC design and process points covered earlier in this guide. Production experience indicates that coordinated attention to thickness matching, plating selection, stiffener placement, and footprint keep-outs reduces the occurrence of these modes.

Practical Design and Selection Framework

Begin with application requirements: expected mating cycles, vibration or shock environment, available board space and height, cost targets, and current per contact. From those requirements select ZIF or LIF, then choose the pitch and series that fit the mechanical envelope.

Next prepare the PCB footprint exactly to the datasheet, add the required keep-outs, and route signals with the needed impedance and clearance. On the FPC side specify gold-finger geometry, plating stack, stiffener material and thickness, and the finished insertion thickness. Both the rigid-board and flex drawings should carry consistent thickness and plating call-outs so that the two suppliers remain coordinated.

Prototype validation should include contact-resistance measurement, retention-force checks, and a representative number of mating cycles under environmental conditions that reflect the application. Cost-versus-reliability trade-offs depend on volume and service expectations: carefully controlled low-cycle interfaces may accept simpler finishes, while serviceable or vibrating products generally benefit from a ZIF solution with hard gold.

A move to a custom connector, soldered FPC, or board-to-board solution is considered when standard pitches and thicknesses cannot meet the mechanical or electrical targets.

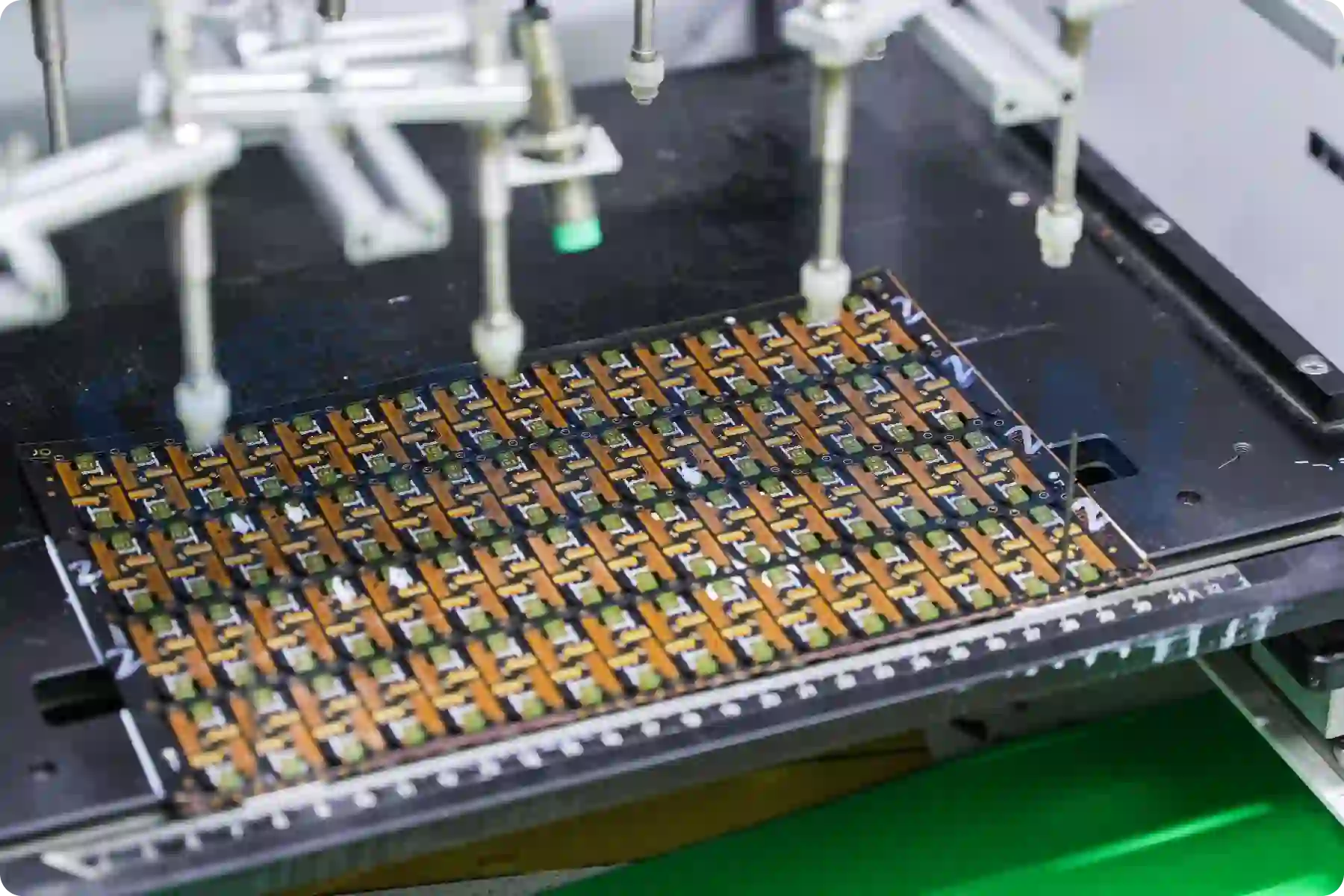

Manufacturing Insights and Application Notes

In production, thickness variation, missing or misplaced stiffeners, and incomplete actuator engagement are frequent contributors to yield loss or field issues. Control measures include lot-level measurement of finished FPC thickness, verification of stiffener registration, and use of simple go/no-go fixtures at the assembly station.

Practical steps that support higher first-pass yield include selection of a polyimide or FR4 stiffener that brings the total thickness into the connector window, tight control of the coverlay process for accurate openings, and PCB footprints that provide adequate copper support under retention tabs. Design decisions made early on both the rigid board and the FPC influence downstream PCBA yield and system-level reliability.

Engineers are advised to request from their connector and FPC suppliers the latest recommended land pattern, the exact thickness window, plating process capability, and any known process windows for the chosen series. At AIVON these questions form part of the DFM review for flex and rigid-flex jobs that include ZIF interfaces.

FAQ

Q1: Can the same ZIF connector series be used for both top-contact and bottom-contact FPC orientations?

A1: No. Top-contact and bottom-contact versions locate the contact beams on opposite sides of the housing. Specifying the incorrect orientation leaves the gold fingers facing away from the beams. Contact-side orientation should be verified against the FPC stack-up and the intended cable-exit direction before the connector part number is finalized.

Q2: How closely should finished FPC thickness match the connector specification?

A2: The finished thickness, including stiffener and adhesive, should fall within the tolerance window stated in the connector datasheet. Thickness outside that window can prevent full actuator closure or reduce contact force sufficiently to produce intermittent resistance under vibration.

Q3: What is the practical difference in mating-cycle performance between hard gold and ENIG on a ZIF interface?

A3: Hard gold over nickel supports higher cycle counts when thickness and stiffener rules are observed. ENIG, with its thinner gold layer, is more prone to wear-through under repeated actuator pressure and is generally reserved for low-cycle or single-insertion applications. Exact cycle capability remains dependent on the connector series and the plating thickness specified on the drawing.

Q4: Why can retention force appear higher after the first few mating cycles?

A4: Early cycles can seat the contact beams and slightly burnish the gold surface, temporarily increasing friction. Subsequent cycles are more influenced by progressive wear. Monitoring both contact resistance and retention force during life testing provides a clearer picture than cycle count alone.

Q5: Do layout rules differ between 0.5 mm and 0.3 mm pitch ZIF connectors?

A5: Pad-pitch accuracy becomes more critical at finer pitches because cumulative error is larger relative to the pitch. Solder-paste volume control is tighter to limit bridging, and actuator keep-out zones must be observed carefully because the smaller body leaves less margin for component interference. Differential-pair symmetry also requires closer attention when exiting fine-pitch pins.

Q6: When should an engineer consider alternatives to a standard ZIF connector?

A6: Alternatives such as a soldered FPC or a board-to-board connector may be evaluated when the required mating cycles exceed what a hard-gold ZIF interface can reliably support, when vibration levels demand retention beyond the actuator, or when height or cost constraints cannot accommodate a connector. Soldered FPC removes the interface but also removes serviceability; board-to-board solutions add height and cost but can offer higher pin counts and greater mechanical robustness.
