HDI panelization mistakes show up constantly in layout reviews. The fine features and tight tolerances on these boards make panel setup far less forgiving than standard PCBs. Get the panelization wrong and you burn material, drop yield, and watch unit costs climb even before the first board ships.
Most of these issues trace back to the same root: designers treating HDI like regular FR-4 and optimizing only for board count per panel without considering fab and assembly realities.
Too Many PCBs per Panel in HDI Designs
Pushing the panel to hold the absolute maximum number of HDI boards looks good on a spreadsheet. In practice it leaves almost no room for process edges and fiducials. Factories need space for tooling holes, routing clearance, and test coupons. When those get squeezed, the CAM engineer starts adding extra material or adjusting the array, which directly raises the panel price.

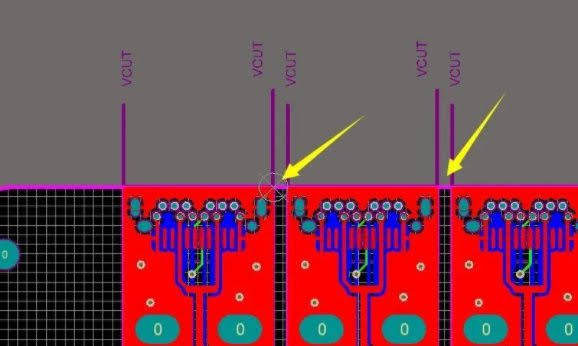

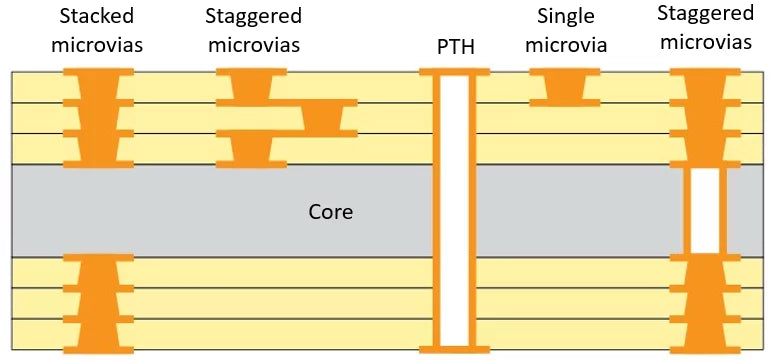

HDI brings another layer of pain here. Microvia registration is tighter. Any shift during lamination or routing eats into your annular rings faster than on a 6-layer board. Over-dense panelization reduces the margin for that shift.
Why Engineers Pack Panels This Way
Time pressure in layout. You see the board size, calculate how many fit on a standard 18x24 or 16x20 panel, and stop there. It feels like cost optimization. The fab quote later tells a different story when they flag insufficient clearance and charge for custom handling or lower yield expectations.
Inadequate Process Edges on HDI Panels

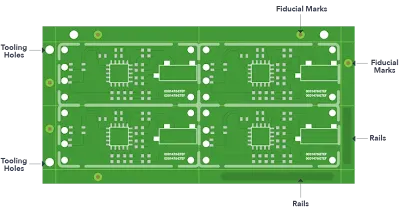

Process edges exist for a reason. They give the factory grip for plating, handling during press, and routing tabs. On HDI, you often need extra real estate because of the sequential lamination steps and the risk of edge delamination.
Common DFM callout: minimum 8-10mm on at least two sides, sometimes more depending on stackup and panel size. Cutting it to 5mm might work for simple boards, but HDI layers shift more easily. You end up with boards that have copper pulled too close to the final outline, leading to plating voids or shorting during final routing.
Material waste compounds when the factory has to drop panel utilization to accommodate proper borders. Your per-board cost goes up even if the raw material price stays flat.
Material Waste Patterns We See Repeatedly
When panelization ignores the need for consistent borders, the effective usable area shrinks. Factories sometimes run smaller production panels or add scrap strips. Either way, the material utilization percentage drops. For HDI with expensive resin systems and multiple lamination cycles, that waste multiplies quickly.
I've reviewed files where the designer maximized boards but left the panel with ragged edges that required manual trimming. That adds labor cost and risk of mechanical damage to the outer boards.
Stamp Hole and Breakaway Tab Issues in HDI Panelization
Stamp holes (perforated tabs) seem simple until you put them on an HDI board. Place them too close to active circuitry and the depanelization stress cracks traces or delaminates microvias. Leave too much tab material and assemblers fight with cleaning or risk damaging components during breakaway.
Typical guideline: 3-5 holes per tab, 0.5-1mm diameter, positioned at least 2mm away from any copper feature on HDI. But many layouts put them right against the board edge with zero clearance to routing channels. During routing, the vibration and dust create shorts or opens that only appear after assembly.
Depanelization Stress on Fine HDI Features
HDI boards are stiffer in some areas due to the dense copper and build-up layers. When you snap tabs, the force transmits differently. Tabs aligned with the long axis of the panel often cause more warping. This shows up as registration drift on inner layers that passed electrical test but fails in the field under thermal cycling.
Assembly houses prefer mouse-bite designs with clean break lines. Poor stamp hole geometry leaves burrs that interfere with SMT or require extra deburring steps. Each extra operation adds cost and potential for scrap.
How Panelization Affects HDI Fabrication Yield and Cost
HDI processes already run at lower yields than standard boards because of the laser drilling and sequential lamination. Bad panelization pushes that yield lower. Factories respond by quoting higher prices or adding NRE for custom panel setups. Sometimes they reject the job outright if the array risks damaging expensive equipment.
Copper balance also plays in. Uneven panel utilization across the sheet can cause more bowing during press cycles. On HDI this means tighter control on etch compensation and more risk of trace width variation near the edges.
Material waste isn't just the panel scraps. It includes the extra prepreg and core layers needed when re-laminating panels that failed due to edge effects.
Practical Panelization Adjustments for HDI
Start by talking to your fab partner early. Give them the board outline and stackup, then ask for recommended panel size and array. Most will suggest a configuration that balances their equipment with your volume.
Keep at least 8mm process border on longer sides. Place tooling holes outside the board area but within the panel. For stamp holes, use a standard pattern with 0.8mm holes on 1.5mm centers and maintain 1.5-2mm clearance to any copper or pad.
If your board shape forces irregular panelization, consider adding dummy boards or balancing copper in the waste areas. It sounds wasteful but often saves money by improving overall yield.
Check the panelization in your EDA tool against IPC-2221 and fab-specific DFM rules. Run a design rule check specifically for board edge and panel border violations before release.
Trade-offs That Actually Matter
Sometimes fewer boards per panel is the right call. The slight increase in material cost gets offset by higher first-pass yield and smoother assembly. For prototype runs, single-board panels with generous borders can be cheaper overall when you factor in respins from panel-related defects.
In production, consistent panelization across revisions prevents CAM re-engineering charges. Factories hate re-tooling for the same part number with slightly different arrays.
HDI panelization mistakes rarely cause outright catastrophic failure on the first build. They show up as higher pricing, slower lead times, and occasional field returns from marginal boards that passed test but had hidden stress damage.
Review the panelization as carefully as you review trace widths and via placement. It's one of the highest leverage areas for controlling HDI cost.
