When reviewing HDI layouts, the first thing I check on blind vias is whether the diameter actually matches the dielectric thickness and laser capability. Pick the wrong size and plating reliability drops fast. This blind via size guide focuses on the practical trade-offs engineers face every day.
Why Blind Via Diameter Matters More Than Most Realize
Too small and you fight plating voids at the knee and bottom. Too large and you lose routing density or end up with oversized pads that eat signal integrity margin. In HDI, blind vias usually span one or two build-up layers. The diameter choice drives everything downstream — laser drilling, desmear, plating uniformity, even long-term thermal cycling performance.
Most issues I see come from designers chasing the smallest possible via for BGA fanout without checking the stack-up first.
Aspect Ratio Limits in Real Production

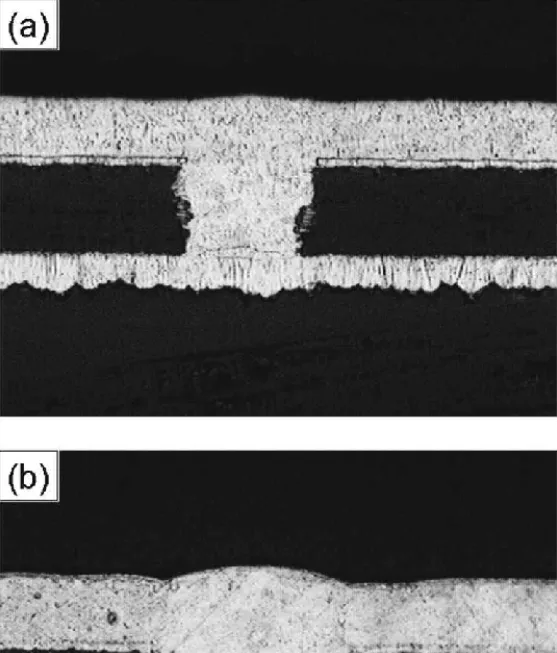

Aspect ratio (depth to diameter) is the single biggest constraint. For laser-drilled blind microvias, fabricators target 0.75:1 to 1:1 maximum. Anything higher and plating yield suffers.
A 0.1mm diameter via through 0.08mm dielectric sits right at the sweet spot. Push depth to 0.12mm with the same hole and you start seeing thin copper at the knee. IPC-2226 and related specs push for this balance because real reliability testing shows cracks appearing after a few hundred thermal cycles when knee copper falls below 18-20μm.
How Board Thickness and Dielectric Drive Diameter Choice
Build-up layers in HDI are thin — typically 50-100μm resin or RCC. That directly sets your via depth. Engineers often default to the smallest laser via their CAD library offers, but that ignores the actual dielectric thickness after lamination.
Thicker dielectrics for impedance control force larger diameters. You cannot keep a 0.075mm hole if depth hits 0.1mm+ without switching to pulse reverse plating or accepting higher risk. Factories see this mismatch constantly in DFM reviews.
Copper Thickness Impact on Blind Via Sizing
Inner layer copper thickness affects both laser targeting and final plating. Thicker copper on the target pad (say 1oz vs 0.5oz) means more material the laser must stop on cleanly. It also changes the effective depth slightly.
During plating, higher aspect ratios with standard DC processes leave the barrel center and knee thinner. Pulse reverse plating helps, but it is not magic. I always recommend keeping starting copper on build-up layers at 0.5oz or less for fine vias unless power delivery demands otherwise.
Laser Capability Constraints Most Designers Miss
CO2 lasers dominate production for 0.075-0.15mm vias. UV lasers go smaller but slower and costlier. Factory capability varies — some lines reliably hit 0.075mm at volume, others prefer 0.1mm minimum for yield.

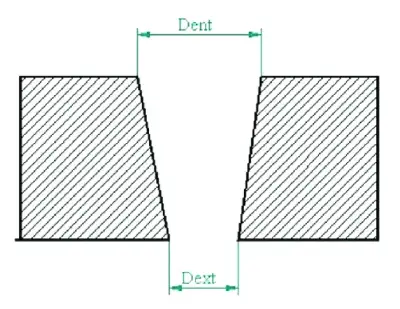

Taper is normal in laser vias. Entry diameter is larger than bottom. This affects annular ring calculations and capture pad sizing on the target layer. Design rules must account for it or you risk breakout during registration shifts.
Common Failure Modes Tied to Via Diameter Choices
Plating voids at the bottom come up when aspect ratio creeps above 0.9:1. Thin knee copper cracks under thermal stress. CAF (conductive anodic filament) risk increases if vias sit too close with marginal spacing.
Oversized vias for the depth waste space and can cause solder wicking issues in via-in-pad designs. Undersized ones fail reliability testing even if they pass electrical test initially.
Registration tolerance compounds everything. A 0.075mm via needs tighter control than 0.15mm. Factories quote different capabilities based on the full stack-up.

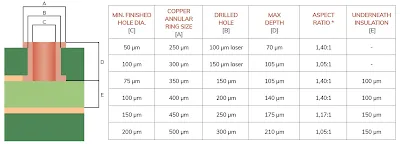

Practical Blind Via Size Guide for Layout
Start with your dielectric thickness. For 60-70μm build-up, 0.1mm finished via diameter works reliably for most shops. For 80-100μm, step up to 0.12-0.15mm unless you qualify advanced plating.
- 0.075mm drill: Best for thinnest dielectrics, high-density BGA escape, requires top-tier laser and plating lines.
- 0.1mm: Good balance for most HDI, aspect ratio stays manageable.
- 0.15mm: Safer for higher aspect or standard processes, still allows dense routing.
Pad sizes typically 1.5-2x the via diameter. Maintain at least 0.05mm annular ring minimum per IPC Class 3. Always verify with your fabricator's DFM before tape-out.
Stack-up and Via Type Coordination
Blind vias work best when the entire HDI build considers them from the start. Staggered vs stacked, 1-order vs higher — each changes what diameter you can realistically use. Stacking multiple high-aspect microvias multiplies risk.
Talk to CAM early if pushing limits. They will flag when your chosen size forces slower processes or lower panel yield.
When to Go Smaller or Accept Trade-offs
For 0.4mm pitch BGAs, via-in-pad often needs the smallest feasible blind via. But verify reliability requirements. Consumer gadgets tolerate more risk than industrial or auto.
Sometimes increasing one via diameter slightly frees routing on inner layers and improves overall yield. Density is important, but not at the expense of manufacturability.
Key Takeaways for Blind Via Size Selection
Match via diameter to actual dielectric depth for aspect ratio under 0.8:1 whenever possible. Respect laser and plating capabilities of your chosen vendor. Copper thickness, taper, and registration all play in. A solid blind via size guide used early prevents DFM back-and-forth and reliability headaches later.
Run the numbers on your specific stack-up. There is no universal perfect size — only the right one for your constraints.
