When a Rigid FR4 Board Still Fits and When an FPC Has to Carry the Interconnect
The FR4 vs flexible PCB decision in compact electronics is a packaging decision, not a "better laminate" contest. FR4 remains the better manufacturing choice when the circuit can sit flat in a housing, take screws or snap features, and carry parts that need a stable reflow surface. A flexible PCB (FPC) is the better choice when the interconnect must fold into a hinge, wrap a battery, snake past a camera module, or replace a cable and two connectors inside a few millimetres of stack height.
From a fabrication standpoint, most RFQs that stall on FR4 vs FPC mix the two jobs on one drawing: they ask for FR4 stiffness and FPC bend life at the same time, or they try to save money by specifying 0.2–0.4 mm FR4 "so it can flex." Thin FR4 is still glass cloth. It will take a gentle static curve once, then the weave cracks and the copper fatigues. If the product has a named bend radius or cycle life, that part of the circuit has to leave the rigid line.

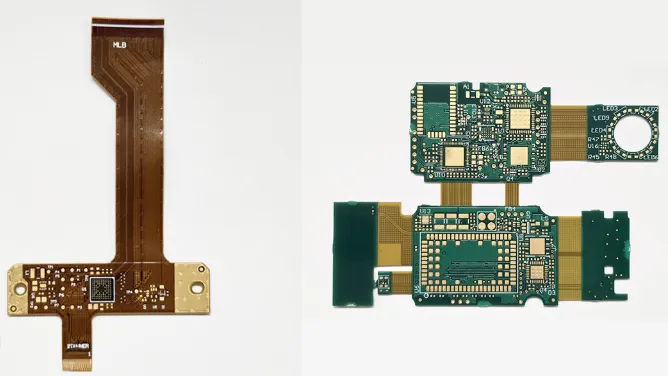

We normally recommend a split rather than a winner. Compact products keep compute and connectors on FR4 and use an FPC only where motion or packing volume forces it. Full-flex and rigid-flex exist, but they are different factory jobs. This article treats rigid FR4 versus FPC first — that is the comparison that shows up on most compact-electronics quotes.
What Separates FR4 from an FPC Before the Quote Leaves CAM
| Factor | FR4 PCB | Flexible PCB (FPC) |
|---|---|---|
| Structure | Woven glass + epoxy, copper-clad; rigid panel | PI film + RA/ED copper + coverlay; optional stiffener |
| Form | Rigid only | Flex, or flex with local FR4 / PI / steel stiffeners |
| Typical finished thickness | 0.6–1.6 mm in compact boxes; 0.4 mm is already thin | About 0.08–0.30 mm in the bend window; thicker only under parts |
| Bend / fold | None by design; glass cracks if forced | Static fold or dynamic flex if stack, copper, and radius are specified |
| Manufacturing complexity | Standard rigid line, widest process window | Dedicated flex line; coverlay, stiffeners, laser or die outline |
| Finished-board cost vs FR4 | Baseline for the same copper area | Often ~3–8× per area; can still cut system cost if it removes connectors |
| Yield / handling | High on ordinary 2–8 layer work | Lower; film handling, coverlay registration, and outline scrap dominate |
| SMT surface | Stable panel; standard fixtures | Needs stiffener or carrier; unsupported film will not print or reflow flat |
| Lead time / stock | Cores and prepreg on the shelf almost everywhere | Common PI thicknesses stocked; odd stacks, adhesiveless film, and tooling add days |
| Typical compact uses | Mainboard, power, RF shield can, connector farm | Display, camera, battery, hinge, wearable strap, antenna tail |

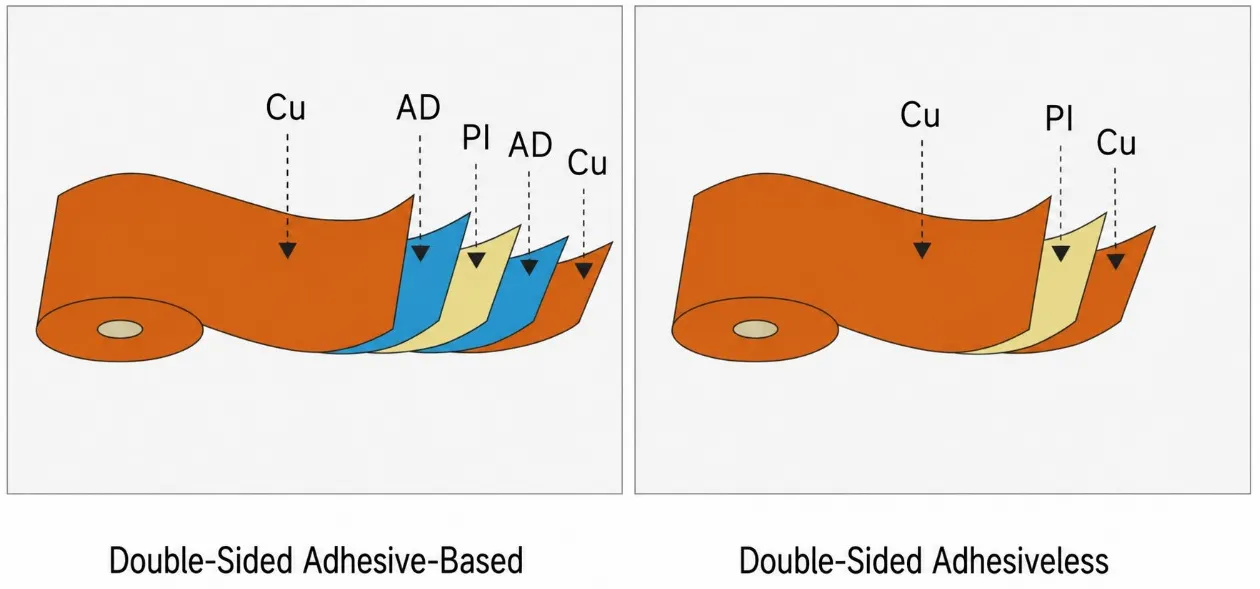

One CAM note before the rest of the FR4 vs FPC comparison. "FPC" is not automatically polyimide and not automatically dynamic-flex capable. PET does not belong under lead-free SMT. Adhesive PI is fine for a one-time fold; dynamic hinges want adhesiveless PI and rolled-annealed copper. If those items are missing from the stack-up, the quote and the field life will not match.
Which Construction Wins When the Priority Changes
| If your priority is... | Better choice | Why factories lean that way |
|---|---|---|
| Lowest board cost and fastest volume | FR4 | Stocked material, standard press and drill, lowest scrap cost |
| The circuit must fold or move | FPC | FR4 cannot take a designed bend radius without cracking |
| Thinnest interconnect in a tight Z-stack | FPC | A 0.1 mm PI tail is thinner than any reliable FR4 coupon |
| Parts, BGAs, and connectors on one board | FR4 | Stable reflow surface; FPC needs local stiffeners for the same parts |
| Replace a cable plus two connectors | FPC (or rigid-flex) | Saves height and mating reliability; board cost goes up, assembly cost can fall |
| Prototype in a few days on a standard line | FR4 | Almost any shop can start; flex CAM and outline tooling take longer |
| Dynamic hinge or wearable flex life | Adhesiveless PI FPC | Adhesive layers and glass-epoxy fail first in cyclic bend |
| Mass production of a boxed mainboard | FR4 | FPC premium never pays back if the board never leaves a flat plane |
Rigidity Is a Feature on FR4 and a Liability Once the Product Has to Fold
Mechanical form is the cleanest split in the FR4 vs FPC comparison. FR4 is selected because it is stiff. It locates connectors, holds a BGA flat through reflow, and gives the enclosure something to screw to. That stiffness is useful on a compact mainboard and wasted everywhere the stack has to change direction.
An FPC is selected because the dielectric is a film, not a glass-cloth panel. That film will follow a battery radius, a hinge, or a camera well that no 0.8 mm FR4 coupon can enter. The same film will not carry a fine-pitch BGA without a stiffener, and it will not stay registered in a printer without a carrier. During CAM review we look at where the board is allowed to move. A rectangle that bolts to a chassis is FR4. A necked-down tail, 180° fold mark, or ZIF finger is an FPC job even when the rest of the schematic looks rigid. Mixing those assumptions on one stack-up is how rigid-flex quotes appear — and rigid-flex is a third process, not a cheaper FPC.
Bend Capability Is Specified in Radius and Cycles, Not in "Flexible" on the Drawing
"Can it bend?" is not a useful question on an FR4 vs flexible PCB RFQ. FR4 cannot take a designed bend. An FPC can, but only inside a stack and a radius the factory can build and the assembly line can fixture.
For a static fold — install once, leave it — a one- or two-layer adhesive PI FPC is usually enough. We typically want the inside radius at least about ten times the flex-stack thickness in that window, copper near the neutral axis on a tight fold, and no vias in the bend. Dynamic flex — hinge, wearable strap, print-head cable — wants adhesiveless PI, rolled-annealed copper, coverlay in the moving zone, and a much larger radius, often on the order of a hundred times thickness depending on cycle life. Those numbers are DFM starting points, not a substitute for a coupon on the actual stack.
Thin FR4 does not inherit those rules. A 0.3 mm FR4 coupon may survive a one-time set, then fail at the glass knuckle after handling. We do not sign it off as an FPC substitute. The other bend failures we see are copper geometry: traces across the fold instead of along it, plated holes in the radius, and coverlay openings that notch a pad edge. Those are CAM holds on FPC jobs. They do not exist on FR4 because FR4 was never supposed to fold.
Thickness Is Why Compact Products Pull FPC Into the Stack

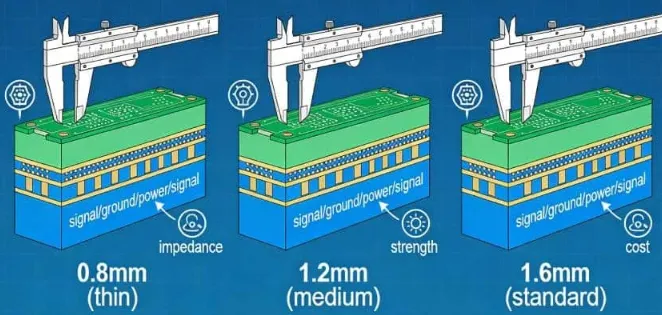

In compact electronics the Z-budget is often tighter than the XY budget. A 1.6 mm FR4 board is already too thick for many wearables, earbuds, and camera modules. Shops can build 0.4 mm and even 0.2 mm FR4, but drill aspect ratio, warp, and handling get worse, and the coupon is still rigid. You have saved thickness and lost the ability to fold.
A two-layer PI FPC in the bend window is commonly 0.10–0.15 mm including coverlay. Single-layer constructions go thinner. That is the difference that frees a hinge or a battery wrap. Under components the same FPC is built back up with a PI, FR4, or stainless stiffener, so the local stack can look 0.3–0.6 mm again. The factory is selling two thicknesses on one part: thin where it moves, locally thick where it is populated. That is also why "make the whole product an FPC" is a weak manufacturing idea. Once every IC needs a stiffener, panel utilization drops and you have paid flex prices for regions that never bend. Most compact products we build keep a thin FR4 or HDI board for compute and hang FPC tails only off the edges that have to move or tuck.
Where the Manufacturing Cost Starts to Diverge
Cost comparison in FR4 vs FPC follows the process, not the resin pound price. PI film and coverlay cost more than FR4 core, but the larger gap is labor, tooling, yield, and how much of a panel you can actually ship.
FR4 runs as a rectangular panel on a rigid line. Drill, plate, etch, mask, and route amortize over a dense array, scrap is cheap, and cores are on the shelf. That is why a 4-layer 1.0 mm FR4 mainboard in volume is the cost baseline for compact electronics. An FPC is a film product: coverlay registration, regional stiffeners, laser or die outline, and poor nesting on a long tail with a wide SMT island. First-pass yield is lower — squeeze-out, pad cratering, via dimple, and handling creases eat panels. A simple two-layer FPC often lands around three to eight times the area cost of a comparable FR4 coupon. Rigid-flex is higher again because two process families share one lamination book.
System cost can still favor the FPC if the tail removes a connector pair, a cable, and two assembly operations. Compare FR4-plus-cable-plus-connectors against FPC-plus-stiffener-plus-ZIF, not two coupons of the same outline. Paying FPC prices for a rectangle that never leaves a plane is the expensive mistake. Prototype cost follows the same split: stock FR4 can start in a few days; an FPC waits on stack, coverlay, stiffener drawings, and sometimes a die. If the first build is only to bring up firmware, FR4 is the cheaper learning cycle even when production intent is flex.
How Compact-Product Applications Usually Split Between the Two
Application is where the FR4 vs flexible PCB comparison should end, not start. The same schematic can be rigid, flex, or both, depending on the mechanical. FR4 is the production default for the compute and power island: SoC and PMIC on a phone or tablet HDI board, handheld mainboards, IoT modules that drop into a shell. Those boards want layer count, impedance control, and a connector farm. Flex does not help that job.
FPC is the production default for the moving or wrapping interconnect: display and camera tails, battery leads, hinge cables, wearable straps, antenna and button flexes, medical patches. Those parts want thickness and a bend window. Putting them on FR4 forces extra connectors or a larger enclosure. Rigid-flex shows up only when the product cannot tolerate the connector between those two worlds. From the factory side that is not "FPC with extra FR4." It is a different lamination, drill program, and yield model. We recommend it when the connector is the actual constraint, not when purchasing wants one part number.
What the Fab Looks at When FR4 and FPC Arrive on the Same RFQ
DFM starts with the question the drawing often skips: which regions must stay flat, and which must move. If that split is not dimensioned — bend line, minimum radius, static versus dynamic, stiffener outline — CAM cannot price the job or pick a line.
On FR4 we check stack, copper weight, via aspect ratio, and whether the thin compact board will warp through reflow. On FPC we check coverlay versus pad, stiffener edge versus pad, copper type, adhesive versus adhesiveless, and whether the outline wastes half the panel. Irregular flex shapes are one reason FPC unit cost surprises teams that only compared material price. Process stability favors FR4: a rigid line runs the same press cycle all day, while an FPC line changes coverlay, stiffener, and laser programs between jobs. Inspection follows that. Yield tends to drop when the tail is long, the SMT island is small, or the stiffener lands inside a pad keepout we cannot hold.
Assembly is part of the recommendation even when we only fabricate the bare board. Unsupported FPC will not sit on a standard printer. Carriers, PSA stiffeners, and bake-out before SMT are normal; skip the bake on PI and moisture becomes a delamination risk. FR4 in the same product usually runs on the existing SMT line. That difference shows up in assembly yield, not on the fab invoice, which is why we raise it during DFM. We normally recommend FR4 for any region that can stay rigid, FPC only for the region that cannot, and rigid-flex only when the connector between them is mechanically unacceptable.
Which Option You Should Release for Compact Electronics
Choose FR4 if you:
- Are building a mainboard that mounts in a housing and does not fold
- Need BGAs, fine-pitch connectors, or a shield can on a stable reflow surface
- Want the lowest board cost and the widest supplier base
- Can solve interconnect with a cable, ZIF, or board-to-board connector
- Are prototyping firmware on a bench before the mechanical is frozen
Choose an FPC if you:
- Need a designed fold, wrap, or dynamic flex life
- Are fighting Z-height that no thin FR4 coupon can enter
- Can replace a cable and two connectors with a tail and one ZIF or solder joint
- Can accept stiffeners, carriers, and a flex-capable fabricator
- Have specified bend radius, copper type, and static versus dynamic on the drawing
Split the product (FR4 + FPC) if you:
- Have a compute island that wants rigidity and a tail that wants to move
- Would otherwise populate an entire FPC just to keep one part number
- Can live with a connector or a bonded joint between the two circuits
There is no single winner in the FR4 vs flexible PCB comparison. FR4 is the manufacturing default for anything that stays flat. FPC is the manufacturing default for motion and for thickness the rigid line cannot reach. The expensive mistake in compact electronics is using one construction to do the other job.
Questions That Come In With FR4 vs FPC Quotes
Q1: Can thin FR4 replace a flexible PCB in a compact product to save cost?
A1: Only for a very gentle, one-time curve, and even then we do not treat it as a flex design. Glass cloth cracks and copper fatigues at the weave. If the product has a specified bend radius or cycle life, an FPC is the manufacturing choice.
Q2: Why does an FPC cost several times an FR4 board of similar copper area?
A2: Film and coverlay cost more than FR4 core, but the larger gap is process: dedicated flex lines, stiffeners, poorer panel utilization, lower first-pass yield, and outline tooling. Compare FPC cost against the cable-plus-connectors it replaces, not against a same-size FR4 coupon.
Q3: Is every flexible PCB a polyimide circuit?
A3: No. PI is the production default under SMT and dynamic bend. PET film is cheaper and belongs on simple static interconnects that never see reflow. Call out the film on the drawing or the quote and the assembly process will be wrong.
Q4: When should compact electronics use rigid-flex instead of FR4 plus an FPC?
A4: When connector height, packing volume, or connector reliability is the actual constraint. If a ZIF or board-to-board pair fits the mechanical and the cost target, two parts are easier to manufacture, test, and rework than one rigid-flex panel.
Q5: Does an FPC need different SMT processing than FR4?
A5: Yes. Unsupported film will not sit flat on a standard printer or reflow belt. Stiffeners, carriers, and bake-out before SMT are normal. Skip the bake and moisture in PI becomes a delamination risk.
Q6: What does the factory need on the drawing before quoting FR4 vs FPC?
A6: Bend versus rigid regions, static or dynamic duty, minimum radius, stack (film, copper type, adhesive or adhesiveless, coverlay), stiffener material and outline, and whether the interconnect is a separate FPC or a rigid-flex book. "Flexible PCB, 0.1 mm" is not a spec.
