Look at the connection geometry first, not only the net name. When a pad is solidly tied into a large copper pour, heat spreads quickly across the entire copper area, and the joint is harder to bring to the right temperature at the same time. A thermal-relief pad connects to the pour through a few controlled spokes. Its main job is to limit the heat path so the soldering window is easier to control.
Some pads are electrically correct in the schematic, and DRC reports no error, yet hand soldering still feels slow to take solder, and reflow can still leave local insufficient wetting. Move the same part to a location without a large pour, and the symptom eases. The net did not change. The heat path did.
This article explains one question only: why tying a pad straight into a large copper pour can make soldering more difficult, and how thermal relief changes that path without breaking the net.
What a Thermal-Relief Pad Actually Does
A thermal-relief pad is also called thermal relief. It does not disconnect the pad. It keeps a few narrow copper spokes between the pad and the large copper area. The electrical net stays continuous. Heat simply no longer floods into the pour from the full circumference at once.
With a solid connection, almost the entire pad perimeter is wide copper. The pad is not a small island waiting for a soldering iron or a reflow profile. It is the edge of a heat sink. Heat from the iron or from the oven spreads quickly into the pour, so the pad may heat more slowly than an ordinary small pad that is connected only by a trace.
That is why DRC silence is not proof that the pad will solder. Design-rule checks confirm clearance, mask, and net connectivity. They do not confirm that the pad and the termination will enter the solderable temperature range together. A solid pour connection can pass every electrical rule and still steal heat faster than the process can replace it.
The Larger the Copper Area, the Faster Heat Is Taken Away
Copper conducts heat very well. The wider the connection path and the larger the copper area, the more the pad behaves as if it were attached to a heat sink. Further heating may still melt the solder, but it also sends more heat into the surrounding laminate and parts.
The practical result is a stretched process window. The operator or the oven must put more energy into the joint to catch the pad. Nearby components, soldermask, and laminate then see more of that energy. Hand soldering feels slow because the iron is heating the pour, not only the land. Reflow can leave local insufficient wetting because the pad lags the paste and the component termination.
After thermal relief narrows the heat path, the pad reaches a solderable temperature range more readily. What it solves is thermal balance during soldering. The relief graphic in a CAD library does not replace every process judgment. It only changes the copper geometry that made the pad a heat sink.
Location on the board matters for the same reason. A pad on a small isolated pour has less copper to feed. A pad on a power plane or a board-wide ground pour has more. Moving the same part off the large pour eases the symptom because the heat sink shrank, not because the schematic became easier to solder.
The Spokes Should Not Be Made as Thin as Possible
Thermal relief is a compromise among three constraints.
- Soldering need: if the spokes are too wide, heat still leaves too quickly and the pad behaves like a solid connection again.
- Current-carrying need: if the spokes are too narrow, the current path on a power or ground pad may be inadequate.
- Manufacturing capability: spoke width, clearance, and solder-mask opening must match the board shop and the assembly process.
The connection style is therefore only the entry point. What actually needs review is whether spoke count, spoke width, copper thickness, continuous current, and the soldering method can all be satisfied at once.

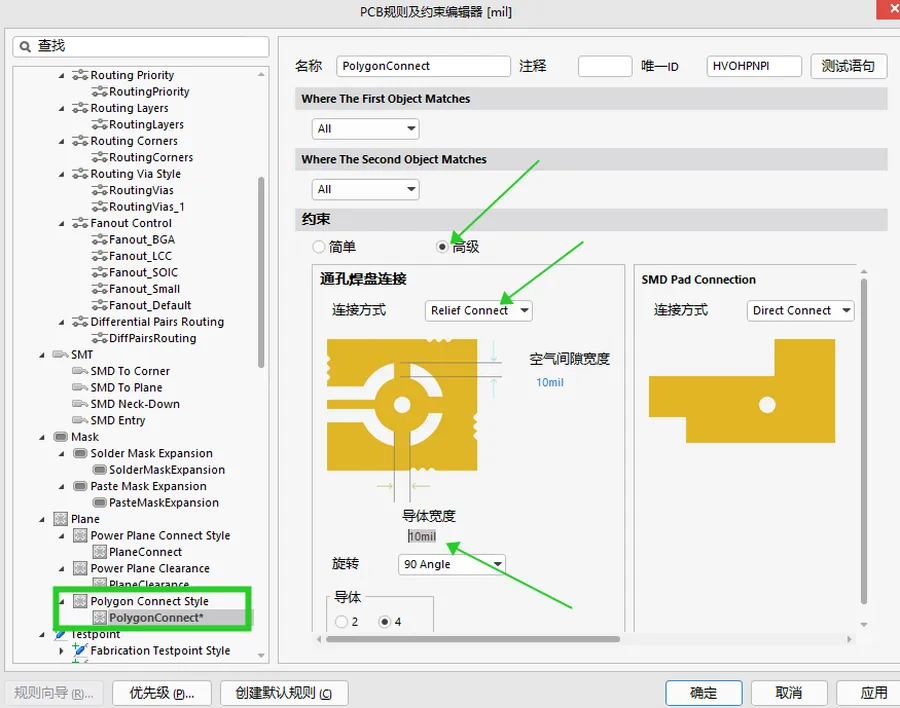

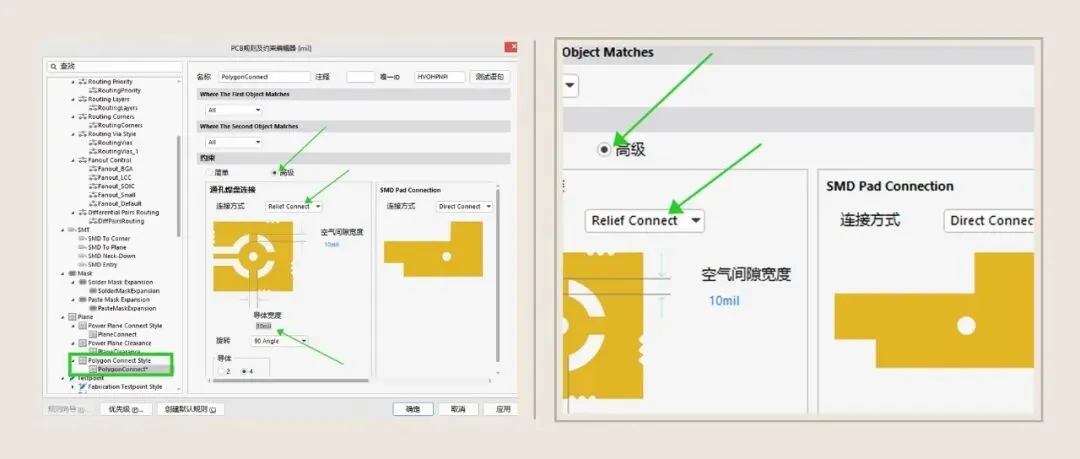

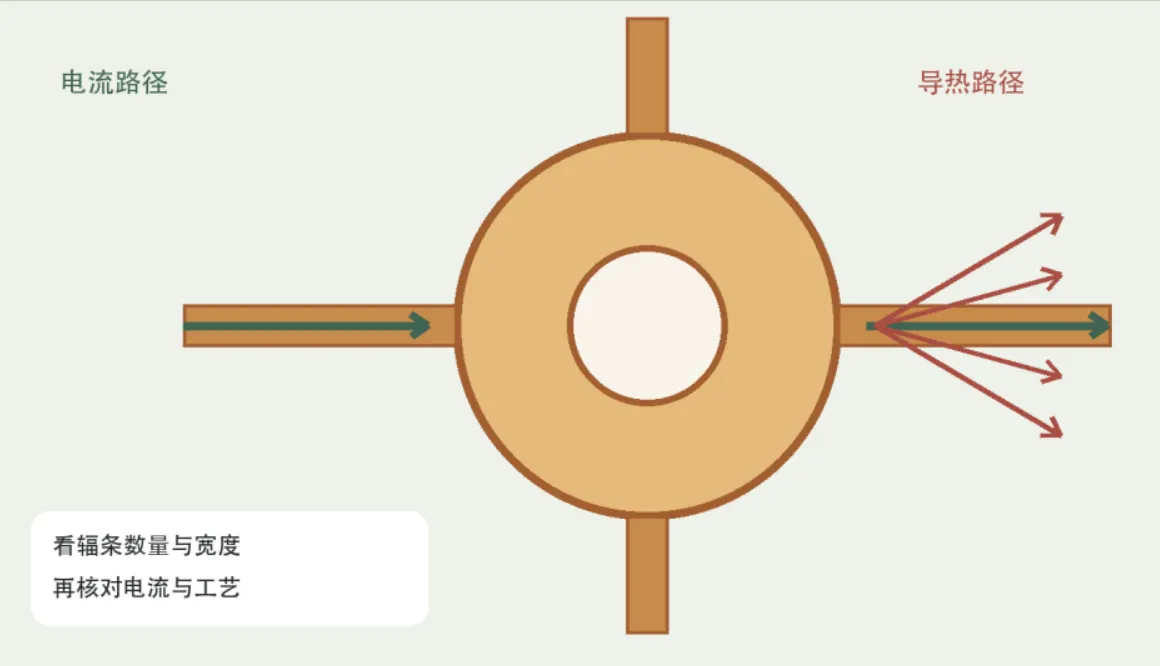

Four thin spokes on a signal via pad and four thin spokes on a high-current ground pad are not the same design. The signal pad mainly needs a solderable land. The power pad still has to carry continuous current through those spokes after the joint is made. Narrowing the spokes until hand soldering feels easy can create a neck that heats in operation even though it soldered cleanly.
Mask opening and spoke clearance also have to remain fabricable. Spokes that exist only in the copper layer and disappear under mask misregistration, or that violate the shop's minimum width, are not a thermal-relief solution. They are a yield problem added on top of the original heat-path problem.
On a Respin, Run Only This Comparison
When a board already shows hard-to-solder pads on a large pour, a controlled comparison is more useful than changing every land at once.
- Find the hard-to-solder pads that tie directly into a large copper area and confirm whether each is a solid connection or a thermal-relief connection.
- Change one pad of the same type to thermal relief. Keep copper thickness, mask opening, and soldering conditions unchanged.
- Compare wetting, rework heating time, and joint appearance, then check the current-carrying margin of the spokes.
Keeping thickness, mask, and process fixed isolates the geometry. If wetting and heating time improve only on the relieved pad, the pour connection was the heat path at fault. If nothing changes, the problem is elsewhere, paste volume, profile, oxidation, or a part that is itself a heat sink.
When only some large-pour pads on the same board are hard to solder, compare connection style, spoke width, and copper area first. Two pads on the same net can still behave differently if one is a solid plane tie and the other already has relief, or if one sits on a much larger continuous pour.
Put Current Capability Back Into the Review
Thermal relief improves local heating conditions. The spokes remain the current path. For power, ground, or high-current pads, after the soldering comparison is done, recheck voltage drop and temperature rise against copper thickness, spoke width, and continuous current.
A pad that solders easily and then overheats in operation has only moved the failure from assembly to the field. The review is therefore two-sided: enough thermal isolation to solder, enough copper in the spokes to carry the net.
Engineering judgment follows that order. When a pad on a large copper area is hard to solder, inspect the heat path first. The value of thermal relief is keeping soldering heat near the joint. The spokes must still meet current and manufacturing requirements. A pad on a large copper area must be judged by the net and by the heat path, including whether the connection is solid or relieved and whether spoke width was chosen for soldering alone or for soldering and current together.
