In production we decide FR4 PCB electrical testing method by quantity, net count, and required cycle time. CAM engineers open the netlist and panel data first. If the job is under roughly 50–100 pieces or still in prototype stage, the board goes to flying probe. Once volume climbs into true mass production, we switch to fixture (bed-of-nails) testing because the parallel contact cuts test time from minutes per panel down to seconds. That single routing decision controls both cost and floor capacity on every FR4 order.
Where etching, plating and drill variation force 100 % continuity checks

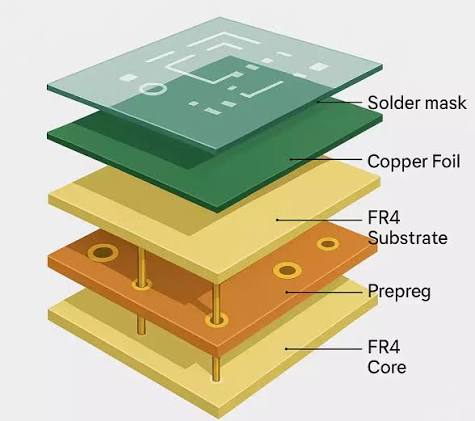

Opens and shorts do not come from the design; they come from the process stack. Etch undercut or over-etch can thin a trace until it opens under probe pressure. Plating voids inside a via leave a high-resistance path that only shows up under the isolation test. Drill registration that drifts 0.05 mm on a dense multilayer can create an unintended short between adjacent nets. Solder-mask residue or copper residue left after strip can also bridge fine spaces. Because these defects appear randomly across the panel, every FR4 board that leaves the factory must pass a full net continuity and isolation test. Flying probe and fixture are simply two different ways of applying that same electrical gate.

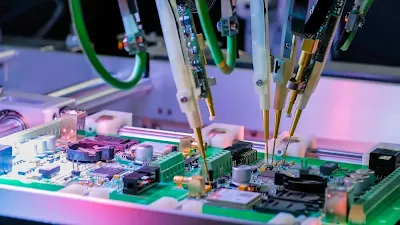

Flying probe works by moving one or more pairs of spring-loaded probes to sequential pad locations according to the IPC-D-356 netlist. Contact force is typically 50–150 g; dwell time is a few milliseconds. The machine measures resistance between every node of a net and verifies isolation to all other nets. Fixture testing replaces the sequential motion with a custom plate of fixed probes that contact every required test point in one press cycle. Both methods use the same electrical thresholds—usually < 20 Ω for continuity and > 10 MΩ for isolation—but the mechanical approach is completely different.
What fails on the floor when the wrong test method is chosen
If a high-volume FR4 job is left on flying probe, the test queue backs up. A dense 8-layer board with 2 000 nets can take 4–8 minutes per panel. At 500 panels the machine runs for days while the plating and routing lines sit idle waiting for capacity. Delivery dates slip and the customer sees a late shipment. Conversely, building a fixture for a 20-piece prototype burns NRE and two to three days of tooling time that the customer never recovers. Boards that somehow skip electrical testing altogether leave the factory with latent opens or shorts. Those defects surface later at ICT, functional test, or in the field. Returns, rework, and scrap quickly erase any short-term savings.
Incomplete coverage is another real risk. If the designer omitted test pads or placed them under components, flying probe may still reach them from the opposite side, but a fixture cannot. The untested nets pass through the factory and fail at the customer. We see this most often on HDI designs where via-in-pad or buried vias leave no accessible copper on either surface.
How CAM and test engineers actually set the two methods for FR4 work
On the CAM side we first count the nets and check minimum pad size. For flying probe we normally require finished pad diameters of 0.4 mm or larger and clear probe access from at least one side. If both sides must be probed, the machine runs a dual-sided program; cycle time roughly doubles. Test parameters are locked: continuity threshold 10–20 Ω, isolation 5–20 MΩ depending on customer spec, and a short delay after contact to let the probes settle. Soft-landing or low-force probes are used on gold-finger or fine-pitch areas to avoid pad damage.
When the quantity justifies a fixture, the same netlist is sent to the fixture house. They drill a plate, insert spring probes, and wire the points to a receiver. Lead time is typically 3–5 working days. Once the fixture arrives, first-article panels are run and the results are compared against a known-good flying-probe map. Any mismatch is corrected by adjusting probe height, spring force, or contact sequence before the production lot is released. Fixture cycle time on a standard 18 × 24 inch panel is usually under 30 seconds, including load and unload.
Coverage is essentially identical for both methods when the board is designed for test. Both can achieve 100 % net continuity and isolation. Flying probe has a slight edge on boards with limited test points because the probes can be programmed to touch almost any exposed copper. Fixture testing is faster and more repeatable once the tooling is proven, which is why it dominates true volume runs. Cost crossover usually sits between 50 and 150 panels depending on layer count and net density; below that flying probe is cheaper, above that the fixture amortizes quickly.
When we relax the rule or skip full fixture tooling
Simple 1- or 2-layer FR4 boards with fewer than 100 nets and generous pad sizes can stay on flying probe even at higher quantities if the customer accepts the longer cycle time. Some low-risk consumer boards are released with only a sample-test plan (for example 10 % of the lot) when the process capability has been proven over previous lots. We also allow reduced isolation voltage or higher continuity limits when the customer explicitly accepts the risk in writing. In all other cases the full electrical test—flying probe or fixture—remains mandatory before the panels leave the factory.
