HDI PCB Standards: Understanding IPC Class 2 and Class 3 Requirements
From the fab floor, most HDI orders run smoother and cheaper under IPC Class 2 acceptance criteria. Class 3 applies more stringent acceptance requirements for products where higher reliability and tighter defect control are required. In high-volume HDI runs, Class 2 typically delivers better overall yield and shorter lead times while still meeting dedicated service reliability. Class 3 drives up costs and inspection burden significantly, making it the right call for aerospace, medical, or high-end automotive safety systems where failure is not an option.
IPC Class 2 vs Class 3: Key Differences in HDI PCB Standards
| Aspect | IPC Class 2 | IPC Class 3 |
|---|---|---|
| Cost | Baseline, lower inspection overhead | 15-40% higher due to yield loss and 100% inspection |
| Manufacturing Complexity | Standard tolerances, easier panel utilization | Tighter registration, larger pads, stricter plating control |
| Reliability Requirements | Extended life with some tolerance for minor defects | Continuous performance, zero critical defects |
| Inspection & Testing | Sampling + AOI sufficient in many cases | 100% AOI, X-ray, cross-section verification |
| Annular Ring / Breakout | 90° breakout often acceptable | No breakout, minimum continuous ring (typically 2 mil) |
| Copper Plating Thickness | ~20 µm average | Minimum 25 µm average |
| Lead Time | Faster, higher throughput | Extended due to additional process controls and inspection |
| Typical HDI Applications | Consumer, industrial, telecom HDI | Medical, aerospace, automotive safety HDI |
How IPC Class 2 and Class 3 Requirements Affect HDI Production
| If your priority is... | Better Choice | Why |
|---|---|---|
| Lowest cost / mass production | Class 2 | Higher yields, simpler CAM setup, reduced scrap in HDI processes |
| Highest reliability in harsh environments | Class 3 | Thicker plating and zero-tolerance defects prevent field failures under thermal/mechanical stress |
| Fast prototype or quick-turn HDI | Class 2 | Relaxed tolerances speed up drilling, plating, and inspection cycles |
| Signal integrity in dense HDI | Either (depends on design) | Class 3 often requires better registration which can help impedance control but at higher cost |
| Regulatory or safety-critical certification | Class 3 | Meets stricter documentation and traceability demands |
HDI PCB Standards and Inspection Requirements for IPC Class 2 and Class 3

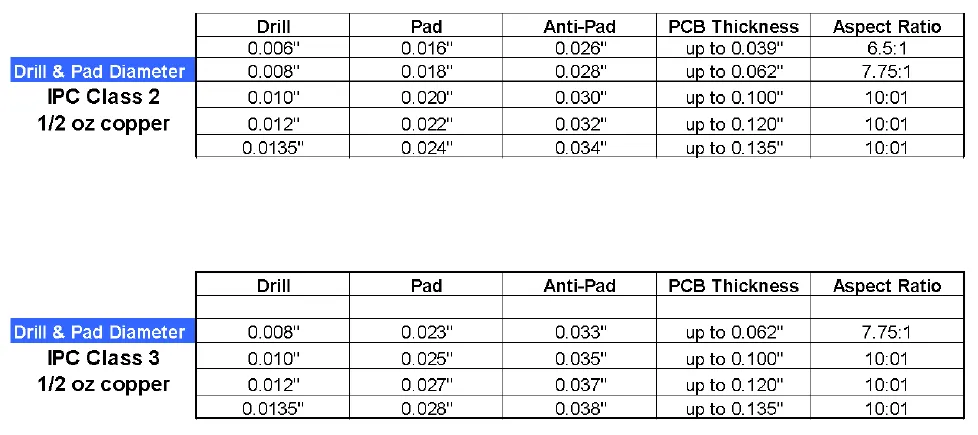

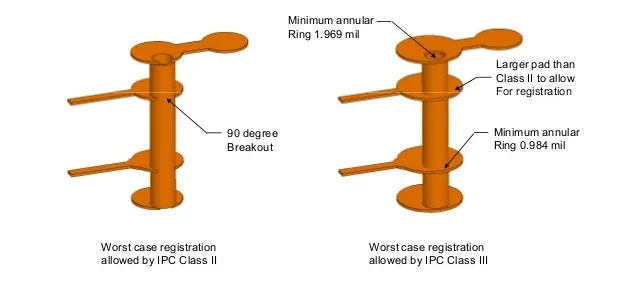

In HDI production, inspection standards separate the two classes more than anything else. During CAM review for Class 2 boards, we can accept minor annular ring breakout up to 90 degrees on outer layers as long as minimum spacing holds. This gives us flexibility with panel layout and reduces scrap from registration drift common in multi-lamination HDI builds.
Class 3 forces us to enforce full continuous annular rings with no breakout and often larger pads from the start. This tightens registration requirements across sequential laminations, making microvia alignment more challenging. Yield tends to drop noticeably because even small drill wander or etch variations that pass Class 2 get rejected. We normally recommend designers add margin in pad sizes early if they know Class 3 is required.
Plating inspection follows the same pattern. Class 2 accepts average copper thickness around 20 µm with limited voids. Class 3 demands 25 µm minimum and essentially void-free barrels. This extra plating step requires tighter bath control and more frequent monitoring, which slows throughput when running mixed orders.
How HDI Features Are Verified During Inspection
HDI inspection may combine automated optical inspection (AOI), X-ray inspection, microsection analysis, electrical testing, and dimensional verification depending on the board construction and applicable acceptance criteria. AOI is useful for checking external features, while X-ray inspection can evaluate internal structures such as hidden vias and dense BGA regions. Microsection analysis provides direct evidence of copper thickness, via geometry, layer registration, and plating quality.
For Class 3 HDI projects, the inspection plan should be established before production rather than added after fabrication. The manufacturer and customer should agree on which features require sampling, which require 100% inspection, and which acceptance criteria apply to each structure. This approach reduces ambiguity during final inspection and makes production results easier to trace.
How IPC Class 2 and Class 3 Define HDI Reliability Requirements
Reliability in HDI boards comes down to how well the structure survives thermal cycling and mechanical stress. Class 2 works well for dedicated service products where occasional downtime is tolerable. The plating and lamination can handle normal operating environments without excessive barrel cracking risk over the product life.
Class 3 boards must deliver continuous performance. Thicker copper and stricter void limits reduce the chance of opens under repeated expansion/contraction in HDI layers. From a fabrication standpoint, this means more emphasis on material selection (higher Tg often preferred) and process stability during sequential lamination. We see better field performance in extreme conditions with Class 3, but the trade-off is lower first-pass yield during manufacturing.
How PCB Standards Influence HDI Class 2 and Class 3 Manufacturing Costs

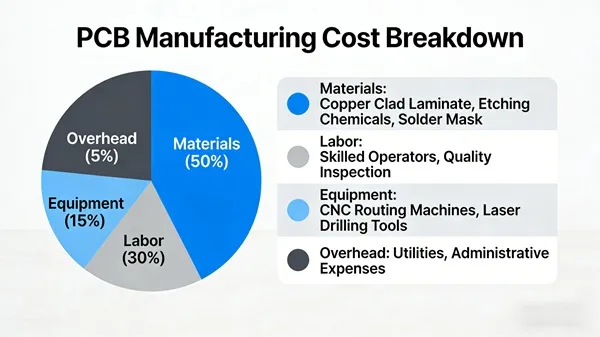

Cost comparison between IPC Class 2 vs Class 3 PCB usually shows Class 3 running 15-40% higher for HDI. Much of this comes from inspection labor and yield loss rather than raw materials. 100% X-ray and detailed cross-section checks on microvias add significant time compared to sampling in IPC Class 2. Rework or scrap of boards that fail tight criteria further impacts panel utilization.
In high-volume production, Class 2 lets us optimize for throughput with standard HDI flows. Class 3 often requires dedicated runs or slower parameters to maintain process capability. Designers should weigh whether the added reliability justifies the price when planning HDI stackups.
Applying IPC Class 2 and Class 3 Requirements to High-Density HDI Structures
HDI manufacturing introduces additional variables that are less prominent in conventional multilayer PCB fabrication. Microvia diameter, capture-pad geometry, layer-to-layer registration, via filling, copper thickness, and sequential lamination all influence whether a design can consistently meet the required acceptance criteria. When Class 3 requirements are specified, these parameters generally need tighter process control because smaller variations can affect the final acceptance of dense HDI features.
Microvia registration is particularly important in multilayer HDI structures. Laser-drilled microvias must land accurately on the target copper feature, while stacked or staggered configurations require controlled registration through multiple buildup cycles. Excessive drill offset can reduce the remaining copper connection area and increase the risk of breakout. During CAM review, engineers should therefore evaluate pad diameter, via diameter, annular ring, layer registration, and the manufacturer's actual process capability together rather than reviewing each parameter independently.
Via filling also becomes important when HDI designs use via-in-pad or stacked microvias. Incomplete copper filling, voids, or insufficient surface planarization can affect subsequent buildup layers and component assembly. Class 3 projects may therefore require more extensive process verification when these structures are used, particularly when the board operates under repeated thermal or mechanical stress.
For HDI PCB production, the applicable class should be translated into measurable manufacturing requirements during DFM review. Instead of simply specifying Class 2 or Class 3 on the drawing, engineers should identify the critical features, applicable acceptance criteria, inspection methods, and process tolerances that the fabricator must control.
How Manufacturers Review IPC Class 2 and Class 3 HDI Requirements
In production, we evaluate these two options primarily through HDI manufacturing process and CAM preparation. Class 2 boards flow through standard HDI processes with good panel utilization and stable yields. Class 3 requires more upfront tooling checks, adjusted drilling programs for larger features where needed, and dedicated inspection stations.
Process stability suffers more with Class 3 because any minor variation in plating or lamination gets caught during 100% verification. We normally recommend Class 2 for most commercial HDI unless the application explicitly calls for Class 3 performance. This keeps lead times shorter and costs under control while still delivering reliable boards for the majority of use cases.
Selecting the Applicable IPC Class for Your HDI PCB Project
Choose IPC Class 2 for HDI if you:
- Target cost-effective production for industrial, telecom, or consumer applications
- Need faster lead times and higher yields on complex HDI stackups
- Can tolerate minor cosmetic or non-critical defects that do not affect function
- Are running medium to high volumes where throughput matters
Choose IPC Class 3 for HDI if you:
- Require continuous performance in safety-critical or harsh environments
- Face regulatory requirements demanding highest reliability documentation
- Design for aerospace, medical, or automotive systems where failure risk is unacceptable
- Have the budget to cover tighter tolerances and extensive inspection
FAQ
Q1: What Are HDI PCB Standards?
A1: HDI PCB standards define design, fabrication, qualification, and acceptance requirements for high-density interconnect boards. They address factors such as microvias, conductor dimensions, registration, insulation, plating, and overall board quality. The applicable requirements depend on the board construction and intended application. Engineers should confirm the relevant IPC specification and customer requirements before finalizing an HDI design.
Q2: What Is the Difference Between IPC Class 2 vs Class 3?
A2: IPC Class 2 and Class 3 represent different levels of acceptance requirements for electronic assemblies and printed boards. Class 3 generally applies more stringent criteria where higher reliability and tighter defect control are required. The exact differences depend on the applicable IPC document and board feature. Engineers should review the relevant acceptance criteria rather than treating Class 3 as simply a thicker-plating version of Class 2.
Q3: Is IPC Class 2 Suitable for HDI PCBs?
A3: IPC Class 2 can be applicable to HDI PCBs when the product's operating environment, reliability requirements, and customer specifications align with Class 2 acceptance criteria. HDI construction itself does not automatically require Class 3. The design should still account for microvia reliability, sequential lamination, registration, plating, and other HDI-specific manufacturing requirements before production release.
Q4: When Is IPC Class 3 Used for High-Density HDI Boards?
A4: IPC Class 3 may be specified for high-density HDI boards when the application requires more stringent acceptance and reliability requirements. This can include certain aerospace, medical, automotive, or other demanding applications, depending on the customer's specifications and applicable standards. The decision should be based on documented reliability requirements rather than application category alone, because not every product in these industries requires Class 3.
Q5: Does IPC 6012 Class 2 Apply to Every HDI PCB?
A5: Not necessarily. IPC 6012 Class 2 applies when the relevant rigid printed board specification and Class 2 performance requirements are specified for the particular product. HDI boards may involve additional requirements or other applicable IPC documents depending on their construction. Engineers should confirm the current standard revision, board type, qualification requirements, and customer specification before selecting the applicable acceptance criteria.
