Hole Design Guidelines for CNC Machining

Author : Alex Chen | PCB Design & High-Speed Engineering Specialist

July 21, 2026


In production we follow CNC hole design guidelines that keep depth to diameter ratio below 8:1 for standard drilling and prefer 4:1 or less for best accuracy. All holes are designed around standard drill sizes whenever possible. Minimum hole diameter is typically 0.5 mm for through holes in aluminum, with increased edge distance and spacing to maintain structural integrity and machining stability.

depth-to-diameter ratios for CNC drilled holes

How depth to diameter ratio affects drilling stability in CNC work

What we typically see on the CAM side is deep small diameter holes that cause drill deflection and poor straightness. Long tools are less rigid and tend to wander, especially in harder materials. We prefer designs where hole depth stays within 4-6 times the diameter for production drilling. Deeper holes require peck cycles, special tools, or secondary operations that increase time and cost.

This ratio becomes critical in multi-hole patterns where cumulative error can push features out of tolerance.

Why minimum hole size and standard drill diameters matter in production

Very small holes below 0.5 mm are difficult to drill reliably in CNC and often require EDM or laser. We strongly recommend using standard drill sizes like 1 mm, 1.5 mm, 2 mm, etc., because these tools are readily available, well-supported, and run at optimal parameters. Custom sizes force us to use non-standard tools that wear faster and cost more to replace.

Standard sizes also simplify inspection and gauging during quality checks.

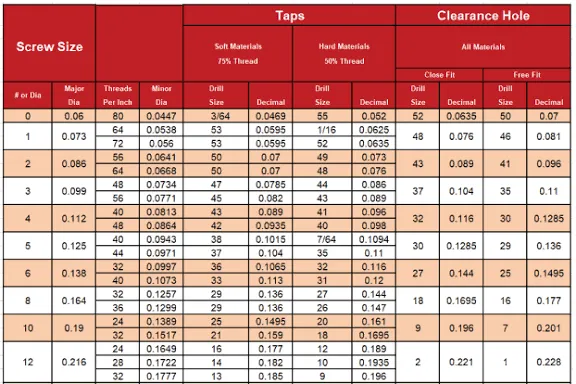

Chart of standard CNC drill sizes

What happens when hole spacing and edge distance are insufficient

Holes placed too close to each other or to the part edge cause material weakness and tool vibration. Thin walls between holes can distort during machining or break under load. Edge distance below 1.5 times hole diameter often leads to breakout or burrs that require extra deburring time. In production this results in higher scrap rates and additional manual finishing.

Tight spacing also complicates fixturing and can cause coolant flow issues during deep drilling.

Common hole-related production defects

  • Drill wander and positional inaccuracy
  • Burr formation on exit side
  • Wall thinning between close holes
  • Thread stripping in shallow tapped holes

Threaded hole design and depth considerations

For tapped holes we recommend full thread depth of 1.5 to 2 times diameter for most applications. Deeper threads add little strength but increase tap wear and risk of breakage. We always add counterbores or spot faces for bolt heads where possible to improve assembly and reduce stress on the hole entrance.

Blind tapped holes need extra depth beyond the thread requirement for chip clearance during tapping.

Locating holes and tolerance requirements in CNC machining

Locating and dowel holes get the tightest tolerances, typically ±0.02 mm or better. We advise using reaming after drilling for precision holes. General clearance holes can use standard drilling tolerances of ±0.1 mm. Clear communication of which holes are functional versus clearance helps us apply the right process sequence.

Datum features should be designed with generous radii at intersections to avoid stress and machining issues.

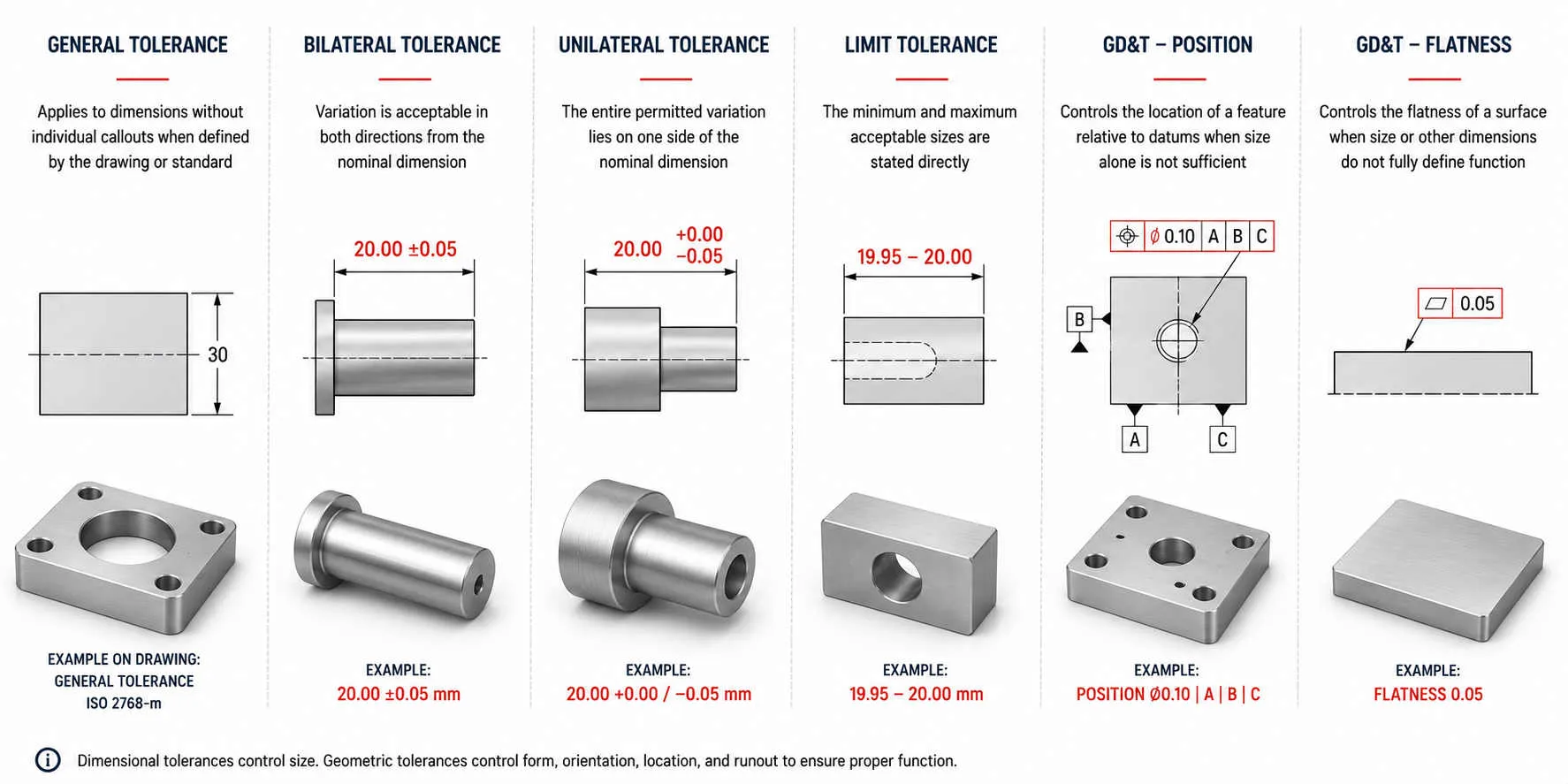

CNC Machining Tolerances

How proper CNC hole design guidelines improve machining efficiency and cost

Following these guidelines allows us to use standard tooling libraries, faster cycle times, and fewer setup adjustments. Parts machine more consistently with less deburring and inspection time. This combination reduces overall lead time and lowers the price per part, especially in volume production.

During DFM review we flag violations early and suggest adjustments that maintain function while improving manufacturability.

When exceptions to standard CNC hole design guidelines are possible

Smaller holes or higher aspect ratios can be accepted for prototypes or when function demands it, but we quote the additional cost and risk clearly. High precision locating holes may require special processes regardless of design. For production volumes we recommend staying within standard guidelines to keep costs competitive and quality consistent.

Good CNC hole design guidelines make the difference between smooth production and constant adjustments on the shop floor.
