Most cost overruns in CNC work start at the material callout. Not at the machine, not at the operator. At the material selection stage.
I've reviewed enough drawings where the material looked fine on paper and then destroyed the quote. These are the CNC material selection mistakes that keep showing up.
Focusing Only on Material Price Per Kilogram
The cheapest billet is rarely the cheapest finished part.

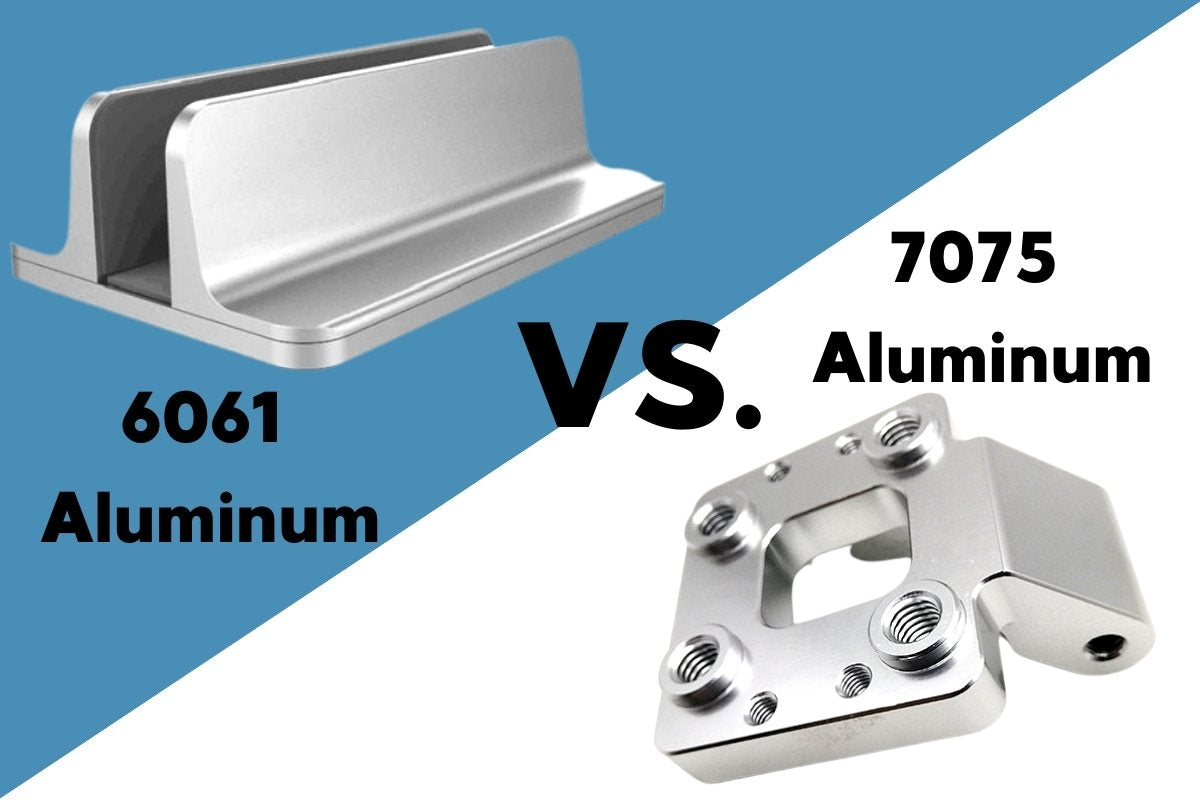

Designers see 6061-T6 at one price and 7075-T6 at another and pick the lower number. What they miss is tool wear, cycle time, and scrap rate. 7075 cuts slower, burns tools faster, and needs more conservative feeds. The material cost difference disappears after the first tool change.
Same pattern with stainless. 304 looks cheaper than 17-4 until you factor in the work-hardening and the extra finishing passes. The shop ends up quoting higher because they know the real cost.
Ignoring Machinability Differences Between Similar Alloys
Two aluminum grades can look interchangeable on a datasheet. They are not.
6061 machines cleanly. 2024 does not. 2024 is gummy, loads the flutes, and forces lower speeds. Tool life drops. Surface finish suffers. Cycle time climbs. Yet both get called out as "aluminum" on drawings.
Titanium is worse. Grade 2 and Grade 5 are both titanium. One is relatively cooperative. The other eats carbide for breakfast and requires constant attention to heat. Selecting the wrong grade without checking machinability ratings is a classic CNC material selection mistake that shows up as late deliveries and higher piece price.
Specifying Tolerances the Material Cannot Hold
Tight tolerances on unstable materials create scrap.
Plastics are the usual culprit. Delrin and nylon move with humidity and temperature. Calling ±0.02 mm on a long Delrin part is asking for rejects. The material simply does not stay put after machining.
Same issue with annealed aluminum that has residual stress. The part moves after the final cut. Shops then have to add stress-relief steps or switch to plate stock with better stress history. Both add cost that was never in the original estimate.
If the tolerance is tighter than the material's dimensional stability under shop conditions, the drawing is broken before it reaches the machine.
Overlooking How Surface Treatments Interact With the Base Material
Anodizing, plating, and coating are not free or risk-free.
Hard anodize on 6061 is routine. On 7075 it is possible but the copper content changes the coating response and can leave soft spots if the process is not controlled. Zinc plating on high-strength steel can introduce hydrogen embrittlement if the material is not baked correctly afterward.
Designers often specify the finish first and the material second. That sequence creates problems. The material has to accept the finish without dimensional growth that exceeds tolerance, without cracking, and without changing mechanical properties beyond the design envelope.
Selecting Materials With Poor Availability or Long Lead Times
Exotic alloys look good in the material library. They look bad on the schedule.
Inconel, certain titanium grades, and specialty plastics often sit on 8–12 week lead times or require minimum order quantities that force the shop to buy far more than needed. The extra inventory cost gets passed on. Expediting fees appear. The project slips.
A common CNC material selection mistake is assuming the mill has the grade in stock because the datasheet exists. Always check current availability and minimum buy quantities before locking the callout.
Over-Specifying Material Grade for the Actual Load Case
Not every bracket needs 17-4 PH condition H900.
Many parts see only moderate loads and mild environments. Specifying aerospace-grade material for a non-critical housing adds cost in every direction: material price, machining time, inspection requirements, and sometimes certification paperwork.
The safer approach is to start with the functional requirements—strength, stiffness, corrosion, temperature—and then pick the lowest-cost material that meets them with reasonable margin. Anything beyond that is money left on the table.
Ignoring the Operating Environment Until After Material Is Chosen
Corrosion, temperature cycling, and chemical exposure should drive material selection, not follow it.
Aluminum outdoors without proper coating fails. Carbon steel in a marine environment fails faster. Plastics that look fine at room temperature can soften or embrittle outside their service range. These failures do not appear in the first article. They appear in the field, after the design is locked and the tooling is paid for.
Environment is a hard constraint. Treat it as one during material selection, not as a later coating problem.
Practical DFM Adjustments That Reduce These Costs
Start material selection with the process, not the datasheet.
- Check machinability ratings and typical tool life numbers before finalizing the grade.
- Match tolerance capability to the material's dimensional stability under shop and service conditions.
- Confirm the selected material accepts the required surface treatment without special process steps.
- Verify current stock availability and mill lead times for the exact alloy and temper.
- Run a quick load and environment check to confirm the grade is not over-specified.
When in doubt, ask the machine shop early. They see the cost impact of every material choice long before the first chip is cut. Most of the expensive CNC material selection mistakes can be caught in a short conversation at the drawing stage.
Material is not just a line on the title block. It is the largest single lever on piece price, lead time, and long-term reliability. Treat the selection with the same rigor as the geometry itself.
