Anodizing or Powder Coating: Matching the Finish to Your CNC Part Requirements
In the shop, anodizing integrates with the aluminum substrate for superior hardness and corrosion resistance on precision CNC parts, while powder coating provides thicker, more uniform coverage and wider color options at lower cost for larger or cosmetic-focused components. Anodizing is usually preferred for electronic enclosures and tight-tolerance parts; powder coating wins for cost-sensitive, high-volume, or visually demanding applications.
Anodizing vs Powder Coating for CNC Parts: Quick Engineering Comparison
| Aspect | Anodizing | Powder Coating |
|---|---|---|
| Process | Electrochemical conversion of aluminum surface | Electrostatic spray and thermal cure |
| Surface Hardness | High (up to 400-500 HV) | Moderate (depends on formulation) |
| Wear Resistance | Excellent | Good, but can chip |
| Corrosion Resistance | Superior for aluminum | Very good, seals surface |
| Thickness Impact | Thin (5-25 µm), minimal tolerance shift | Thicker (50-150 µm), affects dimensions |
| Color Options | Limited but durable dyes | Wide range of colors and textures |
| Cost | Higher for precision work | Generally lower, especially in volume |
Decision Matrix: Choosing the Right Finish for CNC Parts
| If your priority is... | Better Choice | Why |
|---|---|---|
| Maximum hardness and wear resistance | Anodizing | Hard anodic layer integrates with base metal |
| Wide color selection and aesthetics | Powder Coating | Almost unlimited colors and textures |
| Tight dimensional tolerances | Anodizing | Minimal added thickness |
| Lowest cost for volume production | Powder Coating | Better coverage and lower per-part cost |
| Electronic enclosure durability | Anodizing | Excellent corrosion and scratch resistance |
Process Differences and Their Impact on CNC Parts
During CAM and finishing review, anodizing is an electrochemical process that grows the oxide layer from the aluminum itself. This creates strong bonding but requires the part to be aluminum alloy compatible. Powder coating applies a dry powder that melts and cures, offering excellent edge coverage but adding measurable thickness that must be accounted for in design.
In production, anodizing maintains tighter tolerances on precision CNC features while powder coating can mask minor surface imperfections better.
Hardness, Wear Resistance, and Corrosion Performance
Anodizing delivers higher surface hardness and better wear resistance, making it the go-to for parts that see frequent handling or sliding contact. Powder coating provides solid corrosion protection and can be formulated for specific environments, but it may chip under heavy abrasion. For electronic enclosures, anodizing often outperforms in long-term scratch and fingerprint resistance.

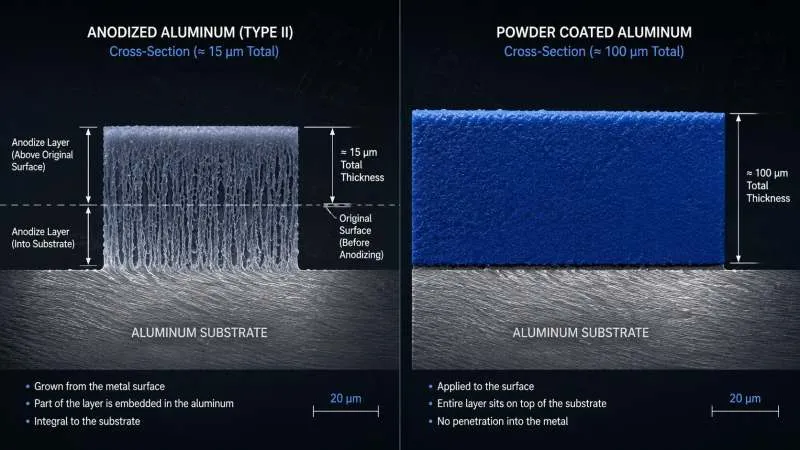

Thickness, Tolerance, and Color Selection Trade-offs
Thickness is a critical differentiator. Anodizing adds very little dimension (typically under 25 µm), preserving CNC tolerances. Powder coating's thicker layer (50-150 µm) can impact fitment on precision parts and requires design compensation. Color-wise, powder coating offers broader vibrant options and textures, while anodizing provides elegant, integrated metallic looks with good UV stability.
Cost Comparison and Application in Electronic Enclosures
Powder coating generally comes in at lower cost for larger batches due to efficient coverage and fewer process steps. Anodizing costs more but justifies the expense for high-end electronic enclosures where aesthetics, durability, and precision matter. In production, we see powder coating preferred for cosmetic housings and anodizing for functional precision components.
Factory Perspective on Finishing CNC Parts
From a fabrication standpoint, DFM review includes finish selection early because it affects masking, racking, and final dimensions. Anodizing requires clean surfaces and alloy compatibility checks, while powder coating is more forgiving but needs proper pre-treatment. We normally recommend anodizing for tight-tolerance aluminum CNC parts in electronics and powder coating when color variety and cost drive the decision. Yield remains high for both when designs account for the process limitations.
Which Finish Should You Choose for Your CNC Parts?
Choose Anodizing if you:
- Need high hardness, wear resistance, and corrosion protection
- Require minimal impact on critical dimensions and tolerances
- Are producing precision electronic enclosures or functional components
- Want a premium metallic appearance with good durability
Choose Powder Coating if you:
- Need a wide range of colors and textures
- Prioritize lower cost and good coverage on larger parts
- Can accommodate added thickness in the design
- Focus on cosmetic appearance and environmental protection
FAQ
Q1: Does anodizing or powder coating affect CNC tolerances more?
A1: Anodizing has minimal impact due to thin layers. Powder coating's thicker build can require design adjustments for precision fits.
Q2: Which finish is more durable for electronic enclosures?
A2: Anodizing typically offers better scratch and wear resistance, while powder coating excels in impact and corrosion protection depending on formulation.
Q3: Can powder coating match the color consistency of anodizing?
A3: Powder coating provides more color variety and better batch-to-batch consistency for non-metallic shades.
Q4: Is one finish significantly more expensive than the other?
A4: Anodizing is usually more expensive for small runs, but powder coating becomes cost-effective at higher volumes.
Q5: Which process is better for outdoor CNC parts?
A5: Powder coating often provides stronger UV and weather resistance, while anodizing performs well with proper sealing.
```
