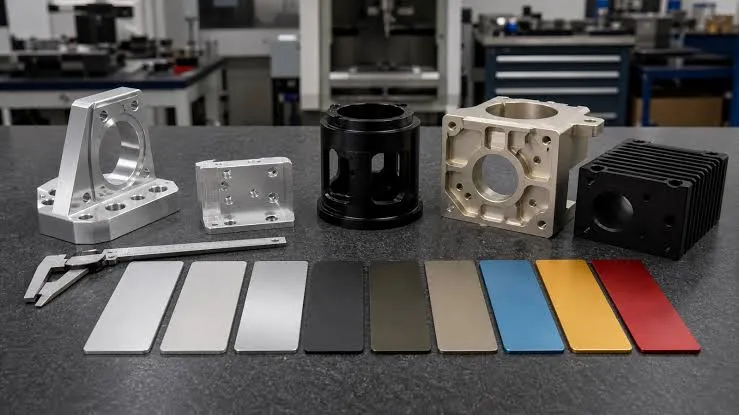

Type II or Type III Anodizing: Choosing the Right Process for Your Aluminum Parts
From the finishing line, Type II anodizing provides good corrosion protection and aesthetics with minimal dimensional change for most general-purpose aluminum CNC parts. Type III hard anodizing delivers significantly thicker, harder films for superior wear and abrasion resistance at the expense of higher cost and greater dimensional growth. Use Type II for electronic enclosures and decorative components; specify Type III when parts face heavy wear, high loads, or extreme environments.

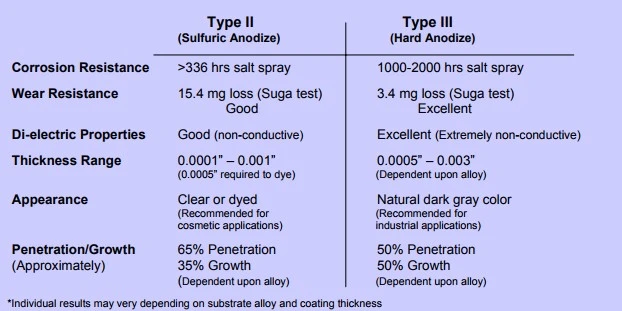

Type II vs Type III Anodizing Comparison Table
| Property | Type II (Standard) | Type III (Hard) |
|---|---|---|
| Oxide Film Thickness | 5–25 µm | 25–150 µm (typically 50+ µm) |
| Hardness | Moderate (200-400 HV) | High (400-600+ HV) |
| Wear Resistance | Good | Excellent |
| Corrosion Resistance | Very good | Superior |
| Electrical Insulation | Good | Excellent |
| Dimensional Impact | Minimal (≈ film thickness / 2 growth) | Significant (up to 50% of thickness) |
| Cost | Lower | Higher due to process time and control |
Decision Matrix: When to Specify Type II or Type III Anodizing
| If your priority is... | Better Choice | Why |
|---|---|---|
| Aesthetics and corrosion protection | Type II | Thinner film preserves dimensions and appearance |
| Maximum wear and abrasion resistance | Type III | Thicker, denser oxide layer |
| Tight dimensional tolerances | Type II | Less growth on critical features |
| Electrical insulation | Type III | Thicker dielectric barrier |
| Cost-effective general use | Type II | Faster process and lower overall expense |
Oxide Film Thickness and Dimensional Effects
Thickness is the most noticeable difference during inspection. Type II produces a relatively thin layer that adds little to part dimensions, making it suitable for precision CNC features. Type III builds a much thicker coating, with roughly half the growth occurring outward. This requires compensation in design and machining stock for tight-tolerance parts.
In production, excessive Type III thickness can lead to cracking if not properly controlled, while Type II remains more forgiving.
Hardness, Wear Resistance, and Corrosion Performance
Type III hard anodizing achieves significantly higher surface hardness and wear resistance, ideal for sliding or abrasive contact. Type II offers solid corrosion protection suitable for most environments. Both improve base aluminum performance, but Type III excels in demanding mechanical applications while Type II balances protection and cost.
Electrical Insulation and Application Considerations
The thicker dielectric layer in Type III provides better electrical insulation, beneficial for electronic housings requiring isolation. Type II suffices for many general applications. For electronic enclosures, we evaluate both based on required dielectric strength versus tolerance stack-up.
Cost Differences and Process Trade-offs
Type III requires longer bath times, tighter temperature control, and often post-sealing, driving higher costs. Type II is quicker and more economical for standard runs. During DFM, we advise designers to use Type III only where the enhanced properties are truly needed to control finishing expenses.
Factory Perspective on Type II vs Type III Anodizing
In production, we assess alloy compatibility and part geometry during CAM review for both processes. Type II flows through standard lines with high yield. Type III demands more process monitoring to avoid burning or uneven growth. Most manufacturers recommend Type II for the majority of commercial aluminum CNC parts and reserve Type III for wear-critical or high-performance applications. The choice directly affects lead time and final part cost.
Which Anodizing Type Should You Choose?
Choose Type II Anodizing if you:
- Need good corrosion protection and appearance with minimal dimensional change
- Are producing general electronic enclosures or decorative components
- Want to keep costs and lead times lower
- Do not require extreme wear resistance
Choose Type III Hard Anodizing if you:
- Require maximum surface hardness and abrasion resistance
- Need superior electrical insulation or heavy-duty performance
- Can accommodate added thickness in design tolerances
- Are designing for harsh mechanical or environmental conditions
Frequently Asked Questions
Q1: How much does Type III anodizing change part dimensions compared to Type II?
A1: Type III causes more growth (often 25-75 µm total) versus the minimal change in Type II, requiring pre-machining adjustments.
Q2: Is Type III anodizing always more expensive?
A2: Yes, due to longer processing times, stricter controls, and higher reject risk.
Q3: Which type offers better wear resistance for sliding parts?
A3: Type III hard anodizing is significantly better for wear and abrasion.
Q4: Can both types be dyed for color?
A4: Type II dyes more readily and consistently; Type III is darker and harder to color uniformly.
Q5: When is Type III required for electronic applications?
A5: When enhanced insulation, thermal management, or wear resistance is needed beyond standard Type II capabilities.
