In high-reliability multilayer PCB production, achieving a balanced lamination configuration is critical for dimensional stability, registration accuracy, and long-term performance. During CAM review of a 6-layer FR-4 TG150 board with 1.6mm finished thickness, our team identified a notable deviation between the customer's proposed stackup and our standard manufacturing lamination configuration. This triggered a formal Engineering Question (EQ) focused on PCB stackup adjustment to ensure consistent press alignment and material performance in volume production.
Project Requirements and Technical Challenges
The customer specified a 6-layer PCB ( #FR4-20260608-023 ) using FR-4 TG150 material, targeting a finished board thickness of 1.6mm ±10%. Copper weights included 1oz outer layers and mixed inner layers, with impedance considerations implied by the overall high-performance design intent. The provided lamination diagram showed a specific dielectric arrangement and copper distribution that differed from our proven standard press configuration for this layer count and material.
Key challenges included maintaining symmetric copper distribution to minimize warpage, ensuring proper resin flow and fill during lamination, and achieving tight registration tolerances across the multilayer structure. The customer's stackup placed certain prepreg and core thicknesses in a sequence that risked uneven pressure distribution during the press cycle, potentially impacting via reliability and overall board flatness.
Additional minor EQ points arose around panelization (missing stamp holes in the routing connections) and solder mask legend text sizes approaching our minimum reliable resolution limits. However, the primary manufacturability concern centered on the PCB stackup adjustment to align with our process capabilities while preserving the customer's electrical and mechanical requirements.

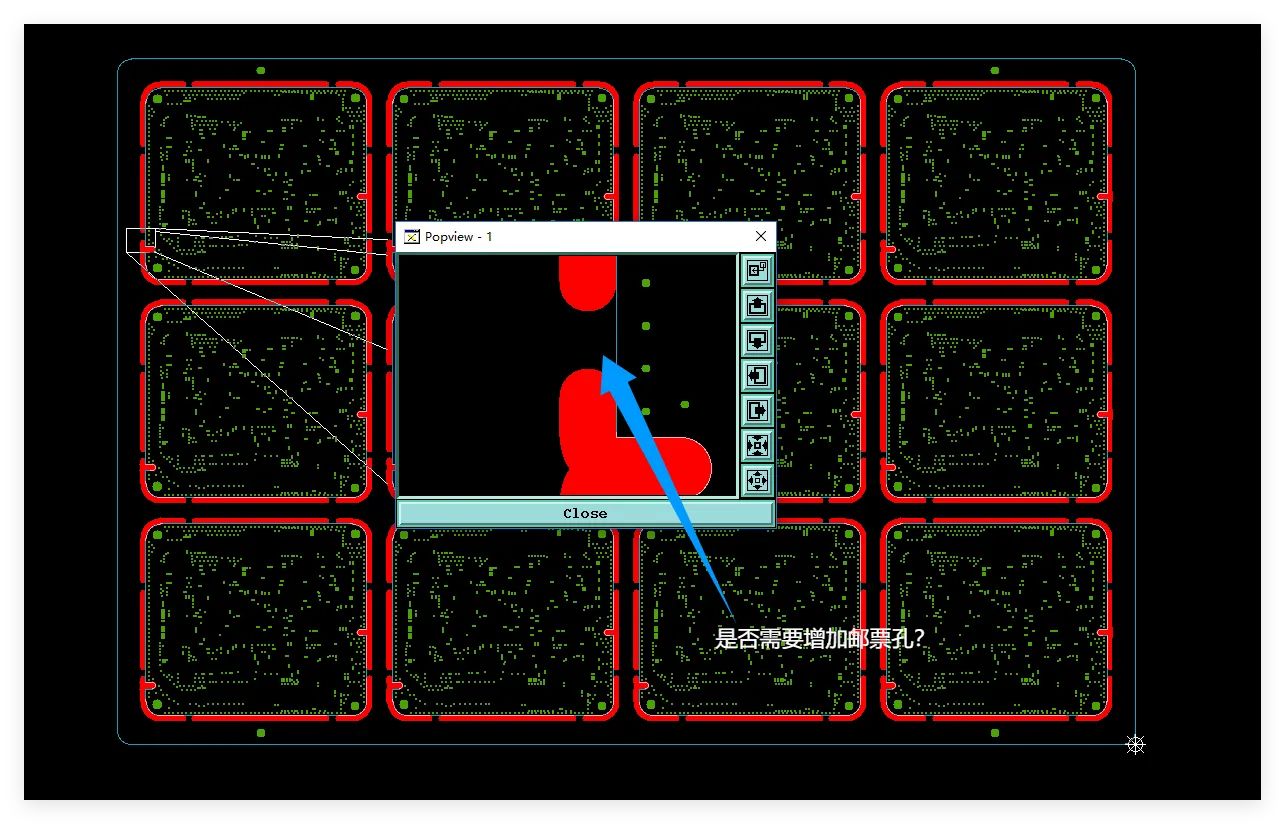

Figure 1: no stamp holes for connection

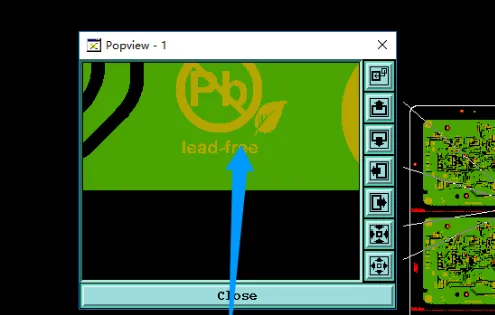

Figure 2: some solder mask characters in the documentation are too small
Core Technical Challenge: Lamination Configuration Deviation
The customer's lamination drawing proposed a dielectric stack that deviated from our standard FR-4 TG150 6-layer baseline. This deviation introduced risks in press alignment and copper balance, factors that directly influence post-lamination thickness uniformity and layer-to-layer registration.

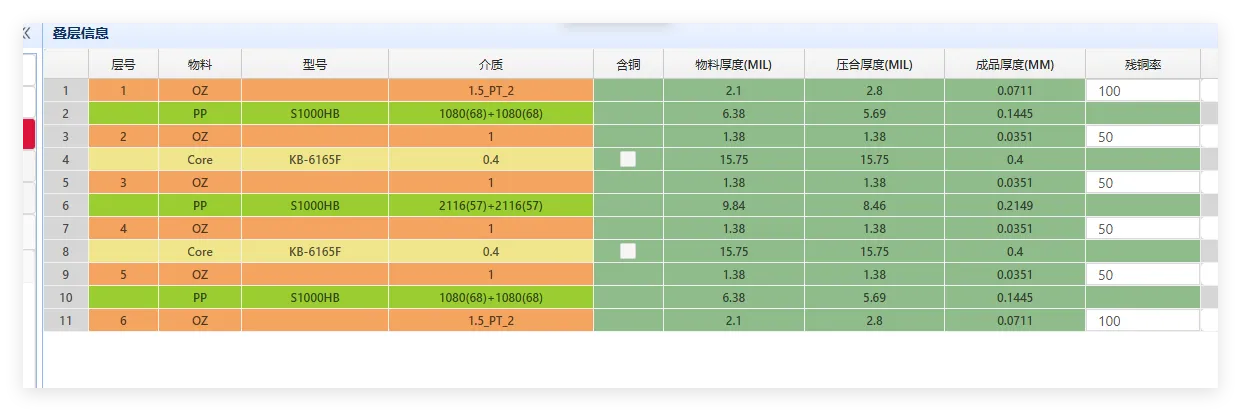

Figure 3: our standard stack up
| Parameter | Customer Proposal | Manufacturer Standard | Engineering Assessment |
|---|---|---|---|
| Layer Count & Material | 6L FR-4 TG150 | 6L FR-4 TG150 | Compatible base material |
| Finished Thickness | 1.6mm ±10% | 1.6mm ±10% | Within capability with adjustment |
| Dielectric Arrangement | Custom sequence | Symmetric standard | Requires PCB stackup adjustment |
| Copper Balance | Asymmetrical risk | Balanced distribution | Critical for warpage control |
Understanding the Physical Limits of PCB Manufacturing
Lamination of multilayer PCBs involves complex thermal and mechanical interactions. During the press cycle, prepreg resins flow under heat and pressure, bonding cores and copper foils. Deviations in stackup symmetry can lead to uneven resin flow, causing thickness variations exceeding IPC-6012 tolerances or inducing bow and twist beyond acceptable limits (typically <0.75% per IPC-A-600).
Our standard configuration for 6-layer TG150 boards uses specific core and prepreg thicknesses to optimize glass transition temperature (Tg) performance while maintaining predictable z-axis expansion. The customer's proposal shifted certain dielectric thicknesses, potentially narrowing the process window for consistent lamination. This is particularly relevant for boards destined for applications requiring stable impedance and reliable press-fit or through-hole connections.
Physical limits here stem from material behavior: FR-4 TG150 has defined resin content and flow characteristics. Non-standard arrangements can result in incomplete fill, voids, or excessive resin squeeze-out, directly affecting via plating adhesion and overall board reliability.
IPC Guidance on Stackup Symmetry
Per IPC-2221 design guidelines, symmetric copper distribution and balanced dielectric construction are recommended to minimize warpage. In our assessment, the proposed custom PCB stackup approached these limits, necessitating engineering confirmation and adjustment to align with proven manufacturing capability.
Engineering the Solution: PCB Stackup Adjustment and Process Controls
As the process expert, my evaluation focused on whether the requested lamination could be manufactured repeatably within our equipment capabilities. We proposed a modified stackup using our standard prepreg and core materials that closely matched the customer's overall thickness and layer sequencing while improving symmetry.

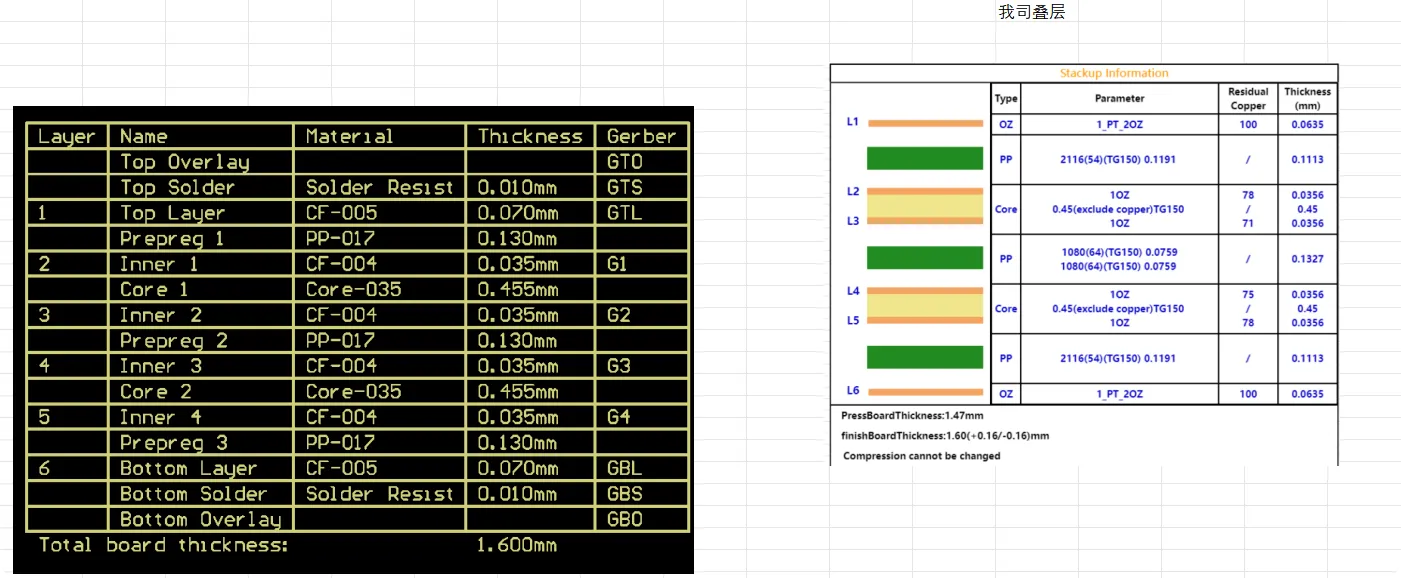

Figure 4: make certain adjustments to costomer's layer stack-up
Customer confirmation was obtained to proceed with the adjusted configuration (suggestion 2), which involved recalibrating the press parameters for optimal resin flow and pressure distribution. This PCB stackup adjustment ensured better alignment with our lamination presses and material inventory, reducing risks of delamination or registration errors.
| Manufacturing Parameter | Requested Value | Adjusted Capability | Process Window Impact |
|---|---|---|---|
| Dielectric Thickness Control | Custom | Standard symmetric | Widened for stability |
| Copper Distribution | Asymmetrical elements | Balanced | Improved warpage control |
| Lamination Pressure | Standard press | Optimized cycle | Repeatable within tolerance |
Additional process controls included verification of press-fit hole locations (where applicable) against the adjusted stackup to maintain positional accuracy. Minor adjustments were also recommended for solder mask legend sizes to ensure reliable printing without compromising readability.
Internal Capability Assessment for Custom PCB Stackup
Our lamination equipment supports precise control of temperature ramps and pressure profiles tailored for TG150 materials. By adjusting the stack to our standard configuration, we maintained full compatibility while addressing the deviation noted in the initial EQ. This engineering change to customer stackup is a common practice when standard vs custom PCB lamination options are evaluated for optimal manufacturability.
Testing and Performance Excellence
Post-adjustment, prototype panels underwent cross-section analysis to verify dielectric thicknesses, copper plating integrity, and layer registration. Microsection samples confirmed no voids or delamination at the adjusted interfaces. Thermal stress testing per IPC-TM-650 methods validated the Tg performance and z-axis stability of the modified stackup.
Dimensional measurements on multiple panels showed thickness uniformity well within the 1.6mm ±10% specification. Bow and twist remained below 0.5%, providing a comfortable margin for downstream assembly processes including press-fit connector insertion.
| Verification Test | Result | Specification | Assessment |
|---|---|---|---|
| Cross-Section Analysis | No voids, good registration | IPC-A-600 Class 2 | Pass |
| Thickness Uniformity | 1.58-1.62mm | 1.44-1.76mm | Excellent margin |
| Bow & Twist | <0.5% | <0.75% | Stable |
Conclusion
Through targeted PCB stackup adjustment, we successfully aligned the customer's 6-layer TG150 design with our manufacturing process capabilities. This engineering evaluation and confirmation process ensured reliable production without compromising key performance parameters. The adjusted lamination configuration demonstrates how standard manufacturer capabilities can be leveraged to resolve custom PCB stackup manufacturer adjustment needs while maintaining high repeatability.
Such DFM-driven refinements are essential for multilayer PCB stackup DFM review, particularly when customer stackup vs manufacturer capability differences arise. The final board meets all specified tolerances and is ready for volume production with confidence in its physical and electrical integrity.
FAQ
Q1: Why is PCB stackup adjustment often required during multilayer production?
A1: Customer-provided lamination diagrams may not perfectly match a manufacturer's optimized material inventory and press parameters. Adjustments ensure symmetric construction, better resin flow, and compliance with thickness and registration tolerances for stable production.
Q2: What risks arise from ignoring PCB lamination configuration deviation?
A2: Potential issues include warpage, poor layer registration, voids in dielectrics, and inconsistent finished thickness, all of which can affect downstream assembly yields and long-term reliability.
Q3: How tight can board thickness tolerances be controlled after PCB stackup adjustment?
A3: For standard 1.6mm 6-layer FR-4 boards, ±10% is readily achievable. Tighter tolerances require additional process controls and may narrow the manufacturing window depending on copper distribution and material type.
Q4: Does changing to a standard lamination affect impedance or electrical performance?
A4: Minor adjustments are engineered to maintain dielectric thicknesses critical for impedance. Cross-section verification and potential TDR testing confirm performance equivalence or improvements through better symmetry.
Q5: When should designers engage in custom PCB stackup manufacturer discussions?
A5: Early in the design phase, especially for high-layer counts, heavy copper, or tight mechanical requirements. This allows for proactive PCB stackup adjustment and avoids delays during production release.
Q6: What role does FR-4 TG150 play in stackup decisions?
A6: TG150 offers improved thermal performance over standard FR-4. Our standard configurations are optimized for its flow characteristics, making adjustments straightforward while preserving high-temperature stability.
