CNC Machining or Sheet Metal for Electronic Enclosures: Matching Process to Volume and Complexity
From a fabrication standpoint, CNC machining delivers higher precision, tighter tolerances, and greater design freedom for complex electronic enclosures, especially in low-to-medium volumes. Sheet metal fabrication offers lower cost and faster throughput for simpler geometries in higher volumes. For most PCB equipment enclosures, we recommend CNC when features, accuracy, or small-batch flexibility dominate, and sheet metal when panel-based designs and scale favor stamping or bending economics.
CNC Machining vs Sheet Metal Enclosure: Key Manufacturing Comparison
| Aspect | CNC Machining | Sheet Metal Fabrication |
|---|---|---|
| Process | Material removal from solid billet | Cutting, bending, forming, joining thin sheets |
| Cost (Low Volume) | Higher per part | Competitive, lower tooling |
| Cost (High Volume) | Remains relatively high | Significantly lower with progressive tooling |
| Lead Time | Days to weeks, setup dependent | Faster for simple parts once tooling is ready |
| Structural Strength | Higher, isotropic from solid stock | Good but depends on thickness and joins |
| Design Freedom | Excellent for complex 3D features | Limited by bend radii and flat patterns |
| Precision / Tolerances | ±0.025–0.1 mm typical | ±0.1–0.5 mm, spring-back dependent |
| Surface Treatment | Wide options, uniform on all faces | Good, but edges and welds need extra care |
Decision Matrix: Choosing CNC or Sheet Metal for Electronic Enclosures
| If your priority is... | Better Choice | Why |
|---|---|---|
| Tight tolerances and complex internal features | CNC Machining | Superior accuracy and 3D capability from solid material |
| Lowest cost at high volume | Sheet Metal | Progressive tooling and material efficiency reduce unit cost |
| Fast prototype or low-volume production | CNC Machining | No hard tooling required, quick design iterations |
| Structural rigidity and heat dissipation | CNC Machining | Solid construction and thicker sections possible |

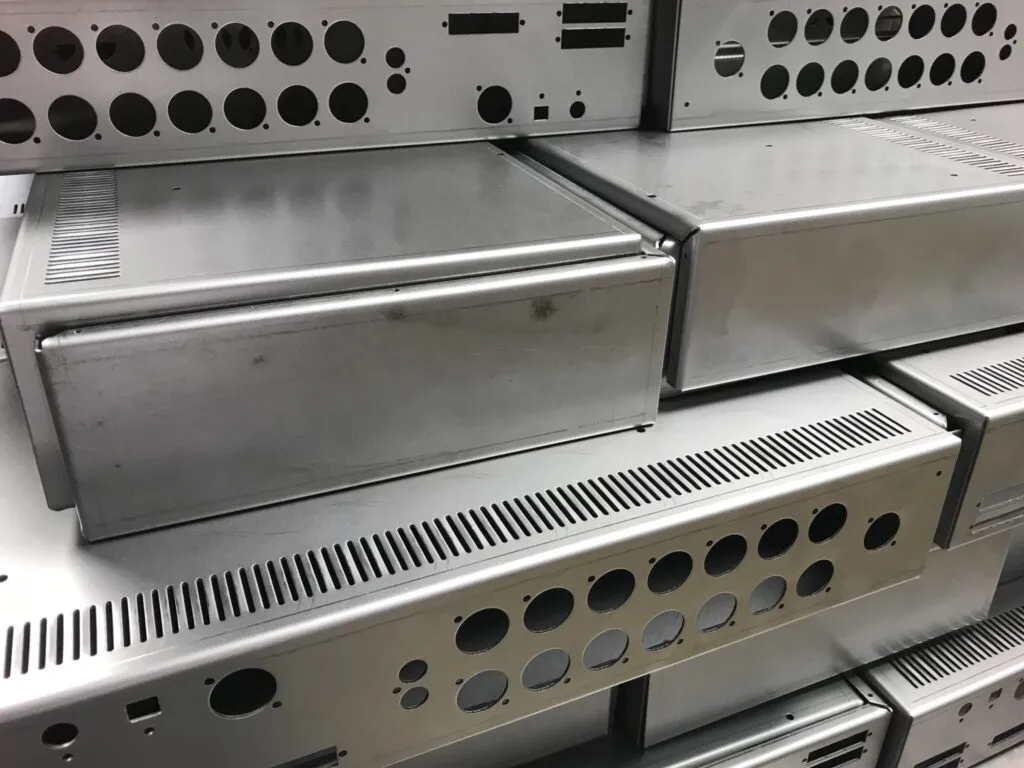

| Simple box-style enclosures at scale | Sheet Metal | Bending and joining are efficient for panel designs |
| PCB equipment requiring precise mounting | CNC Machining | Better control of hole locations and flatness |
Process Differences and Their Impact on Enclosure Design

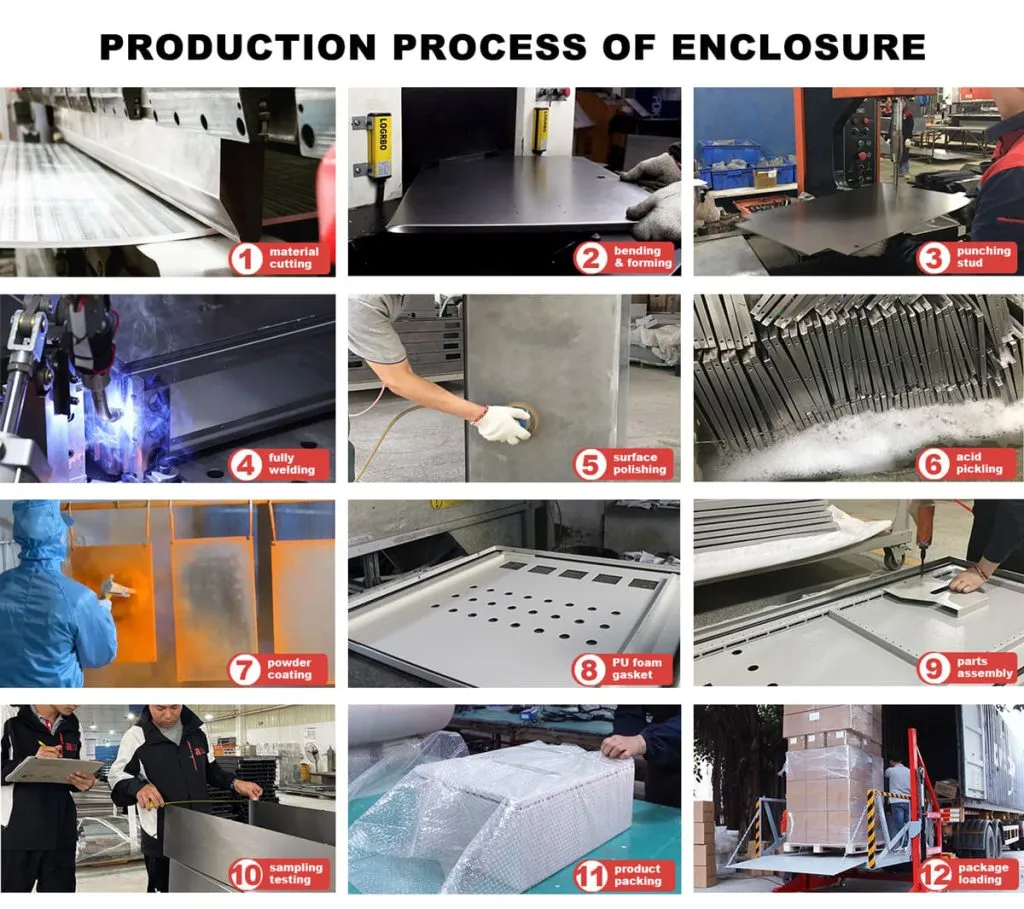

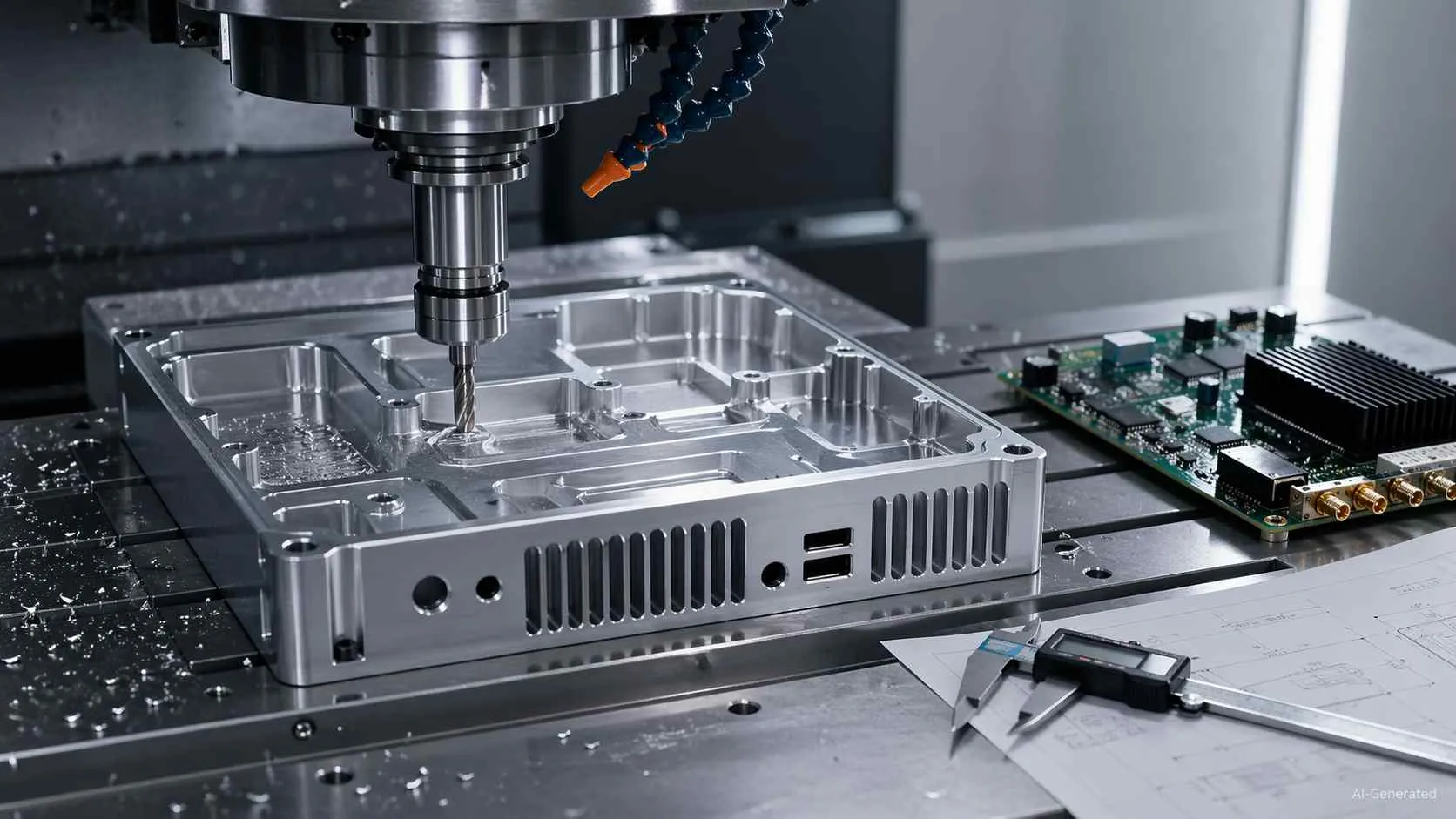

CNC machining removes material from billet or plate, enabling complex pockets, undercuts, and integrated features without joints. Sheet metal starts as flat stock that is laser-cut, punched, bent, and joined by welding, riveting, or fasteners. During DFM review, CNC allows greater geometric freedom while sheet metal forces designers to respect bend radii, flat-pattern unfolding, and joint locations. The choice directly affects how mounting bosses, cable entries, and PCB standoffs are realized.
Cost and Lead-Time Trade-offs Across Volumes
In low volumes, CNC machining is often competitive because it avoids hard tooling. As quantities rise, sheet metal becomes substantially cheaper due to material utilization and faster cycle times. Lead time for CNC is driven by machine availability and programming; sheet metal can be faster for simple parts once laser and press-brake capacity is scheduled. For PCB equipment enclosures we typically quote both when volume is uncertain so the customer can see the crossover point.
Structural Strength, Precision, and Tolerance Capabilities
CNC parts from solid stock offer higher rigidity and better vibration damping, useful for sensitive electronics. Sheet metal strength depends on material thickness, bend geometry, and joint quality. Precision favors CNC, with tighter positional tolerances on mounting holes and mating surfaces critical for PCB alignment. Sheet metal tolerances are influenced by spring-back and forming variation, requiring more generous clearances in many designs.
Surface Treatment and Finish Considerations
Both processes accept anodizing, powder coating, plating, and conversion coatings. CNC parts provide uniform surfaces on all faces, simplifying finishing. Sheet metal edges, weld zones, and formed corners often need additional preparation or masking. For electronic enclosures requiring EMI shielding or grounding continuity, CNC aluminum with conductive finishes is frequently preferred; sheet metal may require secondary plating or conductive gaskets at joints.
Factory Perspective on Enclosure Manufacturing Choices
In production we evaluate designs first for volume and feature complexity. CNC machining offers predictable process stability and high first-pass yield on precision features but consumes more material and machine time. Sheet metal provides excellent panel utilization and lower unit cost at scale yet introduces more variables in forming and joining. For PCB equipment enclosures we normally recommend CNC when mounting accuracy, thermal mass, or complex internal geometry is required, and sheet metal for straightforward box designs destined for higher volumes. Tooling investment, inspection requirements, and surface-finish consistency are reviewed early to avoid downstream surprises.
Which Process Should You Choose for Electronic Enclosures?
Choose CNC Machining if you:
- Need high precision, tight tolerances, and complex internal features
- Are producing low-to-medium volumes or frequent design iterations
- Require solid construction for rigidity, heat dissipation, or EMI performance
- Are building PCB equipment enclosures with critical mounting interfaces
Choose Sheet Metal Fabrication if you:
- Target higher volumes where tooling amortization pays off
- Have relatively simple box or panel-based geometries
- Prioritize lowest unit cost and material efficiency
- Can accommodate standard bend radii and joint design rules
Frequently Asked Questions
Q1: Which process is better for prototype electronic enclosures?
A1: CNC machining is usually preferred for prototypes because it requires no hard tooling and supports rapid design changes.
Q2: At what volume does sheet metal become more economical?
A2: The crossover typically occurs between a few hundred and several thousand pieces, depending on complexity and tooling investment.
Q3: Can sheet metal match CNC precision for PCB mounting?
A3: Sheet metal can achieve acceptable results with careful design, but CNC generally provides tighter positional control and better flatness.
Q4: How do surface finishes differ between the two processes?
A4: CNC parts accept finishes more uniformly; sheet metal edges and weld areas often need additional preparation for consistent appearance and corrosion protection.
Q5: Which is preferred for EMI-sensitive electronic enclosures?
A5: CNC aluminum with continuous conductive surfaces is often favored; sheet metal requires careful joint design and conductive gaskets to maintain shielding effectiveness.
