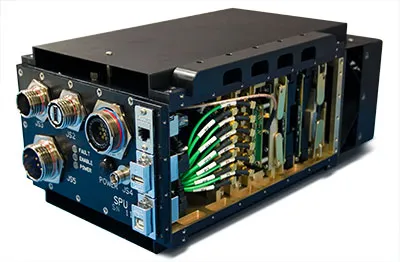

In the fab shop we judge a sheet metal chassis by how cleanly it forms, how consistently it assembles, and whether the electronics can be mounted without fight. Good sheet metal chassis design for electronics starts with standard thicknesses, realistic bend radii, and hole patterns that clear the tooling. Anything that forces special tooling, multiple setups, or hand fitting gets flagged in DFM and either redesigned or quoted with extra cost. The practical rule is simple: design the chassis so a standard press-brake and turret punch can produce it, then add only the features the electronics actually need.
Material Thickness and Bend Radius Reality
Most electronic chassis run between 0.8 mm and 2.0 mm. 1.0 mm and 1.5 mm aluminum or CRS cover the majority of indoor equipment. Thinner material saves weight but flexes under connector or mounting loads; thicker material raises cost and makes small flanges harder to form. Once thickness is locked, the minimum inside bend radius is set by the material. For aluminum 5052 a 1× thickness radius is usually safe; CRS can often go to 0.8× thickness with proper tooling. Calling for a sharp 0.2 mm radius on 1.5 mm stainless will crack the part or force a special die.
Bend reliefs and corner reliefs must be present wherever two bends meet. Missing reliefs cause tearing or force the operator to hand-grind the blank, which destroys consistency. The flat-pattern stage is where these details are checked; if they are missing, the program is stopped and the design is sent back.
Hole Patterns, Fasteners, and PCB Mounting
Holes near bends are a daily source of trouble. A hole whose edge sits inside 2× material thickness of a bend line will distort during forming. The safe rule is to keep hole edges at least 2–3× thickness away from any bend. PEM nuts, clinch studs, and extruded holes need the same clearance plus enough flat area for the installation tooling.

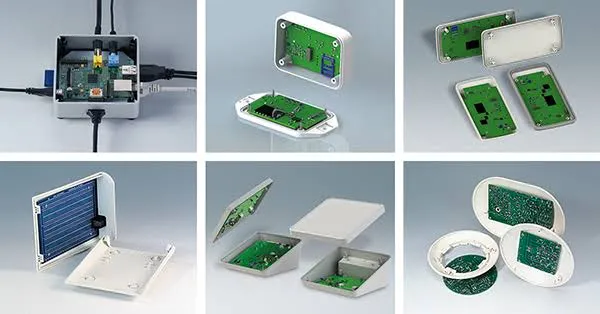

PCB mounting is usually done with PEM standoffs, extruded holes plus screws, or welded studs. The pattern must match the board's keep-out and the chassis must stay flat enough that the board does not warp when tightened. Four-point mounting is preferred; three-point can work if the board is small. Adding extra standoffs "just in case" increases cost and can create ground-loop or vibration issues if not coordinated with the PCB designer.
Stiffening Ribs, Fastener Strategy, and Structural Stability
Large flat panels flex. Ribs, embosses, or returned flanges are added to raise stiffness without increasing thickness. Ribs should run perpendicular to the expected bending direction and should stop short of the edge so they do not interfere with welding or hardware. Over-ribbing adds forming hits and can create oil-canning if the geometry is unbalanced.
Screw and fastener choice affects both assembly time and serviceability. Self-tapping screws into extruded holes are common for low-volume or field-service parts. PEM nuts give stronger, reusable threads and are preferred for higher-volume or frequently opened covers. The design should keep all fasteners accessible from one or two directions so the assembler does not have to flip the chassis repeatedly.
Thermal Paths and Ventilation That Actually Work

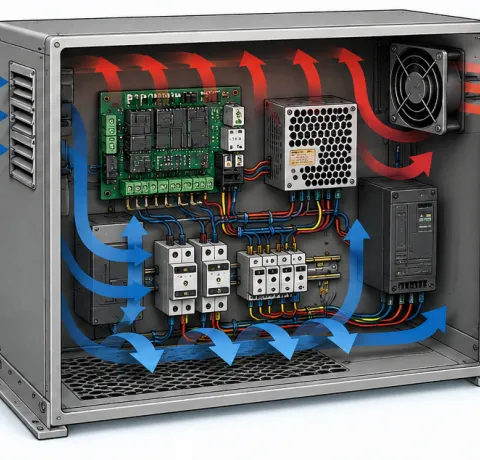

Heat leaves the chassis by conduction into the metal and by air flow through vents. Aluminum helps conduction; steel relies more on air movement. Vent patterns must be large enough for the required CFM yet small enough to meet safety and EMI rules. Louvers and perforated areas should be placed so they do not weaken critical structural walls or interfere with PCB keep-outs. Internal heat sinks or card guides need flat mounting surfaces and clearance for the forming tools that create them.
When the electronics run hot, the chassis design should provide a direct metal path from the heat source to the outer surface or to a dedicated heat-spreader plate. Relying only on small vent holes often fails once the unit is fully loaded in a closed cabinet.
DFM Checks That Prevent Shop-Floor Problems
Before the job is released, the flat pattern is checked for minimum web widths, hole-to-edge distances, bend reliefs, and hardware clearances. Welded joints need consistent gaps and access for the torch or laser. Painted or powder-coated parts require masking notes for grounding points and PEM hardware. EMI gaskets need continuous flat surfaces and fastener spacing that maintains compression.
Common failures are missing bend reliefs, holes that distort, PEM hardware placed on non-flat surfaces, and covers that do not align because cumulative bend tolerances were ignored. Each of these forces rework or scrap once the parts are already formed.
Exceptions are allowed when the electronics package leaves no other option—very tight packaging, extreme weight limits, or specific shielding requirements. In those cases the shop will run special tooling or secondary operations, but the quote and lead time will reflect the extra work. For the majority of commercial electronics the winning approach is standard thickness, generous bend radii, clean hole patterns, adequate stiffening, and clear hardware callouts. That is the core of reliable sheet metal chassis design for electronics that moves through the fab shop without drama.
