From a fabrication standpoint, the difference between outdoor and indoor sheet metal enclosures is not just a matter of adding a gasket. Outdoor units face continuous moisture, UV, temperature swings, and corrosive atmospheres. Indoor units primarily need dust control and basic mechanical protection. Most shops push designers toward the lightest protection that still meets the real environment, because every step up in IP rating, material grade, or coating thickness raises cost, lead time, and process risk.
For the majority of indoor equipment rooms and factory floors, a well-designed indoor enclosure is sufficient and far more economical. Outdoor or harsh industrial locations demand higher IP ratings, corrosion-resistant materials, and UV-stable finishes. Choosing the wrong level either wastes money or produces field failures within the first season.
Where Outdoor and Indoor Enclosures Separate in Practice
| Factor | Indoor Enclosure | Outdoor Enclosure |
|---|---|---|
| Typical IP rating | IP54–IP55 | IP65–IP66 (sometimes IP67) |
| Water & dust protection | Dust and light splash only | Full jetting water and heavy dust |
| Corrosion resistance | Standard mild steel or painted aluminum | 316 stainless, marine-grade aluminum, or heavy coated steel |
| Coating / finish | Powder coat or light paint | UV-stable powder, anodizing, or multi-layer systems |
| Temperature range | Controlled room temperatures | Wide ambient swings, solar gain, freeze-thaw |
| UV exposure | Negligible | Continuous; material and coating must resist degradation |
| Gasket & sealing complexity | Simple foam or basic elastomer | Continuous, compression-set resistant seals with proper durometer |
| Typical cost premium | Baseline | 30–80 % higher depending on material and finish |
| Common applications | Control cabinets, server rooms, indoor machines | Telecom, outdoor power, traffic, marine, chemical plants |
Decision Matrix for Real Project Priorities
| If your priority is… | Better Choice | Why |
|---|---|---|
| Lowest cost and fastest delivery | Indoor | Simpler seals, standard materials, fewer process steps |
| Exposure to rain, hose-down, or heavy dust | Outdoor | Requires true IP65/66 sealing and proper drainage |
| Coastal, chemical, or high-corrosion environment | Outdoor | Needs 316 stainless or equivalent coating system |
| Long-term UV stability and color retention | Outdoor | Indoor powders chalk and fade quickly outdoors |
| Controlled indoor climate with minimal moisture | Indoor | Over-specifying IP and materials adds unnecessary cost |
| Wide temperature swings and solar loading | Outdoor | Requires thermal design, condensation management, and UV-resistant materials |
IP Ratings and Real Sealing Performance

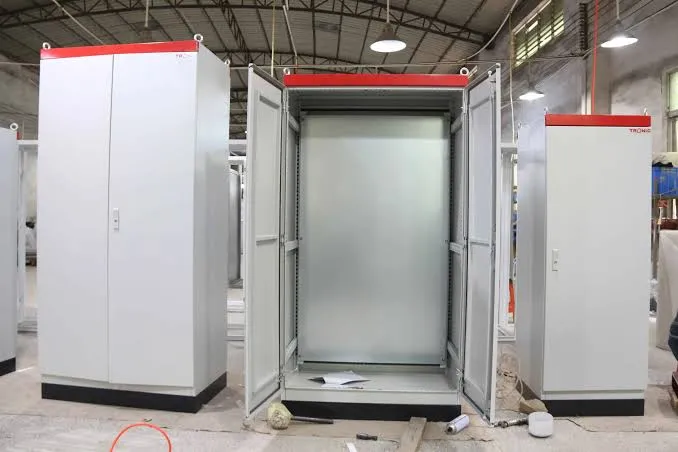

Indoor enclosures typically target IP54 or IP55. These ratings handle limited dust ingress and water splashes from any direction. Outdoor enclosures almost always start at IP65 and frequently move to IP66 when jetting water or driving rain is expected. The difference is not cosmetic. Achieving IP65/66 requires continuous gasket compression, proper door stiffness, and carefully controlled flatness on sealing faces. From a fabrication standpoint, this means tighter flatness tolerances on doors and frames, better forming of return flanges, and often secondary machining or grinding of sealing surfaces.
Most shops see higher first-article rejection rates on outdoor enclosures simply because gasket compression and door bow become critical. Indoor units tolerate minor gaps that outdoor units cannot.

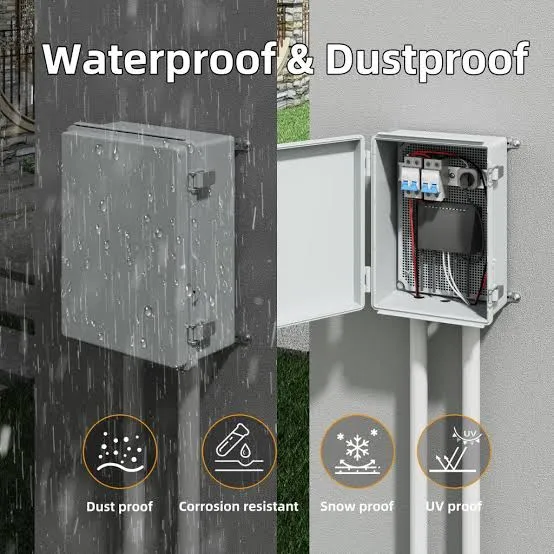

Waterproofing, Dustproofing, and Drainage Reality
Indoor designs rarely need dedicated drainage. Outdoor enclosures must assume water will eventually find its way in or condense inside. Proper outdoor design includes weep holes or drainage channels at the lowest points, careful cable gland orientation, and avoidance of horizontal surfaces that hold water. Dust exclusion is also stricter outdoors; fine industrial dust or wind-blown sand will pack into any imperfect seal over time.
During CAM review we flag designs that claim outdoor use but lack positive drainage or use gaskets that will take a permanent set after a few thermal cycles. Those units fail long before the metal corrodes.
Corrosion Resistance and Material Selection
Indoor enclosures commonly use mild steel with powder coating or aluminum with light finishing. These materials perform adequately in dry or controlled indoor air. Outdoor environments introduce moisture, salt, industrial pollutants, and temperature cycling that rapidly attack untreated steel. Most outdoor specifications move to 304 or 316 stainless steel, marine-grade aluminum, or mild steel with a multi-layer coating system that includes zinc-rich primer and UV-stable topcoat.
Material choice drives forming difficulty and cost. 316 stainless work-hardens faster and requires higher tonnage and more frequent tooling maintenance. Aluminum is easier to form but needs careful attention to galvanic compatibility at fasteners and glands. From a production yield perspective, mild steel with a robust coating system is often more economical than stainless if the coating process is controlled and the environment is not marine or chemical.
Coating Requirements and UV Stability
Indoor powder coats are selected mainly for appearance and moderate abrasion resistance. Outdoor finishes must resist UV degradation, chalking, and loss of adhesion under thermal cycling. Standard indoor powders will fade and crack within one to two years of direct sun exposure. Outdoor-rated powders use UV-stable resins and pigments, often with higher film builds and stricter pre-treatment.
In the finishing department, outdoor work requires verified pre-treatment (phosphate or conversion coating), controlled film thickness, and sometimes clear coats. Any holidays or thin spots become corrosion initiation sites. Shops that treat outdoor and indoor parts on the same line without process separation frequently see higher field claims on the outdoor population.
Ambient Temperature, Thermal Design, and Condensation
Indoor enclosures usually sit in temperature-controlled spaces. Outdoor units experience solar loading, night-time radiation cooling, and wide ambient swings. Internal temperatures can easily exceed external air by 20–40 °C under direct sun if no thermal management is designed in. Condensation becomes a real risk when warm, moist air is trapped and then cooled.
Fabricators see two common problems: electronics that overheat because the enclosure was treated like an indoor box, and corrosion or short circuits from repeated condensation. Outdoor designs often need sun shields, reflective coatings, ventilation with filters, or active cooling. These features add complexity to the sheet-metal design and to assembly.
UV Impact on Materials and Long-Term Appearance
UV is the silent killer of outdoor enclosures. It degrades polymers in gaskets, embrittles certain coatings, and fades pigments. Even stainless steel can show surface changes under prolonged UV plus pollution. Material and finish selection must account for expected solar exposure. Designs that look perfect at delivery can become unacceptable to the end user after one summer if the wrong powder or gasket compound was chosen.
From a quality perspective, we recommend specifying UV resistance requirements explicitly rather than relying on "outdoor-rated" language alone. Not all outdoor powders perform equally, and gasket compounds vary widely in UV and ozone resistance.
Safety and Regulatory Considerations
Indoor enclosures often only need to meet basic electrical safety and mechanical strength standards. Outdoor units frequently fall under additional requirements for impact resistance (IK ratings), fire performance of seals, and sometimes specific regional codes for electrical equipment in wet locations. Grounding and bonding become more critical when the enclosure is exposed to lightning risk or outdoor electrical systems.
During DFM we check that outdoor designs include proper bonding provisions, that non-metallic parts are UV and flame rated where required, and that any windows or viewing panels maintain the overall IP rating. These details are easy to overlook when converting an indoor design to outdoor use.
Recommended Figure: Decision flowchart starting from "Will the enclosure see direct weather or only controlled indoor air?" branching into material, IP, coating, and thermal design recommendations for each path.
How Fabrication Shops Evaluate Outdoor vs Indoor Designs
In CAM and DFM review the first question is always the claimed environment. If the drawing says "outdoor" but the design uses indoor-grade gaskets, standard powder, and no drainage, we flag it immediately. Process risk is higher on outdoor work because sealing faces must be flatter, coatings thicker and more consistent, and materials more expensive. Panel utilization can suffer when stainless is specified because nesting and grain direction matter more.
We also look at assembly sequence. Outdoor enclosures often need gasket installation under controlled compression and may require leak testing. Indoor units rarely do. Tooling considerations include harder tool materials for stainless and more frequent cleaning when coatings are critical. Most shops recommend starting with the indoor design and only escalating features that the actual environment demands. Over-engineering outdoor capability into an indoor application is one of the more common cost overruns we see.
Yield tends to be lower on outdoor projects during the first production runs because of the tighter process windows on sealing and finishing. Once the process is dialed in, outdoor production is stable, but the learning curve is steeper.
Which Design Should You Choose?
Choose an indoor enclosure if you:
- Operate in climate-controlled or dry indoor spaces
- Need only basic dust and splash protection (IP54/IP55)
- Want the lowest material and finishing cost
- Can accept standard powder coat without UV requirements
- Have limited temperature variation and no solar loading
- Prioritize fast lead time and simple manufacturing
Choose an outdoor enclosure if you:
- Face rain, hose-down, driving dust, or coastal air
- Require IP65, IP66, or higher sealing performance
- Need corrosion resistance beyond standard painted steel
- Expect continuous UV exposure and must maintain appearance and gasket integrity
- Must manage wide temperature swings, solar gain, or condensation risk
- Are subject to higher impact, electrical, or environmental safety standards
In borderline cases the practical solution is often a hybrid: use outdoor-grade sealing and drainage but stay with coated mild steel or aluminum instead of jumping straight to 316 stainless. This captures most of the environmental protection at a more manageable cost. Always match the design to the actual site conditions rather than defaulting to the highest available rating.
Frequently Asked Questions
Q1: Can I simply add a better gasket to an indoor enclosure and call it outdoor-rated?
A1: Usually not. Outdoor performance also depends on door stiffness, sealing face flatness, drainage, coating system, and UV resistance of all materials. Changing only the gasket rarely delivers reliable IP65/66 performance or long-term corrosion resistance.
Q2: How much more does a typical outdoor enclosure cost compared with an indoor version?
A2: Expect a 30–80 % premium depending on material choice and finish. Moving from painted mild steel to 316 stainless with UV-stable coating sits at the higher end. The exact delta depends on size, volume, and required testing.
Q3: Is 304 stainless good enough for outdoor use?
A3: In mild outdoor environments yes. In coastal, chemical, or high-pollution locations 316 is preferred because of better pitting resistance. Many shops recommend evaluating the actual atmosphere before defaulting to the more expensive grade.
Q4: Do outdoor enclosures always need special thermal management?
A4: Not always, but solar loading and wide temperature swings make internal temperature rise and condensation common problems. Simple measures such as sun shields, reflective coatings, or filtered ventilation often prevent field issues without full active cooling.
Q5: What is the most common failure mode we see on outdoor sheet metal enclosures?
A5: Seal degradation and coating failure leading to corrosion. Gaskets that take a permanent set or UV-degraded powders allow moisture ingress. Once water and contaminants enter, corrosion accelerates quickly, especially at cut edges and fastener locations.
Q6: Can an indoor design be upgraded later for outdoor use?
A6: It is usually more expensive and less reliable than designing correctly from the start. Adding seals, changing materials, and applying outdoor coatings after the fact often requires rework of doors, frames, and finishing processes. Designing for the actual environment from day one is more efficient.
```
