SMT Profile: Reflow Temperature Guide for PCB Assembly

Author : Daniel Li | PCB Assembly & Electronics Application Engineer

September 28, 2026


In surface-mount technology (SMT) assembly, a properly controlled temperature profile is essential for forming reliable solder joints. An SMT profile defines how a PCB assembly is heated, held at intermediate temperatures, brought above the solder alloy's melting point, and gradually cooled inside a reflow oven.

An optimized SMT reflow profile helps achieve consistent solder wetting, minimize thermal stress, and reduce defects such as tombstoning, solder balls, voids, and head-in-pillow. However, selecting the correct reflow temperature is not simply a matter of setting the oven to a recommended peak value. Component thermal limits, PCB copper distribution, solder paste chemistry, and board thickness all influence the actual temperature experienced by solder joints.

This guide explains the four stages of an SMT reflow temperature profile, key process parameters, and practical methods for developing and validating a reliable profile for PCB assembly.

Understanding the SMT Reflow Temperature Profile

An SMT reflow temperature profile is a time-temperature curve that describes the thermal conditions experienced by a PCB assembly during soldering. It is typically divided into four stages: preheat, soak, reflow, and cooling.

Each stage serves a different purpose. Preheating gradually raises the board temperature, soaking activates the flux and reduces temperature differences, reflow melts the solder paste to form metallurgical connections, and cooling solidifies the joints.

A well-controlled SMT profile must balance these stages rather than optimize one parameter independently.

It is also important to distinguish between oven temperature settings and actual PCB temperatures. The temperature displayed by an oven controller represents the setpoint of a heating zone, not necessarily the temperature reached by every component or solder joint. A thermal profiling measurement using thermocouples attached to representative locations on the PCB provides a more accurate picture of the real process.

The Four Stages of an SMT Reflow Profile

Preheat Zone: Controlling the Heating Ramp

The preheat stage raises the assembly from ambient to around 150 °C. The ramp is deliberately controlled to allow solvents and moisture in the solder paste to outgas gradually and to warm electronic components (particularly BGAs and I/O connectors) in a uniform manner in preparation for higher temperatures later in the process. Because components vary widely in size and thermal mass, and pads connect to copper areas of different sizes, they do not all heat at the same rate. To minimize internal and cross-component temperature gradients that can induce warpage or stress, the preheat ramp rate is typically held between 1.5 and 3 °C/s. A controlled, uniform preheat also activates the flux system, as most flux chemistries begin to activate around 150 °C.

A faster ramp helps the flux soften and spread quickly, allowing activators to disperse across the pad area. However, if the ramp is too fast, thermal stress can lead to micro-cracks in MLCCs, PCB warpage, voids, or device damage. Rapid heating can also cause solvent to outgas violently, risking solder paste slump or spattering.

A slower ramp allows more solvent to evaporate and more gases to escape through the paste matrix. This can keep paste viscosity higher prior to reflow and reduce slump. The tradeoff is oxidation: prolonged exposure to elevated temperatures in preheat can reduce flux activity later in the process.

Adjust the conveyor speed and zone setpoints to maintain a controlled ramp, often targeting less than about 2 °C/s when component size and thermal mass vary significantly.

Preheat-Related Defects and Mechanisms

1. Slump

Before melting, PCB solder paste behaves as a viscoelastic solid. As temperature rises, viscosity drops and the paste can spread beyond the intended aperture footprint. With a fast ramp, solvents have insufficient time to evaporate and viscosity can drop quickly, increasing slump risk. A gentler ramp allows more solvent to evaporate, helping maintain higher paste viscosity prior to reflow and reducing slump.

2. Solder Beads

Rapidly escaping gases can carry bits of solder paste out from under components with small standoff gaps. These isolated paste islands later melt and emerge from under the component as discrete solder beads.

Solder bead defect caused by improper SMT reflow temperature conditions

3. Solder Balls

Excessively fast heating can cause volatile materials in the paste to erupt and spatter, forming small solder spheres around pads. Slowing the ramp reduces this risk, but as with other adjustments, an overly slow ramp increases oxidation and can undermine flux effectiveness later in the profile.

4. Capillary Wicking

Wicking occurs when solder climbs up a lead or termination after wetting, depleting solder from the pad and causing insufficient solder or opens. A common cause is the component termination being hotter than the PCB pad when the paste first melts. Raising the board-side temperature or extending the time near the melting point to equalize pad and lead temperatures before wetting mitigates the issue. Once solder has wetted the pad and formed its initial meniscus, joint shape is largely established and less sensitive to the subsequent heating rate.

5. Poor Wetting

Poor wetting is frequently driven by excessive oxidation of solder particles and pad surfaces due to long preheat exposure. Reducing the thermal load absorbed during preheat can help. If line tact time or other constraints prevent shortening the process, aim for a linear, controlled ramp from room temperature to liquidus to minimize oxidation before reflow.

6. Head-In-Pillow (HIP)

HIP manifests as the component termination resting in molten solder without forming metallurgical bonding. It is often associated with wicking-induced solder depletion or non-wetting due to oxidation. Address wicking as described above, and reduce oxidation through more controlled preheat and soak conditions to restore flux activity and wetting.

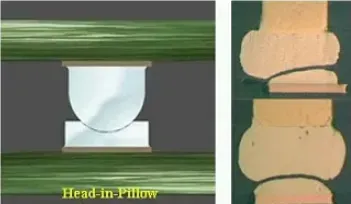

BGA head-in-pillow defect associated with SMT reflow profile conditions

7. Tombstoning and Skew

Tombstoning is driven by asymmetric wetting forces when one pad reaches reflow sooner than the other. Extending the time near the paste melting point to achieve temperature balance across both terminations, or reducing the ramp rate, helps synchronize wetting and reduce asymmetrical surface tension. Pad design matters as well: large pad size asymmetry, unequal copper connectivity, or tying one pad to a ground plane without thermal relief while the other pad is thermally isolated will create temperature differentials. When one end melts first, surface tension can lift and stand the chip on end (tombstone) or pull it off-axis (skew).

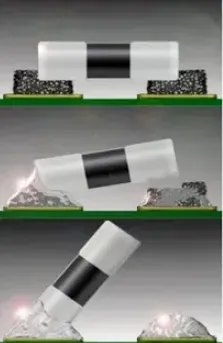

Chip resistor tombstoning caused by uneven reflow heating

8. Voids

Voids form when flux volatiles or absorbed moisture vaporize but become trapped in the molten solder and cannot escape before solidification. Excessively rapid heating and large temperature gradients increase the likelihood of trapped gases.

Soak Zone: Activating Flux and Equalizing Temperature

The soak or activation stage is often a near-isothermal segment centered around approximately 150 ± 10 °C, or it may be implemented as a sloped "ramp-to-peak" segment spanning roughly 150 to 190 °C depending on oven capability and assembly complexity. In this interval, paste is approaching melt. Volatiles continue to be driven off, and flux activators engage to remove oxides from pad and component surfaces. Convection equalizes temperatures among components of different size and thermal mass, minimizing board-level temperature differential ΔT.

For simple assemblies without large BGAs or high thermal mass components, a ramp-to-peak profile can be effective, especially in modern ovens that achieve good thermal uniformity. The objective is to ensure that when the paste reaches liquidus, all joints transition into wetting and flow at roughly the same time to produce consistent solder fillets.

The soak interval is often on the order of 60 to 120 s, typically achieved across the second and third heated zones in many ovens. Excessively long soak time can over-evaporate rosin and oxidize solder particles and pads, deactivating flux and producing dull joints, residue discoloration, or opens.

If the soak temperature rises too quickly, flux may outgas violently rather than diffusing through the paste matrix as intended, leading to blowholes, solder spatter, and solder balls. The process window is thus a balance: long enough to activate and equalize, but not so long or so hot that oxidation dominates.

Reflow Zone: Peak Temperature and Time Above Liquidus

The reflow zone is where solder paste reaches its liquidus temperature and forms electrical and mechanical connections between component terminations and PCB pads.

Two important parameters determine the effectiveness of this stage:

Peak Temperature

Peak temperature is the highest temperature reached by the assembly during the reflow process. It must be sufficiently high to ensure complete solder melting and proper wetting while remaining within the thermal limits of the components and PCB materials.

For example, SAC305 lead-free solder has a liquidus temperature of approximately 217°C. Its actual peak temperature should be selected according to the solder paste datasheet, component ratings, and measured thermal profile.

A peak temperature that is too low can cause incomplete reflow, poor wetting, and cold solder joints. Excessive peak temperature may damage heat-sensitive components, accelerate intermetallic compound growth, and increase PCB warpage.

Time Above Liquidus (TAL)

TAL refers to the period during which the measured temperature remains above the liquidus temperature of the solder alloy.

During this interval, molten solder wets the component terminations and PCB pads, allowing metallurgical bonding to develop.

Insufficient TAL may result in incomplete wetting or partially reflowed solder joints. Excessive TAL can increase thermal exposure, accelerate intermetallic growth, and affect joint reliability.

Both peak temperature and TAL should be evaluated using actual board measurements rather than relying exclusively on oven zone settings.

Cooling Zone: Controlling Solder Solidification

After the reflow stage, the cooling zone gradually reduces the PCB assembly temperature until the solder joints solidify.

Cooling rate influences solder microstructure, joint formation, and the thermal stress experienced by components.

A controlled cooling rate helps:

  • Establish a consistent solder joint structure.

  • Limit excessive intermetallic compound growth.

  • Reduce prolonged exposure to elevated temperatures.

  • Avoid excessive thermal stress during solidification.

For many SMT applications, a cooling rate around 2–5°C/s may be used as an initial reference. However, the actual cooling target must remain within the component manufacturer's specifications and the solder paste process window.

Cooling that is too slow can prolong high-temperature exposure and promote a coarser solder microstructure. Excessively rapid cooling may create thermal stress, particularly in assemblies containing ceramic components, large packages, or materials with different coefficients of thermal expansion.

The cooling stage should therefore be adjusted according to both solder joint requirements and component reliability considerations.

Recommended Reflow Temperature Parameters for Different Solder Alloys

The required reflow temperature depends primarily on the solder alloy and solder paste formulation.

Lead-free and lead-based solder pastes have different melting characteristics, so their SMT reflow temperature profiles should not be treated as interchangeable.

The following table provides general process-development references. These values are not universal production specifications and should be checked against the solder paste manufacturer's datasheet.

Process Parameter Lead-Free SAC305 Common Sn63/Pb37
Liquidus temperature Approximately 217°C Approximately 183°C
Typical peak temperature range 235–250°C 205–225°C
Heating ramp Often 1–3°C/s Often 1–3°C/s
Soak region Paste-dependent, often around 150–190°C Paste-dependent
TAL Commonly around 30–90 seconds, depending on paste Commonly around 30–90 seconds, depending on paste
Cooling rate Often around 2–5°C/s Often around 2–5°C/s

The table should be used as a starting point for process development rather than a substitute for the solder paste supplier's recommended profile.

For example, an assembly containing large BGAs, high-mass connectors, or heat-sensitive components may require a different thermal window from a simple PCB populated with small passive components.

PCB thickness, copper weight, surface finish, and component distribution can also influence the temperature differences across the board.

How to Set Up and Validate an SMT Reflow Profile

Developing a reliable SMT reflow profile requires more than entering temperature values into an oven controller. Engineers must evaluate the actual thermal response of the assembled PCB.

Review the PCB Assembly and Component Requirements

Before configuring the reflow oven, review the PCB layout, component specifications, and solder paste datasheet.

Pay particular attention to:

  • Board thickness and overall dimensions.

  • Copper distribution and large thermal planes.

  • High-mass components and large BGA packages.

  • Heat-sensitive components and their maximum temperature ratings.

  • Solder paste alloy and recommended process window.

These factors help identify locations that may heat more slowly or reach higher temperatures than the rest of the assembly.

Configure the Reflow Oven

Most industrial reflow ovens use multiple heating zones to create a controlled thermal environment.

Engineers adjust zone temperatures, conveyor speed, and airflow to establish the desired heating, soaking, reflow, and cooling conditions.

The temperature settings should be treated as initial control parameters. They do not directly represent the temperature of every solder joint on the PCB.

A reflow temperature profiling system can help monitor and record the actual temperature curve during process setup and production verification.

Measure the Actual PCB Temperature

Thermocouples should be attached to representative locations on the PCB and connected to a thermal profiler.

Typical measurement locations include:

  • Large components with high thermal mass.

  • Small components that heat up quickly.

  • Board corners and central areas.

  • Large copper-connected pads.

  • Thermally sensitive components.

These measurements reveal temperature differences across the assembly and help identify whether all critical locations remain within the specified process window.

For complex boards, multiple thermocouples are particularly useful because a single measurement point may not represent the thermal behavior of the entire assembly.

Adjust and Revalidate the Profile

If the measured temperature curve does not meet the solder paste requirements, adjust the oven zone settings or conveyor speed.

For example, a large temperature difference between the board center and edges may indicate uneven heat distribution. Engineers may need to adjust upstream heating zones or conveyor speed to improve thermal uniformity.

After adjustments, run another profiling test to confirm that the new settings achieve the intended temperature curve.

The profile should also be rechecked when the PCB design, component population, panelization, solder paste, or production conditions change significantly.

Common PCB Reflow Temperature Problems and Their Solutions

An inappropriate SMT profile can contribute to various BGA defects and other soldering issues. However, reflow temperature is not always the only cause. Engineers should also examine solder paste printing, component placement, PCB pad design, and material conditions.

Tombstoning

Tombstoning occurs when one end of a small surface-mount component lifts from its PCB pad during reflow, leaving the component standing vertically.

Uneven heating and unbalanced wetting forces are common contributors. Differences in pad geometry, copper distribution, solder paste volume, and thermal response can cause one termination to reach the wetting stage earlier than the other.

To reduce tombstoning, engineers should evaluate the heating ramp, check temperature differences between component terminations, and review pad and stencil designs.

Solder Balls and Solder Beads

Solder balls and solder beads may form when volatile materials escape rapidly from the solder paste during heating or when paste printing and handling conditions are inconsistent.

An excessively aggressive heating ramp can increase the risk of spattering. Engineers should review the preheat conditions, solder paste storage and handling, and printing quality.

Poor Wetting and Cold Solder Joints

Poor wetting occurs when molten solder does not spread properly across the component termination and PCB pad.

Possible causes include insufficient peak temperature, inadequate TAL, oxidized surfaces, contaminated pads, and insufficient flux activity.

Engineers should verify the measured reflow temperature profile and inspect the solder paste and PCB surface conditions before making process adjustments.

Head-in-Pillow Defects

Head-in-pillow defects are commonly associated with BGA assembly. They occur when the solder ball and solder paste fail to form a complete metallurgical connection.

BGA package warpage, PCB warpage, oxidation, solder paste chemistry, and insufficient thermal exposure can all contribute to this defect.

Engineers should assess the BGA's thermal response, verify peak temperature and TAL, and review the solder paste and board support conditions.

Solder Voids

Solder voids are cavities trapped within solder joints, often associated with flux volatilization, surface conditions, and insufficient gas escape during reflow.

An inappropriate soak or reflow profile may contribute to void formation, but solder paste selection, stencil aperture design, pad geometry, and via-in-pad structures should also be investigated.

A balanced thermal profile helps promote consistent flux activation and controlled solder melting.

Conclusion

An effective SMT profile is built around controlled heating, proper flux activation, sufficient time above liquidus, and appropriate cooling. Rather than relying on fixed oven settings, engineers should validate the actual PCB temperature curve and adjust the process according to the solder paste, component requirements, and board characteristics.

Through systematic thermal profiling and process verification, manufacturers can reduce reflow-related defects and achieve more consistent PCB assembly quality.



FAQ

Q1: What is the difference between an SMT profile and a reflow temperature profile?

A1: An SMT profile describes the complete thermal process used during surface-mount assembly. A reflow temperature profile specifically records how PCB temperature changes throughout the reflow oven. In most SMT soldering discussions, the two terms are used closely because reflow is a key thermal process in SMT assembly.

Q2: How often should an SMT reflow profile be checked?

A2: There is no single inspection interval suitable for every production line. Profiling frequency should be determined by process risk, equipment stability, customer requirements, and the manufacturer's quality procedures. A new profile should be verified when significant changes occur in PCB design, component loading, solder paste, or oven conditions.

Q3: Can the same reflow profile be used for different PCB designs?

A3: Not necessarily. Different PCB designs have different thermal masses, copper distributions, component sizes, and thicknesses. Even when the same solder paste is used, these differences may result in different temperature responses. Each assembly should be evaluated to confirm that its critical solder joints meet the required process window.

Q4: What is the difference between oven setpoint temperature and actual PCB temperature?

A4: Oven setpoint temperature is the programmed temperature of an individual heating zone. Actual PCB temperature is the temperature experienced by the board and its components as they travel through the oven. Thermocouples and a thermal profiler are used to measure the actual temperature curve and verify the process.

Q5: Does a higher reflow peak temperature always improve solder joint quality?

A5: No. Increasing peak temperature beyond the appropriate process window can damage components, accelerate intermetallic growth, and increase thermal stress. The correct peak temperature must provide sufficient solder melting and wetting while respecting the limitations of the solder paste, components, and PCB materials.

Daniel Li | PCB Assembly & Electronics Application Engineer Daniel Li | PCB Assembly & Electronics Application Engineer
