In production we set FPC minimum trace width spacing against the actual copper thickness on the incoming laminate, not against the nominal drawing note. With standard 18 µm (½ oz) copper the reliable production window sits at 50 µm line / 50 µm space. When the stack-up uses 12 µm copper most lines can hold 40 µm / 40 µm with acceptable yield; under tight process control and single-sided constructions 35 µm / 35 µm is achievable. Anything below 30 µm moves outside conventional subtractive etching for the majority of factories and requires either thinner starting copper or a shift to semi-additive methods. CAM engineers therefore open every new FPC job by measuring the real copper weight and locking the compensation table before panelization begins.
Why copper thickness and laminate movement force the real limit on flexible PCB line spacing
Chemical etching is isotropic. The etchant removes copper sideways at roughly the same rate it removes it downward, so the undercut volume scales directly with starting thickness. On 18 µm copper the total lateral etch typically lands between 15 µm and 25 µm; on 12 µm copper that figure drops to 10–15 µm. That difference alone sets the minimum space that can still be held after etch. FPC polyimide laminates add a second variable that rigid boards do not face to the same degree. The thin film absorbs moisture, expands and contracts with temperature swings in the wet process, and can shift several tens of microns across a panel if tension is not controlled. The combined effect of undercut plus dimensional movement is why a design that runs cleanly at 40 µm / 40 µm on FR4 often fails the same rule on flex. Factories therefore treat copper thickness and laminate stability as the two primary constraints that decide whether a given FPC minimum trace width spacing is manufacturable.
Incoming copper also varies. A nominal ½ oz foil can measure 16 µm or 20 µm depending on the supplier lot. CAM therefore never applies a fixed compensation value; the etch-factor table is adjusted after the first thickness measurement on every new material batch. Without that step the final line width drifts outside tolerance even when the artwork looks correct.
What fails on the floor when spacing is forced below the process window
When a design is released with line and space tighter than the copper thickness can support, the first symptom is usually a sharp rise in open and short failures at electrical test. Traces that were drawn at 40 µm finish at 25–28 µm after undercut and then neck further at any local copper peak; the narrowest sections open under normal handling or during flexing. Spaces that looked safe in Gerber close by 10–15 µm and create intermittent bridges that AOI may catch but flying-probe sometimes misses until the board is already in assembly. Yield on high-density zones can drop from the normal 92–95 % range into the 60 % region or lower. Because FPC material is thin and easily torn, selective rework is rarely practical; entire panels are often scrapped. The resulting delay is not just the scrap cost—new material must be ordered, the compensation table re-validated, and the job re-queued, which routinely pushes shipment by one to two weeks on a standard production cycle.
Impedance-controlled nets suffer as well. A 50 µm differential pair that etches unevenly loses its designed spacing and the impedance shifts outside the ±10 % window long before the board reaches the customer. That failure mode is especially painful on high-speed flex cables where the customer has no simple way to compensate downstream.
How CAM compensation and process control recover the designed line width
The primary recovery method is differential etch compensation applied in CAM. For 18 µm copper we typically enlarge each trace by 12–18 µm total (6–9 µm per side) so that after undercut the finished width lands on the drawing value. Spaces are correspondingly reduced in the artwork so the final gap meets the minimum requirement. The exact compensation number is taken from the etch-factor table for that specific etcher and chemistry; it is not a generic rule of thumb. Once the compensated data is released, the process side locks conveyor speed, spray pressure, and etchant concentration against a set of etched test coupons that travel with every panel. Real-time adjustments are made if the coupon width drifts more than 3–4 µm from target.

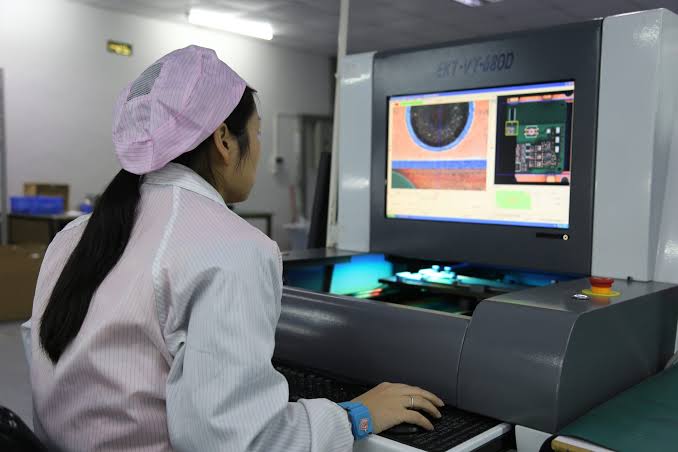

Panel design also matters. High-density areas are kept away from the extreme edges of the flexible sheet where movement is greatest. Tension frames or temporary rigid carriers are used on the thinner constructions so the polyimide stays flat under the etcher. For designs that sit near the edge of capability we add dedicated etch-rate and registration coupons on every working panel and require 100 % AOI plus flying-probe coverage before release. When the customer needs true 25 µm / 25 µm geometry we move the job out of standard subtractive etching and into a modified semi-additive flow; that changes the starting copper to a thin seed layer and replaces the isotropic etch with a controlled additive build-up. The cost and lead time increase, but the process window becomes predictable again.
When factories accept tighter flexible PCB line spacing than the standard window
Exceptions are granted mainly on low-volume or prototype lots where the customer accepts the yield risk in writing and pays for the extra inspection and process control. Designs that contain only short runs of fine lines rather than full-panel dense routing can sometimes stay inside the standard etch process with tightened AOI criteria. Single-sided constructions on 9 µm or thinner copper can realistically reach 25 µm / 25 µm because the undercut volume is small and dimensional movement is easier to manage. Double-sided or multilayer FPC with 18 µm copper almost never receives a waiver below 40 µm; the registration stack-up and etch asymmetry make the risk too high for volume production. In every case the factory still records the actual measured copper thickness and the final etched widths so the next order can start from real data rather than nominal values.
The practical limit therefore remains copper-thickness driven. Designers who need the smallest possible FPC minimum trace width spacing should start the conversation with the actual copper weight on the laminate and the expected panel size; those two numbers determine more than any other factor whether the geometry will survive production.
