Sustainable Flexible Circuits: The Rise of Bio-Based Flexible PCBs

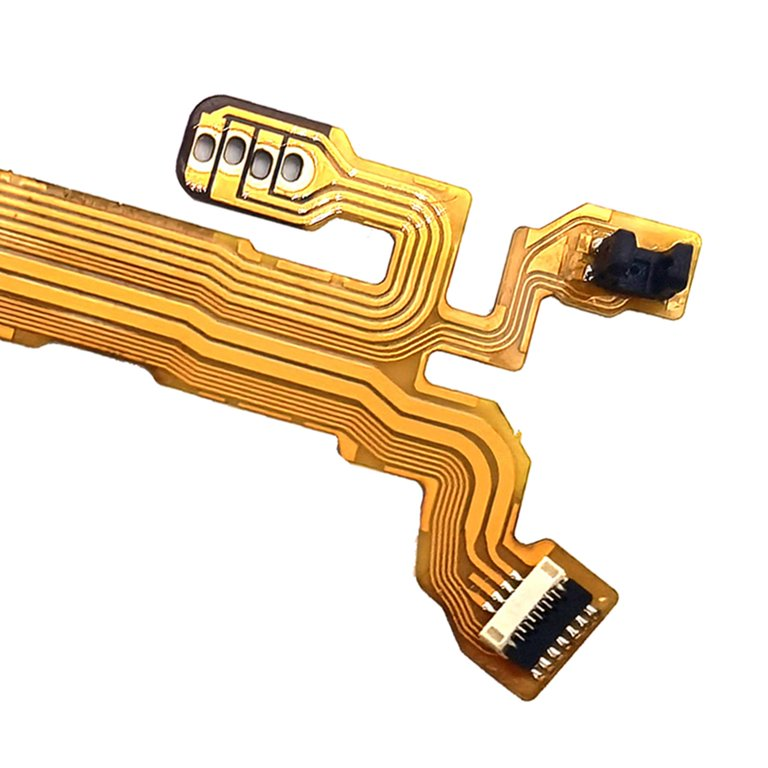

What Exactly Are Bio-Based Flexible PCBs?

As the electronics industry looks for ways to reduce material waste and environmental impact, sustainable flexible circuits are attracting growing attention. Flexible printed circuit boards are widely used in compact electronics because they support lightweight layouts, space-saving connections, and complex product shapes. However, conventional circuit materials can create challenges related to resource use, manufacturing waste, and end-of-life treatment.

One emerging approach is the development of bio-based flexible PCBs. These circuits use materials derived partly or fully from renewable sources, such as plant-based polymers, cellulose, and natural-fiber composites. Other sustainable approaches include recycled materials, lower-impact manufacturing processes, longer product life, and improved recycling or disposal methods.

Bio-based materials are not a universal replacement for conventional flexible PCB materials. Engineers must still evaluate electrical performance, flexibility, thermal resistance, moisture behavior, durability, and manufacturing compatibility. The most suitable solution depends on the application and its expected service conditions.

This article explores the role of sustainable flexible circuits, the materials being developed for bio-based flexible PCBs, their potential benefits and challenges, and the practical considerations for engineers and manufacturers.

What Are Sustainable Flexible Circuits?

Sustainable flexible circuits are flexible electronic circuits designed with greater attention to material sourcing, manufacturing impact, product lifespan, and end-of-life treatment.

Sustainability can be improved in several ways:

• Using renewable or bio-based substrate materials

• Incorporating recycled or lower-impact materials

• Reducing material waste during fabrication

• Improving manufacturing efficiency

• Extending product service life

• Designing products for repair, reuse, or easier separation

• Evaluating recycling and disposal conditions

Bio-based flexible PCBs are one part of this broader category. They focus on materials derived from biological or renewable sources, while sustainable flexible circuits may also involve conventional materials used in a more responsible way.

Sustainable Flexible Circuits Compared with Conventional FPCs

Conventional flexible PCBs often use materials such as polyimide, polyester, copper foil, adhesives, coverlay, and reinforcement materials. These materials provide useful electrical and mechanical performance, but their environmental impact depends on how they are sourced, processed, used, and discarded.

Sustainable flexible circuits aim to reduce this impact without overlooking circuit reliability. For example, a FPC design may use a renewable substrate, reduce unnecessary material layers, improve panel utilization, or select a manufacturing process that produces less waste.

The sustainability of a flexible circuit should therefore be evaluated across its entire lifecycle rather than based on one material characteristic alone.

Bio-Based Materials as Part of Sustainable PCB Development

Not exactly. Bio-based flexible PCBs use materials derived from renewable biological sources, while sustainable flexible circuits cover a wider range of environmental strategies.

A bio-based material is not automatically biodegradable, compostable, recyclable, or suitable for every application. Similarly, a conventional polyimide-based flexible PCB may still support a more sustainable product through long service life, efficient design, responsible manufacturing, and proper end-of-life handling.

The key is to evaluate the complete material system and the real requirements of the final product.

Why Are Sustainable Electronics Increasingly Important?

Flexible circuit manufacturing involves several material- and energy-intensive processes, including substrate preparation, copper processing, pattern formation, drilling or laser processing, surface treatment, lamination, inspection, and sometimes component assembly. Each stage can contribute to material consumption and manufacturing waste.

A more sustainable approach starts with design decisions. Selecting materials according to actual performance requirements, avoiding unnecessary layers or reinforcements, improving panel utilization, and reducing process scrap can all contribute to more efficient flexible circuit production.

Sustainability also becomes increasingly important when considering the full lifecycle of an electronic product. Flexible circuits can contain multiple materials that are difficult to separate after use, including polymers, copper, adhesives, coatings, stiffeners, and electronic components. This complexity can make conventional recycling difficult.

Bio-based substrates and alternative material systems may create new opportunities, particularly for products with controlled operating conditions or defined service lives. However, the presence of other materials means that the finished circuit cannot automatically be treated as a biodegradable product simply because one component is bio-based.

A lifecycle perspective is therefore essential. Material sourcing, manufacturing efficiency, product durability, energy consumption during use, repairability, and end-of-life treatment all contribute to the overall sustainability of a flexible electronic product.

Cultivating a Greener Future

Bio-based flexible PCB materials offer a crucial remedy by providing substrates that naturally decompose. By integrating these sustainable options and carefully selecting specific flex PCB substrate materials during FPC manufacturing, companies can drastically reduce landfill volumes, shrink their carbon footprint, and align with the growing consumer demand for environmentally responsible goods. This shift transcends mere trendiness; it is a fundamental requirement for the planet's ecological well-being and the future of technology.

Benefits of Bio-Based Flexible PCBs

Transitioning to bio-based materials for flexible circuit boards brings forth a multitude of advantages, positioning them as a transformative development within the industry.

Minimizing Environmental Footprint

Materials used in bio-based flexible PCBs are typically compostable or biodegradable, meaning they disintegrate into innocuous components once their operational life concludes. For example, substrates derived from polylactic acid (PLA), a bio-polymer sourced from corn starch, can decompose within industrial composting facilities in mere months. This dramatically lessens the long-term ecological burden compared to conventional materials that persist for centuries.

Performance in Advanced Applications

A common query regarding eco-friendly flex PCB alternatives revolves around their capacity to match the performance of traditional materials. Recent advancements confirm that bio-based substrates can indeed achieve comparable mechanical and electrical properties. Certain bio-based composites, for instance, demonstrate tensile strength and thermal stability suitable for demanding applications like wearable sensors, where both flexibility and resilience are paramount. While precise impedance and signal speeds can vary by material, many bio-based options effectively support high-frequency signals, typically in the 1-5 GHz range, making them viable for contemporary devices.

Related Reading: Flexible PCB Design for Wearable Health Tech: An Advanced Guide

Regulatory Compliance and Market Appeal

Around the globe, governments and organizations are enacting more stringent regulations concerning e-waste and sustainability. By embracing sustainable materials for flexible circuit boards, companies can proactively meet compliance standards and attract environmentally conscious consumers. This forward-thinking approach can also significantly bolster brand reputation and unlock novel market avenues.

Materials for Sustainable Flexible Circuits

Several material groups are being explored for sustainable flexible circuit applications. Their suitability varies according to the circuit structure, operating environment, and required production process.

Polylactic Acid (PLA) Composites

PLA, a widely adopted bio-polymer, is derived from renewable sources like corn or sugarcane. When combined with natural fibers such as flax, PLA composites can serve as effective flexible PCB substrates, offering respectable mechanical strength. Research indicates these materials, when matched with the appropriate copper thickness for flex circuits, can endure between 10,000 to 50,000 bending cycles without significant degradation, making them suitable for applications involving low-to-medium stress.

Cellulose-Based Options

Cellulose, sourced from wood pulp or cotton, presents another compelling material for compostable flexible PCBs. Its inherent flexibility and biodegradability position it as an excellent choice for sustainable electronics. Certain cellulose-based substrates have exhibited dielectric constants ranging from approximately 2.5 to 3.5, which aligns with values found in traditional flexible circuit materials.

Bio-Epoxy Resins

Crafted from plant-based oils, bio-epoxy resins provide a more robust alternative for eco-friendly flex PCB solutions. These materials boast superior thermal resistance, with glass transition temperatures (Tg) typically falling between 80°C and 120°C, enabling them to withstand moderate heat during operation or soldering processes.

While these materials are still evolving, they signify substantial progress toward sustainable electronics. Ongoing research is dedicated to refining their electrical characteristics, such as minimizing signal loss at higher frequencies, to satisfy the demands of cutting-edge applications.

Related Reading: Flexible PCBs for Smart Eyewear: Design, Materials, and Assembly

Natural Fiber-Reinforced Composites

Natural fibers such as flax, hemp, and other plant-based fibers may be combined with polymer matrices to create composite substrates.

Natural-fiber reinforcement can improve stiffness and mechanical support while reducing reliance on some conventional reinforcement materials. However, fiber orientation, moisture behavior, surface quality, and resin compatibility can influence the final performance.

These composites may be more suitable for selected flexible or semi-flexible applications than for circuits requiring repeated dynamic bending.

Recycled and Alternative Flexible Circuit Materials

Sustainability does not depend only on bio-based materials. Recycled polymers, recycled fibers, alternative insulation systems, and lower-impact copper or finishing processes may also contribute to more sustainable flexible circuits.

These options should be evaluated based on their actual recycled content, consistency, traceability, and suitability for PCB manufacturing. A material with recycled content still needs to meet the electrical, mechanical, and reliability requirements of the final product.

Challenges in Sustainable Flexible Circuit Development

Despite their considerable potential, bio-based flexible PCB materials encounter several hurdles that must be overcome for widespread integration. Acknowledging these obstacles assists engineers and manufacturers in making well-informed choices.

Balancing Sustainability and Electrical Performance

A substrate may be renewable but still unsuitable for the required electrical environment. Engineers must review dielectric behavior, insulation performance, signal integrity, copper adhesion, and dimensional stability.

For high-speed or high-frequency applications, material consistency and electrical loss become especially important. Bio-based materials should be validated against the actual signal and impedance requirements rather than selected only for their environmental profile.

Managing Moisture and Environmental Exposure

Some natural materials and bio-based composites may absorb more moisture than conventional FPC materials. Moisture can affect dimensions, insulation, adhesion, and long-term reliability.

Depending on the application, moisture-resistant coatings, protective films, sealed structures, and controlled material handling may be required. Environmental testing can help determine whether the selected material remains stable under humidity, condensation, or repeated temperature changes.

Evaluating Mechanical Durability

Flexible circuits may experience bending, twisting, vibration, stretching, or repeated movement throughout their service life. A bio-based substrate therefore needs to be evaluated together with the copper layer, coverlay, adhesive system, reinforcement, and component placement.

Bend radius, flexing mode, copper fatigue, interlayer adhesion, connector support, and reinforcement design all influence mechanical reliability. A material that performs well as a laboratory sample may still require additional development before it can support repeated dynamic movement in a finished product.

Cost, Availability, and Supply Consistency

Material availability can also limit the practical adoption of sustainable flexible circuits. New bio-based materials may have a smaller supplier base or less established production capacity than conventional flexible PCB materials.

Cost can vary according to formulation, supplier capability, production volume, and regional availability. Engineers and manufacturers should therefore consider technical documentation, material consistency, storage requirements, production lead time, and long-term supply stability alongside the initial material cost.

A promising material needs a reliable supply chain before it can become a practical option for volume manufacturing.

Manufacturing Compatibility and Scalability

New substrate materials may behave differently during coating, lamination, drilling, etching, plating, soldering, and assembly. These differences can affect both process stability and final circuit quality.

Depending on the material system, manufacturers may need to adjust lamination conditions, surface preparation, adhesive selection, drying procedures, pattern formation, surface finishing, or inspection methods.

Prototype fabrication is useful for identifying these limitations before a design moves into larger-scale production. The objective is not simply to demonstrate that a sustainable material can work in a laboratory environment, but to determine whether it can be manufactured consistently within a controlled production process.

What Innovations Are Shaping Sustainable Flexible Circuits?

The realm of sustainable electronics is progressing rapidly, with continuous developments making bio-based flexible PCBs increasingly practical for everyday use. Here are some notable innovations reflecting recent industry trends and ongoing research.

Flame-Retardant Bio-Composites

One exciting advancement involves the creation of flame-retarded bio-based composites for PCB substrates. These materials combine environmental advantages with enhanced safety features, directly addressing concerns about flammability in electronic devices. Studies have demonstrated that such composites can achieve UL-94 V-0 ratings, a crucial standard for flame resistance, all while maintaining their compostable properties.

Enhancing Performance with Natural Fibers

Another significant breakthrough is the integration of natural fibers, such as flax, into bio-based polymers. This method not only boosts mechanical strength but also contributes to a lower overall carbon footprint during production. Some of these materials have been successfully tested in flexible circuits for consumer electronics, showing impressive bending radii as low as 5 mm without cracking.

Harnessing Bio-Waste for Substrates

Additionally, researchers are actively exploring the use of bio-waste as a source for PCB substrates. For instance, agricultural byproducts are being transformed into viable materials for electronics, which further minimizes waste and supports the principles of a circular economy.

How Are Bio-Based Flexible PCBs Shaping the Future of Electronics?

The embrace of bio-based flexible PCBs is fundamentally transforming the electronics industry toward greater sustainability. As technology evolves, these materials are anticipated to play an increasingly central role across diverse sectors, from healthcare to automotive. Here's how they are contributing to this future trajectory.

Powering Green Wearables and IoT Devices

Wearable technology and Internet of Things (IoT) devices frequently rely on flexible PCBs due to their compact and lightweight designs. Bio-based substrates are exceptionally well-suited for these applications, providing an eco-conscious option for products with shorter lifecycles that are often replaced.

Advancing Medical Technologies

In the medical sector, single-use electronics such as biosensors and diagnostic patches are becoming more prevalent. Compostable flexible PCBs made from bio-based materials ensure that these disposable devices do not contribute to long-term waste accumulation, aligning perfectly with healthcare sustainability objectives.

Lowering Manufacturing's Carbon Footprint

The production of bio-based materials generally requires less energy and results in fewer greenhouse gas emissions compared to petroleum-based alternatives. This reduction in carbon footprint represents a crucial stride toward achieving net-zero targets within electronics manufacturing.

Applications of Sustainable Flexible Circuits

Sustainable flexible circuits may be suitable for a range of applications where environmental considerations can be integrated with the electrical and mechanical requirements of the product.

Wearable Electronics and IoT Devices

Wearable electronics and IoT products often require lightweight, compact, and flexible interconnections. Sustainable flexible circuits may be considered for selected devices where the operating environment is controlled and the product has a clearly defined service life.

Potential applications include activity sensors, smart labels, low-power monitoring devices, flexible user interfaces, connected packaging, and disposable sensors. Their suitability depends on factors such as moisture exposure, bending requirements, electrical performance, and expected service life.

Medical Sensors and Disposable Electronics

Medical and diagnostic products provide another potential application area, particularly for disposable or short-life electronic devices. Sustainable flexible circuits may offer opportunities where material recovery is difficult and the product has a limited use period.

However, medical applications require more than environmental considerations. Electrical safety, moisture resistance, chemical compatibility, mechanical reliability, sterilization requirements, and regulatory documentation all need to be evaluated.

A biodegradable or bio-based material is therefore not automatically suitable for medical electronics.

Consumer Electronics

Flexible circuits are widely used in displays, cameras, keyboards, wearable devices, and compact internal connections. Sustainable material options may be considered when they can meet the product's temperature, bending, moisture, electrical, and reliability requirements.

For high-volume consumer products, material consistency and supply stability are also important. A sustainable substrate needs to provide a practical balance between environmental objectives, manufacturing performance, product reliability, and commercial requirements.

Smart Packaging and Low-Power Electronics

Smart packaging and other low-power electronic products may provide opportunities for sustainable flexible circuits because some applications operate under relatively controlled conditions or have shorter service lives.

Potential uses include product identification, temperature indicators, logistics monitoring, interactive packaging, disposable sensors, and printed electronic labels.

These applications still require a clear understanding of the complete material system and its end-of-life treatment. The sustainability of the finished product should not be judged solely by the substrate.

Emerging Flexible and Printed Electronics

Flexible and printed electronics continue to expand into sensors, displays, smart surfaces, and other low-power systems. Sustainable materials may support these developments where their environmental advantages can be achieved without compromising electrical performance, safety, durability, or manufacturing consistency.

The most practical applications will likely be those where the material requirements are clearly defined and the complete product lifecycle can be considered during the design stage.

Practical Considerations for Bio-Based Flexible PCB Development

For engineers and flexible PCB manufacturers considering the integration of bio-based flexible PCBs into their designs, here are actionable steps to initiate the process.

Begin by thoroughly evaluating the specific demands of your application, including operational temperature ranges, required frequency performance, and expected product lifespan. Match these requirements with the characteristics of available bio-based materials to ensure optimal compatibility.

Next, establish collaborations with material suppliers to secure high-quality biodegradable flexible PCB substrates. Request comprehensive datasheets to gain a full understanding of critical electrical properties, such as dielectric constant (typically 2.5-4.0 for bio-based options) and loss tangent, which directly influence signal integrity.

Finally, conduct rigorous testing under conditions that simulate real-world usage. This includes simulating bending cycles, thermal stress, and exposure to humidity to confirm that your chosen material consistently meets all performance benchmarks. It is advisable to commence with small-scale prototypes before scaling up to full production.

AIVON Support for Sustainable Flexible Circuit Development

AIVON can support flexible circuit projects through material evaluation, design review, fabrication planning, prototype development, and production quality control.

Flexible PCB Material and Structure Evaluation

Material selection should be based on the circuit's electrical, mechanical, thermal, and environmental requirements. AIVON can help review the intended flexible PCB structure and identify practical material options according to the application's requirements.

This evaluation can include the substrate, copper structure, coverlay, adhesive system, stiffeners, connectors, and other structural elements that affect overall circuit performance.

Design for Manufacturing Support

Early DFM review can help identify potential manufacturing issues before production. For flexible circuits, this may involve circuit dimensions, bend areas, copper layout, connector placement, reinforcement, coverlay openings, holes and slots, and panel utilization.

A well-planned design can reduce unnecessary manufacturing changes and help improve material utilization throughout production.

Prototype Development and Production Review

Prototype production provides an opportunity to evaluate the circuit structure, material behavior, fabrication process, and assembly requirements under practical conditions.

Lessons from prototyping can then be applied when preparing the design for larger production volumes. This is particularly important when alternative or less-established materials are being considered.

Application-Specific Quality and Reliability Checks

Different flexible electronic products require different validation methods. A circuit for a wearable device may require different environmental and mechanical testing from one used in an industrial sensor, automotive assembly, or smart packaging application.

Quality and reliability checks should therefore be matched to the intended application, operating environment, and expected service life.
