Single Layer Flexible PCB Manufacturing Insights

Single layer flex circuits deliver cost-effective dynamic interconnection. They consist of copper foil bonded to polyimide or PET film substrates.

View Production Records ↓ Get Quote

Typical Specification Range

Parameter	Typical Range
Layer count	1
Material type	Polyimide film, PET film
Surface finish	ENIG, OSP, Immersion tin
Thickness	0.1mm - 0.32mm
Solder mask	Yellow, white, black
Copper thickness	0.5oz to 1oz
Special features	Dynamic flex capability, stiffener attachment, tight bend radius

Manufacturing Process Insights

Lamination bonds copper foil to dielectric film under controlled heat and tension.

Patterning applies photoresist, exposes, develops, then etches copper traces.

Drilling or punching creates component holes with precise registration.

Plating deposits metal in holes when electrical continuity is required.

Surface finish is applied according to assembly method and storage duration.

Risk control centers on material shrinkage management and registration accuracy throughout all thermal steps.

Manufacturing Order Profile

Order Quantity	Order Proportion	Estimated Price Level	Typical Lead Time
Prototype (<=30 pcs)	54%	From $43	From 4 days
Small volume (30-200 pcs)	34%	From $70	From 4 days
Mass production (>200 pcs)	12%	From $139	From 5 days

Manufacturing Challenges & Process Optimization

Material Shrinkage During Processing
Single layer flex films exhibit dimensional change when exposed to repeated thermal cycles.
High CTE of polyimide and built-in copper stress create unpredictable movement across panels.
Dimensional variation causes registration errors that reduce yield and prevent consistent final form factor.

Apply stabilized pre-baking and tension control prior to lamination.
Use vacuum fixtures and laser fiducial systems to maintain alignment during pressing.
Conduct automated optical inspection after each critical thermal process step.

View Exact Order Case

Coverlay Registration Accuracy
Coverlay film must align precisely to exposed copper pads on etched circuits.
Adhesive flow and substrate flexibility cause misalignment during lamination.
Misregistration either exposes traces to damage or blocks pads, lowering assembly yield and long-term reliability.

Optimize temperature, pressure, and ramp rates for coverlay lamination.
Deploy laser-aligned fixtures and adhesiveless coverlay where feasible.
Perform full-panel AOI to verify coverlay-to-circuit registration on every lot.

View Exact Order Case

Design Considerations

Single layer stackups define copper position relative to bend axis. Coverlay thickness and adhesive flow must be considered. Stiffener locations require careful planning for mechanical support.

Real Production Records

Order ID	PCB Type	Layers	Dimensions	Solder Mask	Surface Finish	Quantity	Action
Loading...

Common Applications

Automotive Electronics

AIVON automotive electronics PCBs are designed for demanding vehicle environments. They withstand extreme temperatures, vibration, and harsh conditions, supporting ECUs, ADAS, infotainment, and EV modules. Featuring multilayer, rigid-flex, and high-frequency designs, AIVON PCBs meet IATF 16949 standards for safe and reliable automotive performance.

Medical Devices

AIVON medical device PCBs are high-reliability boards designed for healthcare applications. Built with strict quality control, biocompatible materials, and precise manufacturing, they ensure safety and accuracy. Suitable for diagnostic equipment, patient monitoring, and wearable medical devices, AIVON PCBs meet ISO and IPC medical standards.

Consumer Electronics

AIVON's consumer electronics PCBs are precision-engineered for smartphones, tablets, laptops, and smart home devices. Using HDI design, fine-line etching, and multilayer fabrication, they deliver compact layouts, high-speed signal transmission, and strong reliability while meeting international quality and environmental standards.

View More Engineering Resources

Why Choose AIVON for Single Layer Flexible PCB

For single-layer flexible PCBs, AIVON combines lightweight construction with reliable electrical performance and excellent flexibility. Our manufacturing process supports precise patterns, consistent dimensions, and customized designs for compact electronic applications.

Quote Now

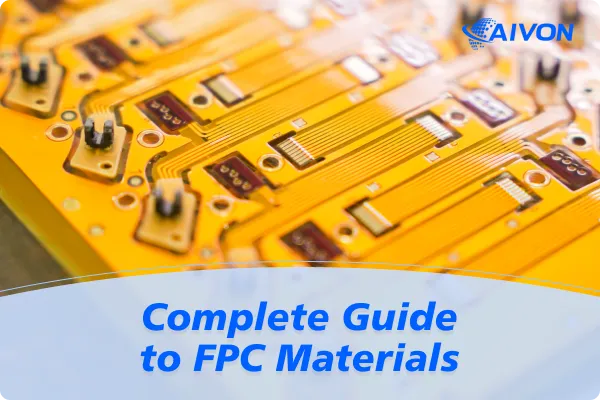

Complete Guide to FPC Materials and Flexible PCB Manufacturing

Learn how FPC materials impact flexible PCB performance. This guide covers base materials, copper types, coverlay, stiffeners, manufacturing steps, and key factors for reliable flexible PCB production.

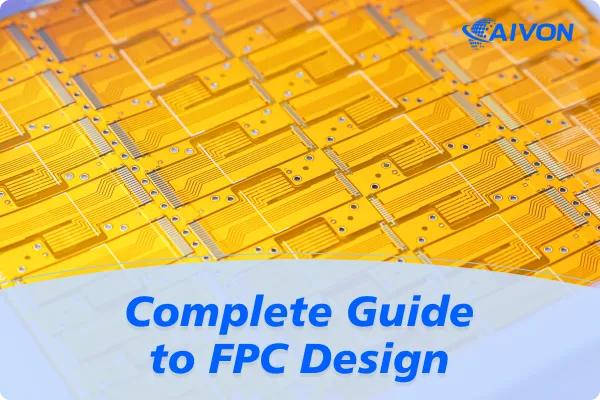

FPC Design Rules: The Complete Guide to Reliable Flexible PCB Design
